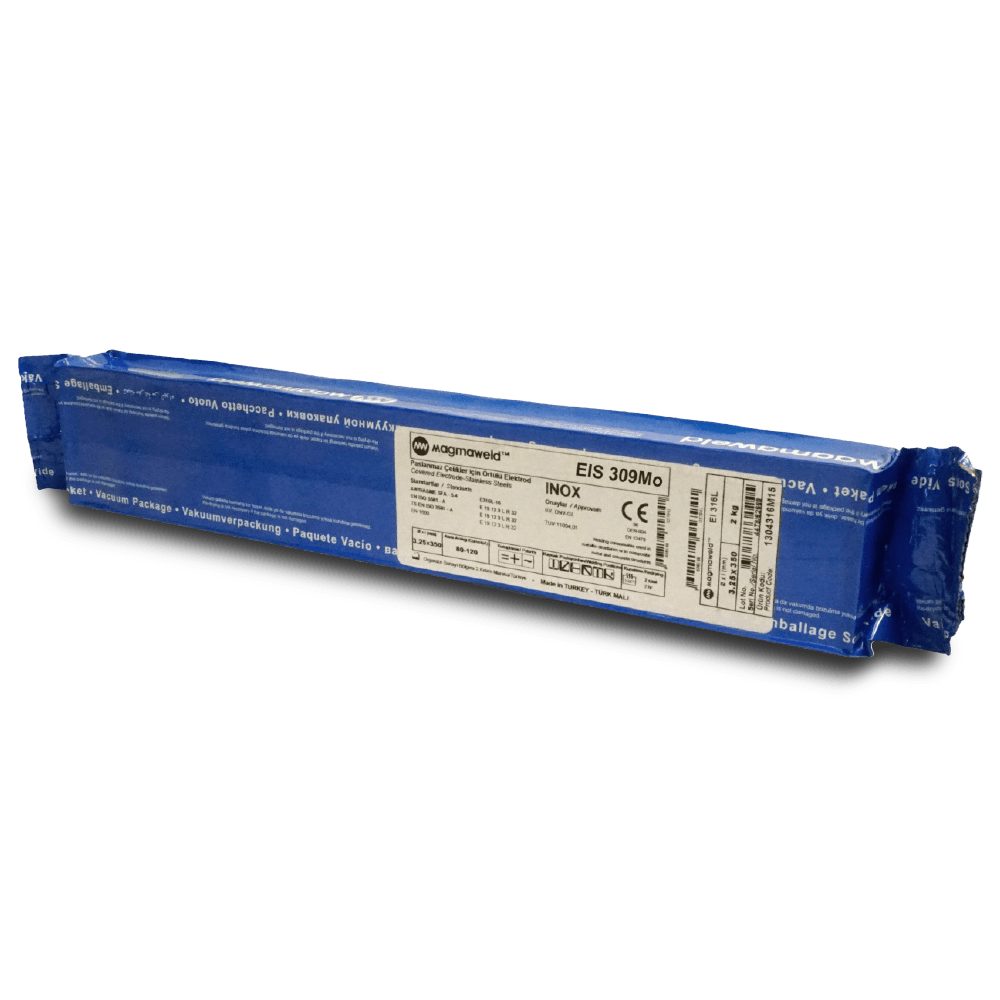

MAGMAWELD EI 309Mo Stainless Electrodes

An electrode for welding austenitic stainless Cr-Ni steels or cast steels having an extra low carbon content as well as stainless or heat resisting chromium steels or cast steels. Suitable for welding stainless tanks, valves, pipes and linings in chemical and food industries. For operating temperatures of up to +350˚C, non-scaling up to +800˚C. Easy arc striking and restriking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.

Soft Start and Restrike Stable Arc Minimal Spatter Easy to Control Weld Deposition Easy Slag Removal Fine Ripple Bead Appearance International Approvals

Standards, Classifications:

AWS/ASME SFA 5.4 E309Mo-16 |  AS/NZ 4854  |  DIN 8556 E19 9 LR 26 |  TS 2716 E 23 13 2 MPR 160 36

Typical Mechanical Properties of Weld metal:

Tensile Strength    Elongation     Impact Values

600N/mm²                  35%              50(J)+20°C

Typical Weld metal Analysis:

C 0.065%   Si 0.8%   Mn 1.45%   Cr 22%   Ni 16%   Mo 2.05%
