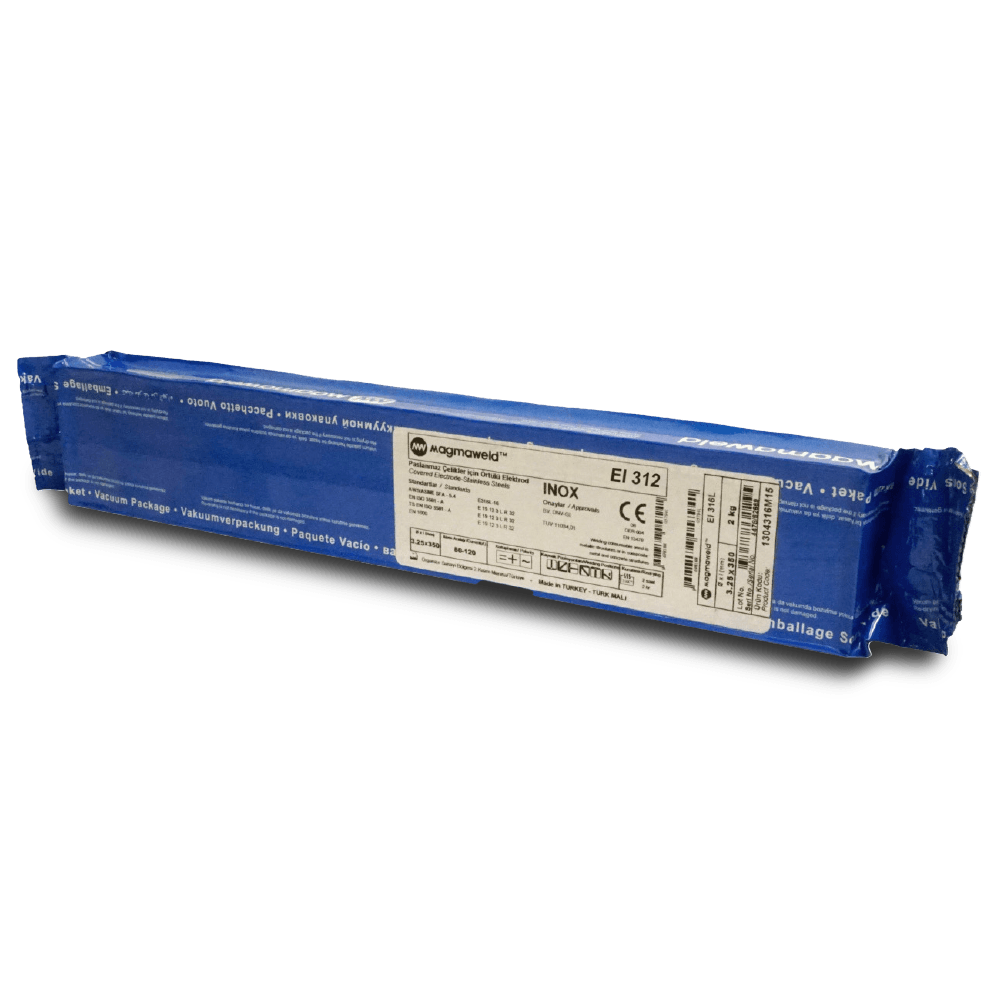

MAGMAWELD EI 312 Stainless Electrodes

An electrode for joining dissimilar steels and depositing cladding on ferritic steels. The ferritic-austenitic Cr-Ni weld metal contains approximately 50% of delta-ferrite and is non-scaling up to +1100˚C. High resistance to cracking and is suited for joining difficult to weld steels and depositing buffer layers on crack sensitive base metals. Easy arc striking and restriking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface and easy slag removal.

Dissimilar Problem Steel Welding Stable Arc Minimal Spatter Easy to Control Weld Deposition Easy Slag Removal Fine Ripple Bead Appearance International Approvals

Standards, Classifications:

AWS/ASME SFA 5.4 E312-16  |   EN1600 E 29 9 R 12  |  DIN 8556 E29 9 R26  |  TS2716 E29 9 R26

Typical Mechanical Properties of Weld metal:

Tensile Strength    Elongation     Impact Values

780N/mm²                  24%              50(J)+20°C

Typical Weld metal Analysis:

C 0.10%   Si 0.75%   Mn: 1.10%   Cr 29%   Ni 10.0%
