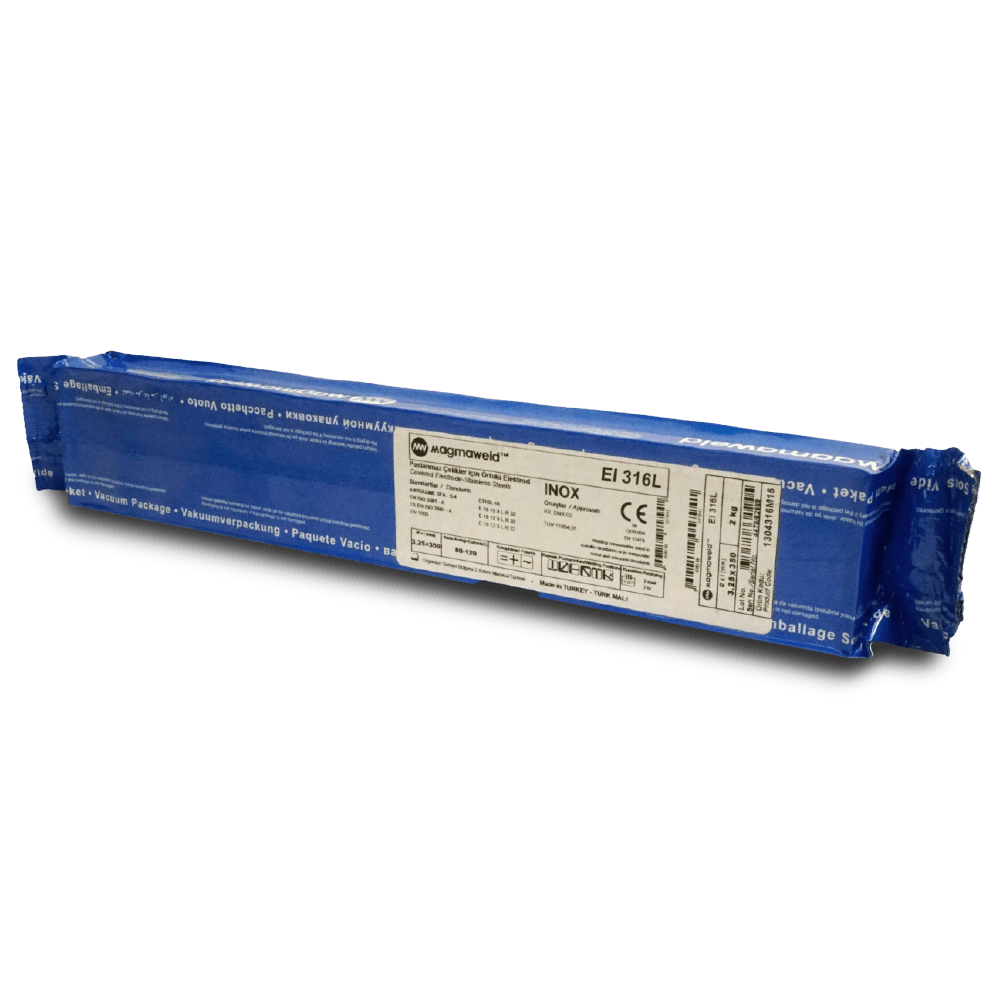

MAGMAWELD EI 316L Stainless Electrodes

An electrode for welding austenitic stainless Cr-Ni-Mo steels or cast steels having an extra low carbon content. For operating temperatures of up to +400˚C. Especially suitable for welding of stainless steel chemical tanks and pipes in chemical, textile, paint and paper industries. Possible to use equally well both with AC and DC. Easy arc striking and restriking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.

Soft Start and Restrike Stable Arc Minimal Spatter Easy to Control Weld Deposition Easy Slag Removal Fine Ripple Bead Appearance International Approvals

Classifications:

AWS/ASME SFA 5.4 E316L-16  |  AS/NZ 4854  |  EN1600 E 1912 3 LR 32  |  DIN 8556 E1912 3 LR26  |  TS2716 E 1912 3 LR26

Typical Mechanical Properties of Weld metal:

Tensile Strength    Elongation     Impact Values

560N/mm²                   37%             70(J)+20°C

Typical Weld metal Analysis:

C 0.03%   Si 0.80%   Mn: 0.90%   Cr 19%   Ni 12.0%   Mo 2.5%
