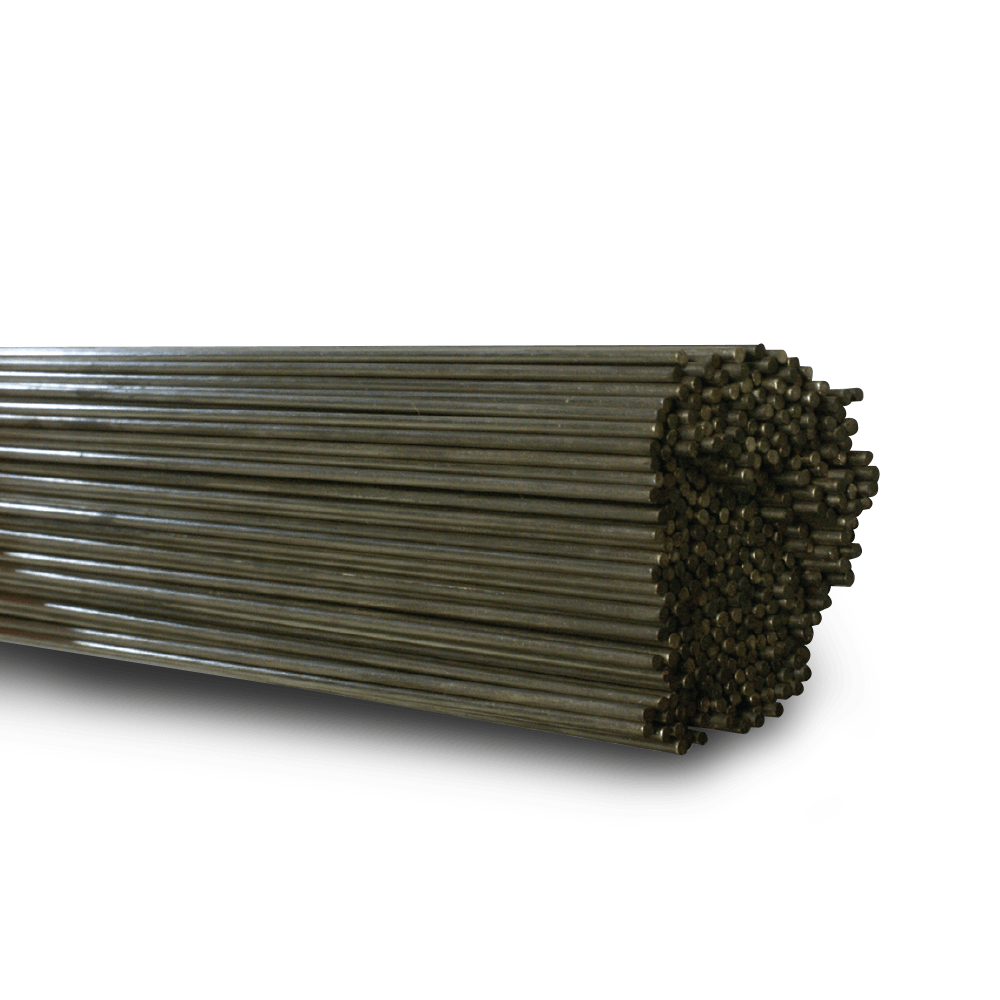

34% SILVER BRAZING ROD - Bare - Cadmium Free

This Cadmium-Free silver brazing alloy is ideal for brazing copper, nickel and their alloys, and ferrous alloys. Can be used for both induction brazing and flame brazing. The presence of tin improves wetting and fluidity making it well suited to difficult metals, e.g. tungsten carbide and stainless steel. Excellent capillary action.

Classification:

AWS: A5.8 BAg-34, EN1044 AG106, DIN8513 L-Ag34Sn

Typical Rod Analysis:

Ag:34.0%   Cu:36.0%   Zn:27.0%   Sn:3.0%

Typical Weld Deposit Properties:

Melting Range                         630-730°C

Operating Temperature         710°C

Weld Metal Density                9.0 g/cm³

Tensile Strength                     450N/mm²
