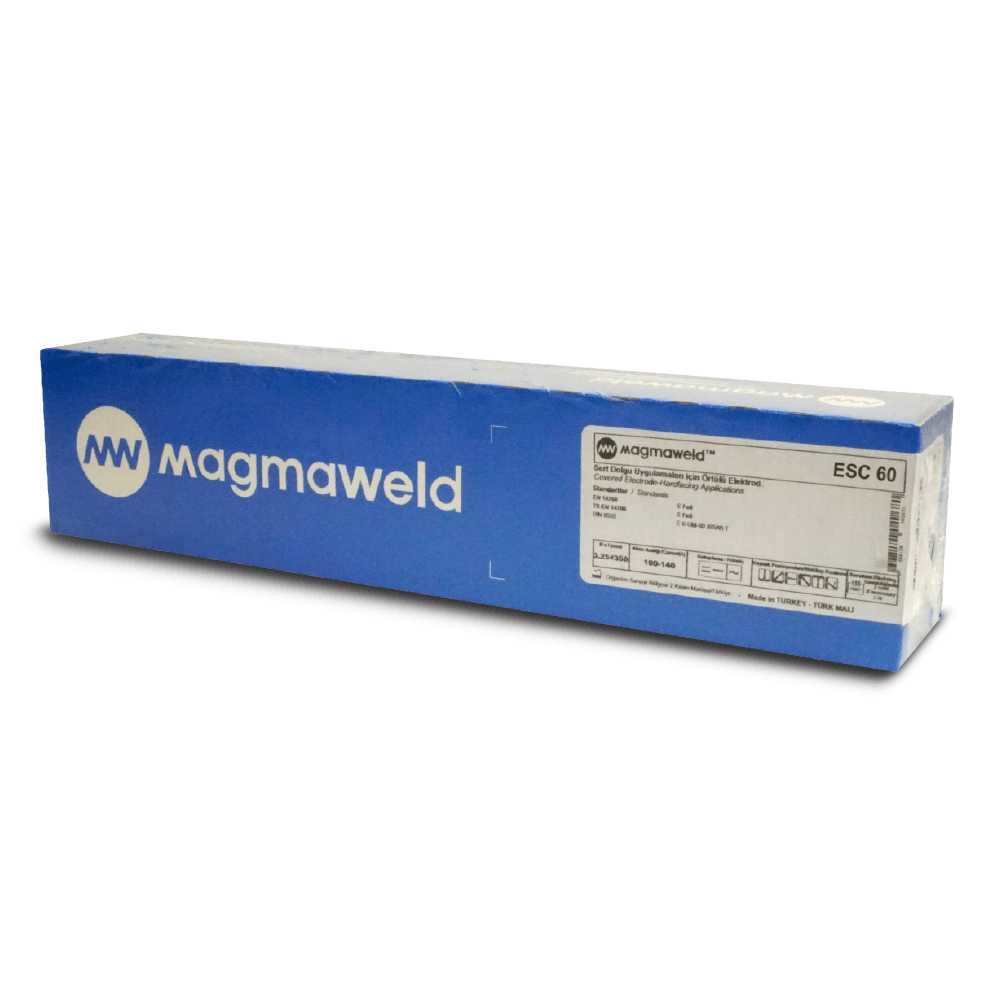

ESC60 MAGMAWELD E6010 CELLULOSIC ELECTRODES

A medium coated cellulosic type electrode for welding in vertical down technique. Due to it's high penetration it is suitable for root pass and build up passes in the vertical down direction. For use in shipbuilding, storage vessels, boilers, pipeline constructions and assembly works. DCEN (-) is recommended for root passes.

All Position Deep Penetration Vertical Down welding Easy to Control Good Weld Finish International Approvals

Classification:

●AWS/ASME SFA 5.1 E6010

● EN499 E 35 2 C 21

● DIN 1913

Typical Mechanical Properties of Weld metal:

Yield Stress        Tensile Strength      Elongation             Impact Values

470N/mm²            530N/mm²               28%             60J@-20°C - 50J@-30°C

Typical Weld metal Analysis:

C: 0.10% Si: 0.20% Mn: 0.50%
