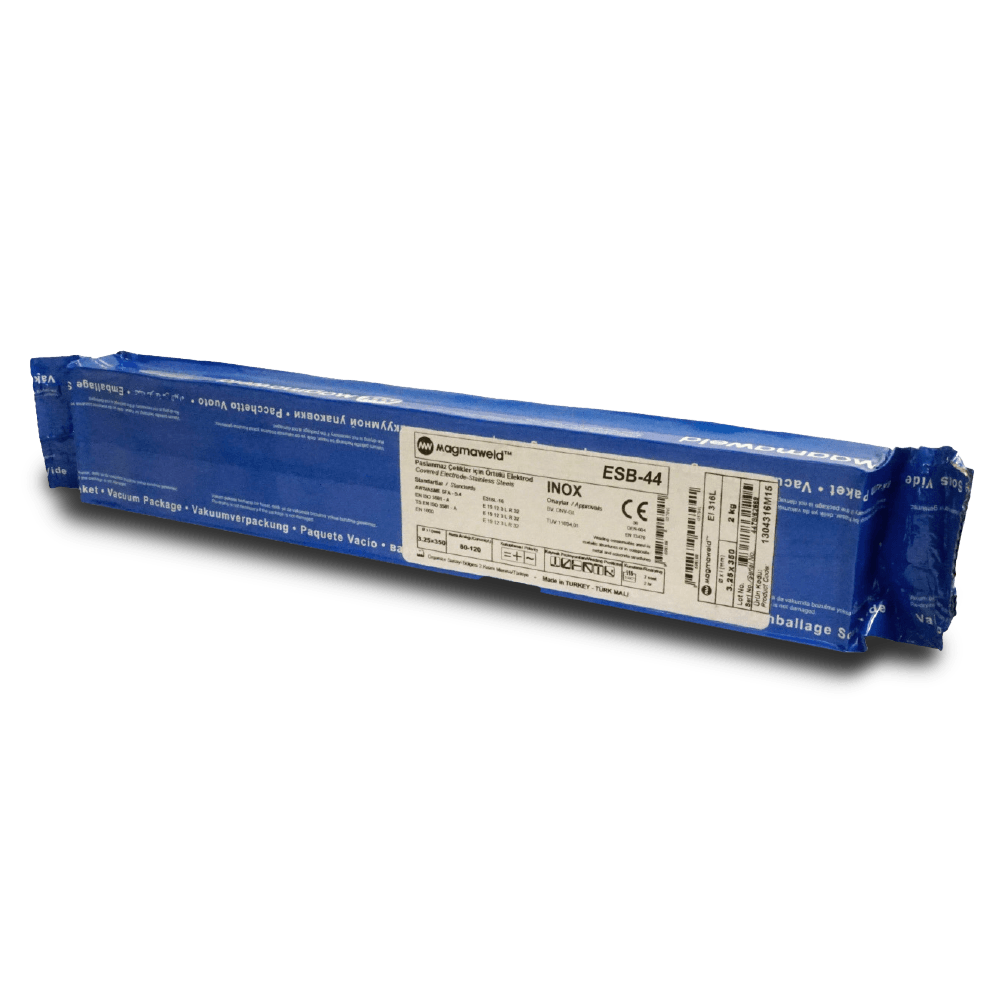

ESB44 MAGMAWELD E7016 Low Hydrogen Electrodes

A multipurpose electrode suitable for structural steel, workshop and maintenance welding. Smooth and clean welds blending into base metal without undercuts. Excellent gap-bridging properties. The dual covering of this electrode produces a stable, concentrated and directed arc, thus being ideally suited for root pass and positional welding. Welds are of X-ray quality.

All Position Easy Restrike Stable Arc Minimal Spatter Easy to Control Weld Deposition Easy Slag Removal Good Weld Bead Appearance International Approvals

Classification:

AWS/ASME SFA 5.1 E7016 H8  |  AS/NZ 4855 2007  |  EN499 E 38 2 B 12 H 10  |  DIN 1913 E 51 43 B (R) 10

Typical Mechanical Properties of Weld metal:

Yield Stress    Tensile Strength     Elongation          Impact Values

460N/mm²        530N/mm²               29%         70J@-20°C - 60J@-30°C

Typical Weld metal Analysis:

C: 0.08% Si: 0.3% Mn: 0.5%
