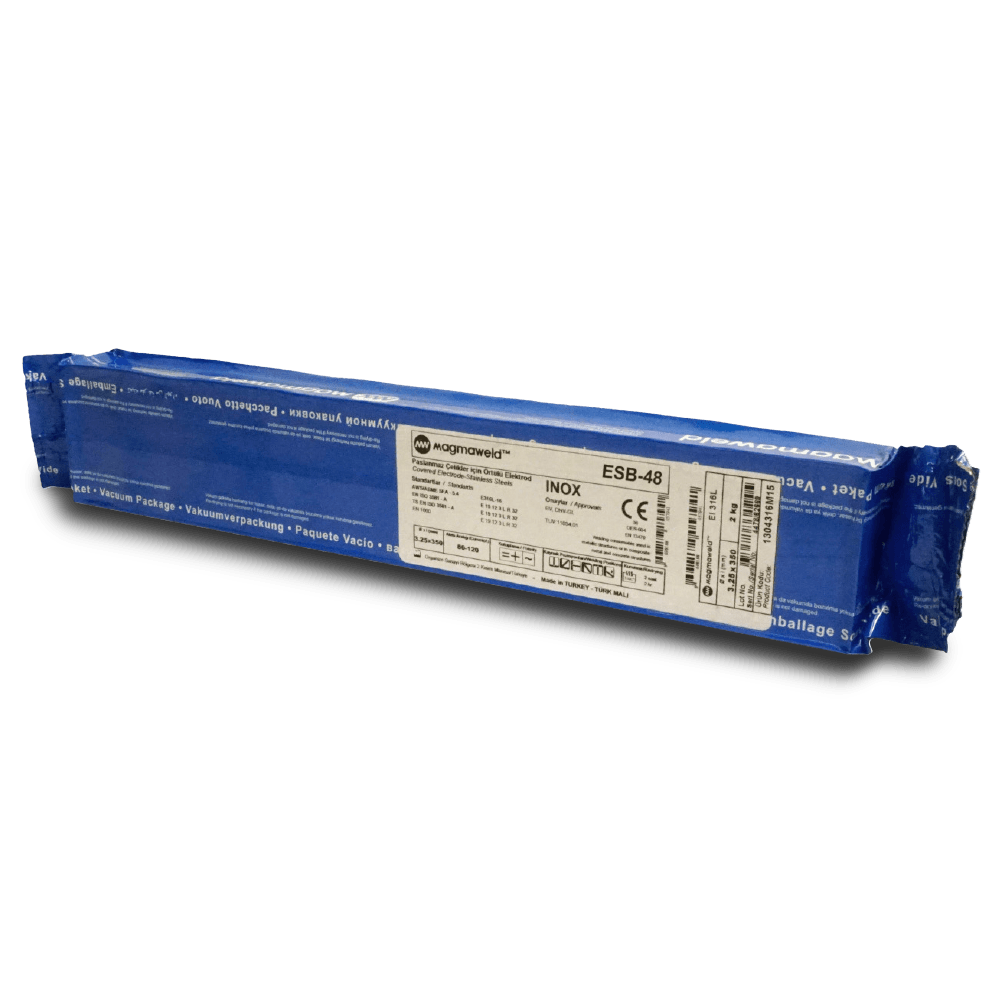

ESB48 MAGMAWELD E7018 Low Hydrogen Electrodes

ESB48 MAGMAWELD E7018 Low Hydrogen Electrodes are Suitable for welding fabrication of dynamically loaded steel constructions, bridge, shipbuilding, pipe-line, pressure vessels, tanks, boiler and machines where high toughness is required. Weld metal recovery is approx. 115 %. Smooth and clean welds merging into base metal without undercuts. Good gap bridging properties. Welds are of X-ray quality.

It is suited for depositing buffer layers on higher carbon steels.

All Position Stable Arc Minimal Spatter Easy to Control Weld Deposition Easy Slag Removal Good Weld Bead Appearance International Approvals

Classification:

AWS/ASME SFA - 5.1 E 7018 - H8 | EN ISO 2560 - A E 38 2 B 12 H10  | TS EN ISO 2560 - A E 42 3 B 42 H10

DIN 1913 E 51 54 B 10 • TS 563 E 51 54 B 10 (H)

Typical Mechanical Properties of Weld metal:

Yield Stress  Tensile Strength    Elongation            Impact Values

500N/mm²    570N/mm²           26%            90J@-30°C - 80J@-60°C

Typical Weld metal Analysis:

C: 0.07% Si: 0.40% Mn: 1.00%
