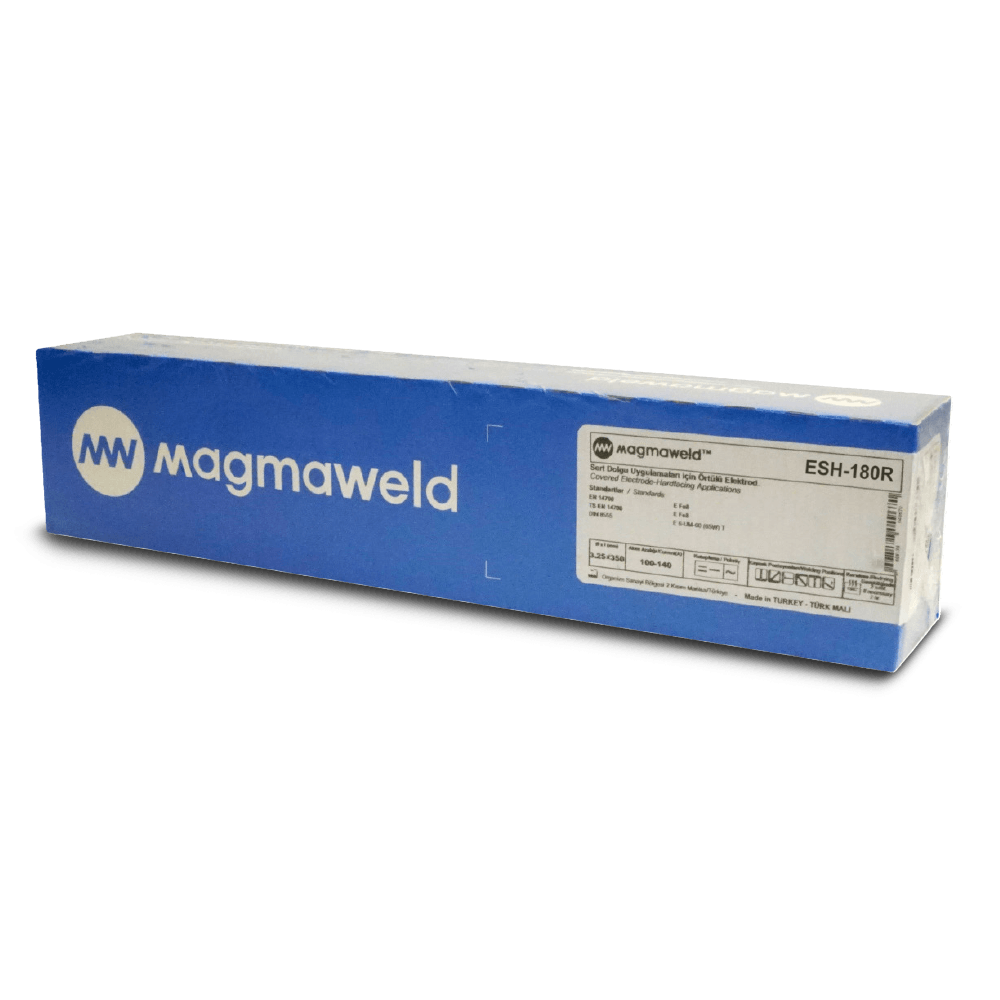

ESH180R MAGMAWELD E7024 IRON POWDER ELECTRODE

A heavy coated, rutile type high-efficiency electrode having a weld metal recovery of approximately 180 %. It is suited to producing long fillet welds and economically filling-up large weld sections. The core wire diameters, deviating from standard diameter, are so calculated as to produce definite throat thickness (a=3 to 6 mm). Relatively low current intensities and short burn-off times. ESH180R exhibits good welding properties.

High Deposition Easy Strike and Restrike Smooth Stable Arc Minimal Spatter High Weld Deposition Self Releasing Slag International Approvals

Classification:

AWS/ASME SFA 5.1 E7024 |  EN499 E 38 A RR 73  |  DIN 1913 E 51 11 RR 11 180

Typical Mechanical Properties of Weld metal:

Yield Stress        Tensile Strength      Elongation      Impact Values

>380N/mm²     510-610N/mm²       >24%                50J@+20°C

Typical Weld metal Analysis:

C: 0.10% Si: 0.40% Mn: 0.90%
