1.0-4.8mm
Electrode size compatibility.
240A
Maximum output.
30% MORE POWER
Compared to XA26 TIG Torch
UP TO 20X LONGER CONSUMABLE LIFE
Superior life & better performance.

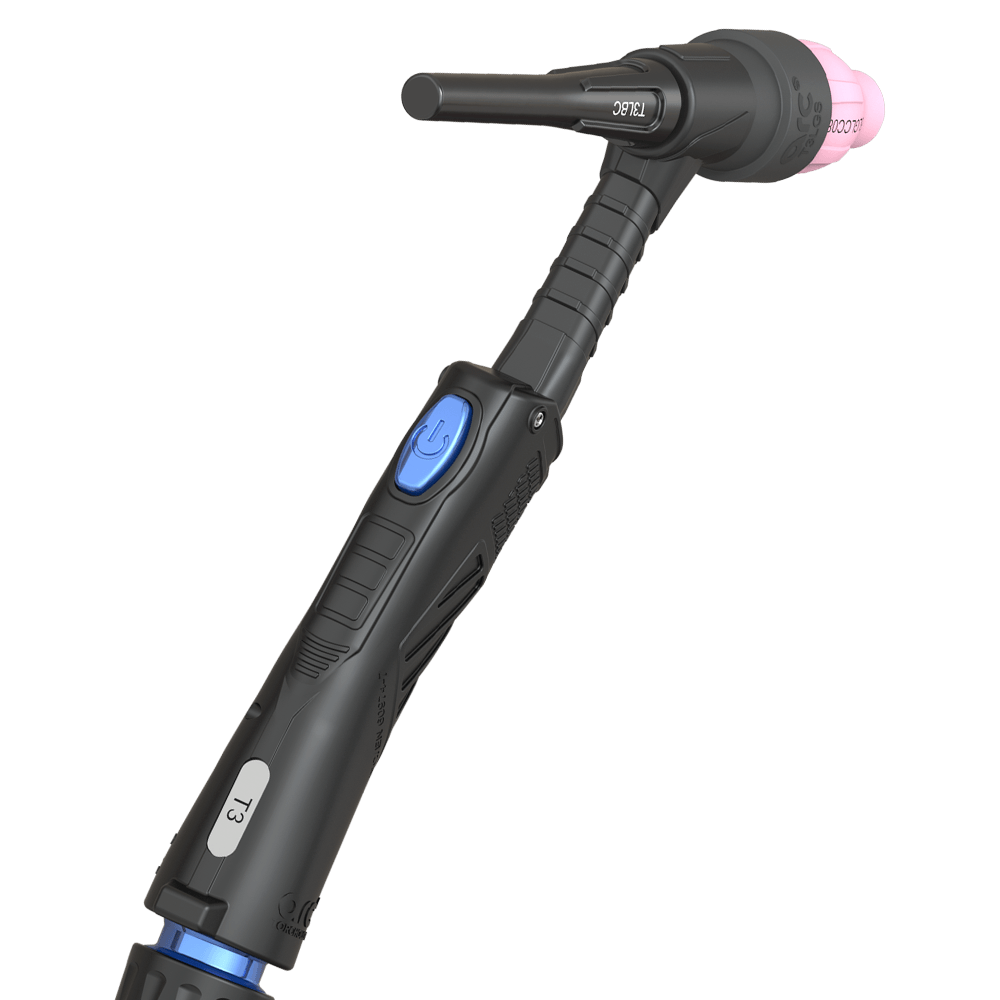

The ARC TORCHOLOGY® T3 TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a 30% better power to weight ratio compared to standard Xcel-Arc torches – more power in a lightweight body! The T3 TIG Torch also comes with a flex-neck torch head as standard, perfect for TIG welding in tighter and restrictive environments.

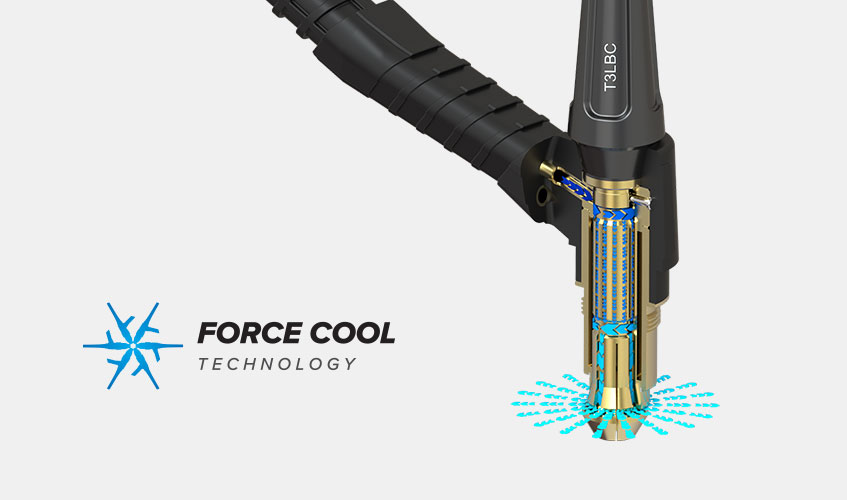

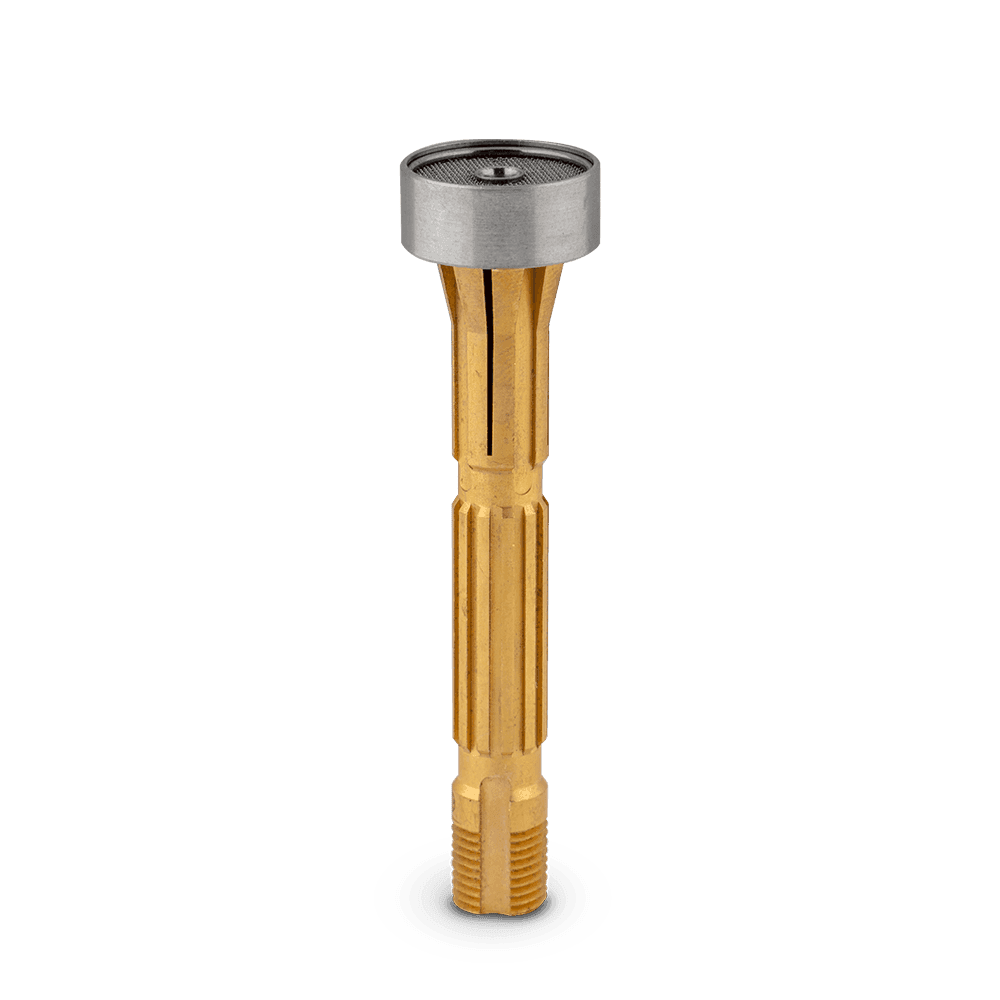

FORCE COOL™ TECHNOLOGY

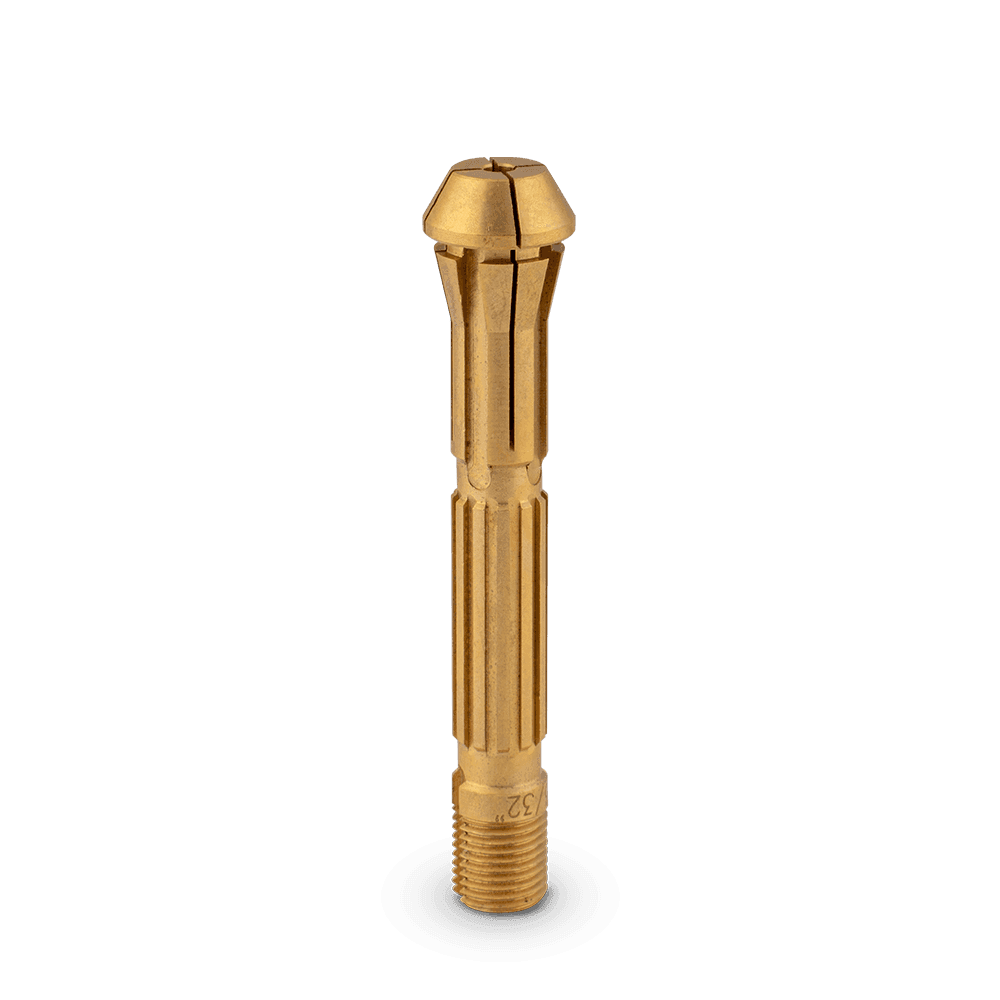

A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.

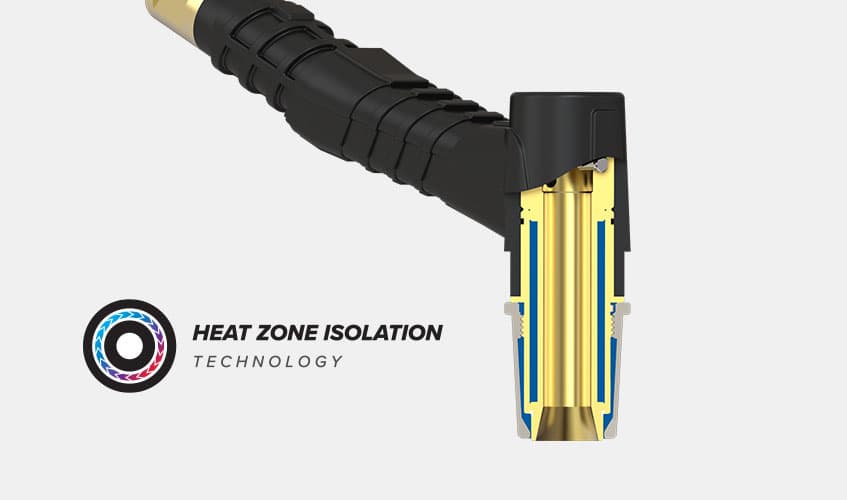

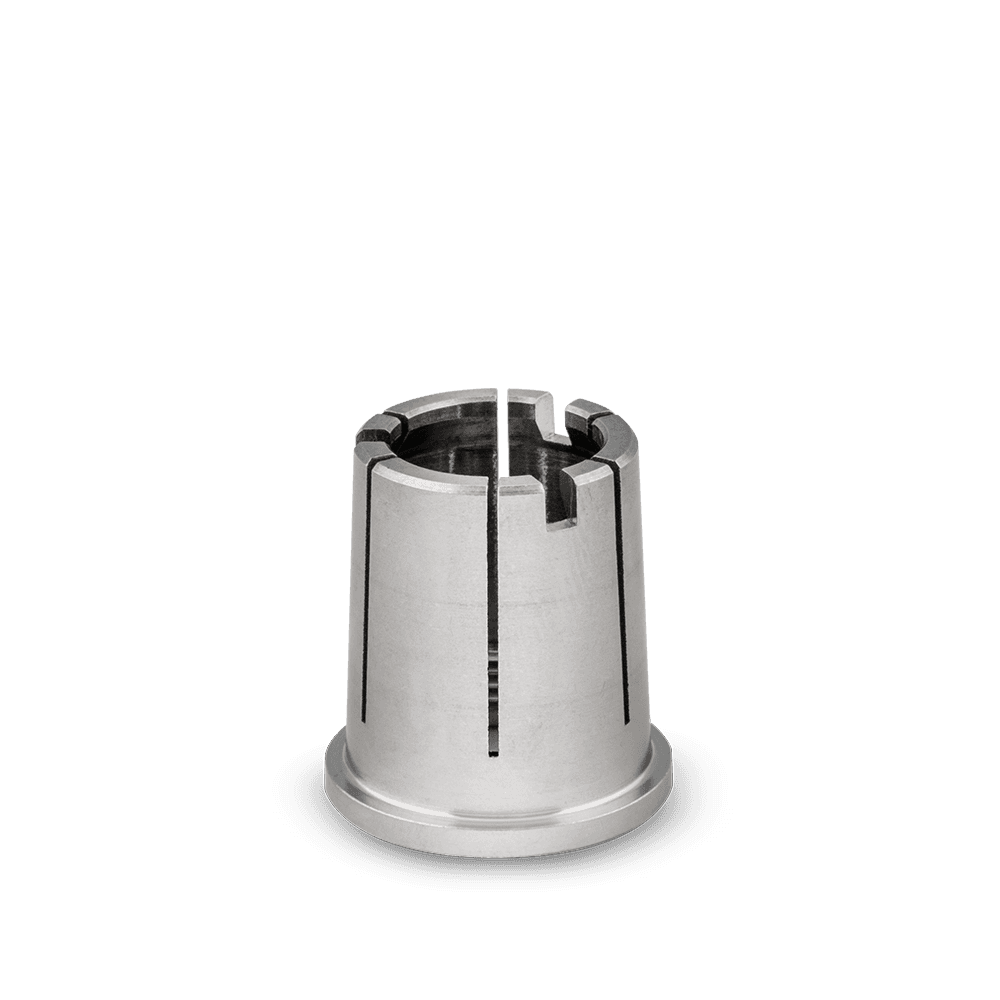

HEAT ZONE ISOLATION™ TECHNOLOGY

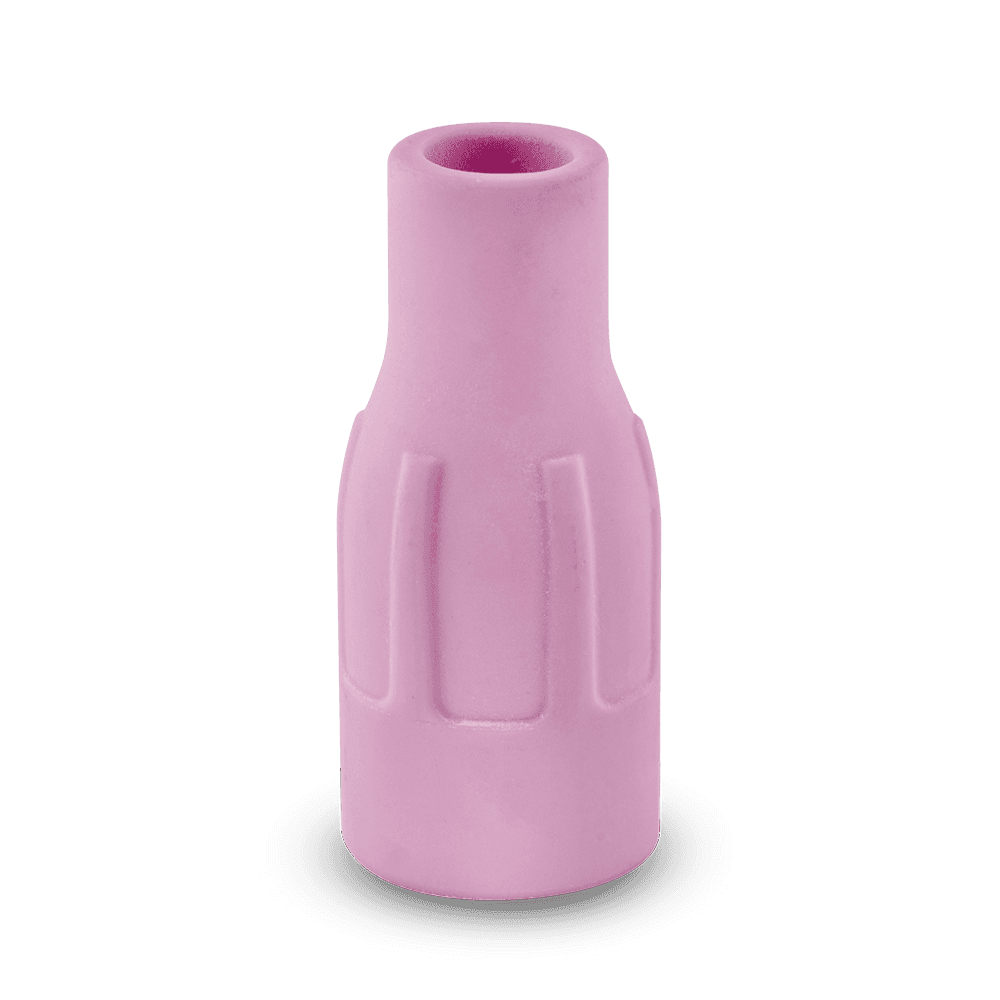

Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

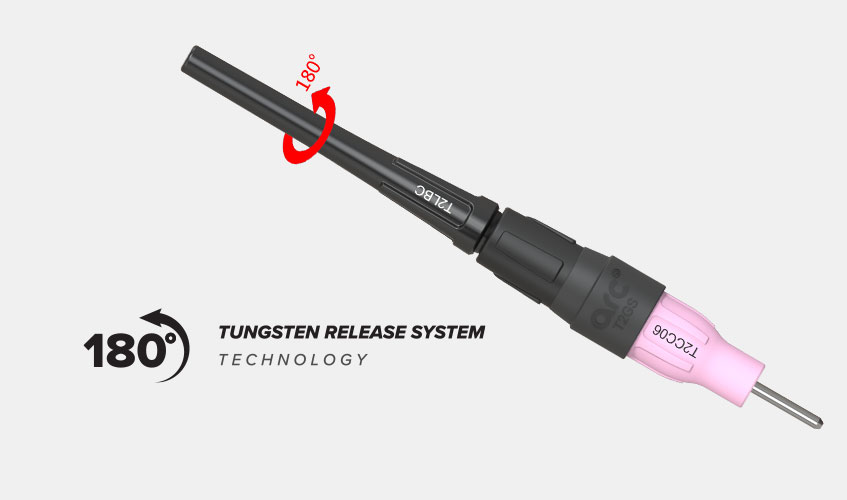

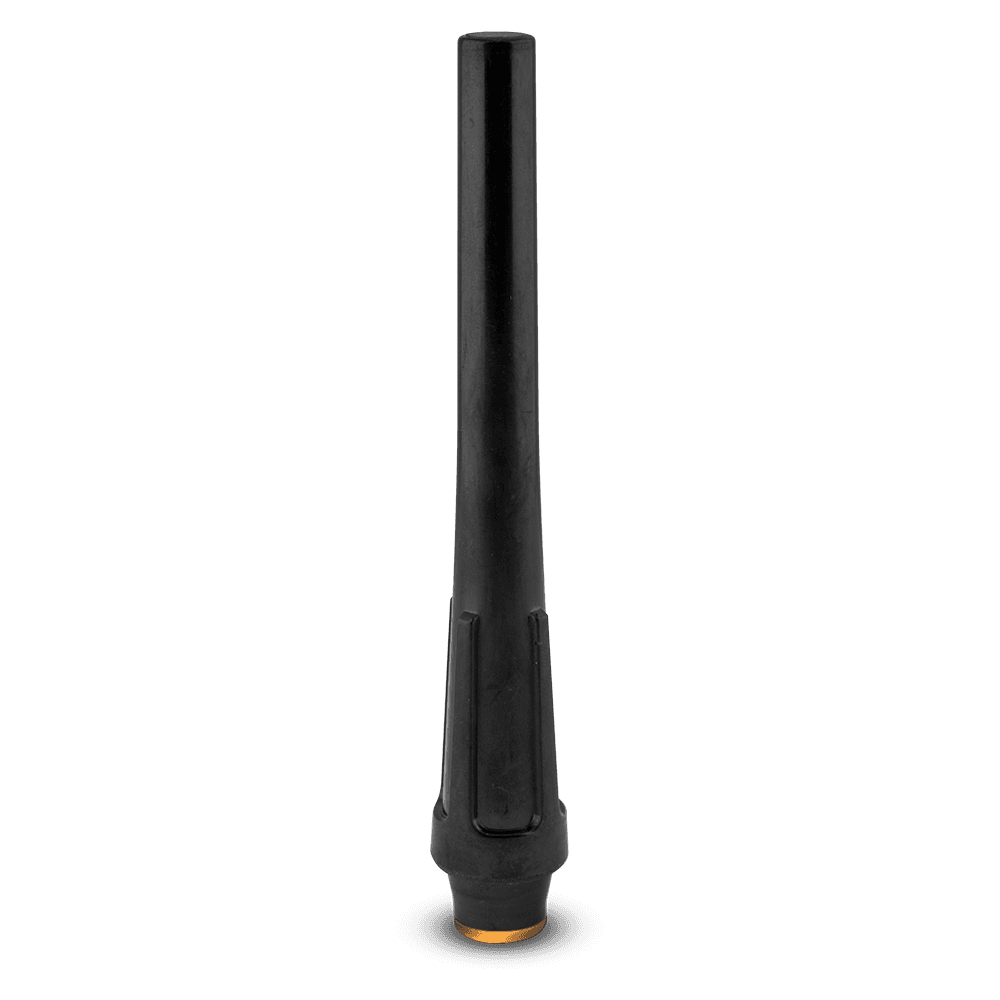

TUNGSTEN RELEASE SYSTEM™
Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.

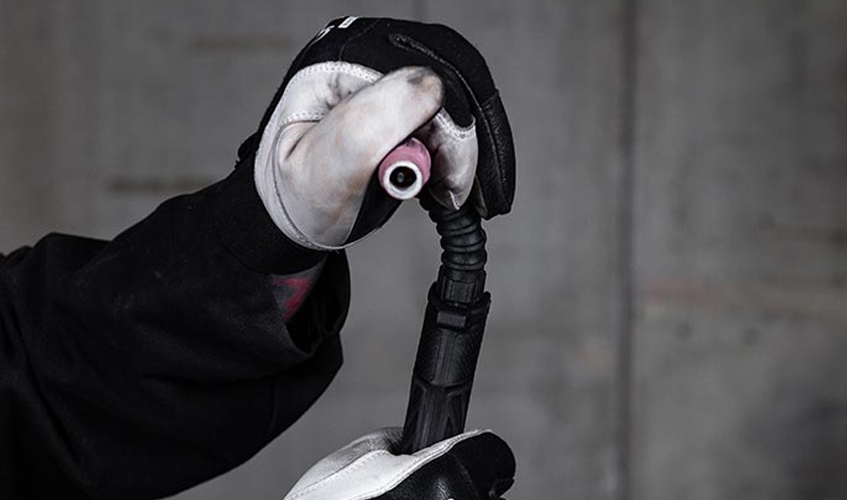

FLEX-NECK TORCH HEAD
ARC TORCHOLOGY® Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
TIG Torch Specifications
- Cooling Method
- Air Cooled
- Duty Cycle - DC
- 35% @ 240A
- Duty Cycle - AC
- 35% @ 170A
- Lengths M
- 4/8
- Dinse Size
- 35/50
- Electrode Size
- 1.0-4.8mm
- Standard
- EN60974-7
