1.0-4.0mm
Electrode size compatibility.
400A
Maximum output.
BETTER POWER-TO-WEIGHT RATIO
More power from a lighter torch
UP TO 20X LONGER CONSUMABLE LIFE
Superior life & better performance.

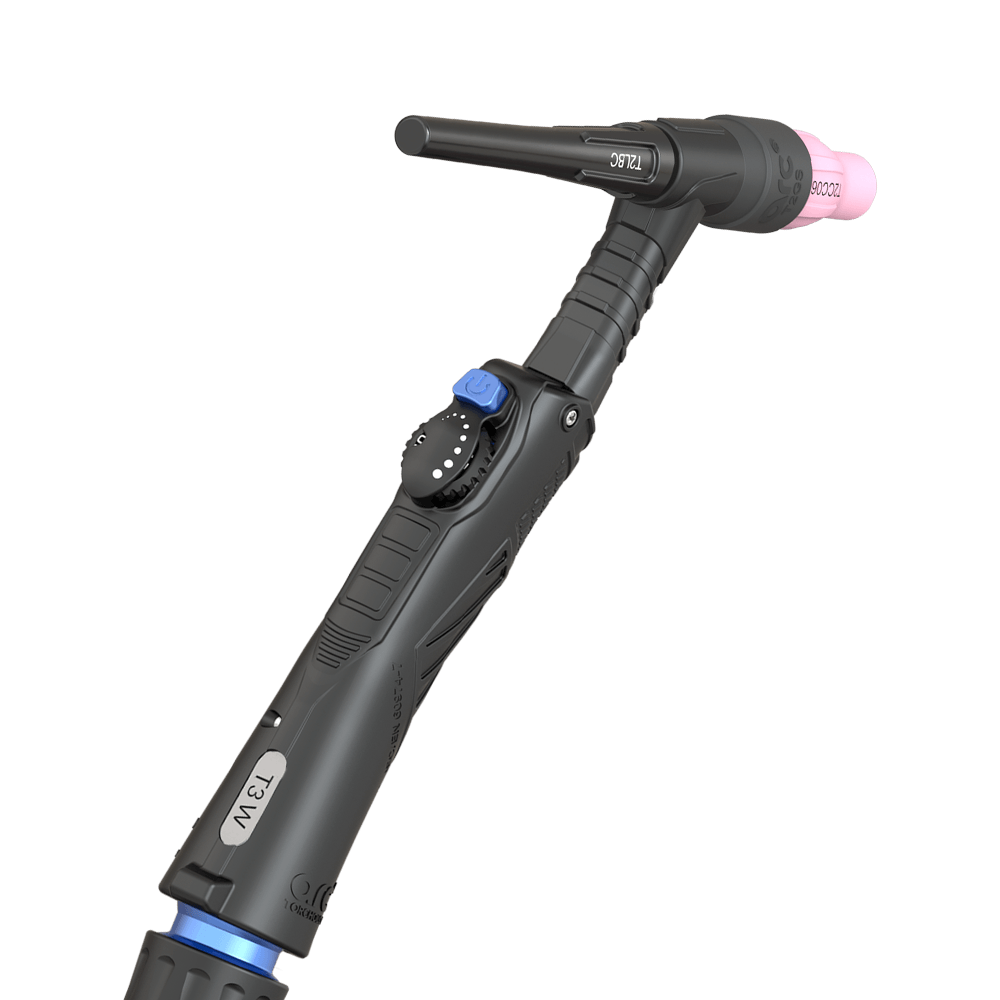

The ARC TORCHOLOGY® T3W Liquid-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard Xcel-Arc torches – more power in a lightweight body!
FORCE COOL™ TECHNOLOGY
A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
HEAT ZONE ISOLATION™ TECHNOLOGY
Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

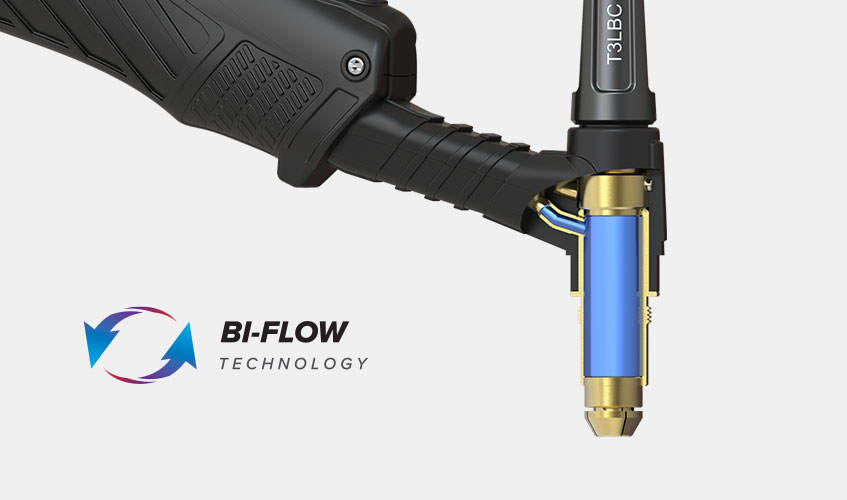

BI-FLOW™ TECHNOLOGY
High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.
TUNGSTEN RELEASE SYSTEM™
Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
TIG Torch Specifications
- Cooling Method
- Liquid Cooled
- Duty Cycle - DC
- 4m -100% @ 400A | 8m - 60% @400A
- Duty Cycle - AC
- 4m -100% @ 280A | 8m - 60% @280A
- Lengths M
- 4/8
- Dinse Size
- 35/50
- Electrode Size
- 1.0-4.0mm
- Standard
- EN60974-7
Water Cooler Specifications
- Minimum Water Flow
- 1.5L/min
- Minimum Water Inlet Pressure
- 3.0 Bar
- Maximum Water Inlet Pressure
- 5.0 Bar
- Maximum Water Inlet Temperature
- 50°C
- Minimum Cooling Power
- 900W
