Xcel-Arc
AS6000F

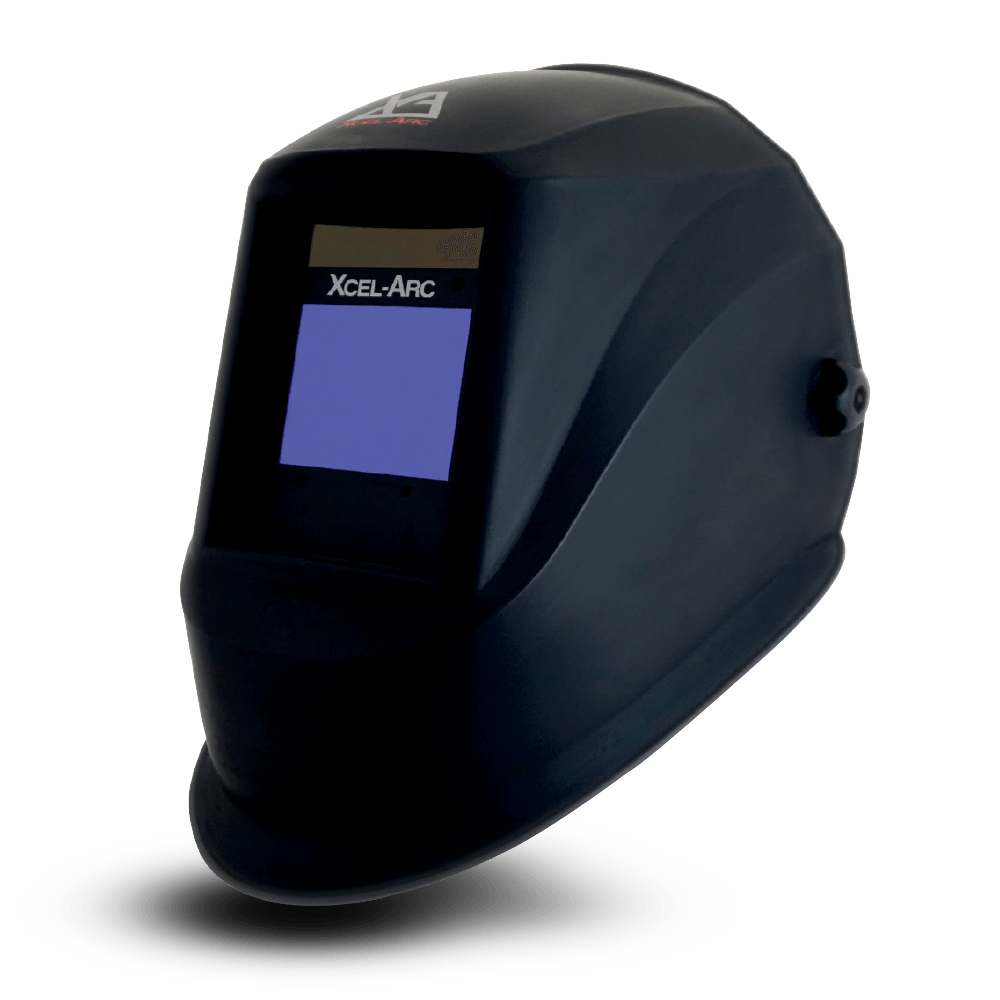

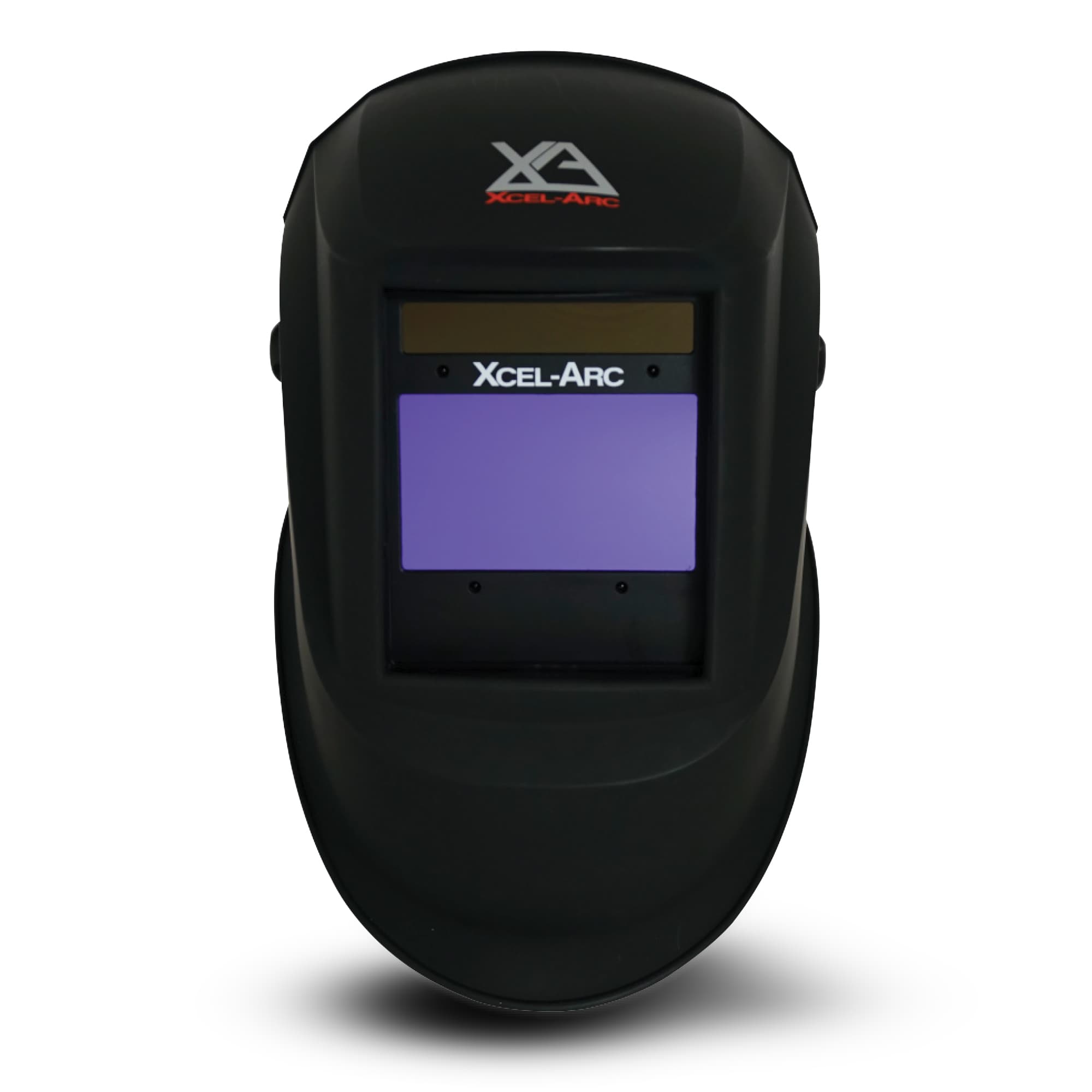

AS6000F Welding Helmet

AS6000F

4 ARC SENSORS | BACKUP BATTERY

In stock

100x60mm

View Size.

9-13

Shade Control.

4 Arc Sensors

Constantly monitor the arc.

GRIND MODE

For use when grinding.

The Xcel-Arc AS6000F is a well-priced, high quality wide view automatic welding helmet that’s suitable for all welding applications. The AS6000F includes a Grind Mode function, as well as ELITEVISION™ and the latest Comfort Headgear design. The AS6000F helmet features four independent arc sensors with solar powered cells and easily replaceable batteries. The AS6000F features internal controls with variable shade 9-13 and is TIG operable to 3 amps. Controls include adjustable time Delay to clear state and Sensitivity for triggering to dark state.

The AS6000F is a lightweight and comfortable design offering excellent neck coverage and protection whilst the unique shape design helps channel welding fumes away from the helmet and face area. DIN standard approval guarantees maximum eye protection during welding. The features and price of the AS6000F makes it without doubt the best value for money mid-level automatic welding helmet on the market today. The AS6000F is backed with a 2-year warranty for your peace of mind.

ELITEVISION™ Lens Technology

Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding. Click and slide the icon to see the difference.
True Colour View Regular Lens 1

1/1/1/2 CLASSIFICATION

Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/2 classification for optical quality, diffusion of light, light consistency and angle dependence.
1 1 1 1 Classification RWX6000

MEMORY STATES

The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).
Power Factor Correction 1

Helmet Specifications

Filter Dimensions
114x133x9.5mm
View Size
100x60mm
Arc Sensors
4
Classification
1/1/1/2
Light State
4
Dark State
9-13
UV/IR Protection
DIN15
Time From Light To Dark
0.08ms
Time From Dark To Light
0.1-0.9s
Sensitivity Delay
Adjustable (1-5 for low-high)
Power Supply
Solar Cells & CR2450 Replaceable Battery
Warranty
2 Years
Operating Temperature
-10˚C to 65˚C
Storage Temperature
-20˚C to 85˚C
Shade Control
Yes
Grind Mode
Yes
Standards
ANSI Z87.1 / DIN / CE / TUV

Replaceable Parts

Outer Lens
XA-FCL133-114
Inner Lens
XA-ICL105-65
Harness
XA-AS-3-HB
Sweat Band
XA-AS-3-SWB
Filter
XA-5001
