100x83.4mm
View Size.
5-13
Shade Control.
4 Arc Sensors
Constantly monitor the arc.
GRIND MODE
For use when grinding.

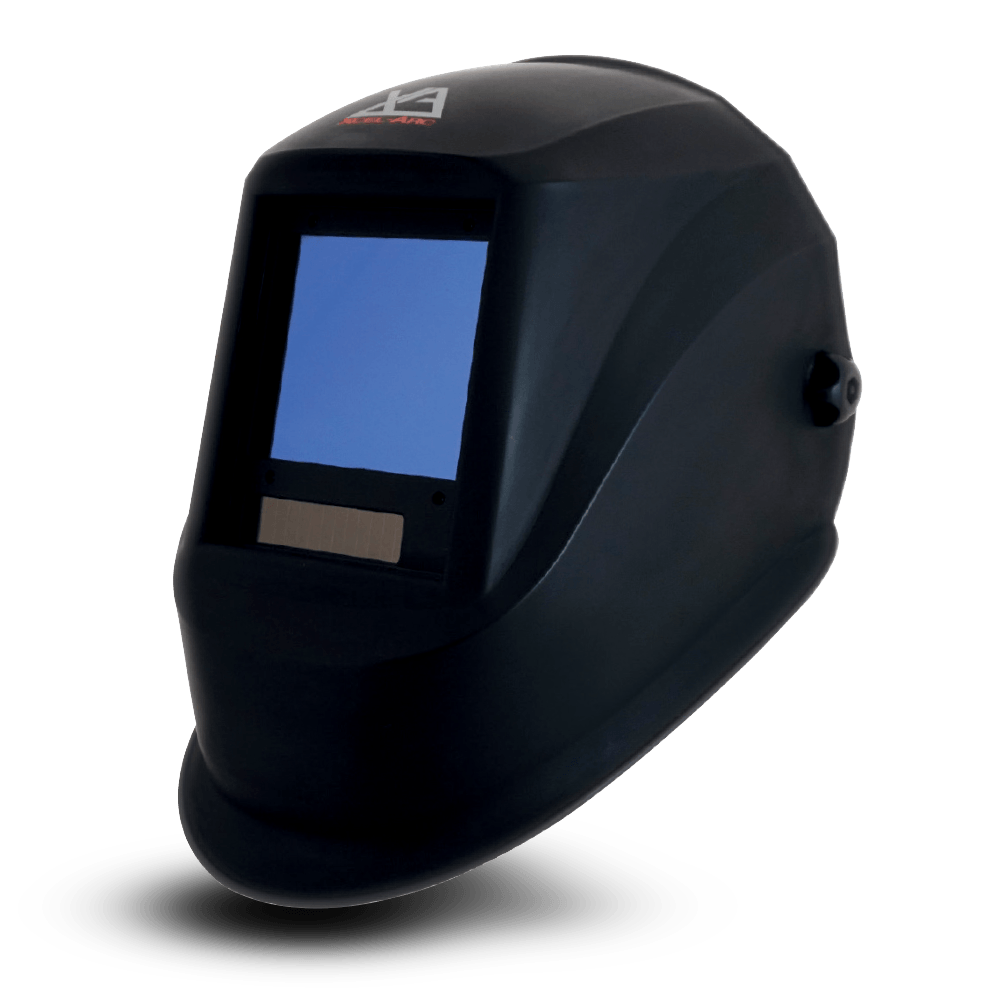

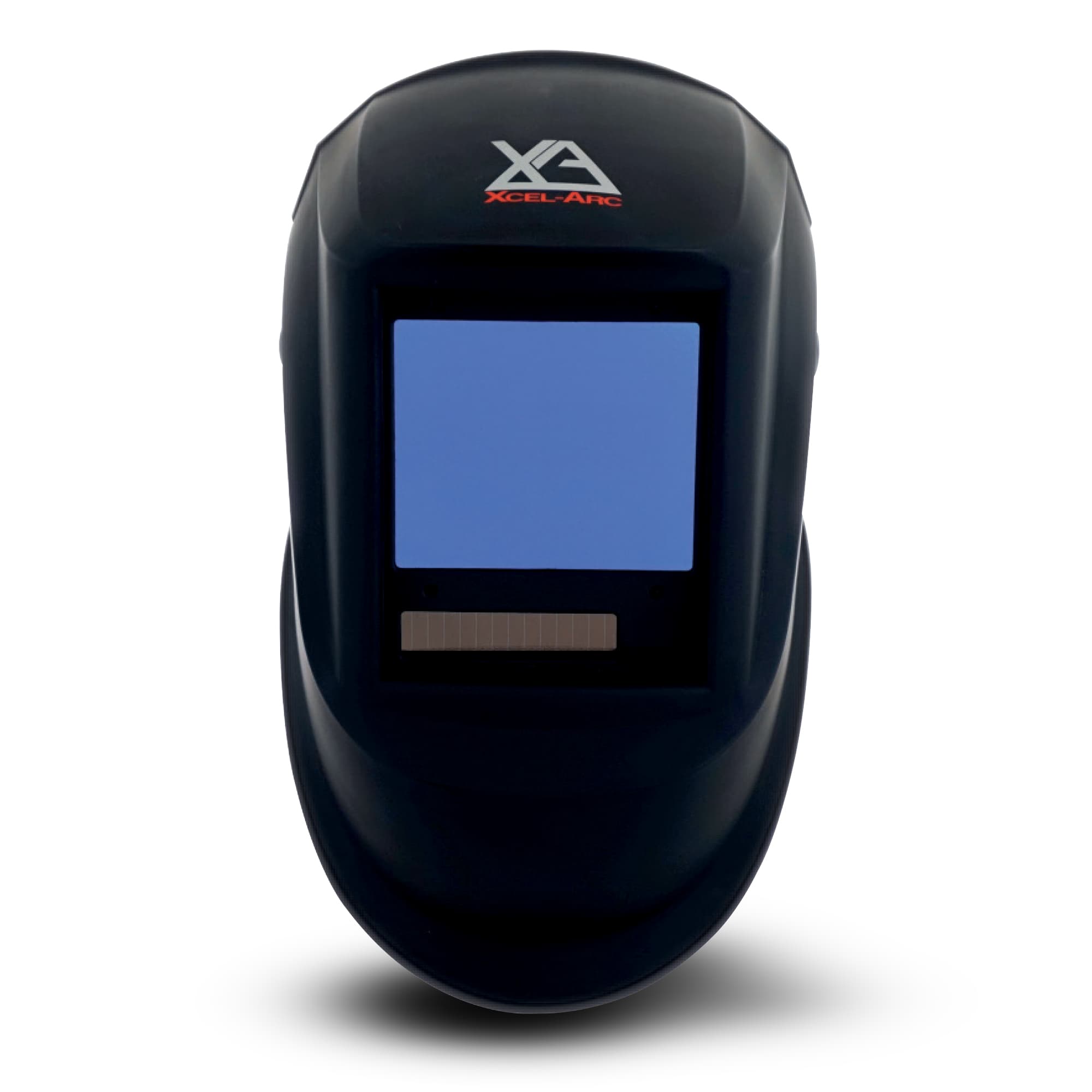

The AS7000D Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity. Fitted with 4 arc sensors, the AS7000D Welding Helmet features 5-13 Shade control as well as GRIND mode for use when grinding.
A 100x83mm view allows for a large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter. Also included is the ability to save up to 3 memory profiles.
The AS7000D Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.
ELITEVISION™ Lens Technology
1/1/1/1 CLASSIFICATION
MEMORY STATES
Helmet Specifications
- Filter Dimensions
- 114x113x9.5mm
- View Size
- 100x83.4mm
- Arc Sensors
- 4
- Classification
- 1/1/1/1
- Light State
- 4
- Dark State
- 5-9 / 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.08ms
- Time From Dark To Light
- 0.1-0.9s
- Sensitivity Delay
- Adjustable (1-5 for low-high)
- Power Supply
- Solar Cells & CR2450 Replaceable Battery
- Warranty
- 2 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes
- Grind Mode
- Yes
- Standards
- ANSI Z87.1 / DIN / CE / TUV
Replaceable Parts
- Outer Lens
- XA-AS4-1-FCL
- Inner Lens
- XA-AS7-1-ICL
- Harness
- XA-AS-1-HB
- Sweat Band
- XA-AS-1-SWB
- Filter
- XA-5122D
