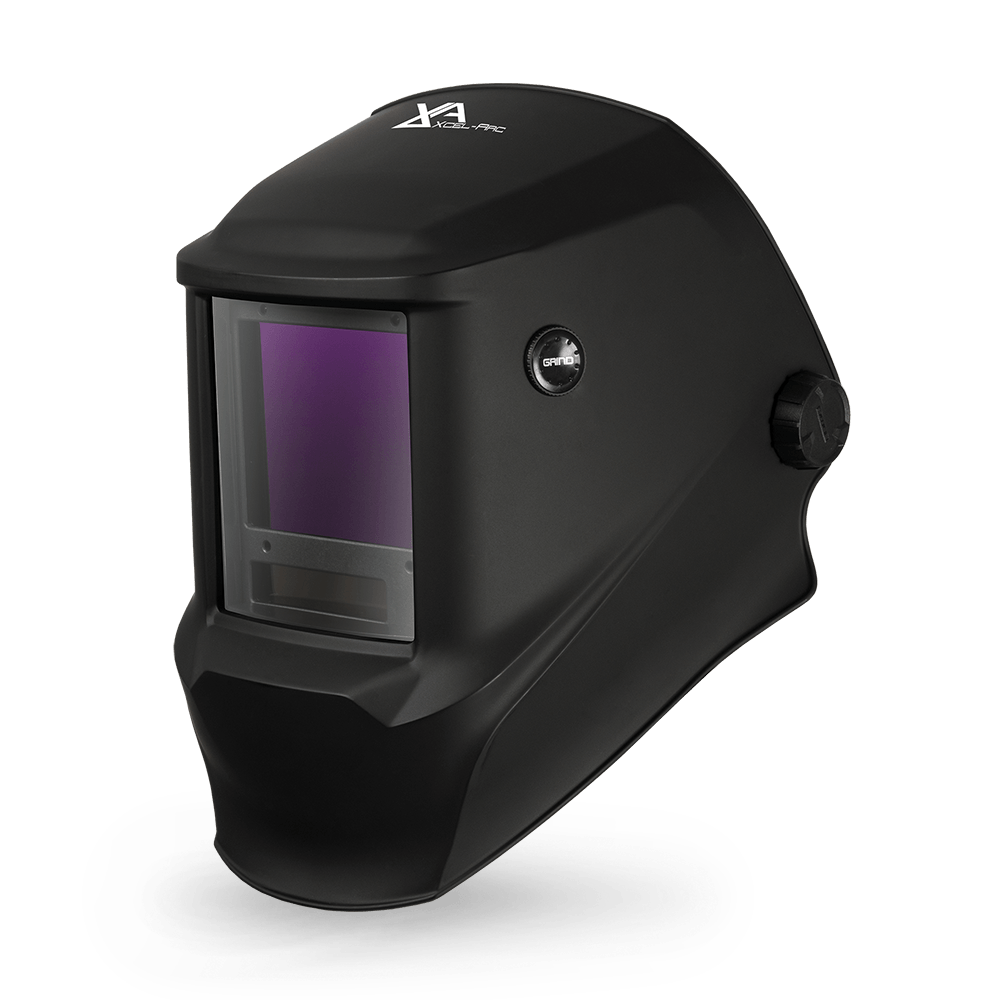

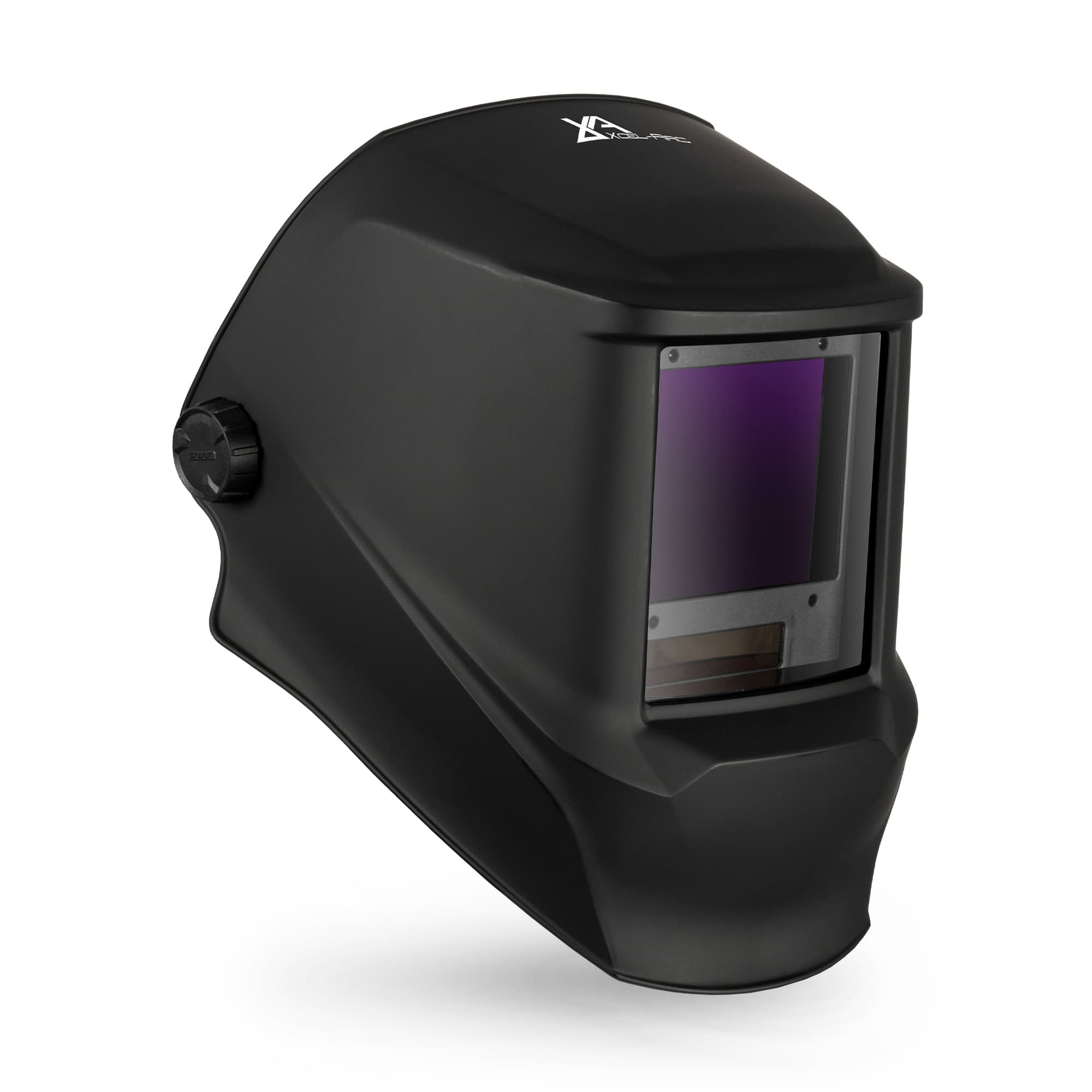

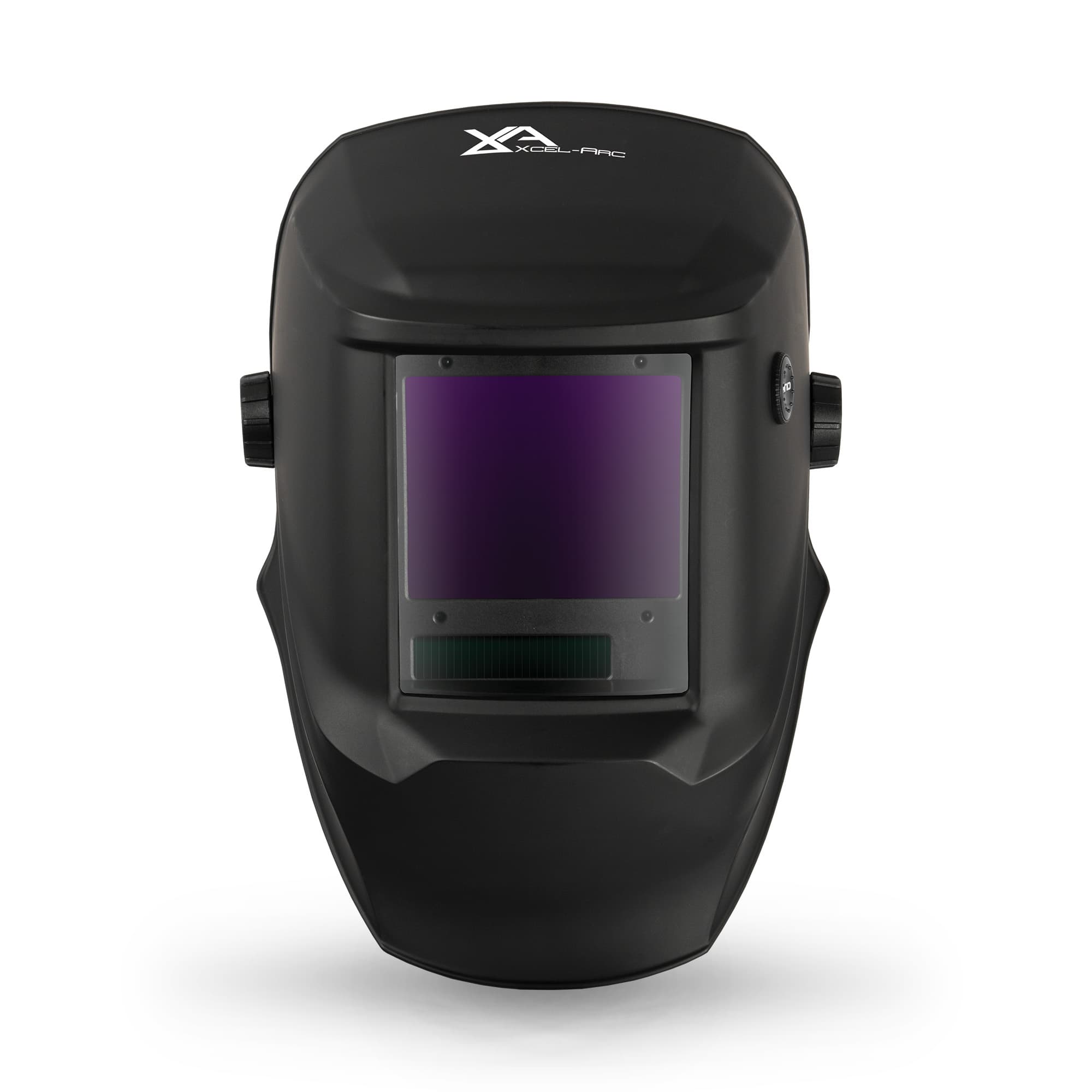

AS8000D Welding Helmet
AS8000D
4 ARC SENSORS | BACKUP BATTERY | 1/1/1/1 CLASSIFICATION
In stock
100x83.4mm
VIEW SIZE.
5-13
SHADE CONTROL.
4 Arc Sensors
CONSTANTLY MONITOR THE ARC.
External GRIND Button
EASY ACCESS WHEN GRINDING.
Keep your eyes and face protected during every weld with our AS8000D welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant.
ELITEVISION™ Lens Technology
Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the icon to see the difference.

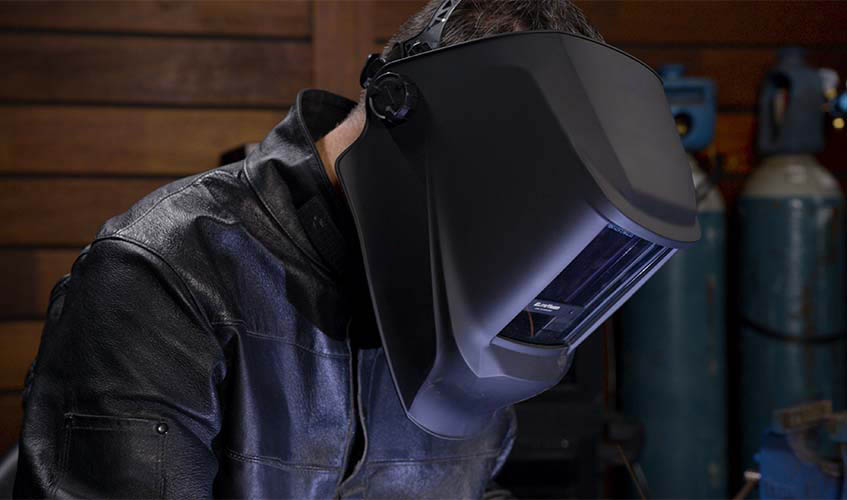

1/1/1/1 CLASSIFICATION
Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.

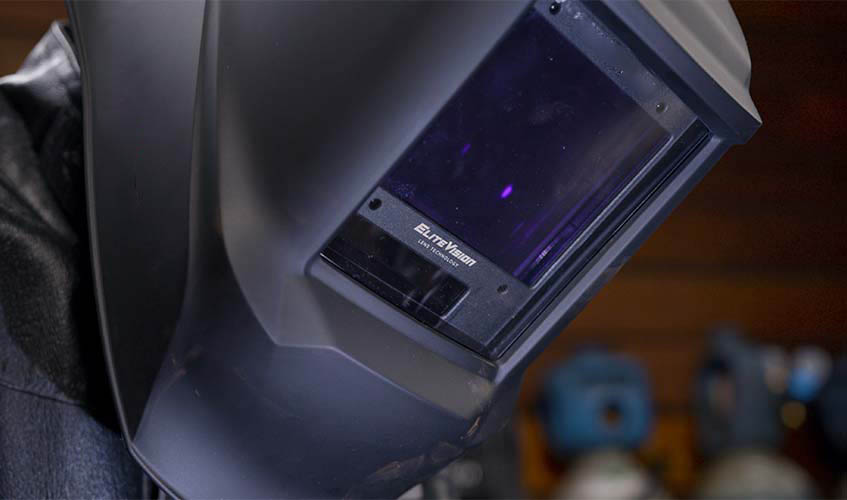

100x83.4mm View Size
Superior visibility in every situation. The 100×83.4mm viewing area lets you see every weld with complete clarity.

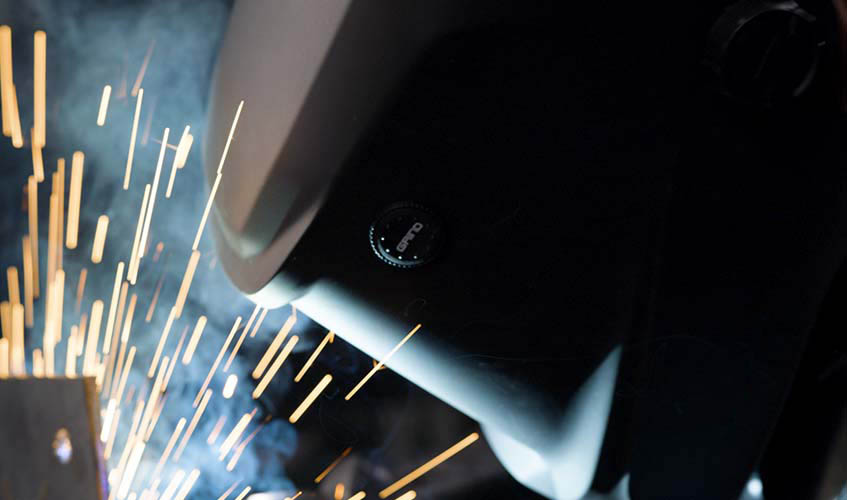

External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.

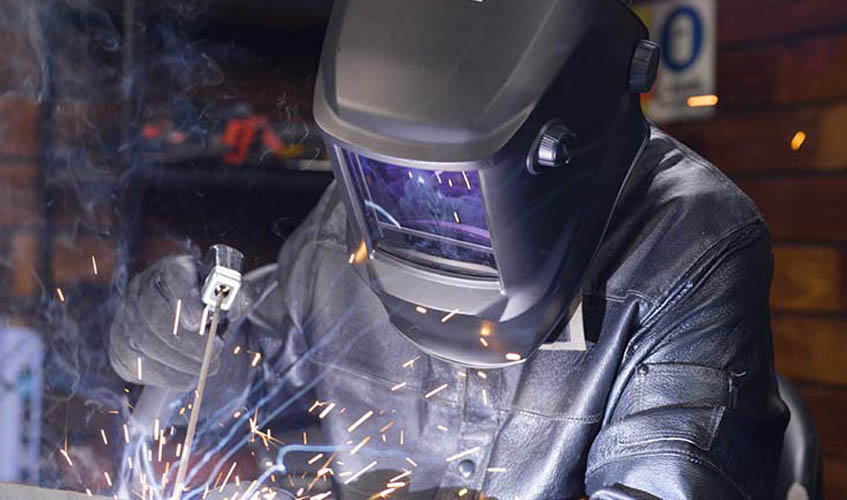

4 Arc Sensors
Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes shielded from the start, even when you’re out of position.

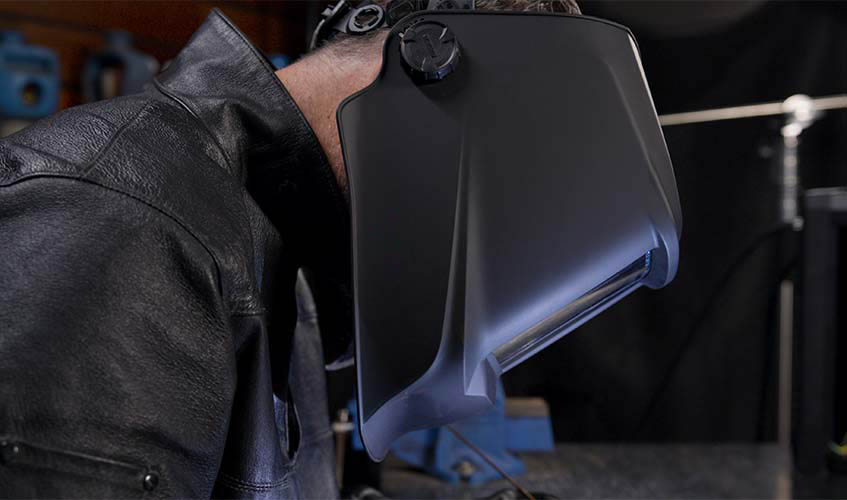

Backup Battery
2 x CR2450 backup batteries improve the performance and reliability of the auto-darkening filter.

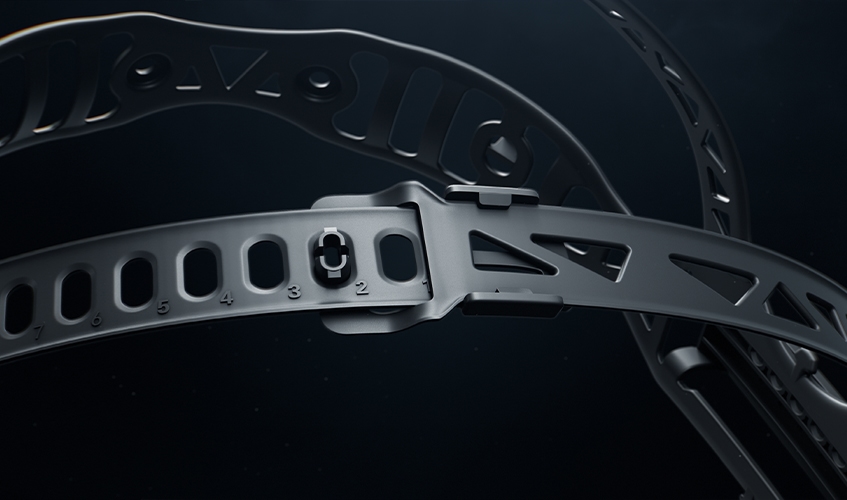

4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.
Memory States
Store up to three of your most frequently used shade settings with the memory state buttons and have your helmet ready to go in an instant.
Helmet Specifications
- Filter Dimensions
- 114x133x9.5mm
- View Size
- 100x83.4mm
- Arc Sensors
- 4
- Classification
- 1/1/1/1
- Light State
- 4
- Dark State
- 5-9 / 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.04ms
- Time From Dark To Light
- 0.1-0.9s
- Sensitivity Delay
- Adjustable (1-5 for low-high)
- Power Supply
- Solar Cells & CR2450 Replaceable Battery
- Warranty
- 3 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes
- Grind Mode
- Yes (External)
- Standards
- AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
Replaceable Parts
- Outer Lens
- XA-FCL133-114
- Inner Lens
- XA-ICL106-90
- Harness
- XA-AS-4-HB
- Sweat Band
- XA-AS-4-SWB
- Filter
- XA-5122DG
- Harness Back Pad
- XA-AS-4-BP
- Magnification Lens
- MWL4215 - 1.5x Magnification Lens, MWL4220 - 2.0x Magnification Lens, MWL4225 - 2.5x Magnification Lens MWL4230 - 3.0x Magnification Lens
