102.5x102.5mm
EXTRA LARGE VIEW SIZE.
3.0 Light State
FOR THE CLEAREST VIEW BEFORE AND AFTER THE WELD.
5 Arc Sensors
CONSTANTLY MONITOR THE ARC.
Auto-Shade Select
AUTOMATICALLY SELECTS THE OPTIMAL SHADE FOR WELDING.

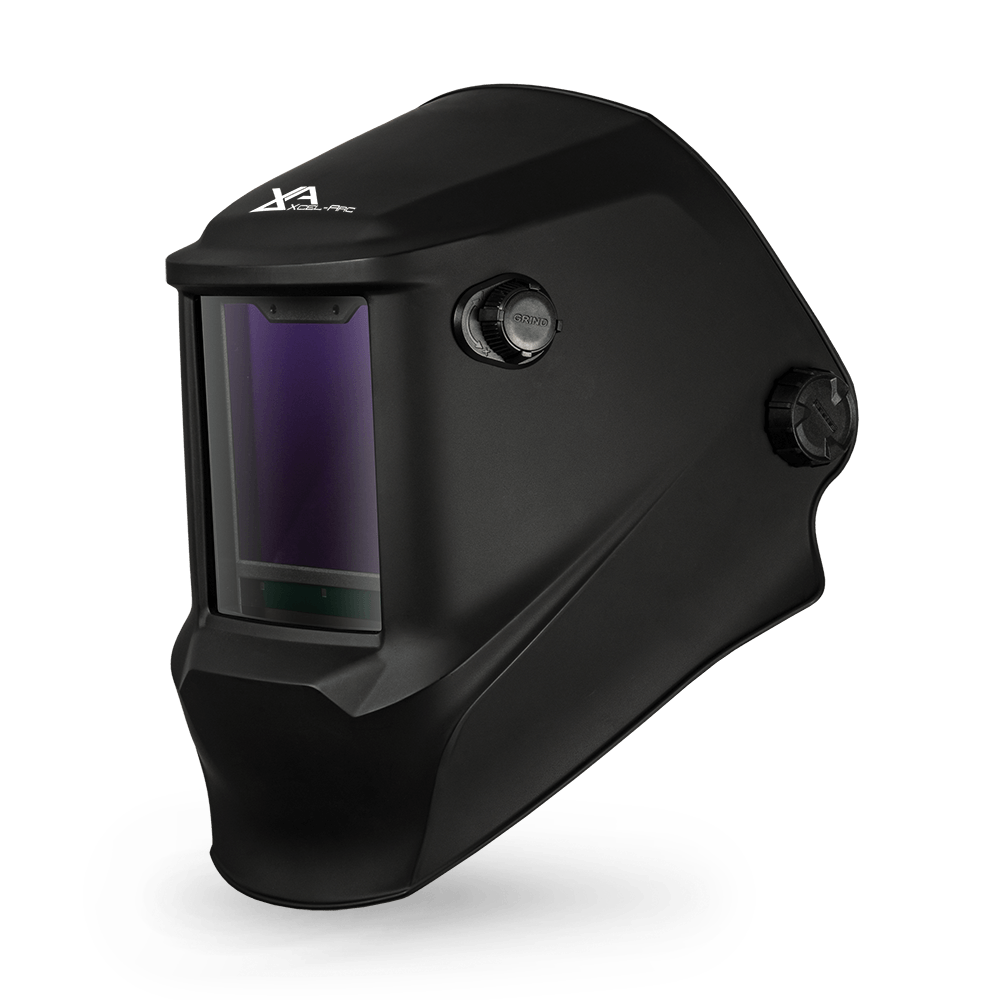

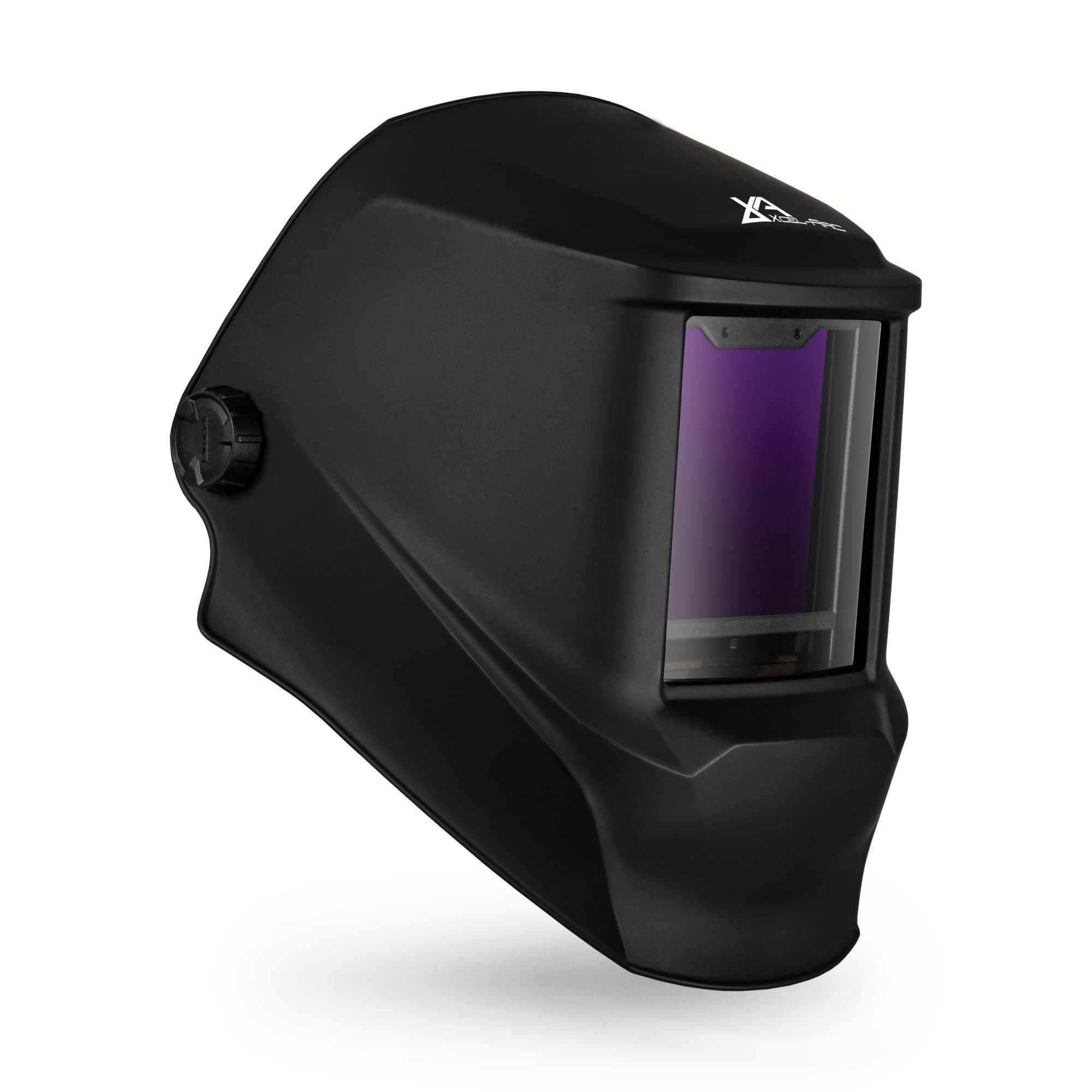

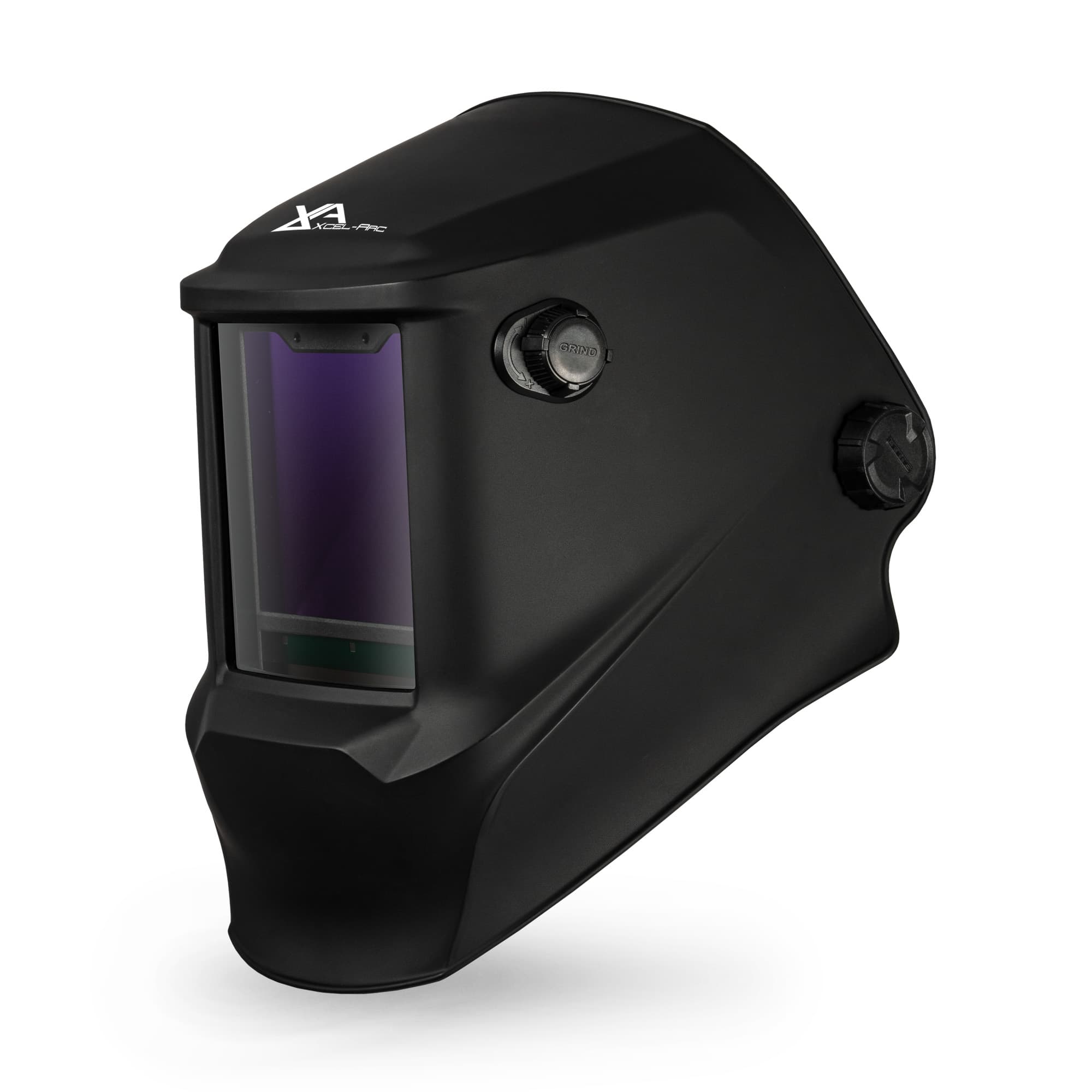

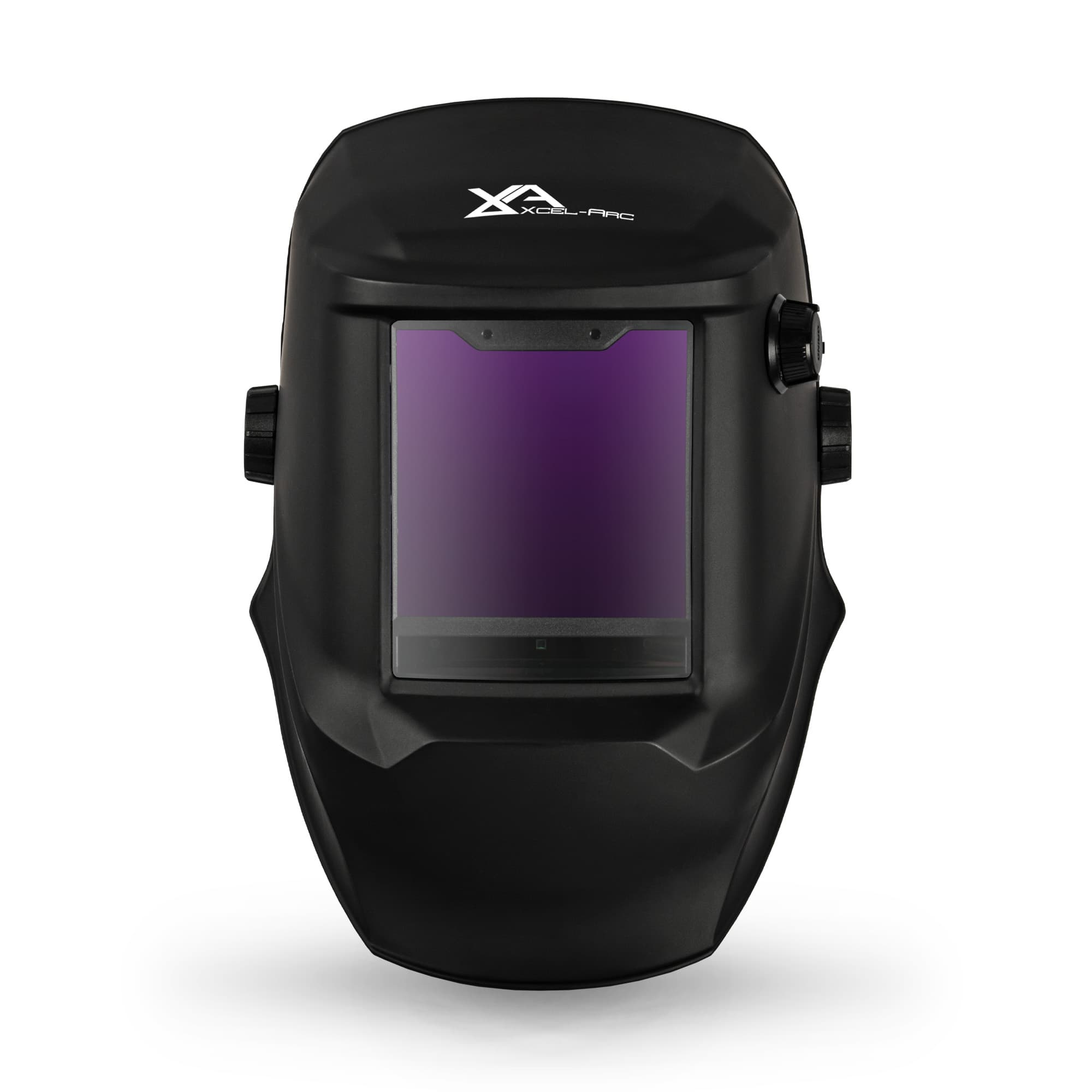

Keep your eyes and face protected during every weld with our AS9000D helmets. Featuring advanced auto shade detection technology and five arc sensors, these helmets eliminate the guesswork in shade selection. With a perfect 1/1/1/1 optical classification and our largest viewing lens yet, you’ll experience unparalleled clarity. The sleek, professional black design adds a touch of style to top-tier functionality.
FEATURE VIDEO
Check out all of the features on the new AS9000D Welding Helmets.

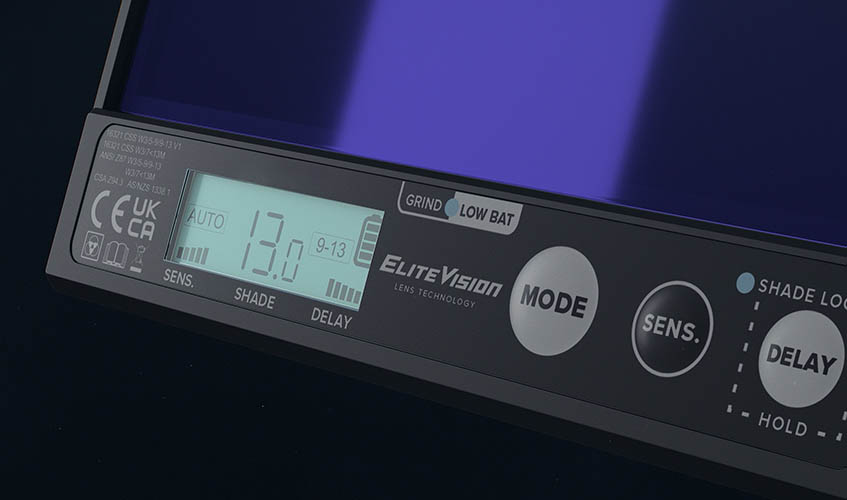

ELITEVISION™ Lens Technology
Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the icon to see the difference.

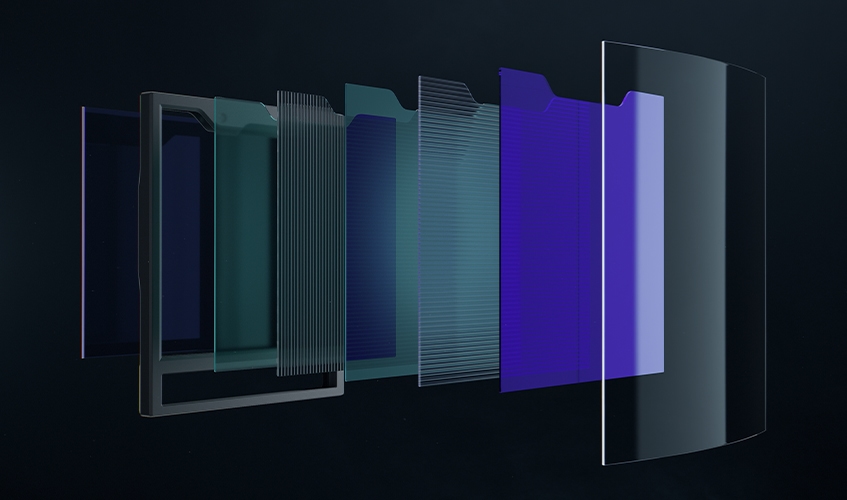

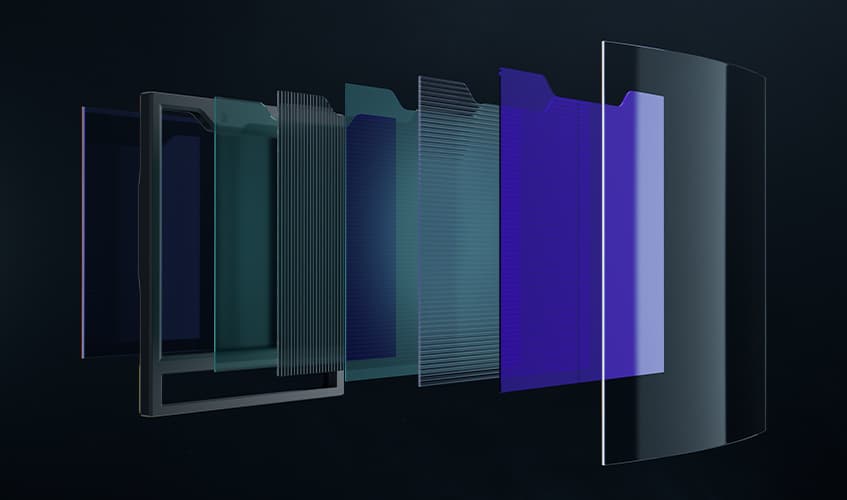

1/1/1/1 CLASSIFICATION
Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
Auto Shade Select
Take the guesswork out of your protection. The auto shade select technology instantly detects the arc and decides what shade you need to keep your eyes safe for every kind of welding.

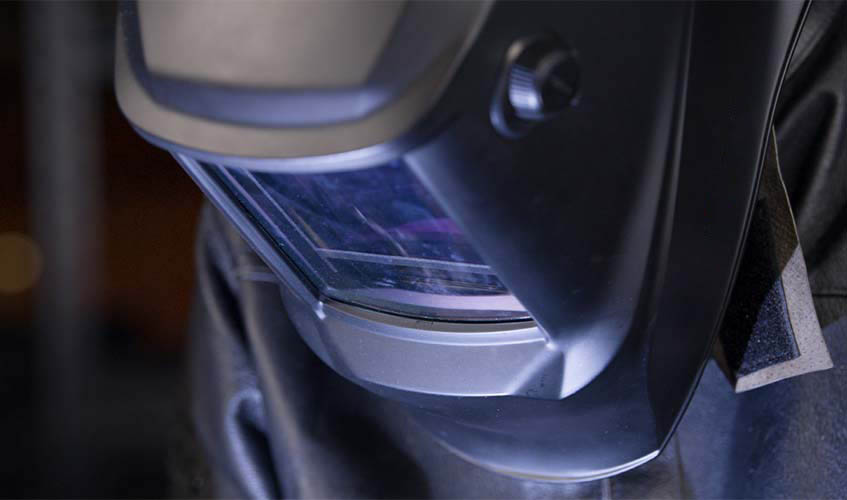

102.5x102.5mm View Size
Unmatched visibility in every situation. The 102.5×102.5mm viewing area lets you see every weld with complete clarity.
3.0 Light State
Get a clear view before and after the weld, as well as during. With a 3.0 light state, you’ll be able to see your workpiece as well with the helmet on as with it off.

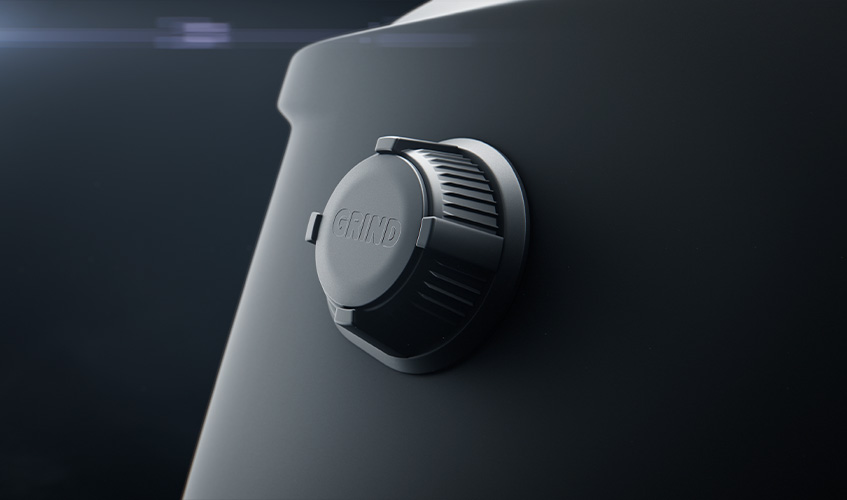

External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.
5 Arc Sensors
Detect every arc instantly. The four optimally positioned arc sensors, coupled with an arc intensity sensor, trigger the Auto-Darkening Filter. Experience unparalleled eye protection right from the start of every weld, even when you’re out of position.

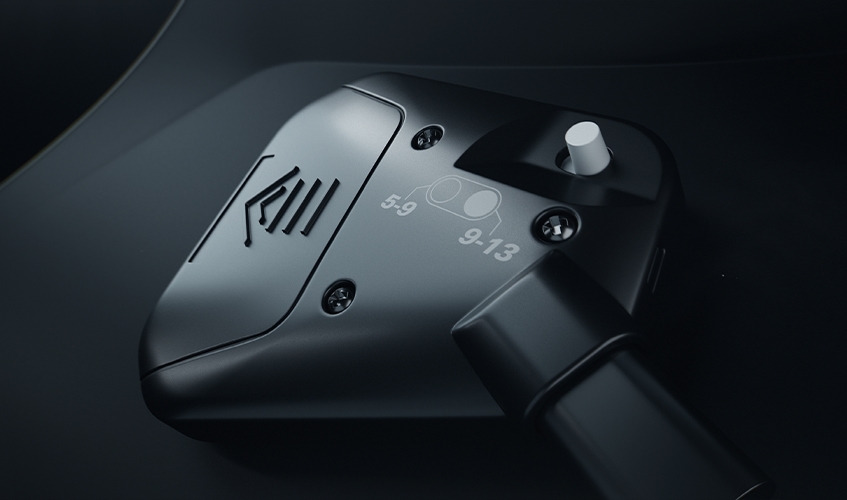

Backup Battery
2 x CR2450 backup batteries improve the performance and reliability of the auto-darkening filter.
4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.
Helmet Specifications
- Filter Dimensions
- 114x133x9.5mm
- View Size
- 102.5x102.5mm
- Arc Sensors
- 4 Arc Sensors, 1 Arc Intensity Sensor
- Classification
- 1/1/1/1
- Light State
- 3
- Dark State
- 5-9 / 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.04ms
- Time From Dark To Light
- 0.1-0.9s
- Sensitivity Delay
- Adjustable (1-5 for low-high)
- Power Supply
- Solar Cells & 2 x CR2450 Replaceable Batteries
- Warranty
- 3 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes
- Grind Mode
- Yes (External)
- Standards
- AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
Replaceable Parts
- Outer Lens
- XA-FCL133-114
- Inner Lens
- XA-ICL108-108
- Harness
- XA-AS-4-HB
- Sweat Band
- XA-AS-4-SWB
- Filter
- SUPER V
- Harness Back Pad
- XA-AS-4-BP
- Magnification Lens
- MWL4215 - 1.5x Magnification Lens, MWL4220 - 2.0x Magnification Lens, MWL4225 - 2.5x Magnification Lens
