100x60mm
View Size.
9-13
Shade Control.
4 Arc Sensors
Constantly monitor the arc.
GRIND MODE
For use when grinding.

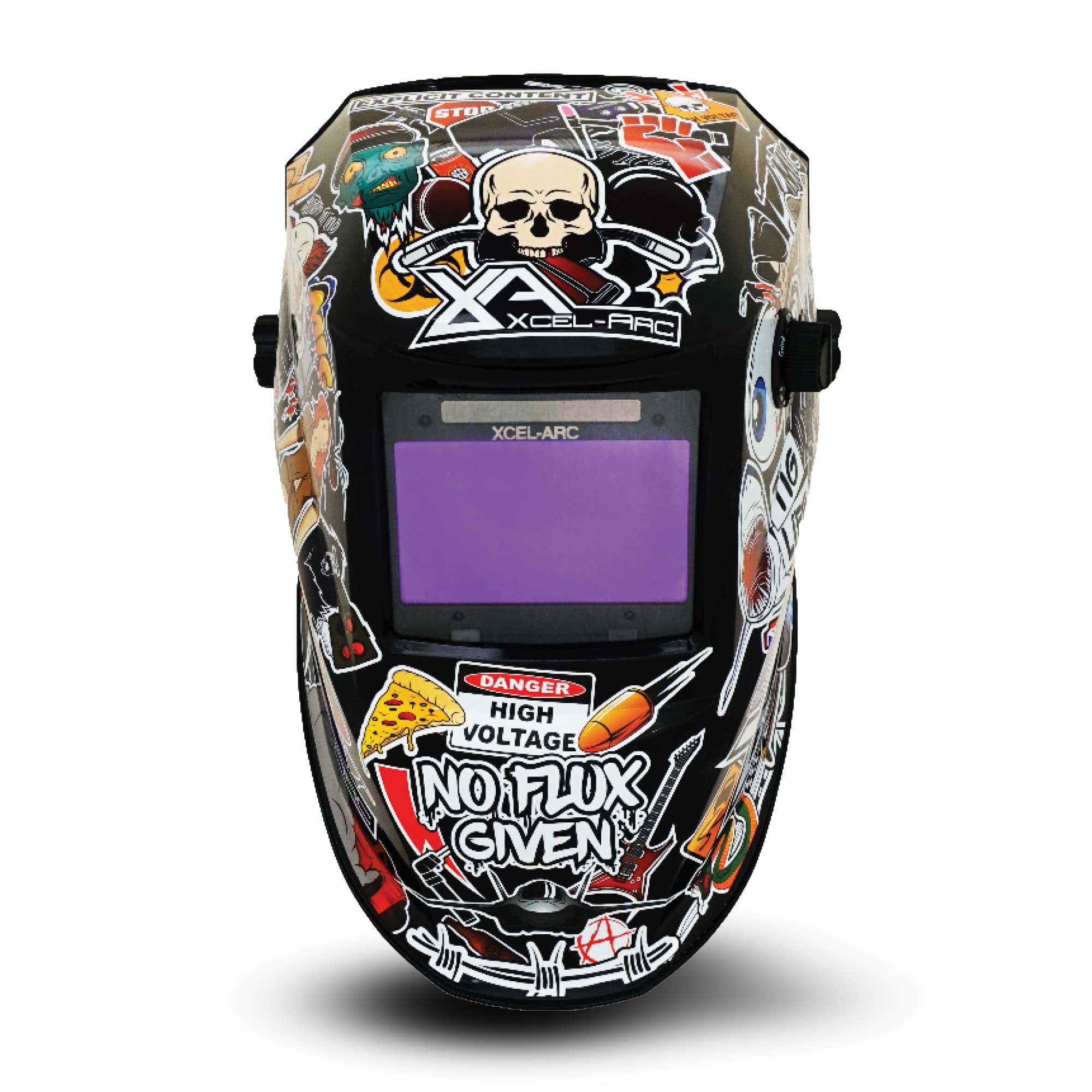

The CHAOS™ Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 4 arc sensors, the CHAOS™ Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding. A 100x60mm view allows for large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter.
The CHAOS™ Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.
ELITEVISION™ Lens Technology
Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the icon to see the difference.
Helmet Specifications
- Filter Dimensions
- 110x90x9mm
- View Size
- 100x60mm
- Arc Sensors
- 4
- Classification
- 1/1/1/2
- Light State
- 4
- Dark State
- 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.08ms
- Time From Dark To Light
- 0.1-0.9s
- Sensitivity Delay
- Adjustable (Internal)
- Power Supply
- Solar Cells & CR2450 Replaceable Battery
- Warranty
- 2 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes (External)
- Grind Mode
- Yes (External)
- Standards
- ANSI Z87.1 / DIN / CE / TUV
Replaceable Parts

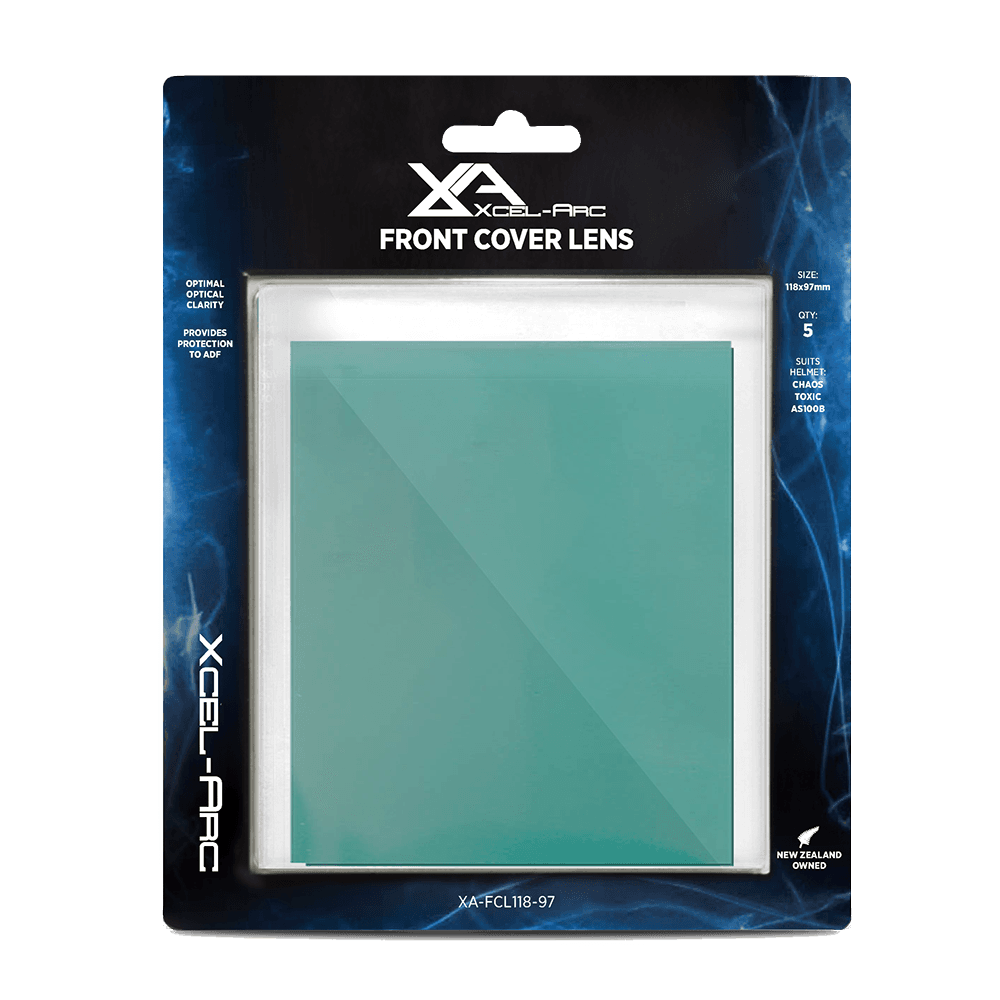

- Outer Lens
- XA-FCL118-97

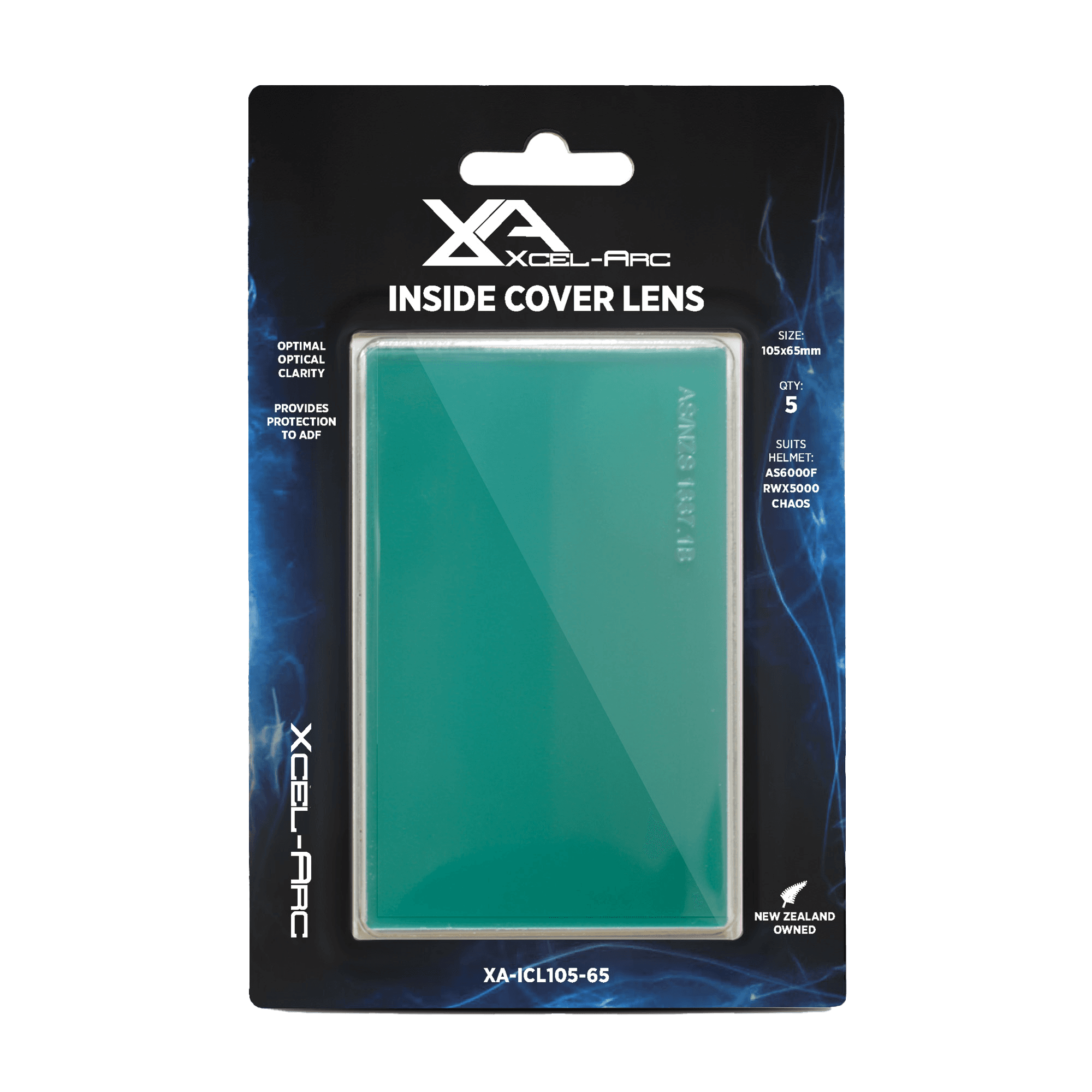

- Inner Lens
- XA-ICL105-65
- Harness
- XA-AS-3-HB
- Sweat Band
- XA-AS-3-SWB
- Filter
- XA-1122E
- Magnification Lens
- MWL4215 Magnifying Welding Lens 1.5 - 108x51mm , MWL4220 Magnifying Welding Lens 2.0 - 108x51mm, MWL4225 Magnifying Welding Lens 2.5 - 108x51mm, MWL4230 Magnifying Welding Lens 3.0 - 108x51mm
