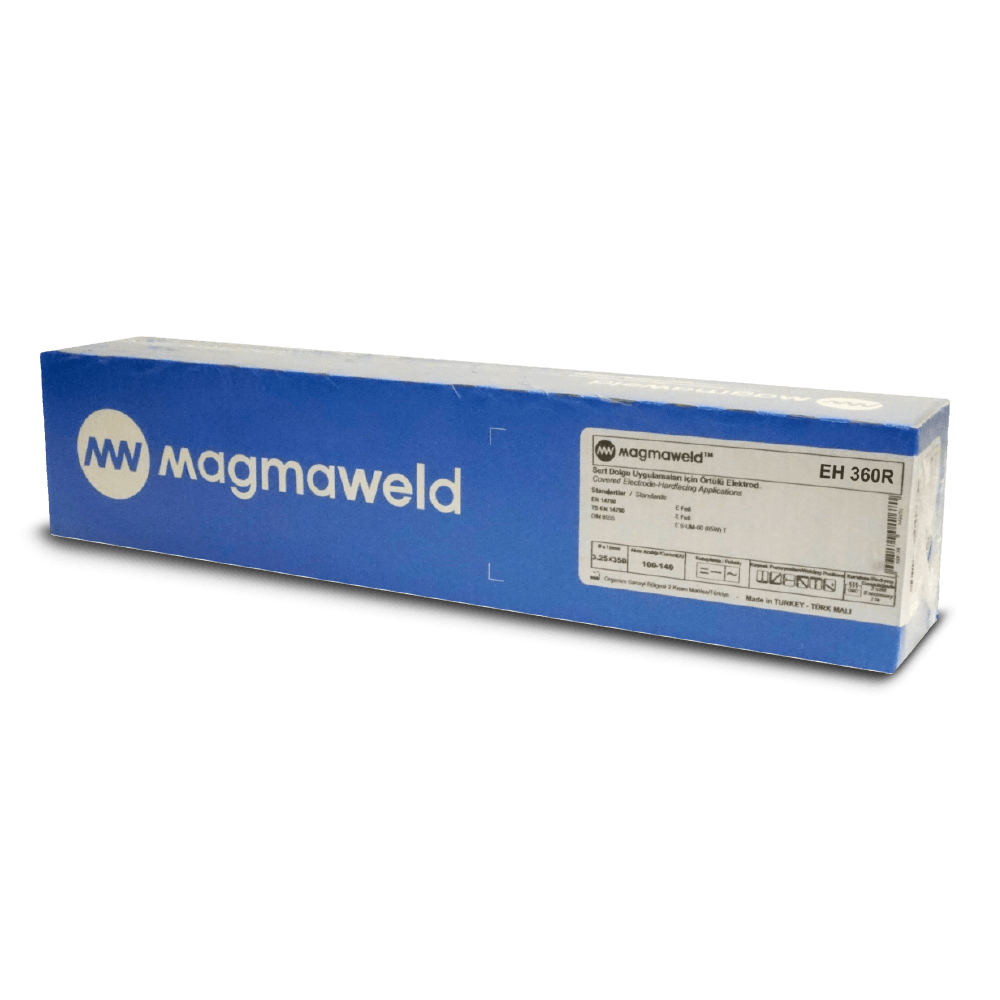

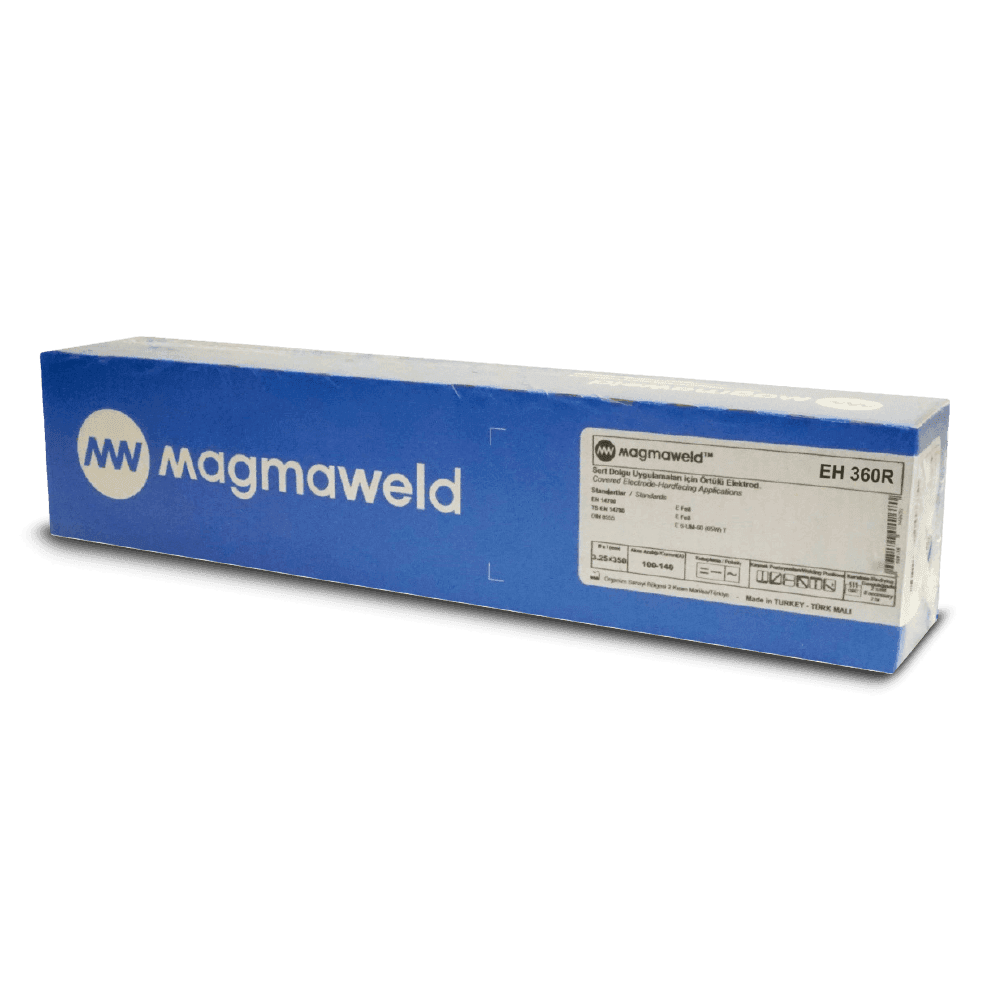

MAGMAWELD EH 360R Hard Facing Electrodes

A thick rutile-covered electrode for depositing tough and wear resisting hard facing overlays. The weld metal has sufficient red hardness up to +600°C. It is machinable only by grinding. In case of crack sensitive base metals, a tough buffer layer made by ESB44 or EI309 electrodes is required and a further one after every third hard facing layer. The as-welded hardness of 59 HRc can be increased to 60-65 HRc by single or double tempering. Suitable hard facing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers and others. Possible to use equally well both with AC and DC.

Heavy Abrasion Moderate Impact Non Machinable, Grind only Easy Strike and Restrike Very Smooth Weld Deposit Easy to Weld with AC and DC

Classification:

EN 14700 E Fe8  |  DIN 8555 E 6 UM 60 (65W)

Hardness:

59HRc (1st pass)

Typical Weld metal Analysis:

C 4.0%   Si 5.0.0%   Mn 0.3%   Cr 7%   V 5.0%   Fe Rest
