110 x 40mm
View Size.
5-13
Shade Control.
2 ARC SENSORS
Constantly monitor the arc.
REMOVEABLE MASK
FOR USE WHEN GRINDING

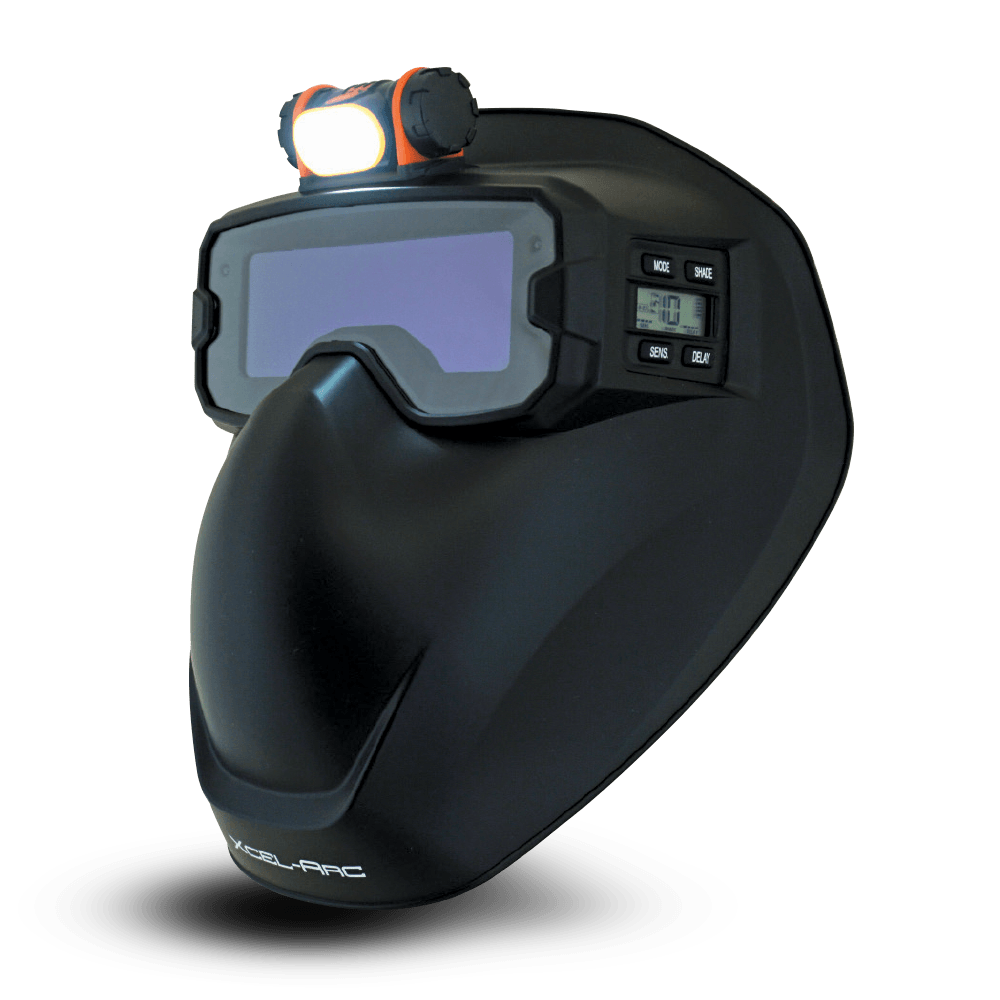

The new RazorShield from Xcel-Arc is an excellent low-profile solution for welding in confined spaces where access with traditional welding helmets is limited. Ideal for all welding work from industrial to hobby applications, the RazorShield can also be worn in conjunction with a hard hat, making it ideal for construction and site welding work.

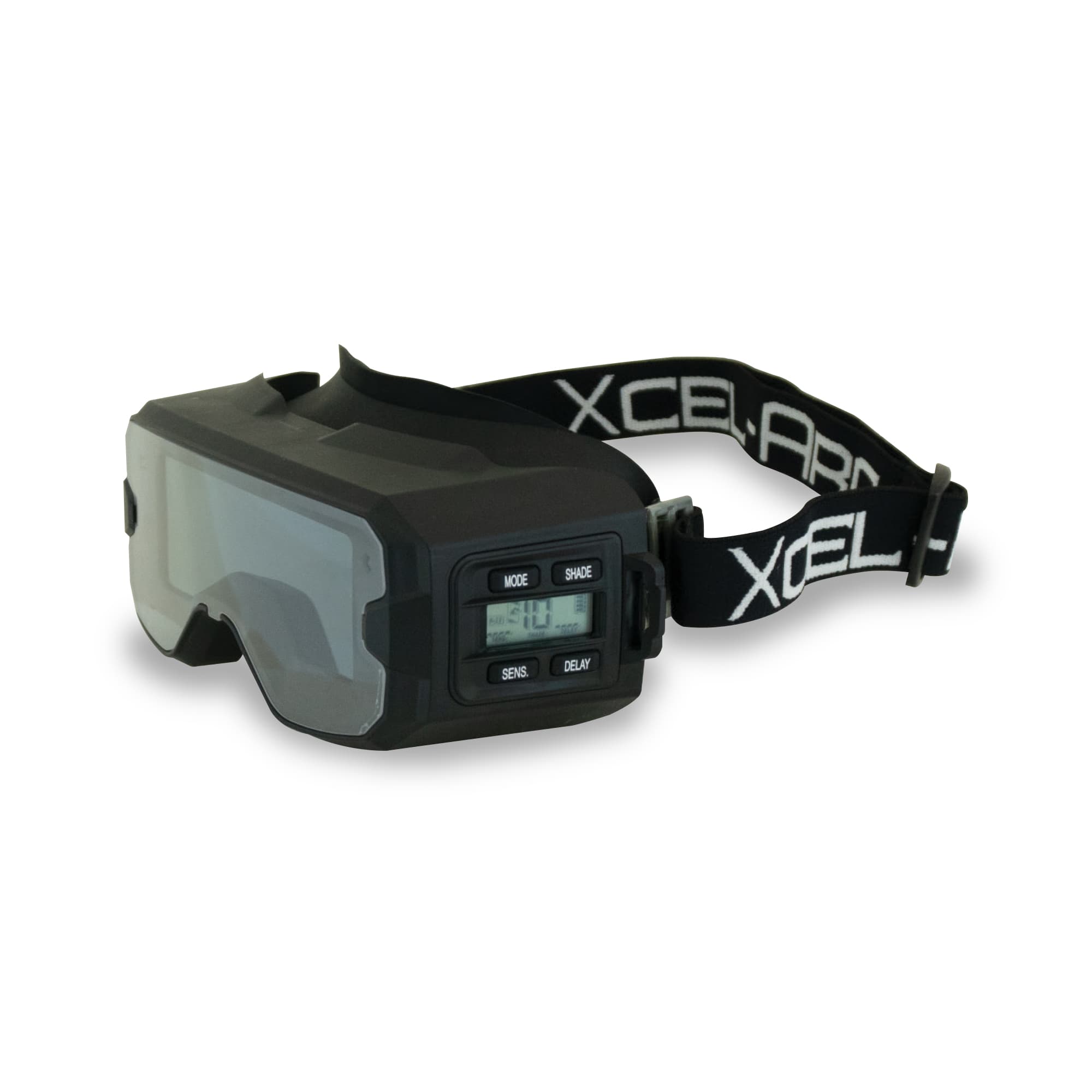

The digitally controlled Auto-Darkening Goggles are easily detached from the protective faceshield, allowing them to be used separately when required.
ELITEVISION™ Lens Technology
Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the icon to see the difference.
Lightweight & Compact
Allows welding in tight spaces where standard welding helmets are limited in space. The mask is also detachable from the goggles, allowing for even more versatility.

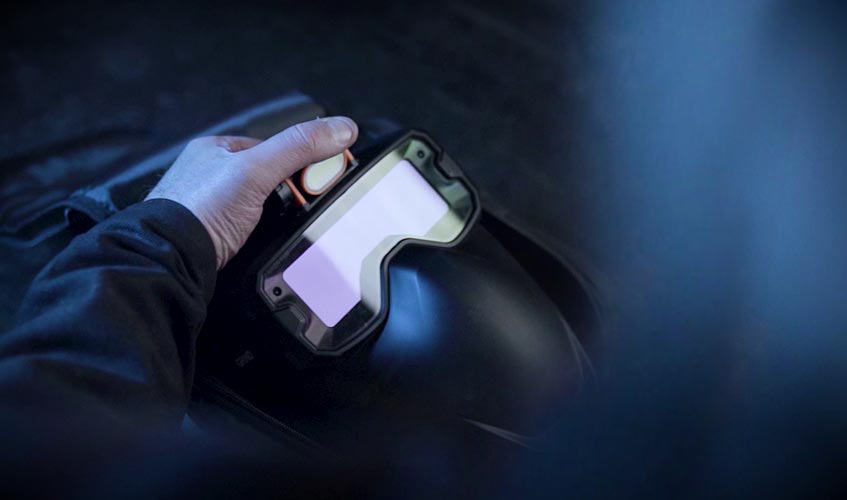

2 Arc Sensors
2 arc sensors constantly monitor the arc, allowing for consistent shade control so you can focus on your welds.
Room For Respirator
Designed to be worn with an Elipse® Half-Mask P2 Respirator, providing a minimum 99.95% filtration against odours, dust, all types of fumes, oil and water mists and micro-organisms.
UV/IR Ray Protection
In combination with the Welding Hood, the Welding Goggles and Mask provide protection against UV/IR rays.
Helmet Specifications
- Filter Dimensions
- 171.5x77.5mm
- View Size
- 110 x 40mm
- Arc Sensors
- 2
- Classification
- 1/1/1/2
- Light State
- 3
- Dark State
- 5-9 / 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.08ms
- Time From Dark To Light
- 0.001 - 0.9ms
- Sensitivity Delay
- Adjustable (External)
- Power Supply
- Solar Cells & CR22450 Battery
- Warranty
- 2 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes (External)
- Grind Mode
- Yes (External)
- Standards
- AS/NZS 1337.1:2010, AS/NZS 1338.1:2012
Replaceable Parts
- Outer Lens
- XA-SH3
- Inner Lens
- XA-SH4
- Harness
- XA-SH6
