96x42mm
View Size.
9-13
Shade Control.
2 Arc Sensors
Constantly monitor the arc.
GRIND MODE
For use when grinding.

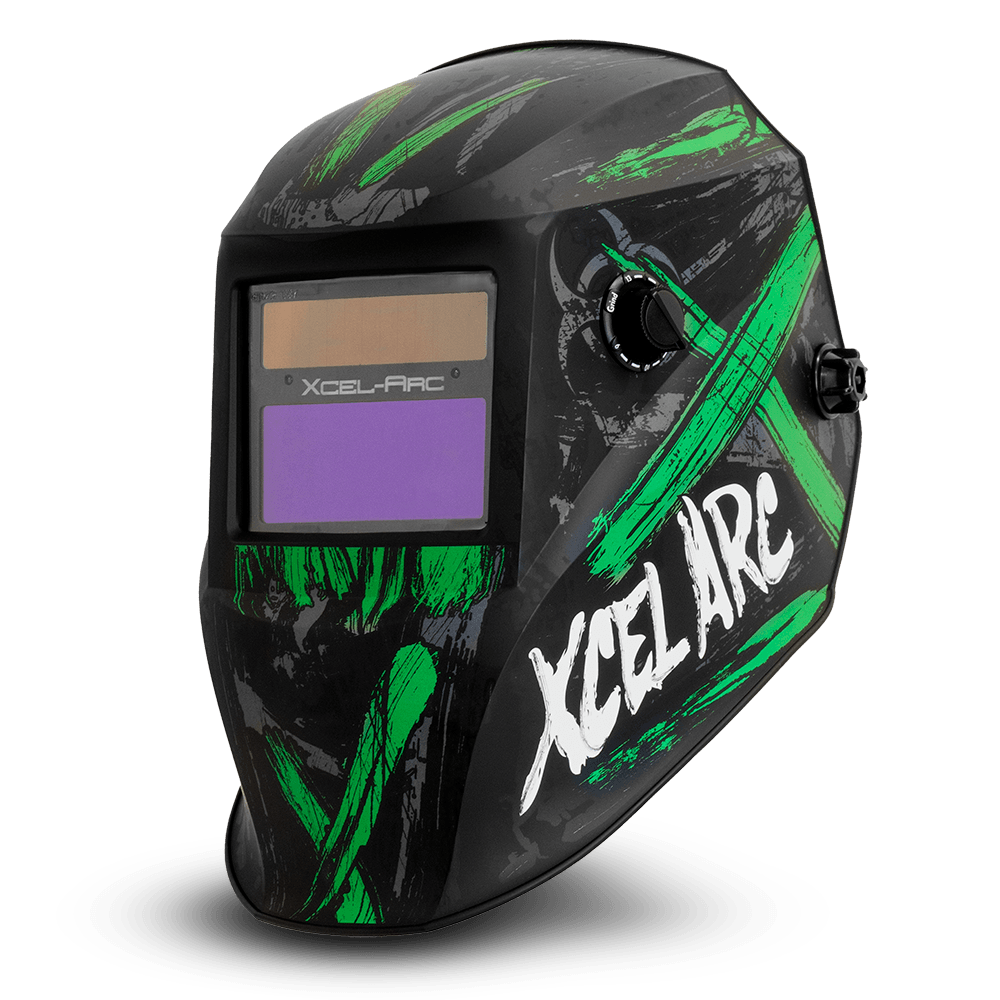

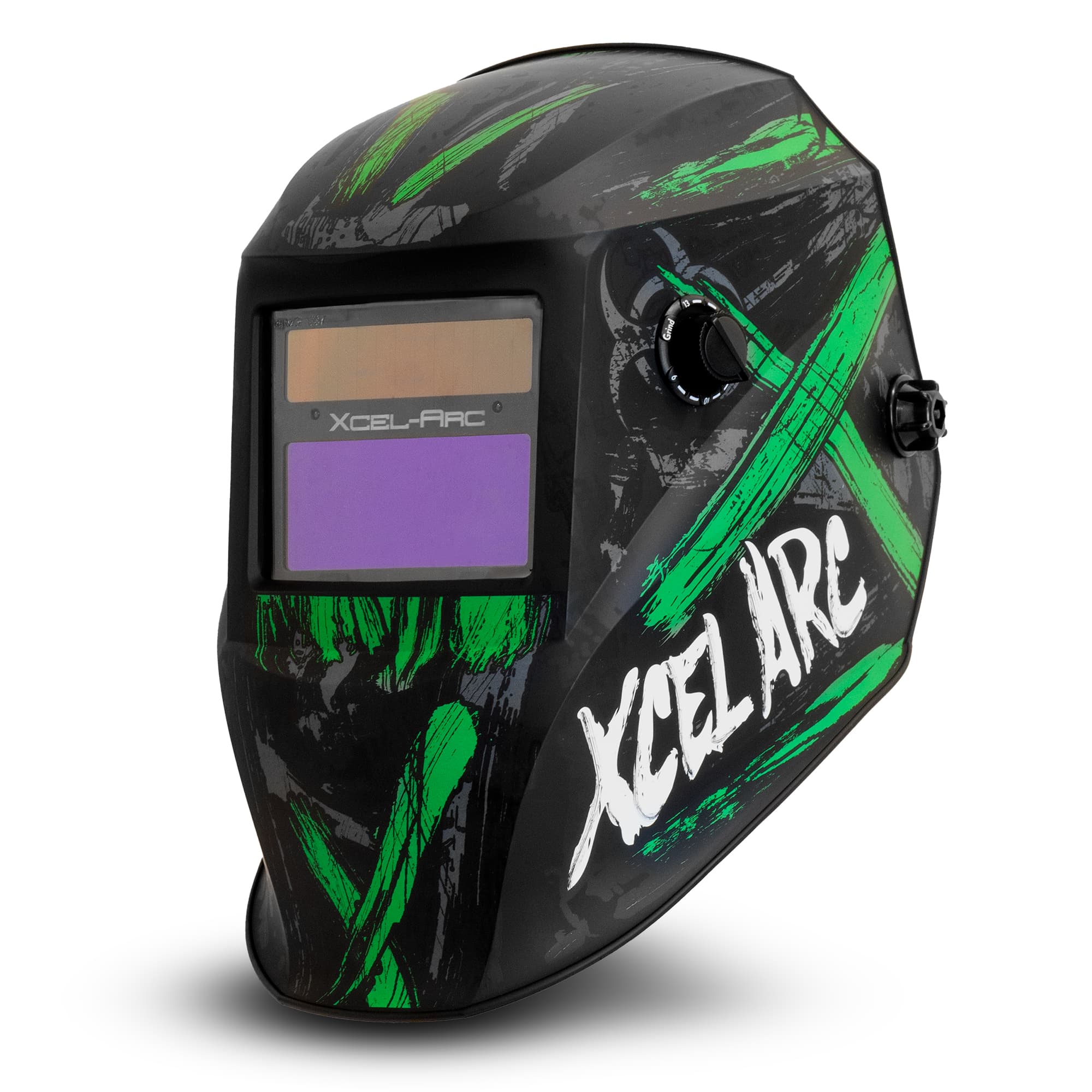

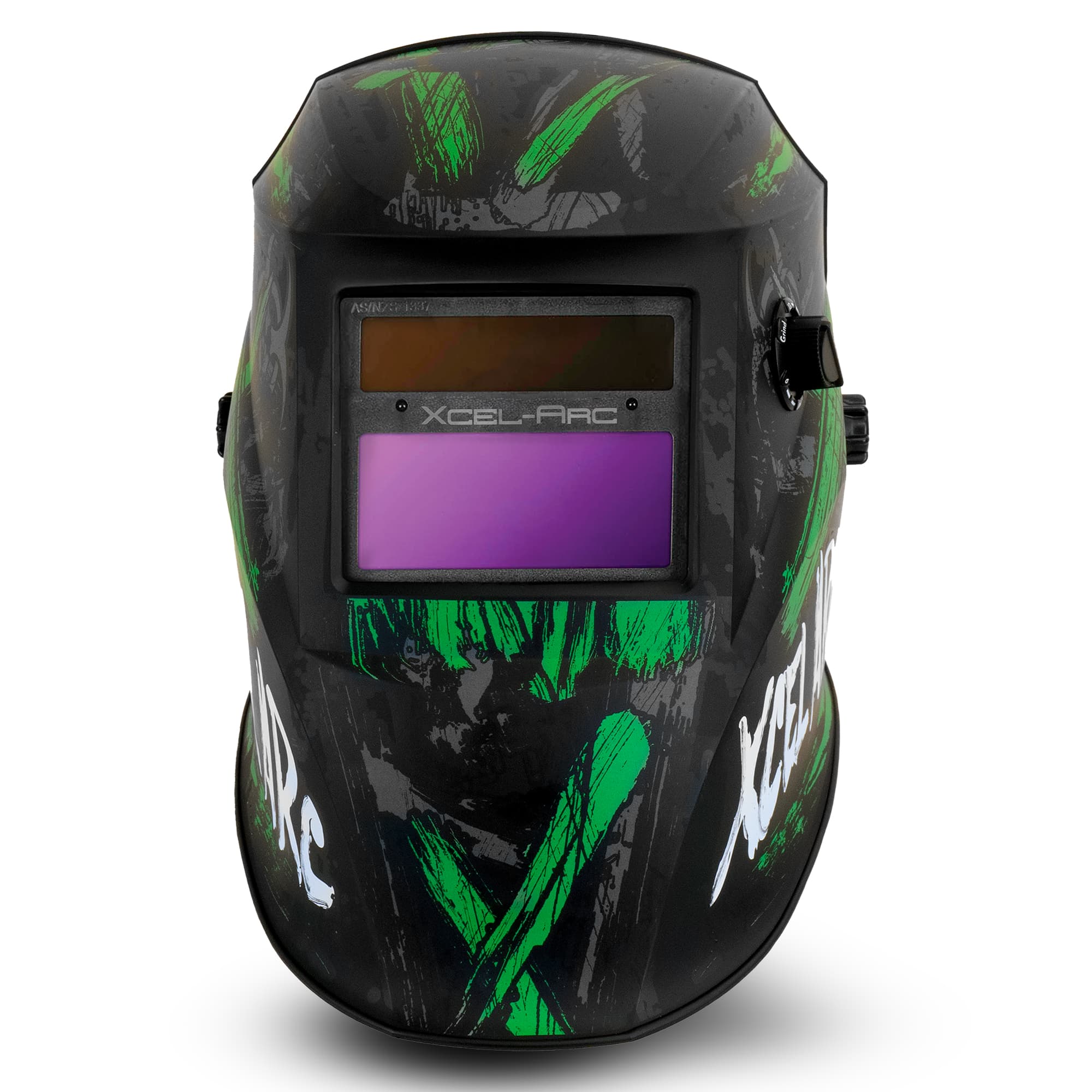

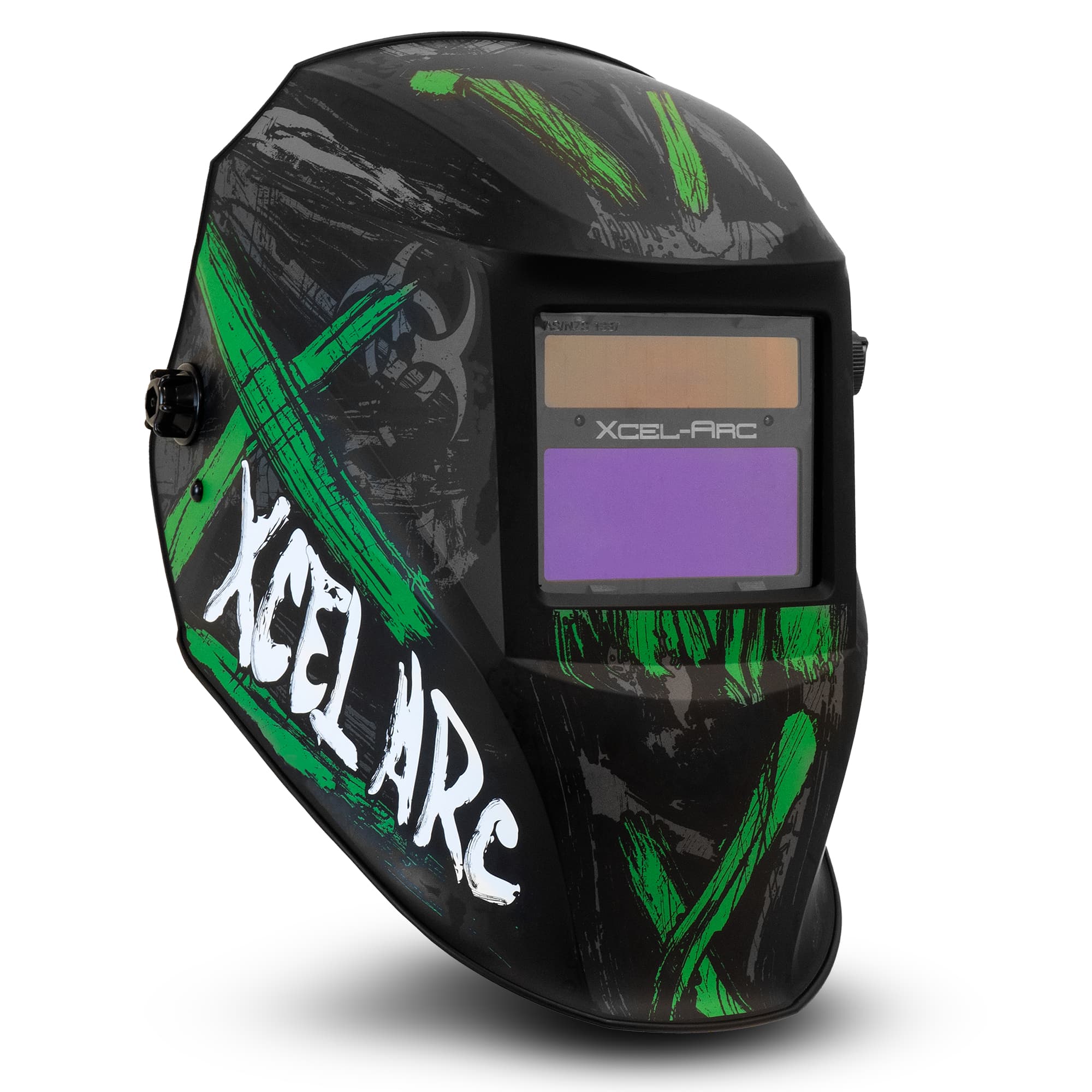

The TOXIC Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 2 arc sensors, the TOXIC Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding.
The TOXIC Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.
ELITEVISION™ Lens Technology
Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Click and slide the icon to see the difference.
Helmet Specifications
- Filter Dimensions
- 97x118mm
- View Size
- 96x42mm
- Arc Sensors
- 2
- Classification
- 1/1/1/2
- Light State
- 4
- Dark State
- 9-13
- UV/IR Protection
- DIN15
- Time From Light To Dark
- 0.1ms
- Time From Dark To Light
- 0.1-0.9s
- Sensitivity Delay
- Adjustable (Internal)
- Power Supply
- Solar Cells
- Warranty
- 2 Years
- Operating Temperature
- -10˚C to 65˚C
- Storage Temperature
- -20˚C to 85˚C
- Shade Control
- Yes (External)
- Grind Mode
- Yes (External)
- Standards
- ANSI / DIN / CE / CSA / AS/NZS
Replaceable Parts
- Outer Lens
- XA-AS-100-FCL
- Inner Lens
- XA-AS-1-ICL
- Harness
- XA-AS-1-HB
- Sweat Band
- XA-AS-1-SWB
- Filter
- XA-1001F(G)
