1.0-4.0mm
Electrode size compatibility.
225A
Maximum output.
ERGONOMIC HANDLE
For comfort during extended usage.
FLEX-HEAD COMPATIBLE
For multi-positional welding

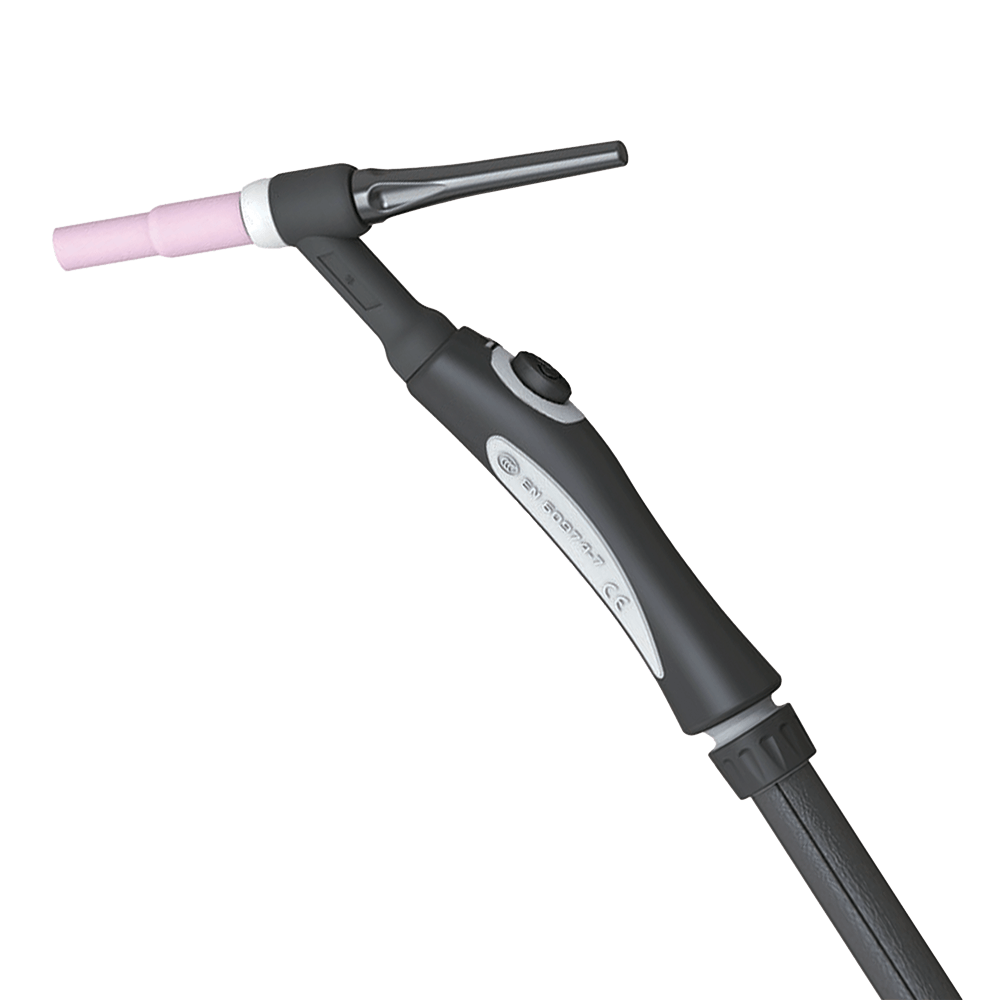

The XA20 SUREGRIP™ Water-Cooled TIG Torch has been engineered for maximum performance during AC and DC High Frequency TIG welding. The ergonomically designed lightweight handle includes soft grips, knuckle joins and a screwless, interchangeable switch. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.
INTERCHANGE-ABLE SWITCHES
An extensive range of switch options are available for this torch. Switches can be interchanged on the fly without the use of tools.
ERGONOMIC HANDLE
Like an extension of your hand, the ergonomically designed handle includes soft grips, knuckle joints and a screwless, interchangeable switch.

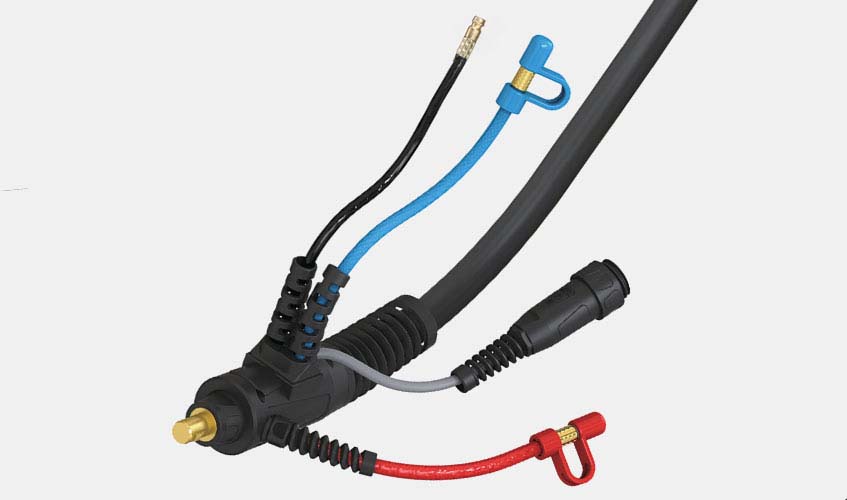

ADVANCED CABLE SYSTEM
Xcel-Arc’s advanced cable system features rubber cable materials to guarantee the best performance. Switch leads are shielded as standard to ensure minimal tracking and maximum machine protection. Positioning of the torch is made easier through the combination of knuckle joints and a flexible leather section that covers the first metre of the torch behind the handle.
TIG Torch Specifications
- Cooling Method
- Water Cooled
- Duty Cycle - DC
- 100% @ 225A
- Duty Cycle - AC
- 100% @ 160A
- Lengths M
- 4/8
- Dinse Size
- 35/50
- Electrode Size
- 1.0-4.0mm
- Standard
- EN60974-7
Water Cooler Specifications
- Minimum Water Flow
- 1.0L/min
- Minimum Water Inlet Pressure
- 2.0 Bar
- Maximum Water Inlet Pressure
- 5.0 Bar
- Maximum Water Inlet Temperature
- 50°C
- Minimum Cooling Power
- 900W
