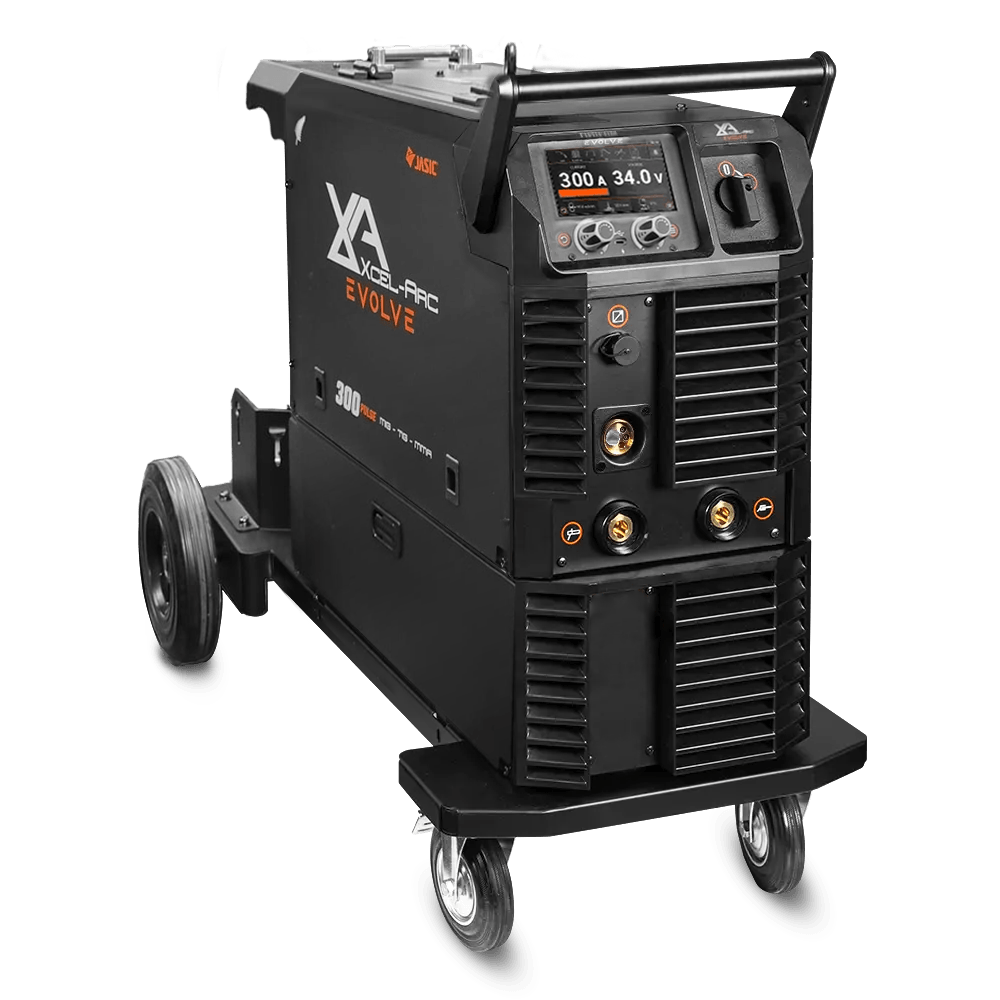

Xcel-Arc EVOLVE™ PULSE MIG300 Welder - Trolley Package
XA-MIG300EVP-K
415V THREE-PHASE |
In stock
DUAL POWER INPUT
240V Single-Phase / 415V Three-Phase
PUSH-PULL READY
Achieve smooth and steady wire feeding, especially when using softer wires
SINGLE & DOUBLE <br>PULSE MIG
REDUCES THE HEAT AND MINIMISES SPATTER, WITHOUT COMPROMISING PENETRATION.
4 GEARED WIRE DRIVE
For smoothest wire feeding.
Packed full of revolutionary technologies, futureproof your workshop with our all-new Xcel-Arc EVOLVE PULSE MIG300 Trolley Package.
Complete with single and double pulse MIG programs Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit Comes packaged with a trolley
NOT ALL PULSE MACHINES ARE EQUAL
No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.
100+ SMART-SET MIG PROGAMS
Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.

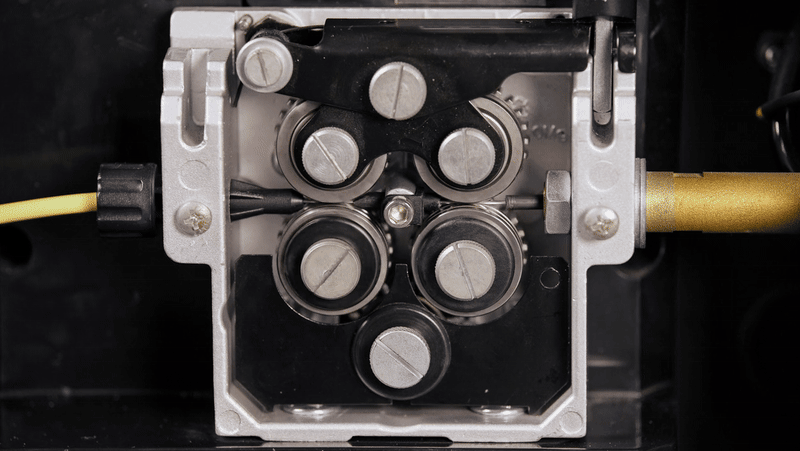

4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.

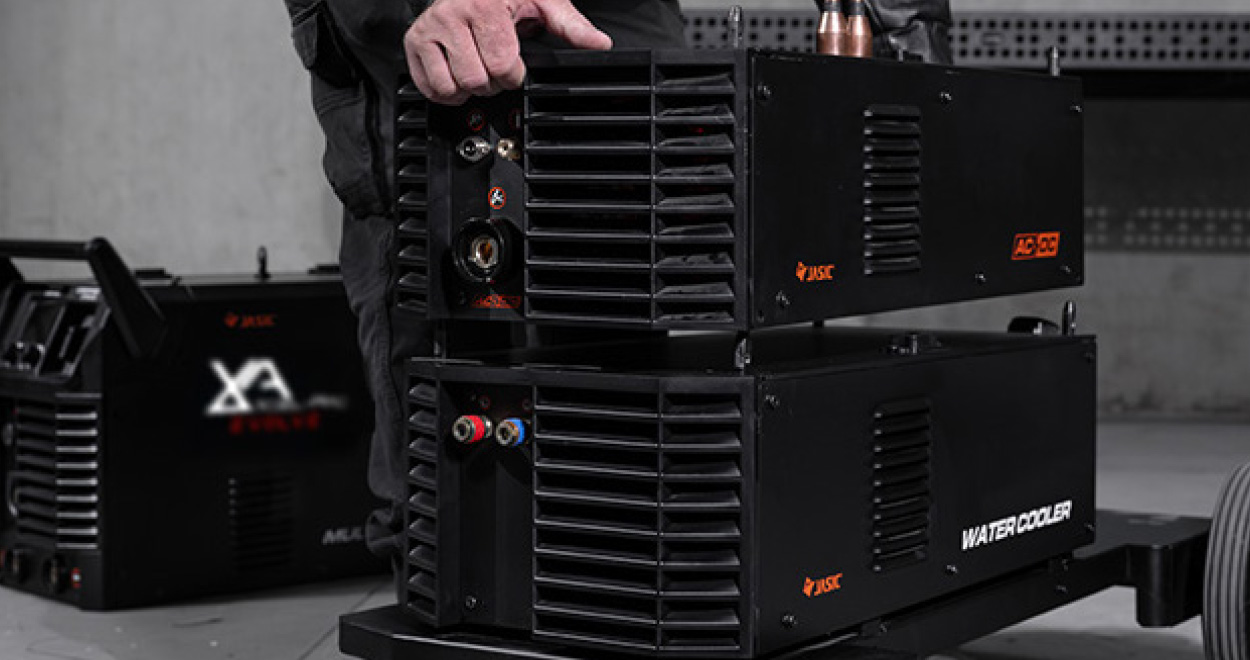

MODULAR <br>ADD ONS
Futureproof your purchase with the EVOLVE 300 PULSE, with the option to add additional modules as you need them. These optional modules include a Separate Wire Feeder (SWF) module and an AC/DC TIG module for all your future needs.
PUSH-PULL READY
Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

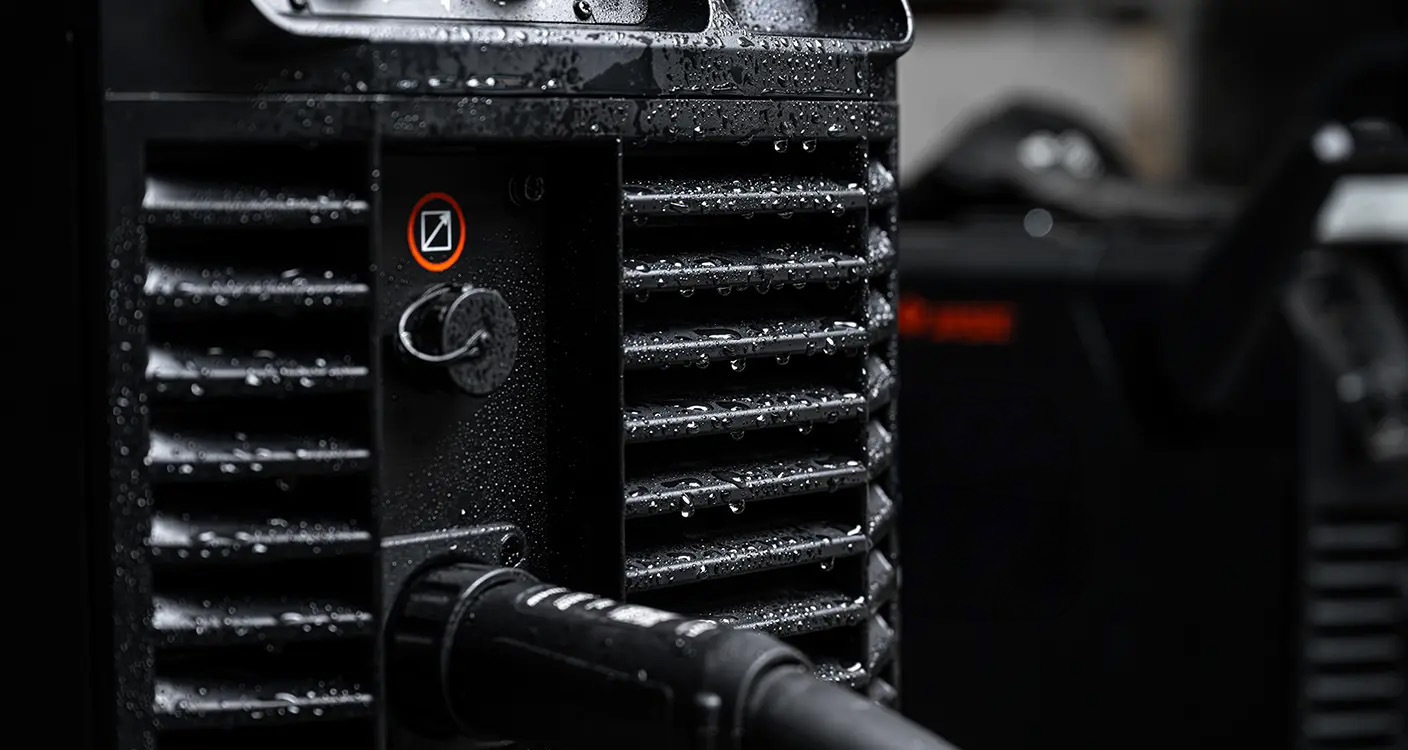

IP21S
Rated IP21S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from vertical while still.

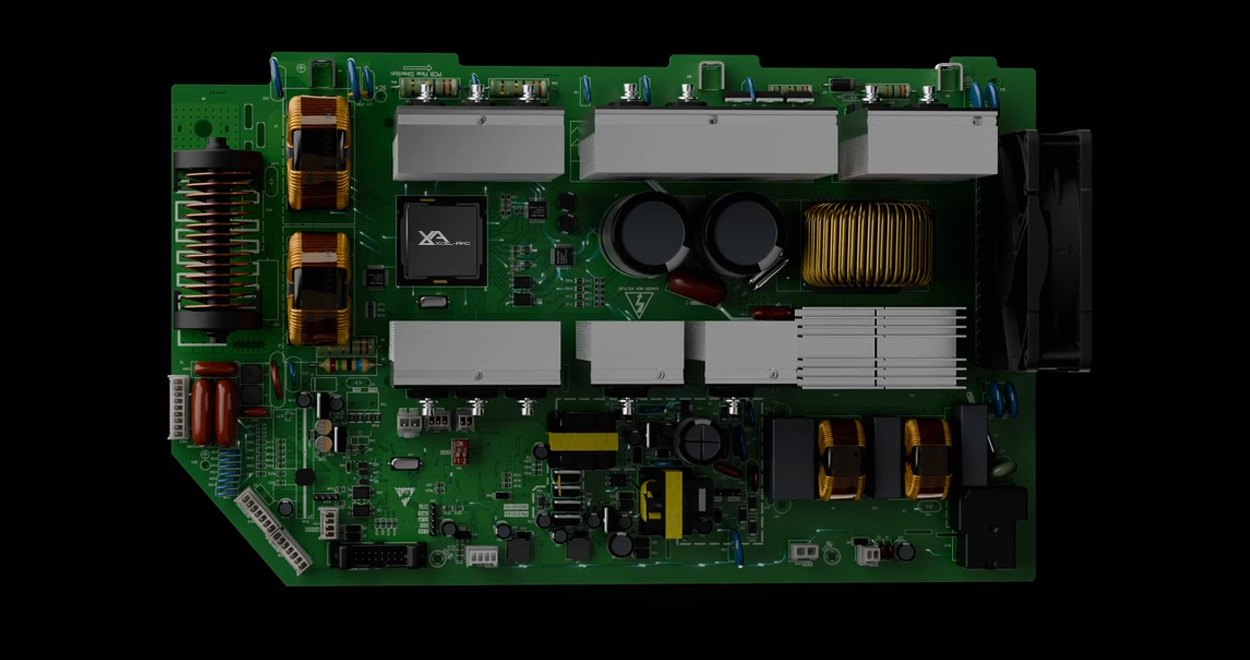

Inverter Technology
Not every inverter is made equal. With Xcel-Arc's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.

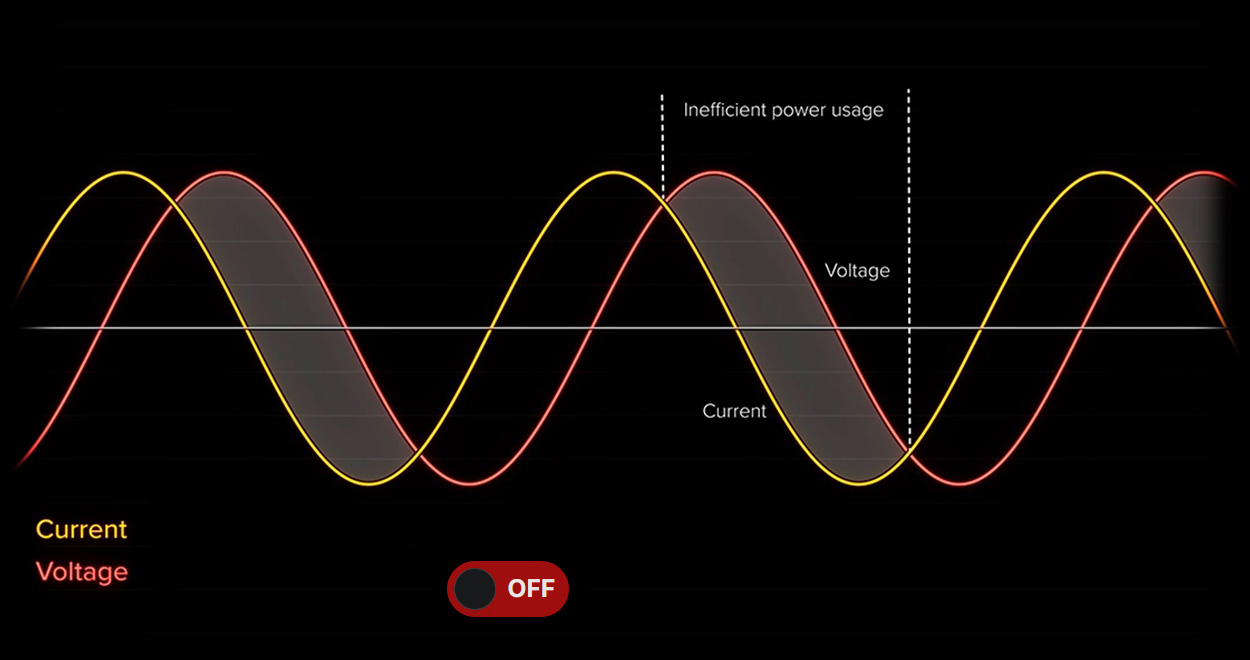

Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
Machine Specifications
- Primary Input Voltage
- 240V Single-Phase / 415V Three-Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 25.3
- Ieff Amps
- 27.0
- Rated Output
- 50A/16.5V - 500A/39.0V
- No Load Voltage (V)
- 70
- Protection Class
- IP21S
- Insulation Class
- F
- Roller Size
- 30/22 (x2)
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 32 AMP
- Ieff (A)
- 14.2 (Single-Phase) / 12.4 (Three-Phase)
- Rated Output
- 20A-250A (240V Single-Phase) / 20A-300A (415V Three-Phase)
- Insulation Class
- H
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years)
- 5
- Imax (A)
- 36.7A (240V Single-Phase) / 16.0A (415V Three-Phase)
MIG Specifications
- Welding Current Range
- 50-500A
- MIG Duty Cycle
- 15% @ 250A (Single-Phase) 60% @ 125A (Single-Phase) 100% @ 97A (Single-Phase) -- 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)
- Wire Size Range
- 0.6-1.6mm
- Welding Thickness Range
- 2mm - 50mm
- Welding Current Range
- 20-250A (Single-Phase) / 20-300A (Three Phase)
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 5kg / 15kg
- Mig Welding Thickness Range
- 0.6-20mm (Single Pass) >20mm (Multi Pass)
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- 20-500A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 20mm
Stick Specifications
- Stick Welding Current Range
- 20A-200A (240V Single-Phase) / 20A-300A (415V Three-Phase)
- Stick Duty Cycle @ 40°C
- 20% @ 200A (Single-Phase) 60% @ 115A (Single-Phase) 100% @ 89A (Single-Phase) -- 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)
- Stick Electrode Range
- 1.6-4.0mm
- Stick Welding Thickness Range
- 2-10mm (Single Pass) >10mm (Multi Pass)
- Arc Force
- Adjustable
Size & Weight
- Dimensions
- 810x332x975mm
- Weight
- 44
Machine Features
- Wire Drive
- Seperate 4 Geared
- VRD
- Yes
- Push Pull Gun Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Crater Current Control
- Yes
- Thermal Overload Protection
- Over Temperature Warning
- Heating Element For Co2 Reg
- Yes
