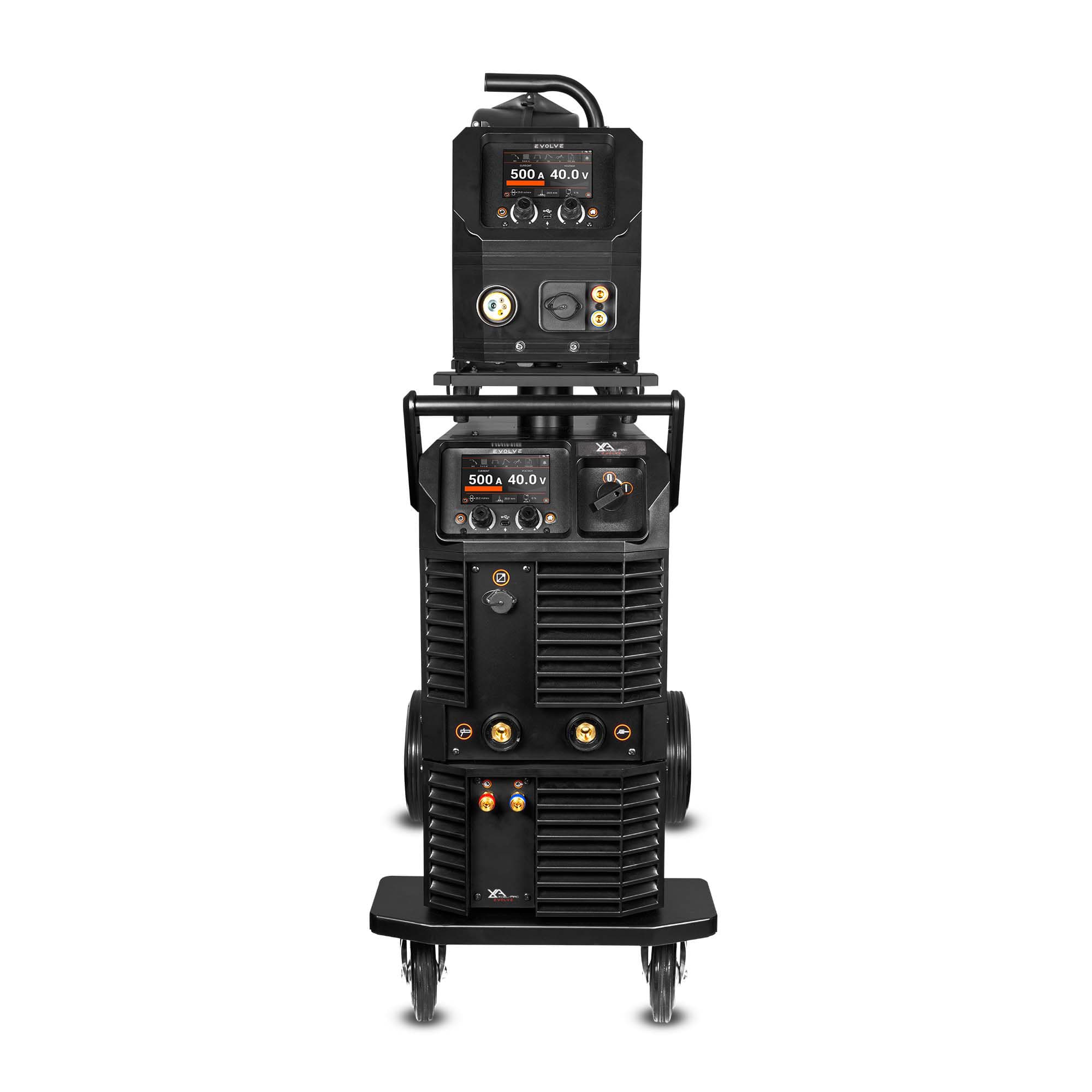

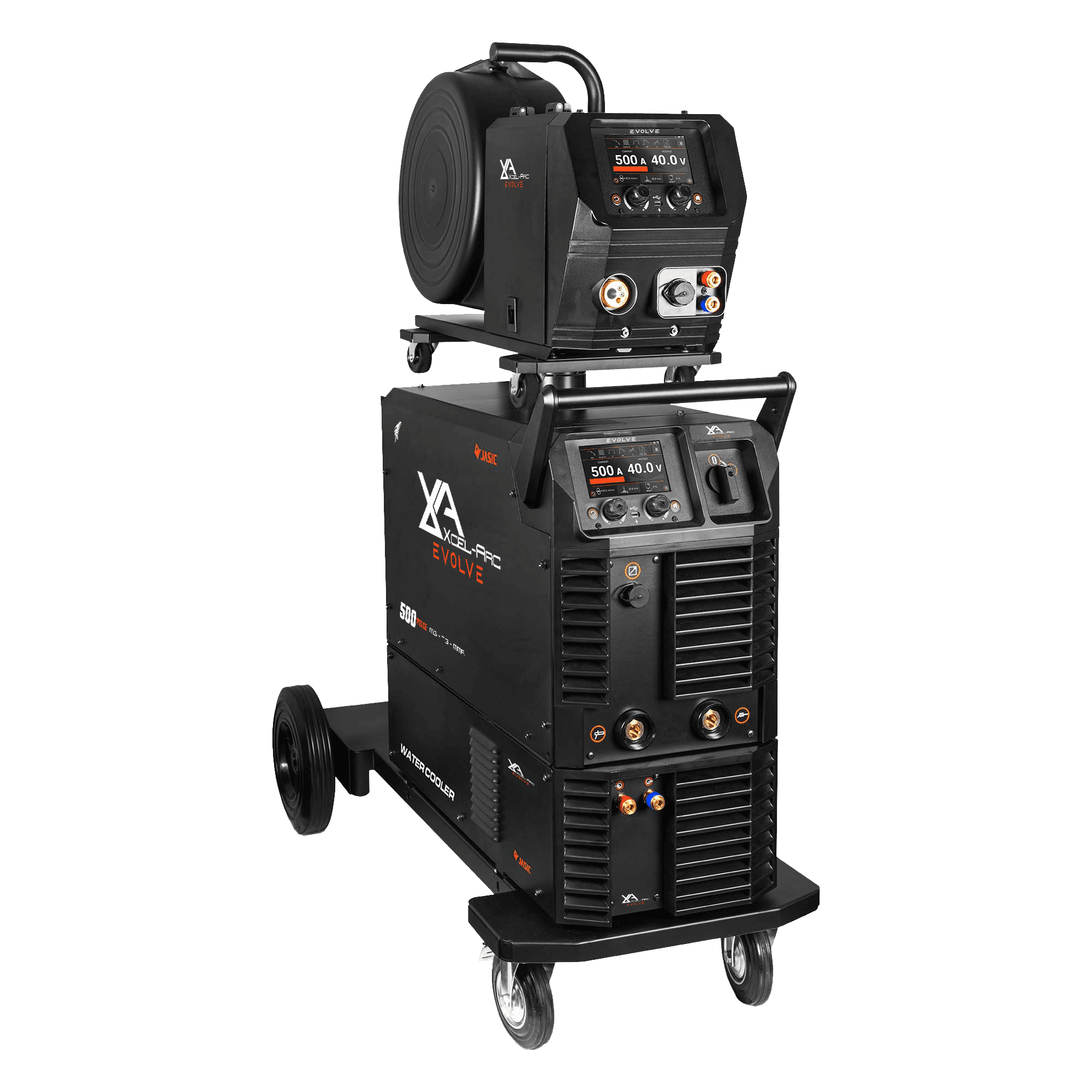

Xcel-Arc EVOLVE™ PULSE MIG500 Welder - Water Cooled Package
XA-MIG500EVP-K
415V THREE-PHASE |
In stock
THREE-PHASE
415V Power
PUSH-PULL READY
Achieve smooth and steady wire feeding, especially when using softer wires
SEPARATE WIRE FEEDER
Adds up to 10m of extra manoeuvrability.
4 GEARED WIRE DRIVE
For smoothest wire feeding.
Packed full of revolutionary technologies, futureproof your workshop with our all-new Xcel-Arc EVOLVE™ PULSE MIG500.
Complete with single and double pulse MIG programs. A full range of optional modular accessories is available for purchase as add-ons with options like the AC/DC TIG module. Comes packaged with a Separate Wire Feeder unit, 10m Umbilical, Water Cooler and Trolley.

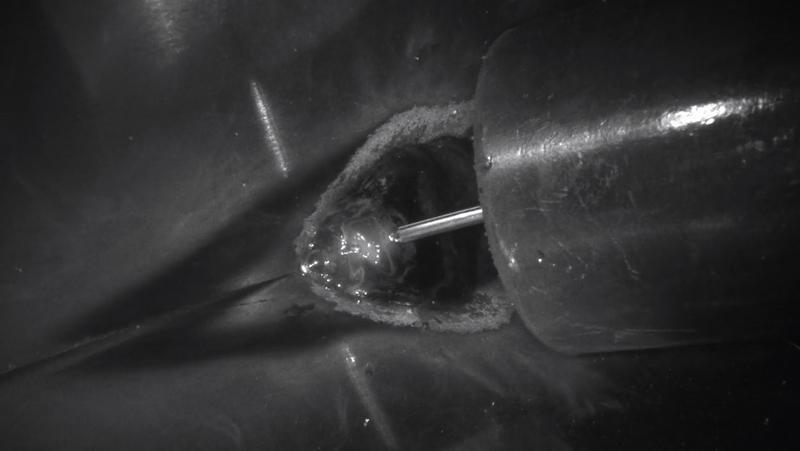

NOT ALL PULSE MACHINES ARE EQUAL
No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.
100+ SMART-SET MIG PROGAMS
Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.

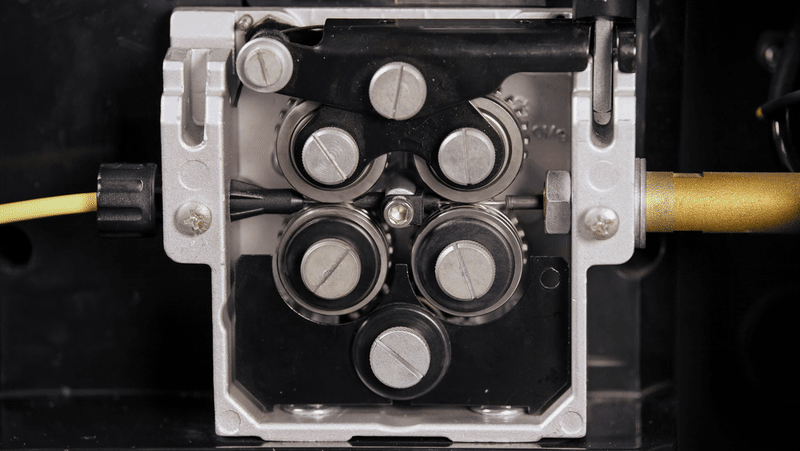

4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.

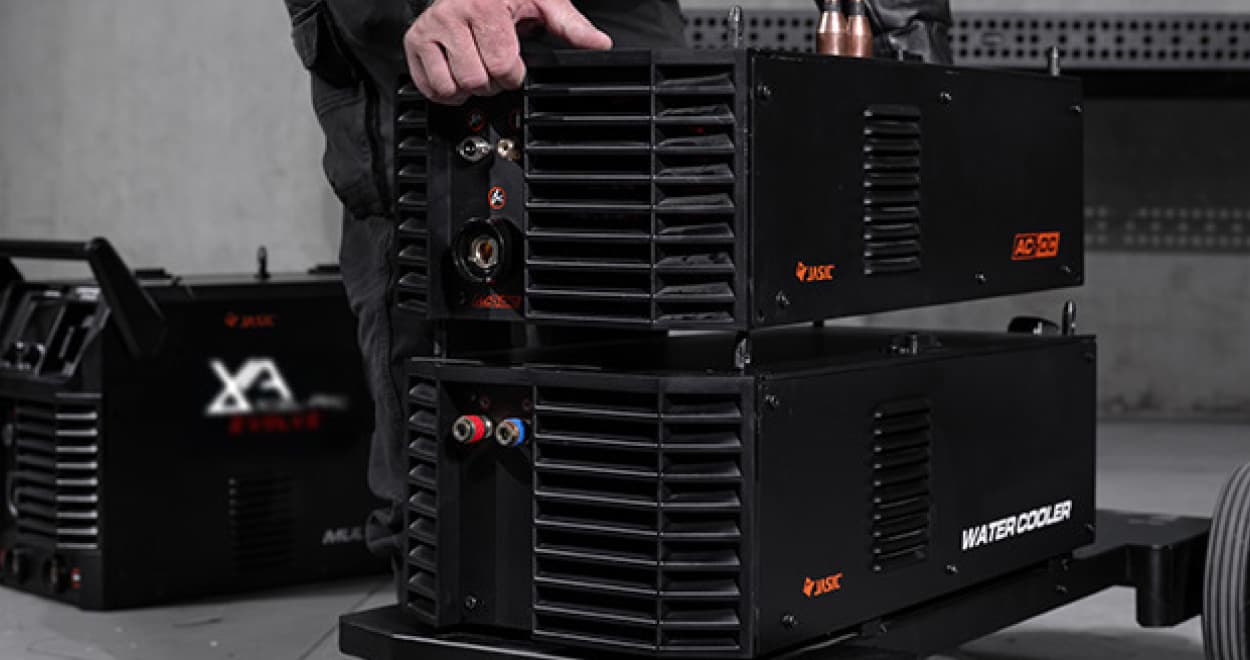

MODULAR ADD ONS
Futureproof your purchase with the Xcel-Arc EVOLVE 500 PULSE, with the option to add additional modules as you need them. These optional modules include an AC/DC TIG module for all your future needs.
PUSH-PULL READY
Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

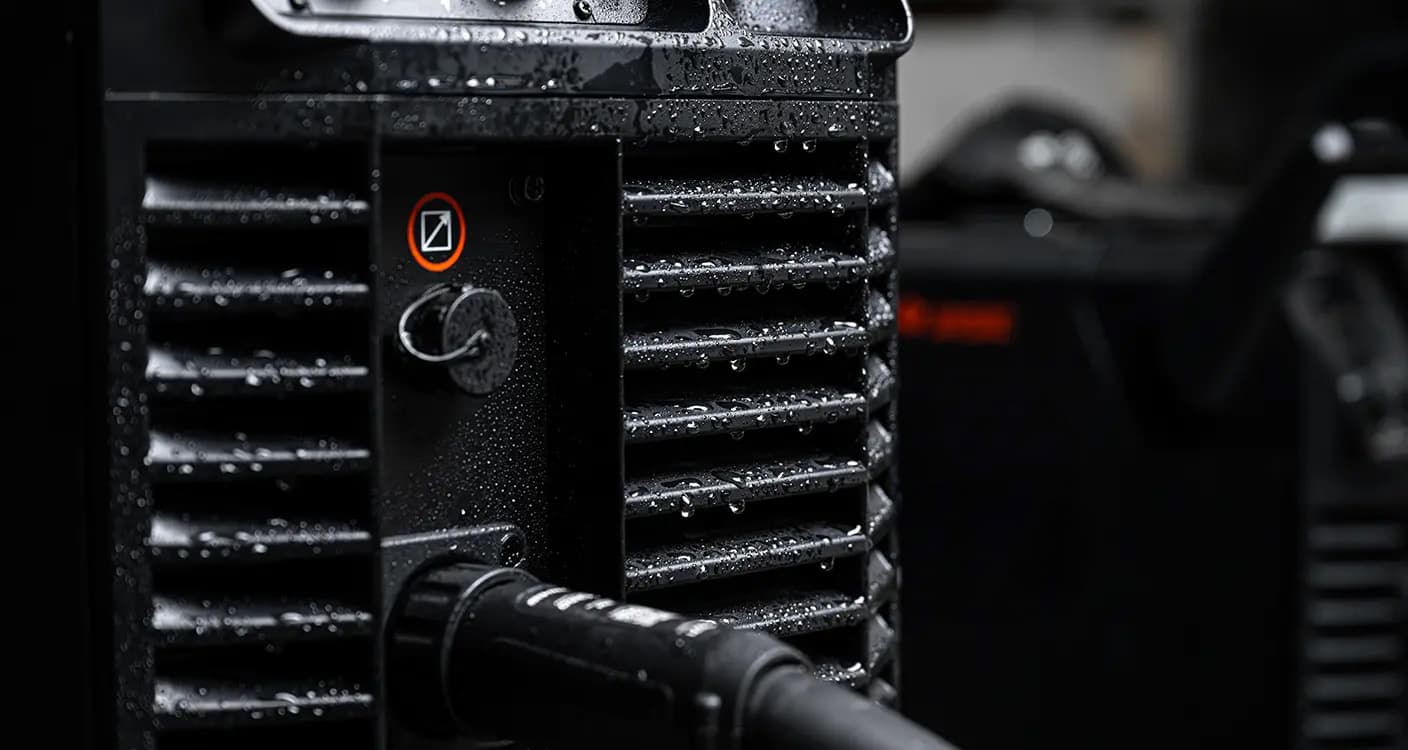

IP21S
Rated IP21S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from vertical while still.

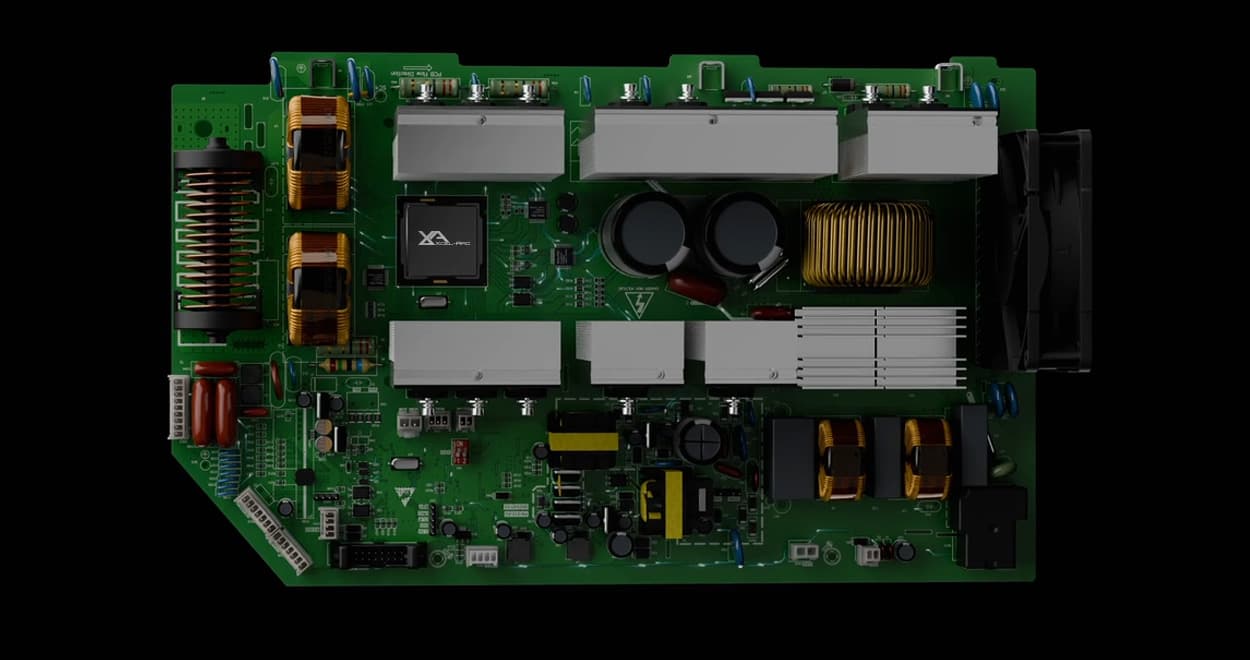

Inverter Technology
Not every inverter is made equal. With Xcel-Arc's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.

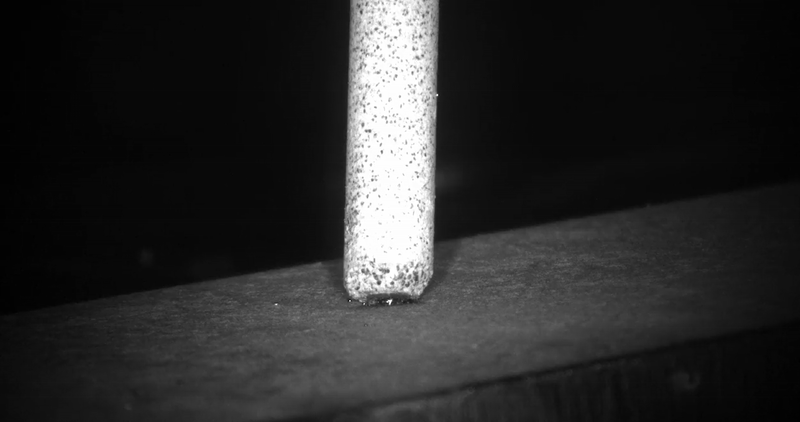

Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.

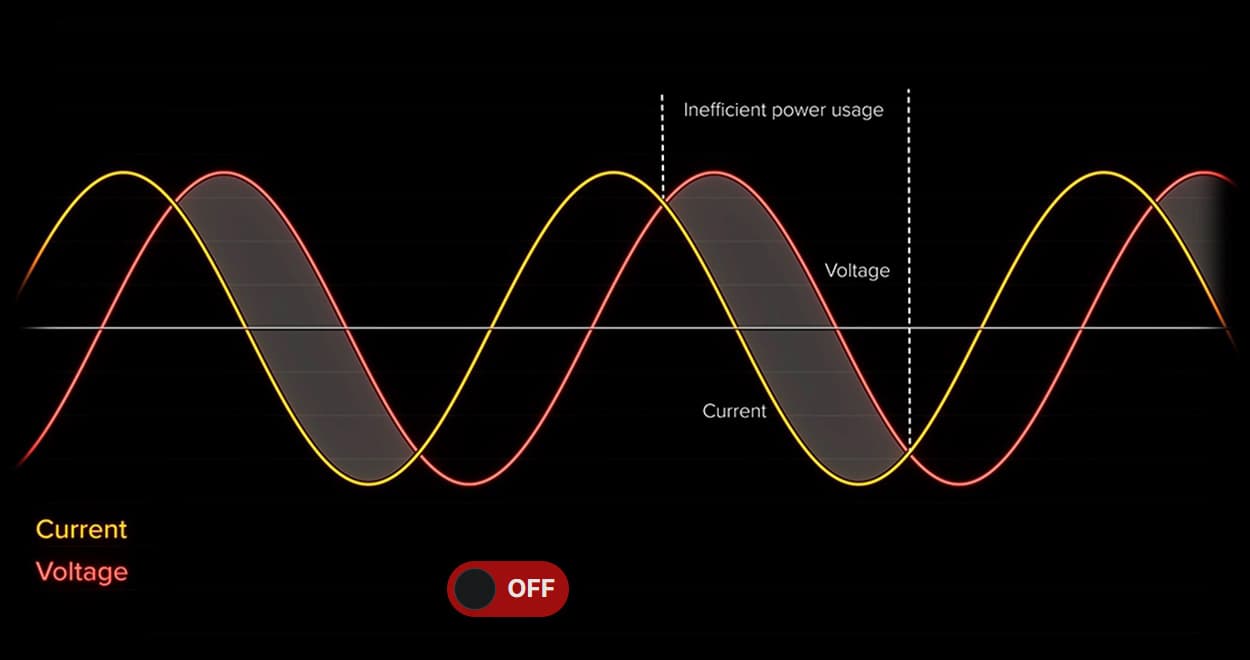

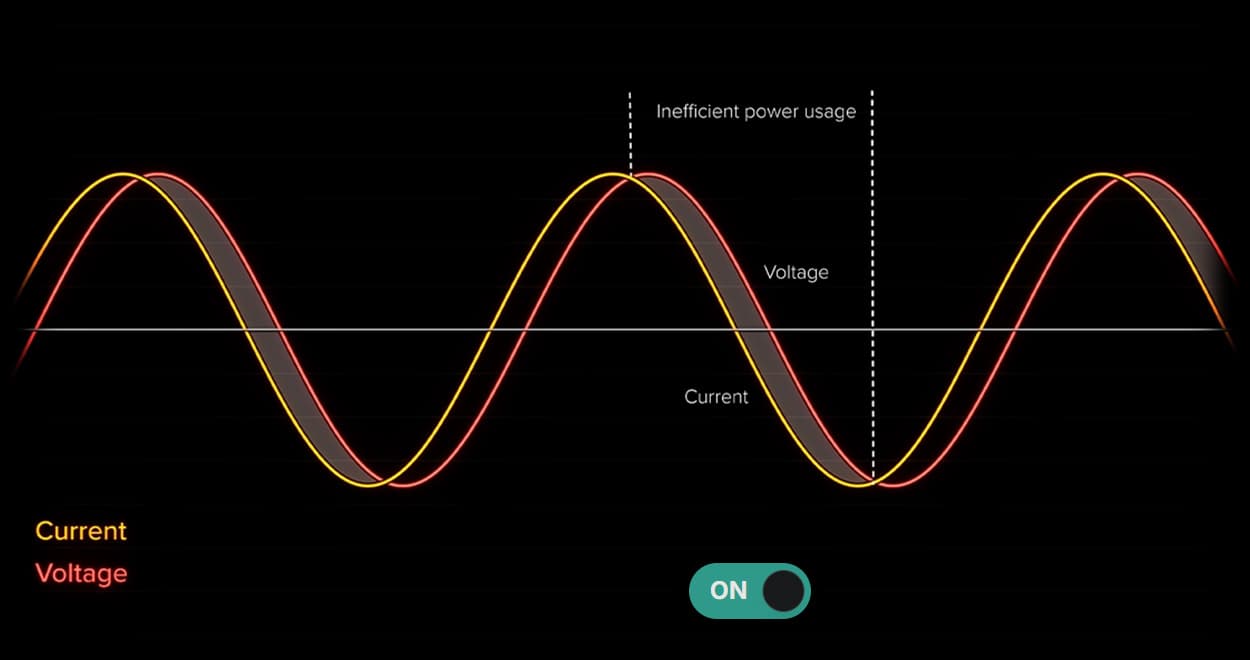

Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
Machine Specifications
- Primary Input Voltage
- 415V Three-Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 25.3
- Ieff Amps
- 27.0
- Rated Output
- 50A/16.5V - 500A/39.0V
- No Load Voltage (V)
- 70
- Protection Class
- IP21S
- Insulation Class
- F
- Roller Size
- 30/22 (x2)
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- Unplugged 32 AMP Recommended
- Rated Input Power (kVA)
- 25.3
- Ieff (A)
- 14.4 (Single-Phase) / 18.3 (Three-Phase)
- Rated Output
- 32.2 (Single-Phase) 24.5 (Three-Phase)
- Insulation Class
- H
- Roller Size
- 26.0
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years)
- 5
MIG Specifications
- Welding Current Range
- 50-500A
- MIG Duty Cycle
- 60% @ 500A , 100% @ 400A
- Wire Size Range
- 0.6-1.6mm
- Welding Thickness Range
- 2mm - 50mm
- Welding Current Range
- 20-500A
- Wire Size Range
- 0.6-1.6mm
- Welding Thickness Range
- 5kg (200mm) / 15kg (300mm)
- Mig Welding Thickness Range
- 0.6-20mm (Single Pass) >20mm (Multi Pass)
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- 20-500A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 20mm
Stick Specifications
- Stick Welding Current Range
- 20A-500A
- Stick Duty Cycle @ 40°C
- 60% @ 500A , 100% @ 400A
- Stick Electrode Range
- 1.6-6.0mm
- Stick Welding Thickness Range
- 2-10mm (Single Pass) >10mm (Multi Pass)
- Arc Force
- Adjustable
Size & Weight
- Dimensions
- 1250x332x975mm
- Weight
- 117
Machine Features
- Wire Drive
- 4 Geared Wire Drive
- VRD
- Yes
- Spool Gun Connection
- Yes
- Push Pull Gun Connection
- Yes
- Burnback Adjustment
- Yes
- Inductance Control
- Yes
- Crater Current Control
- Yes
- Thermal Overload Protection
- Over Temperature Warning
- Heating Element For Co2 Reg
- Yes
