Xcel-Arc
XA TIG200CRZ ACDC T3

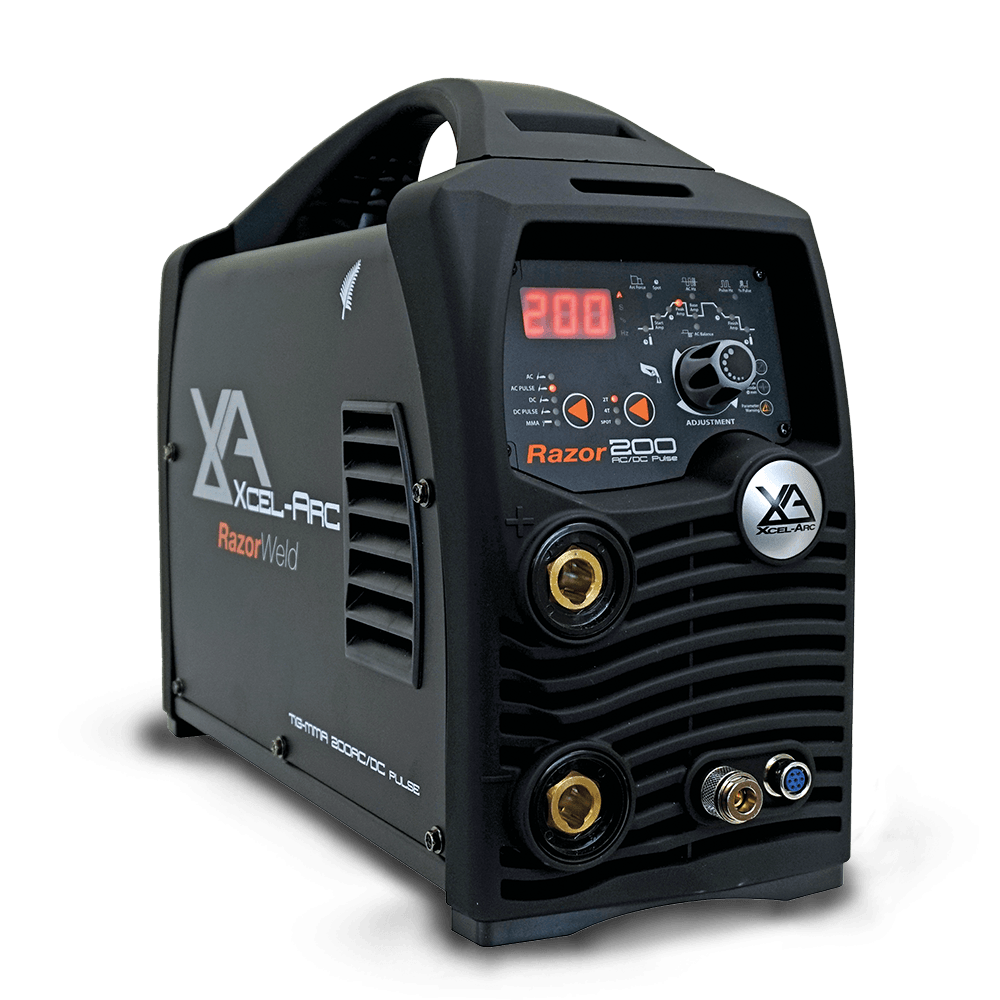

RAZORWELD™ 200 AC/DC TIG Welder

XA-TIG200CRZ ACDC-T3

15 AMP PLUG | H/F AC/DC TIG | FOOT CONTROL READY

In stock

Find a stockistEnquire

15 AMP PLUG

Connect to a 15 AMP outlet.

AC/DC HIGH FREQUENCY TIG

Perfect for Aluminium.

PULSE FUNCTION

Minimise distortion on the welded material.

FOOT CONTROL READY

Extra versatility and convenience.

The RAZORWELD™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.

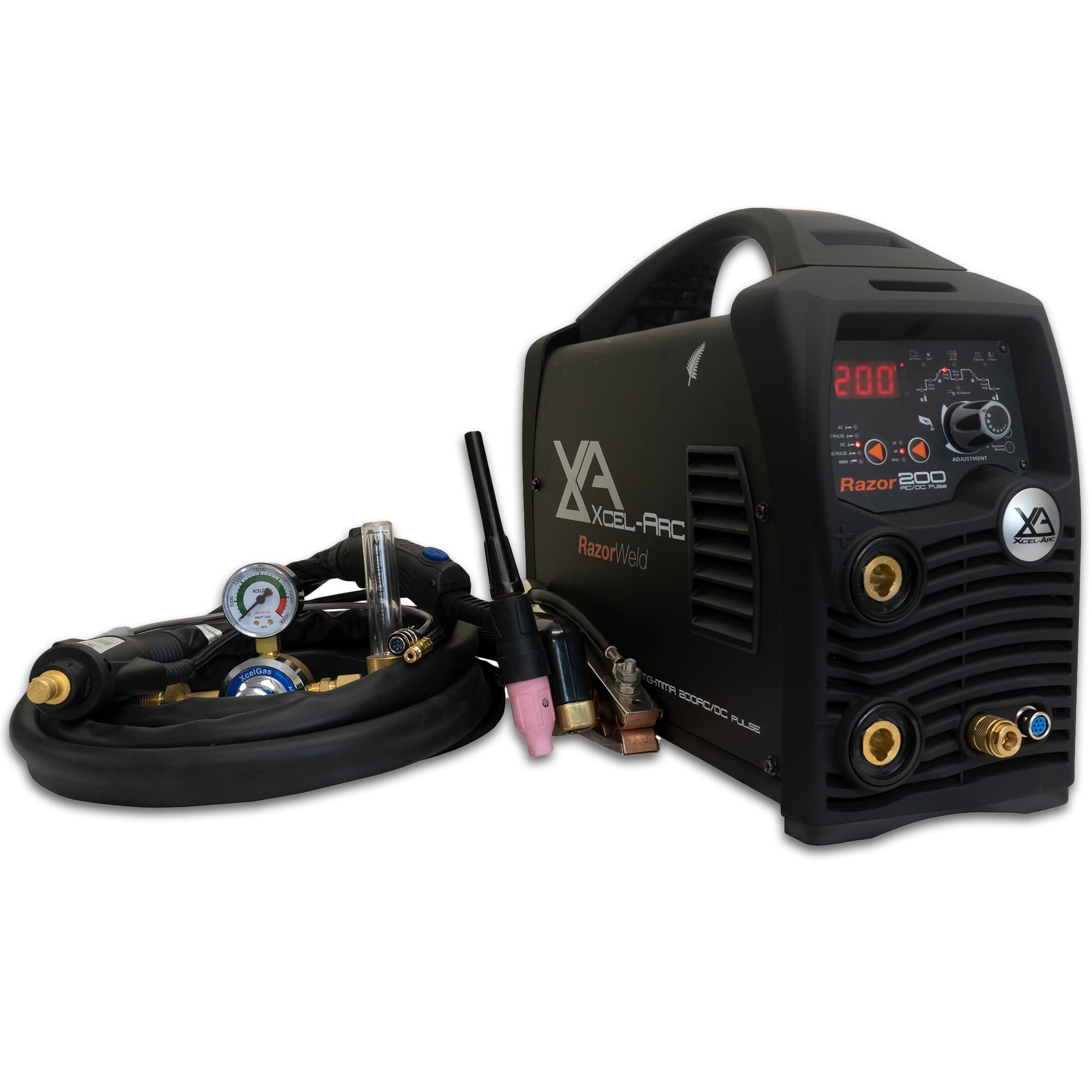

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZORWELD™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

AC/DC HIGH-FREQUENCY TIG

High Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the work piece reducing the risk of contaminating the tungsten or the weld.
High Frequency TIG 1

PULSE TIG FUNCTION

Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.
Pulse TIG

FOOT CONTROL READY

This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.
320 ACDC Remote Control

Machine Specifications

Primary Input Voltage
240V Single Phase
Plug Type
15 AMP
Rated Input Power Kva
6.0
Ieff Amps
15.0
Rated Output
10-200A/18.0V
No Load Voltage (V)
9-68
Protection Class
IP21S
Insulation Class
F
Minimum Generator (kVA)
0.7
Dinse Connection Size
35/50
Welds
AS/NZ60974-1
Plug Type
15 AMP
Rated Input Power (kVA)
6.0
Ieff (A)
15.0
Rated Output
5-200A
Insulation Class
B
Roller Size
9.0
Suitable Material
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
Warranty (Years)
3

MMA Specifications

Welding Current Range
10-160A
MIG Duty Cycle
5-200A
Electrode Range
30% @ 160A
Welding Thickness Range
2mm - 12mm
Welding Current Range
AC/DC HF TIG & AC/DC Pulse
Electrode Range
25% @ 200A
Welding Thickness Range
1-8mm

Stick Specifications

Stick Welding Current Range
10-160A
Stick Duty Cycle @ 40°C
30% @ 160A
Stick Electrode Range
2.5-4.0mm
Stick Welding Thickness Range
2-12mm
Arc Force
0-40

Size & Weight

Dimensions
410x162x326mm
Weight
10.5kg
