15 AMP PLUG
Connect to a 15 AMP outlet.
DC HIGH FREQUENCY TIG
Contactless Arc Starting
PULSE FUNCTION
Minimise distortion on the welded material.
THERMAL OVERLOAD PROTECTION
PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

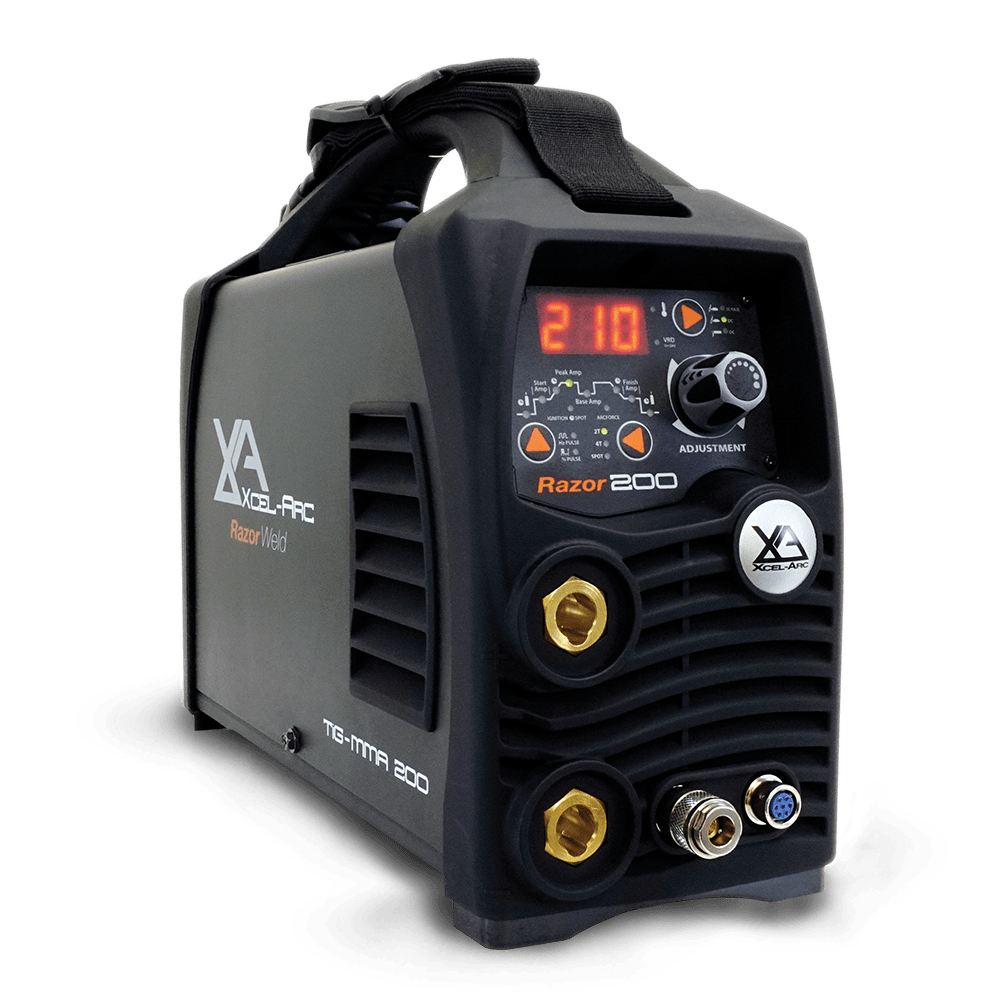

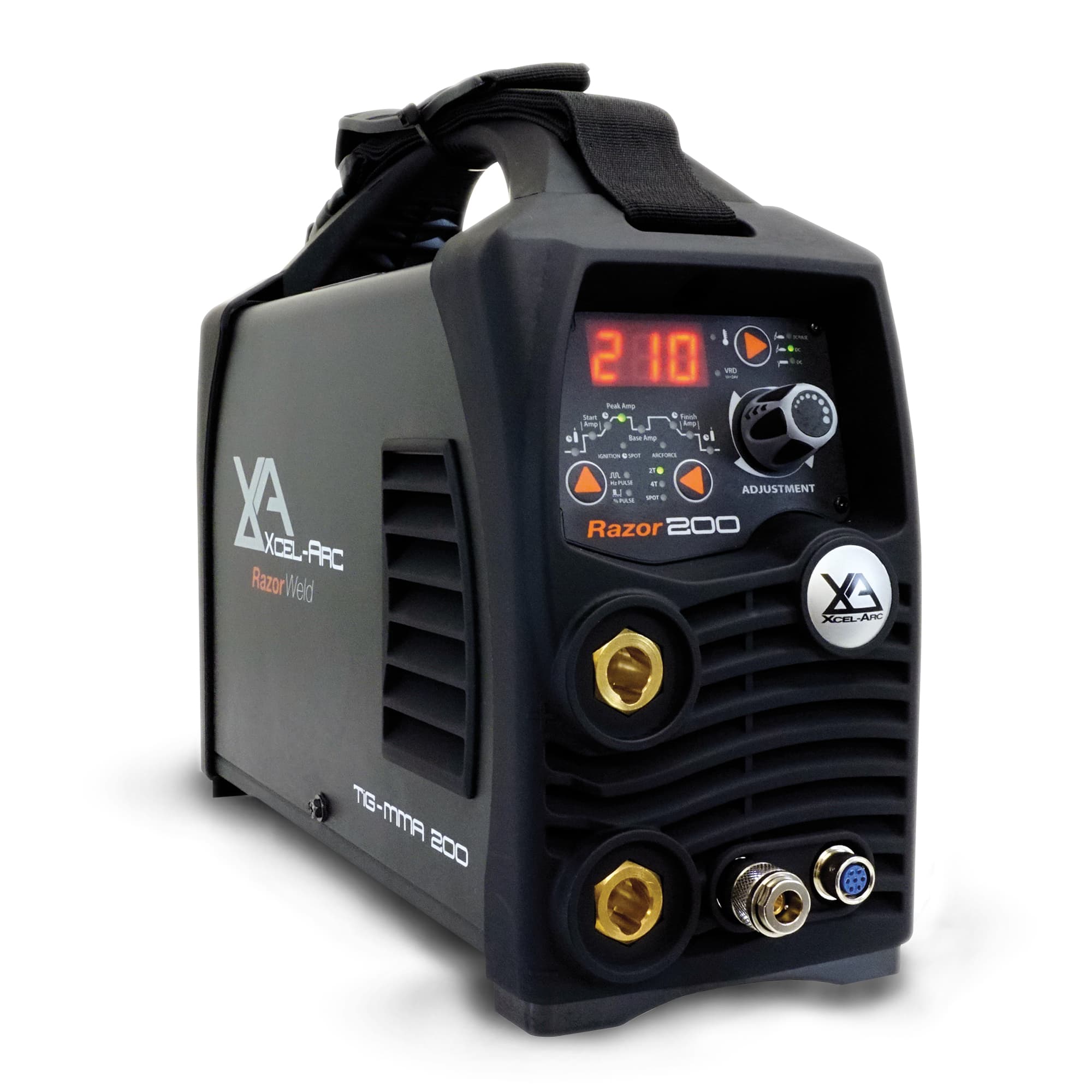

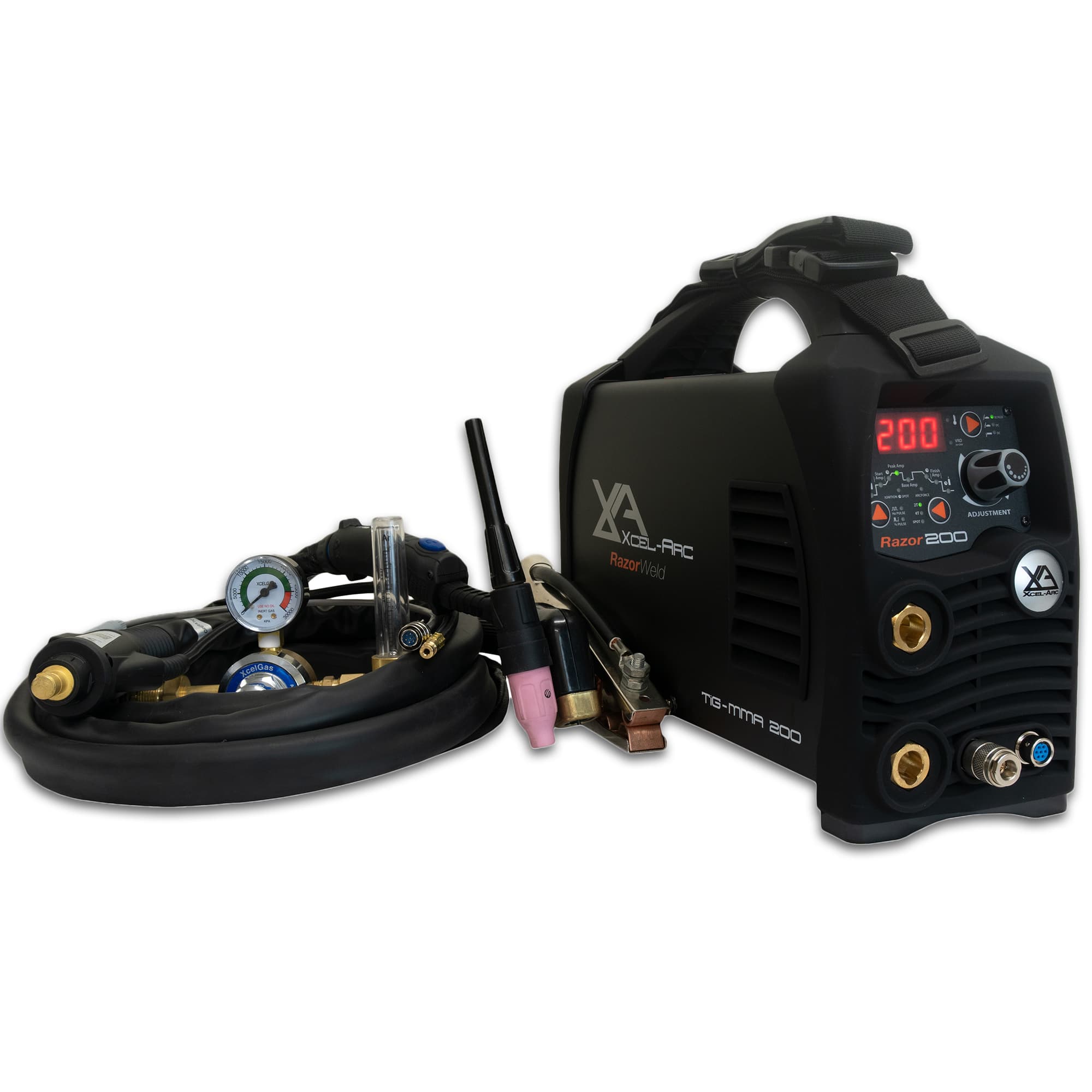

The RAZORWELD™ 200 DC gives you full control over High Frequency DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.
Tailor your TIG settings with a wide range of controllable parameters including Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post-Gas Time.
HIGH-FREQUENCY TIG
High Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the work piece reducing the risk of contaminating the tungsten or the weld.
PULSE FUNCTION
Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 7.0
- Ieff Amps
- 14.6
- Rated Output
- 10-200A/18.0V
- No Load Voltage (V)
- 9-75
- Protection Class
- IP21S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.7
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Rated Input Power (kVA)
- 7.0
- Ieff (A)
- 14.6
- Rated Output
- 5-200A
- Insulation Class
- F
- Roller Size
- 10.0
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- Warranty (Years)
- 3
MMA Specifications
- Welding Current Range
- 10-180A
- MIG Duty Cycle
- 5-200A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- DC HF TIG / DC Pulse
- Electrode Range
- 25% @ 200A
- Welding Thickness Range
- 1-8mm
Stick Specifications
- Stick Welding Current Range
- 10-180A
- Stick Duty Cycle @ 40°C
- 25% @ 180A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-12mm
- Arc Force
- 0-180
Size & Weight
- Dimensions
- 365x135x277mm
- Weight
- 6.5kg
Machine Features
- VRD
- Yes
- Thermal Overload Protection
- Over Temperature Warning
