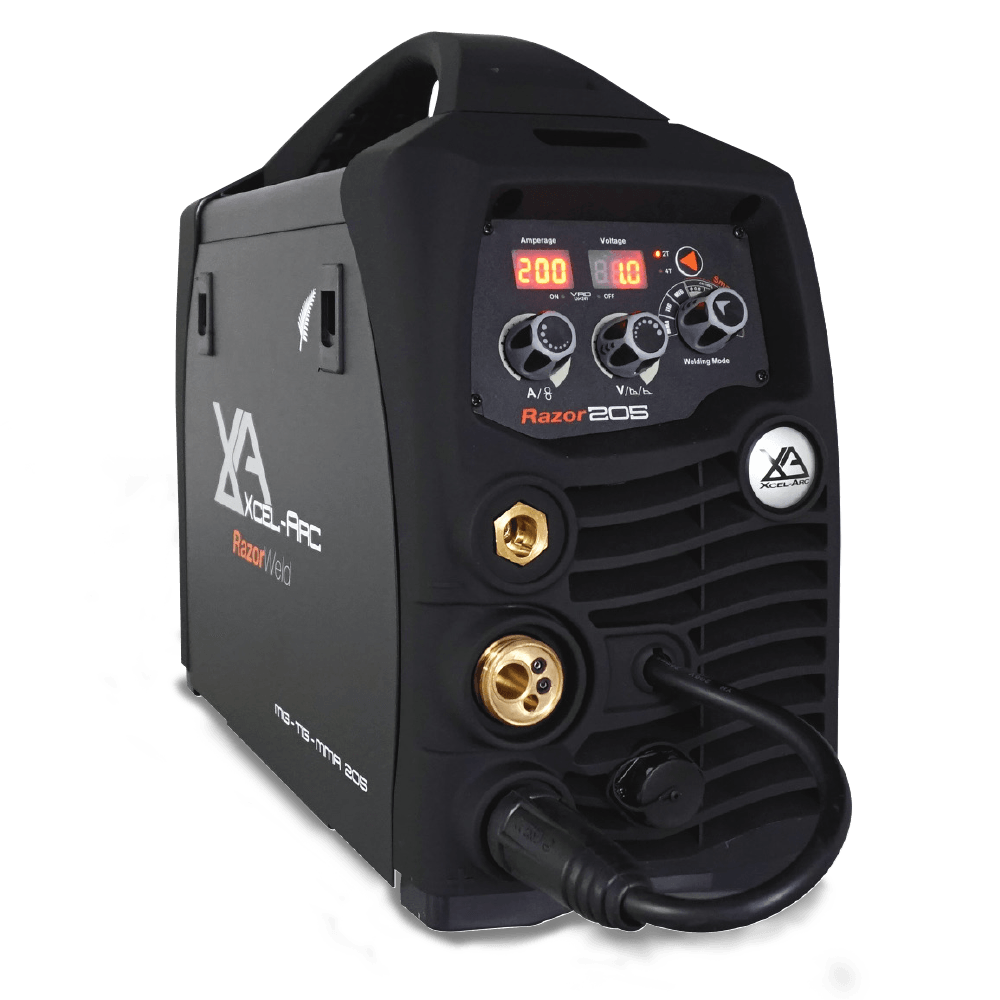

RAZORWELD™ 205 SMART SET™ MIG/TIG/STICK Welder
XA-MIG205SS-K
15 AMP PLUG | SYNERGIC MIG | SPOOL GUN READY
In stock
15 AMP PLUG
Connect to a 15 AMP outlet.
SPOOL GUN READY
For softer wires, such as Aluminium.
SMART SET™ TECHNOLOGY
Four Synergic Mild Steel welding programs.
GEARED WIRE DRIVE
For smoother wire feeding.
The RAZORWELD™ 205 SMART SET™ is one of the easiest multi-process welders available, offering MIG, TIG and STICK welding functions. The SMART SET™ Synergic MIG technology takes the guesswork out of MIG welding, so you get more done in less time. With the inclusion of a Spool Gun connection and lightweight construction, the RAZORWELD™ 205 SMART SET™ goes from worksite to workshop with ease.

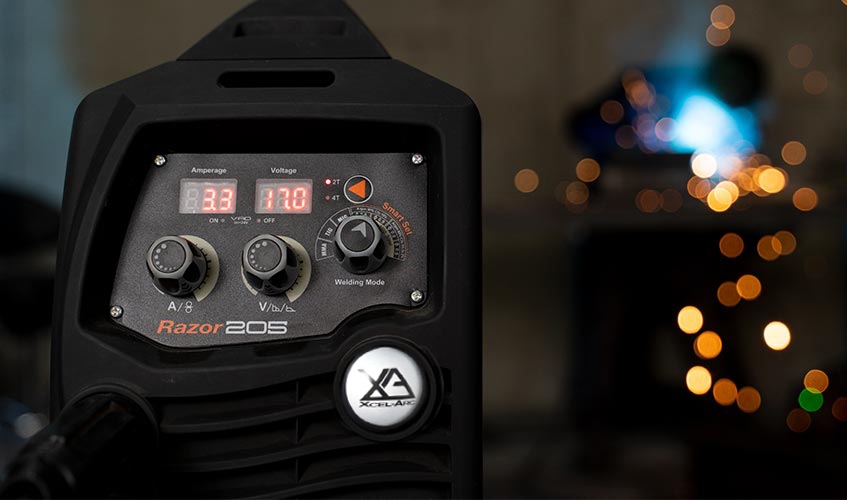

SMART SET TECHNOLOGY
The clever SMART SET™ Synergic MIG programs take the guesswork out of your settings. Simply select your wire size and gas mixture and the machine does the rest. The program works with both 0.8mm and 0.9mm mild steel wires.
MULTI PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
GEARED WIRE DRIVE
This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- No Load Voltage (V)
- 53
- Protection Class
- IP21S
- Minimum Generator (kVA)
- 0.7
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- Warranty (Years)
- 3
- Plug Type
- 15 AMP
- Rated Input Power (kVA)
- 9.4
- Ieff (A)
- 15.0
- Rated Output
- 30A/15.5V - 200A/24.0V
- Insulation Class
- F
- Roller Size
- 11.0
MIG Specifications
- MIG Duty Cycle
- 20% @ 200A
- Mig Welding Thickness Range
- 1-10mm
- Drive Roller Size
- 30/22
- Welding Current Range
- 30-200A
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 1kg / 5kg
MMA Specifications
- MIG Duty Cycle
- 10-200A
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 35% @ 200A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 10-200A
- Stick Duty Cycle @ 40°C
- 15% @ 200A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2mm - 12mm
Size & Weight
- Dimensions
- 470x190x380mm
- Weight
- 12.5kg
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Thermal Overload Protection
- Over Temperature Warning
