Xcel-Arc
XA MIG500RZSWF K

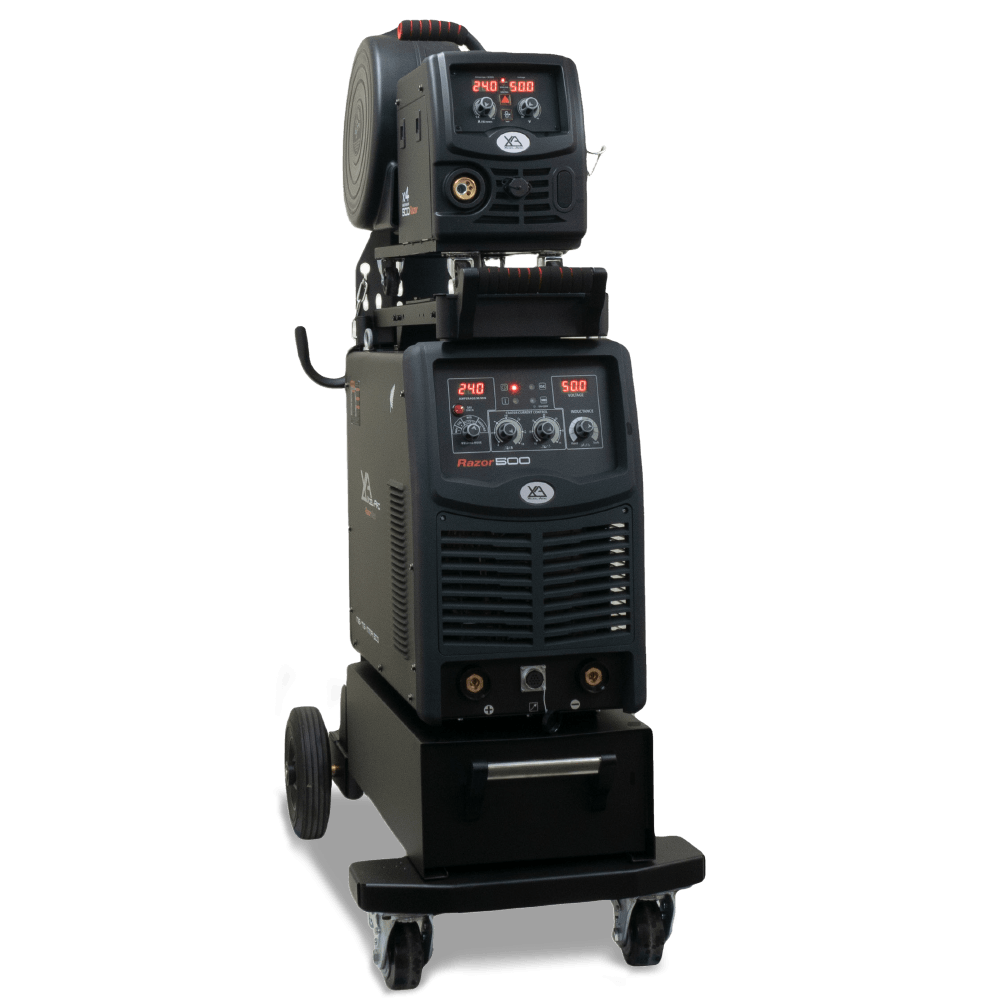

RAZORWELD™ 500 SWF MIG/TIG/STICK Welder

XA-MIG500RZSWF-K

415V THREE-PHASE | SEPARATE WIRE FEEDER | SPOOL GUN READY

In stock

Find a stockistEnquire

THREE-PHASE

415V Power

SPOOL GUN READY

For softer wires, such as Aluminium.

SEPARATE WIRE FEEDER

Adds up to 10m of extra manoeuvrability.

FOUR GEARED WIRE DRIVE

For smoothest wire feeding.

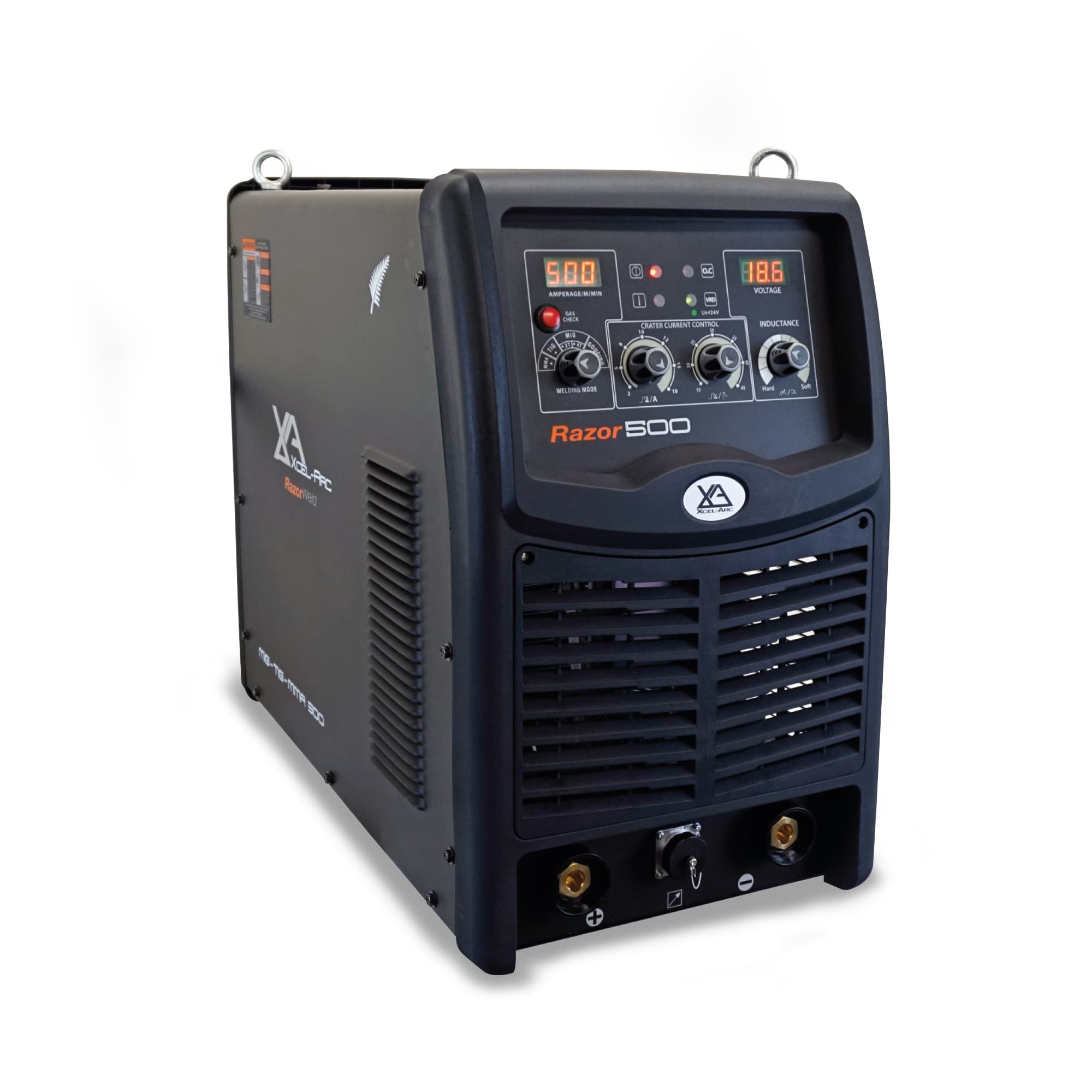

The RAZORWELD™ 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from Xcel Arc’s range.

SEPARATE WIRE FEEDER

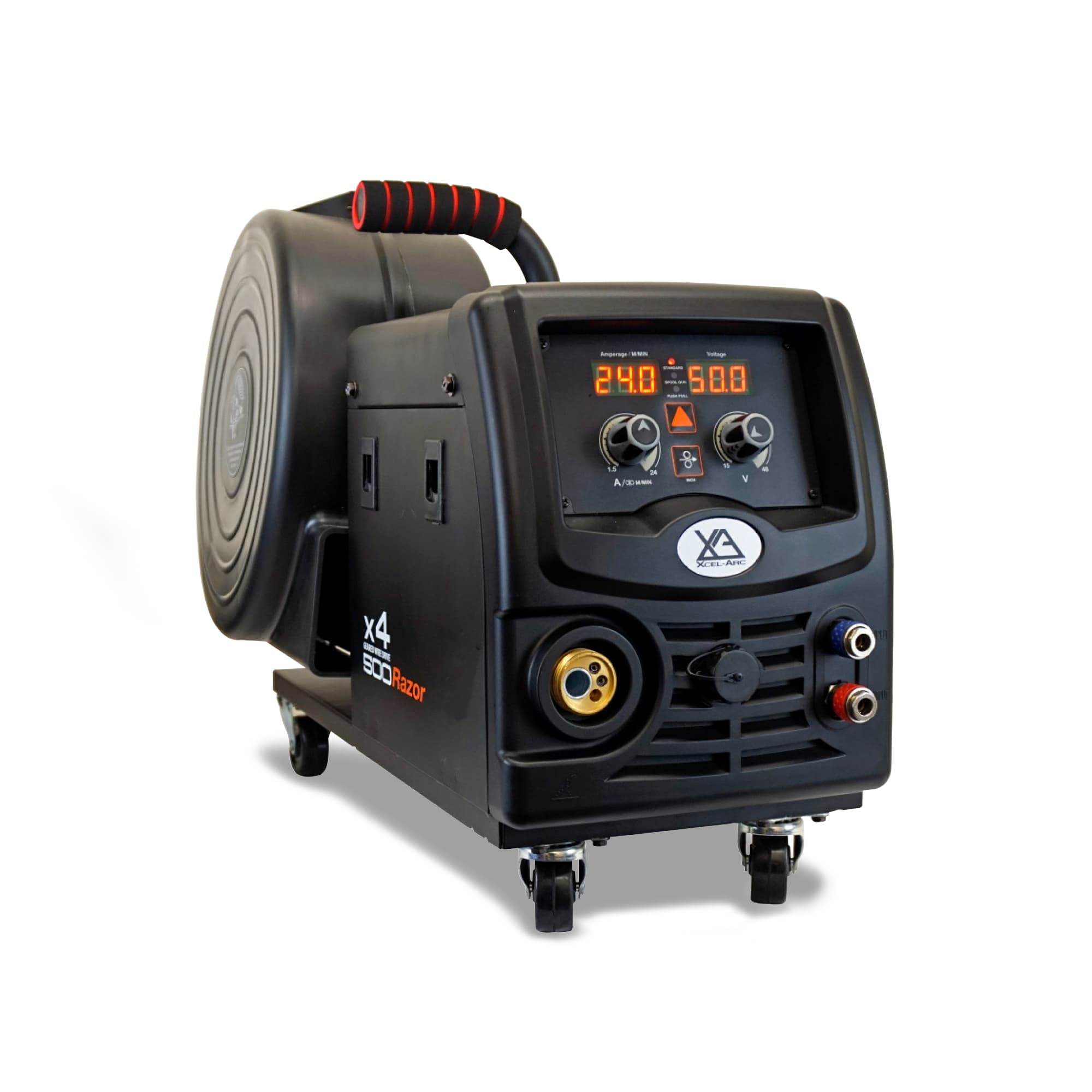

This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.
Separate Wire Feeder

MULTI PROCESS WELDING

This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
Multi Process Welding 1

FOUR GEARED WIRE DRIVE

This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
4 Geared Wire Drive GIF2

SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
Spool Gun Ready 1

PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
Push Pull Gun Ready Xcel Arc

HIGHEST QUALITY WELDS

Offering nothing but the best, this machine has been designed to offer the highest quality welds available from Xcel-Arc. With superior welding technology, no corners have been cut to make this machine the most powerful in its class.
Gas Shielded and Gasless MIG 1

Machine Specifications

Primary Input Voltage
415V Three-Phase
Plug Type
Three Phase (32 AMP Recommended)
Rated Input Power Kva
25.3
Ieff Amps
27.0
Rated Output
50A/16.5V - 500A/39.0V
No Load Voltage (V)
85
Protection Class
IP23
Insulation Class
F
Minimum Generator (kVA)
0.93
Roller Size
30/22 (x2)
Dinse Connection Size
35/50
Welds
AS/NZ60974-1
Plug Type
No plug supplied (32 AMP Recommended)
Rated Input Power (kVA)
25.3
Ieff (A)
24.3
Rated Output
50A/17V - 500A/39.0V
Insulation Class
F
Roller Size
26.0
Suitable Material
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Warranty (Years)
3

MIG Specifications

Welding Current Range
50-500A
MIG Duty Cycle
60% @ 500A
Wire Size Range
0.6-1.6mm
Welding Thickness Range
2mm - 50mm
Welding Current Range
50-500A
Wire Size Range
0.6-1.6mm
Welding Thickness Range
5kg / 15kg
Mig Welding Thickness Range
1-17mm
Drive Roller Size
30/10 (x2)

MMA Specifications

Welding Current Range
20-500A
MIG Duty Cycle
20-500A
Electrode Range
2.5-4.0mm
Welding Thickness Range
2mm - 20mm
Welding Current Range
DC Lift Arc
Electrode Range
60% @ 500A
Welding Thickness Range
2-10mm

Stick Specifications

Stick Welding Current Range
20-500A
Stick Duty Cycle @ 40°C
60% @ 500A
Stick Electrode Range
2.5-6.0mm
Stick Welding Thickness Range
2-20mm

Size & Weight

Dimensions
680x340x560mm
Weight
43kg
SWF Dimensions (mm)
630x260x470mm
SWF Weight (kg)
14kg
Swf Interlocking Cable Length M
10m

Machine Features

Wire Drive
Seperate 4 Geared
VRD
Yes
Spool Gun Connection
Yes
Push Pull Gun Connection
Yes
Burnback Adjustment
Automatic
Wire Inch
Yes
Inductance Control
Yes
Crater Current Control
Yes
Thermal Overload Protection
Over Temperature Warning
Air Arc Gouging
Yes
