RAZORWELD™ ARC 160 PFC MMA/TIG Welder
XA-RZARC160PFC
10 AMP PLUG | POWER FACTOR CORRECTION
In stock
10 AMP PLUG
Connect to any 10 AMP outlet.
DC LIFT ARC TIG
TIG welding functionality.
POWER FACTOR CORRECTION
Maximum electrical efficiency.
HD BACKLIT INTERFACE
Bright and easy to read

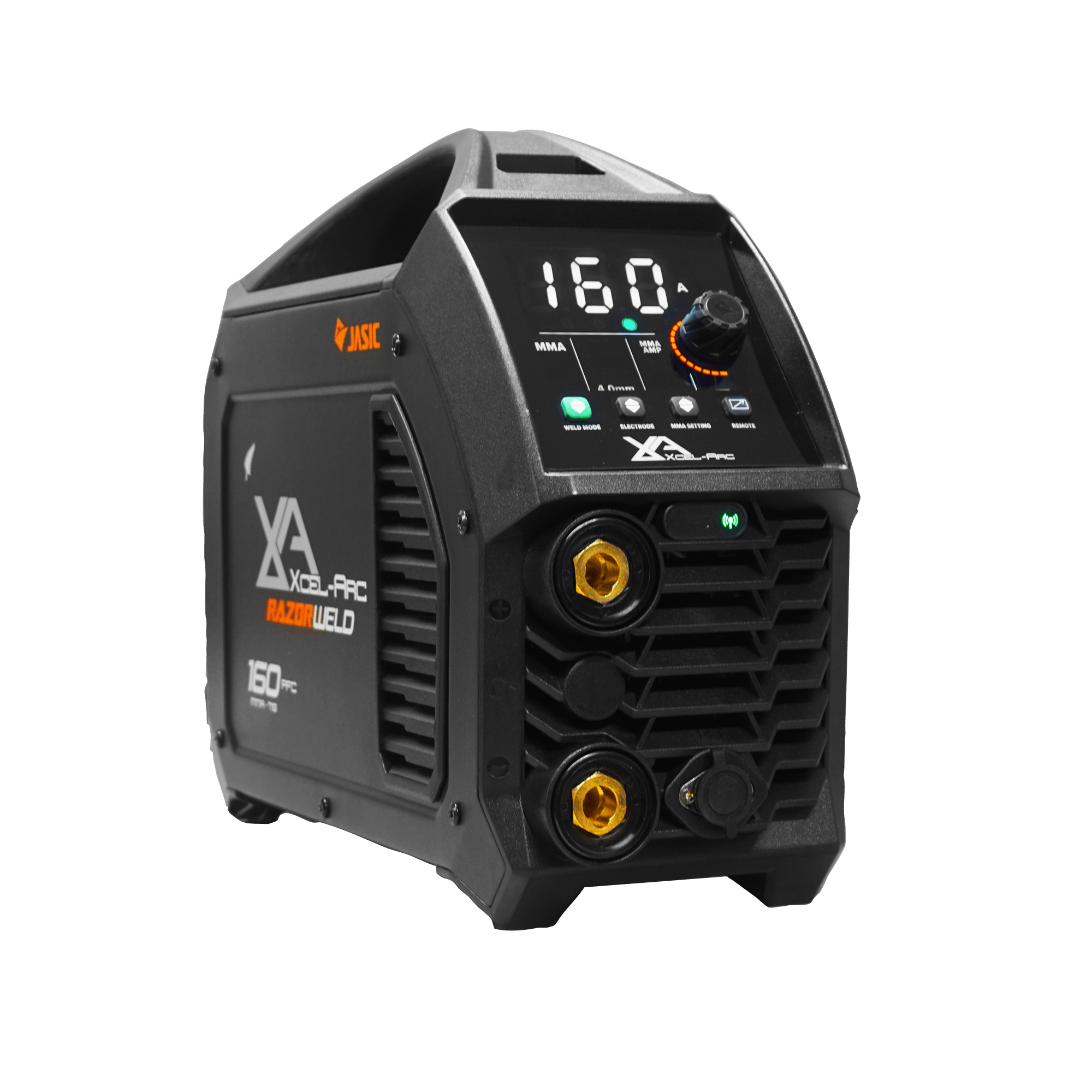

This powerful, professional STICK (MMA) machine is designed to be taken on the worksite or the workshop.
Packed full of advanced features including hot start, arc force and anti-stick PFC gives you maximum electrical efficiency Capable of DC Lift Arc TIG for more versatility A 5-year warranty to reflect our confidence in this machine

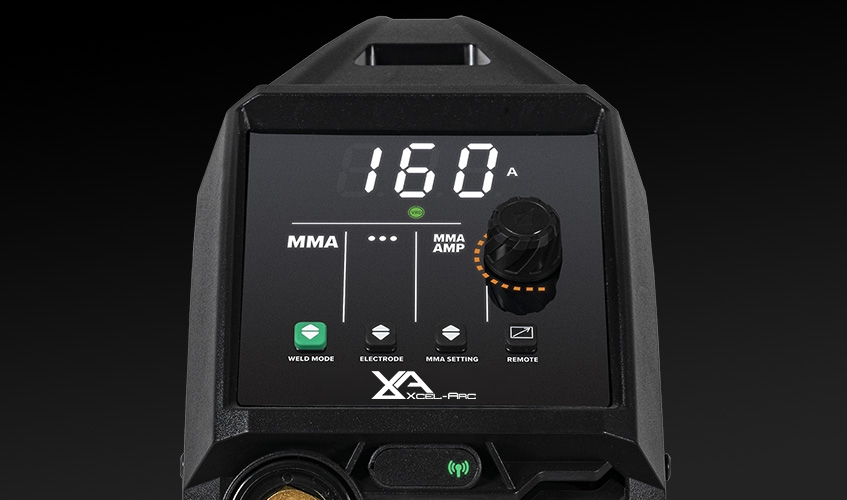

HD BACKLIT INTERFACE
This next generation interface panel is bright and easy to read in any environment.
DC LIFT ARC TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.
POWER FACTOR CORRECTION
PFC gives you maximum electrical efficiency. It also automatically compensates for any voltage fluctuation.
10A PLUG
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
SMART FAN
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 10 AMP
- Rated Input Power Kva
- 7.1
- Ieff Amps
- 10.0
- Rated Output
- 160A/26.4V
- No Load Voltage (V)
- 78
- Protection Class
- IP23S
- Insulation Class
- F
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Ieff (A)
- 10.0
- Rated Output
- 20A/20.8V - 160A/26.4V
- Insulation Class
- H
- Roller Size
- 8.0
- Suitable Material
- Mild Steel, Stainless Steel, Copper, Silicon Bronze
- Warranty (Years)
- 5
MMA Specifications
- Welding Current Range
- 10-160A
- MIG Duty Cycle
- 10-160A
- Electrode Range
- 2.5-3.2mm
- Welding Thickness Range
- 2mm - 10mm
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 35% @ 160A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 20-160A
- Stick Duty Cycle @ 40°C
- 20% @ 160A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-6mm
Size & Weight
- Dimensions
- 413×150×311 mm
- Weight
- 7.2kg
