15 AMP PLUG
Connect to a 15 AMP outlet.
DC LIFT ARC TIG
TIG welding functionality.
KEYABLE VRD SWITCH
Prevents Voltage overloading, protecting yourself and the machine.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.

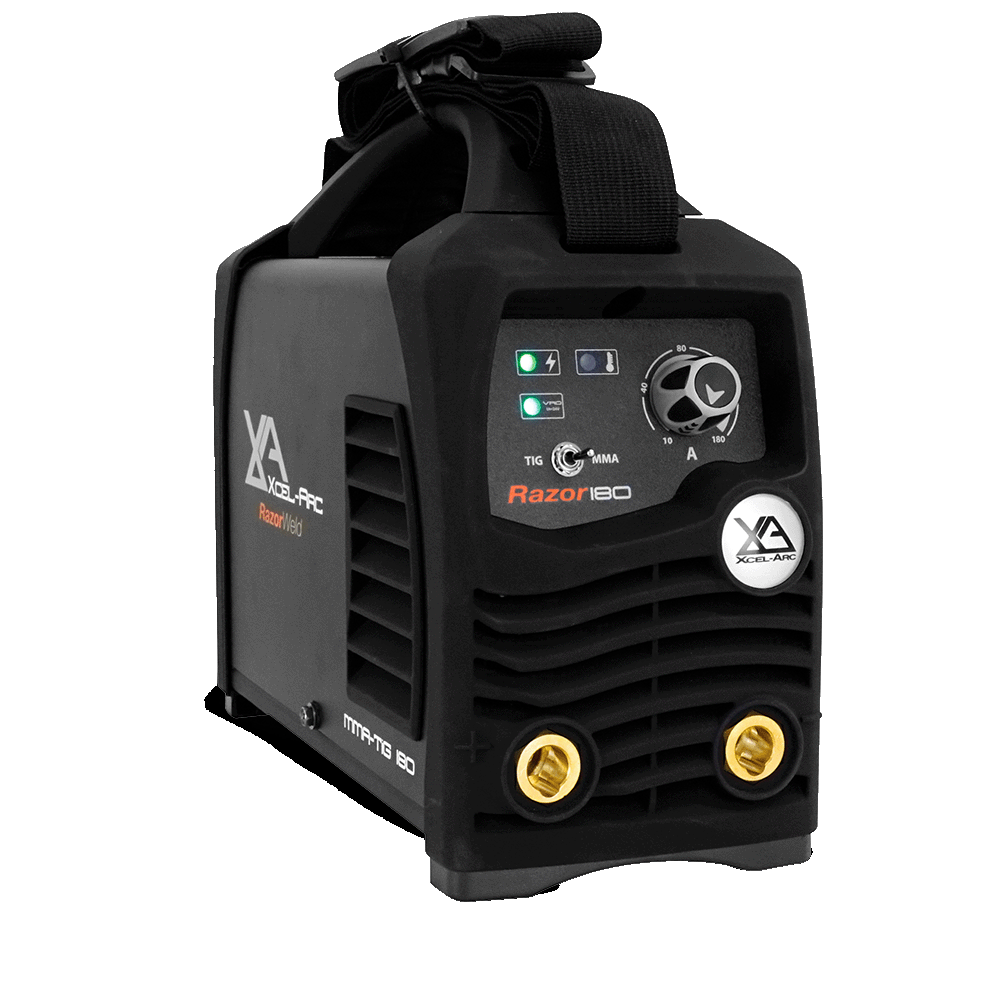

The RAZORWELD™ ARC 180 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.
DC LIFT ARC TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.

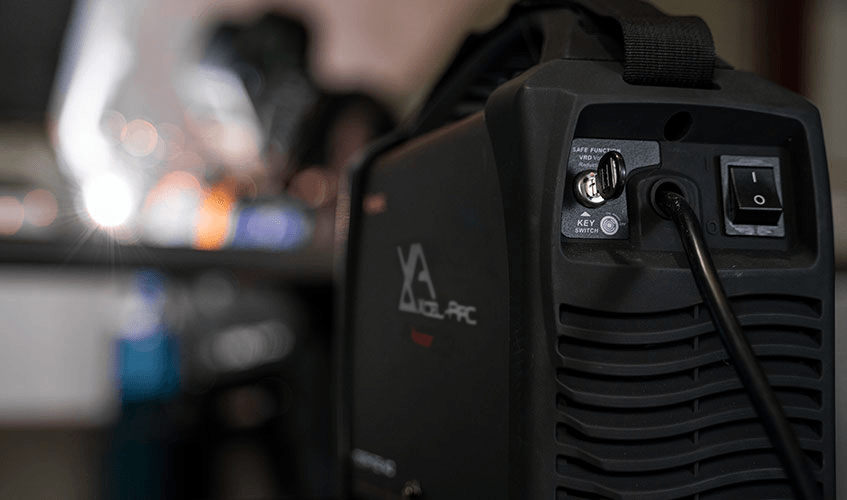

KEYABLE VRD SWITCH
A Voltage Reduction Device can be turned on and off with the supplied key to suit your application. If you’re running electrodes that are hard to start, the VRD can be turned off to help with striking an arc.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 7.2
- Ieff Amps
- 14.0
- Rated Output
- 180A/25.2V
- No Load Voltage (V)
- 78
- Protection Class
- IP21S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.7
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Rated Input Power (kVA)
- 7.2
- Ieff (A)
- 14.0
- Rated Output
- 10-180A
- Insulation Class
- F
- Roller Size
- 10.0
- Suitable Material
- Mild Steel, Stainless Steel, Copper, Cast Iron
- Warranty (Years)
- 3
MMA Specifications
- Welding Current Range
- 10-180A
- MIG Duty Cycle
- 10-180A
- Electrode Range
- 2.5-3.2mm
- Welding Thickness Range
- 2mm - 10mm
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 20% @ 180A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 10-180A
- Stick Duty Cycle @ 40°C
- 20% @ 180A
- Stick Electrode Range
- 2.5-3.2mm
- Stick Welding Thickness Range
- 2-12mm
Size & Weight
- Dimensions
- 313x250x130mm
- Weight
- 4.7kg
Machine Features
- VRD
- Yes (Keyable)
- Thermal Overload Protection
- Over Temperature Warning
