RAZORWELD™ ARC 200 PFC MMA/TIG Welder
XA-RZARC200PFC
15 AMP PLUG | POWER FACTOR CORRECTION
In stock
15 AMP PLUG
Connect to any 15 AMP outlet.
DC LIFT ARC TIG
TIG welding functionality.
POWER FACTOR CORRECTION
Maximum electrical efficiency.
HD BACKLIT INTERFACE
BRIGHT AND EASY TO READ

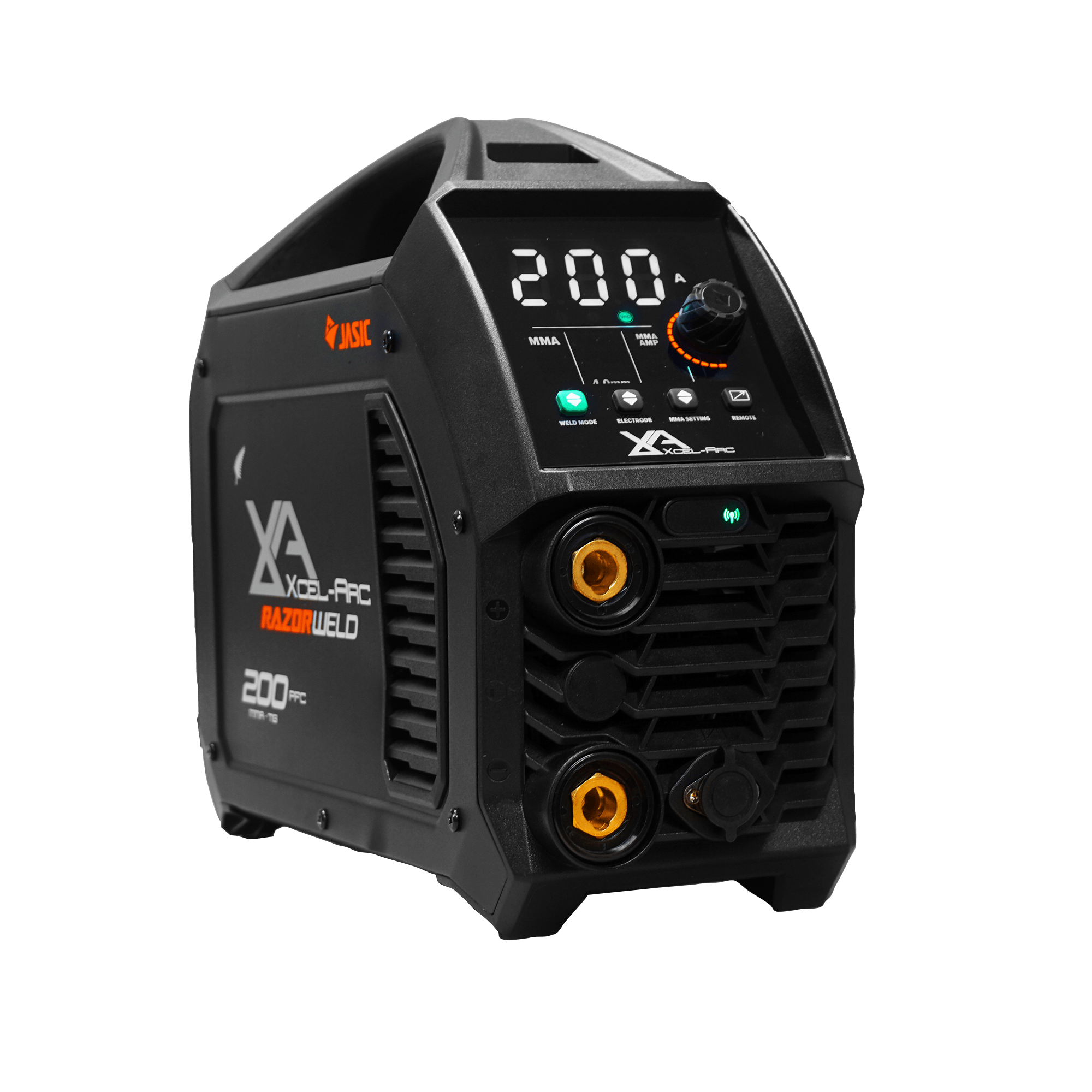

The New RAZORWELD™ ARC 200 PFC is the perfect MMA (STICK) and TIG welder for the professional welder wanting a powerful machine with a portable body.
This powerful, professional MMA (STICK) machine is designed to be taken on the worksite or the workshop.
Packed full of advanced features including hot start, arc force and anti-stick PFC gives you maximum electrical efficiency Capable of DC Lift Arc TIG for more versatility A 5-year warranty to reflect our confidence in this machine

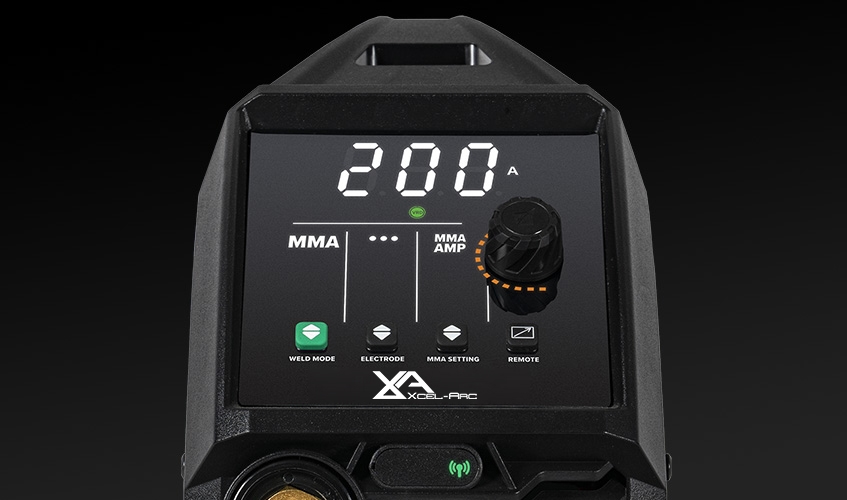

HD BACKLIT INTERFACE
This next generation interface panel is bright and easy to read in any environment
DC LIFT ARC TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.
POWER FACTOR CORRECTION
PFC gives you maximum electrical efficiency. It also automatically compensates for any voltage fluctuation.
SMART FAN
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 9.0
- Ieff Amps
- 15.0
- Rated Output
- 200A/28V
- No Load Voltage (V)
- 78
- Protection Class
- IP23S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.99
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Ieff (A)
- 14.9
- Rated Output
- 20A/20.8V - 200A/28V
- Insulation Class
- H
- Roller Size
- 9.0
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years)
- 5
MMA Specifications
- Welding Current Range
- 10-200A
- MIG Duty Cycle
- 10-200A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 25% @ 200A
- Welding Thickness Range
- 1-7mm
Stick Specifications
- Stick Welding Current Range
- 20-200A
- Stick Duty Cycle @ 40°C
- 25% @ 200A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-8mm
Size & Weight
- Dimensions
- 413×150×311 mm
- Weight
- 7.6kg
Machine Features
- VRD
- Yes
- Thermal Overload Protection
- Over Temperature Warning
