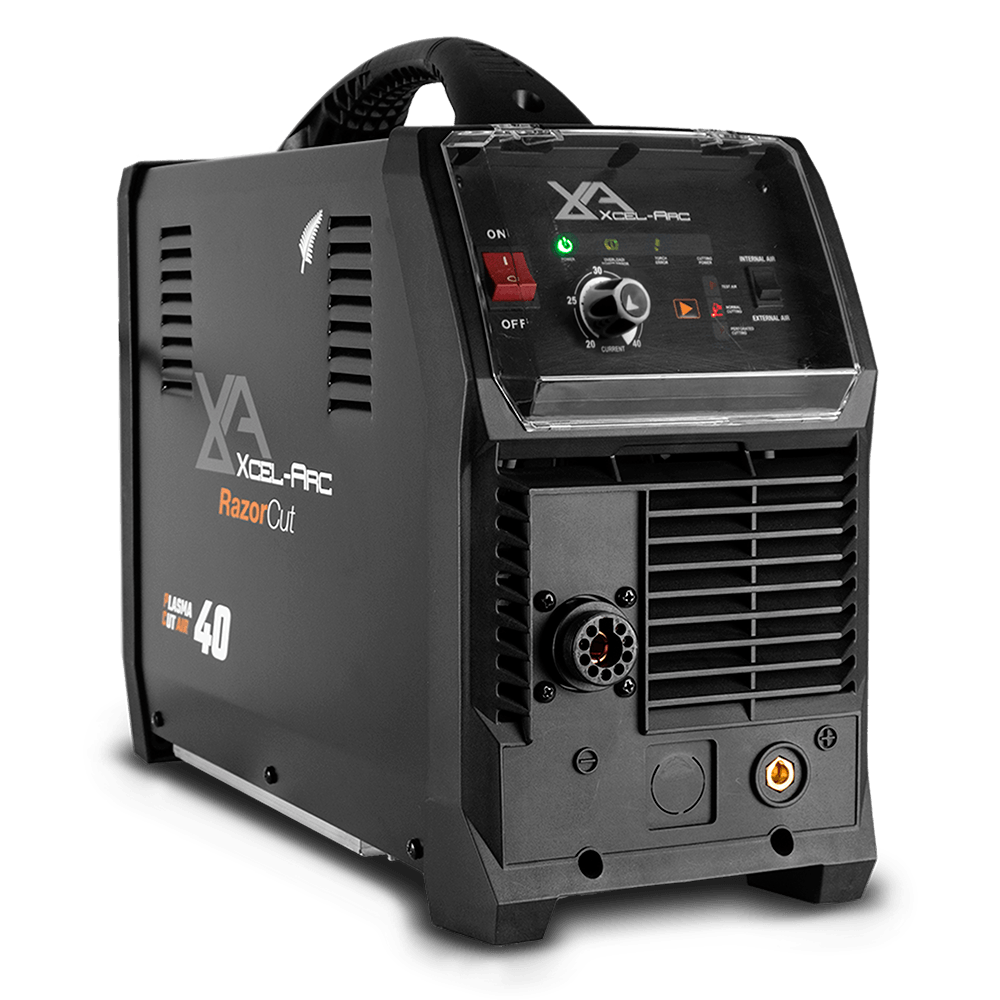

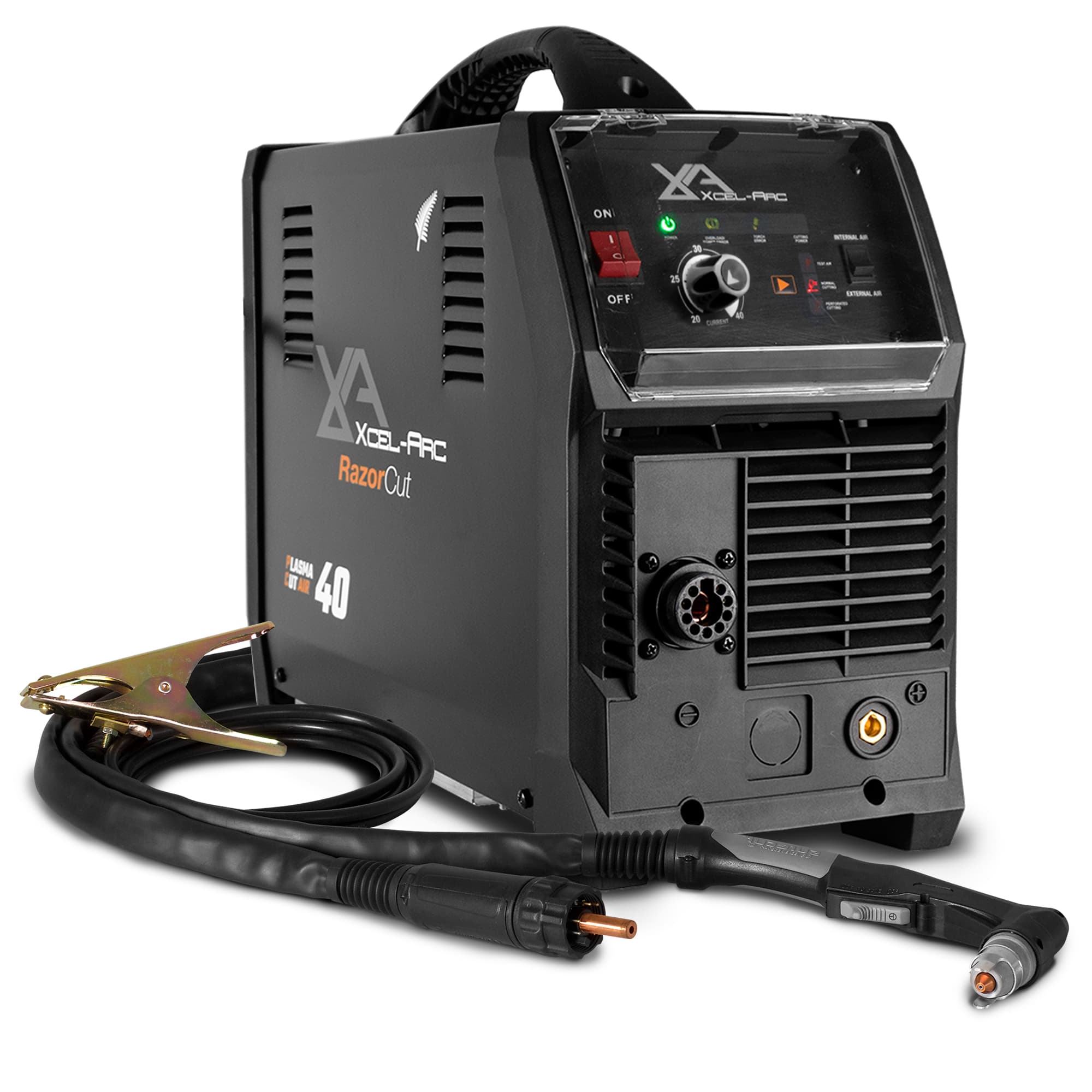

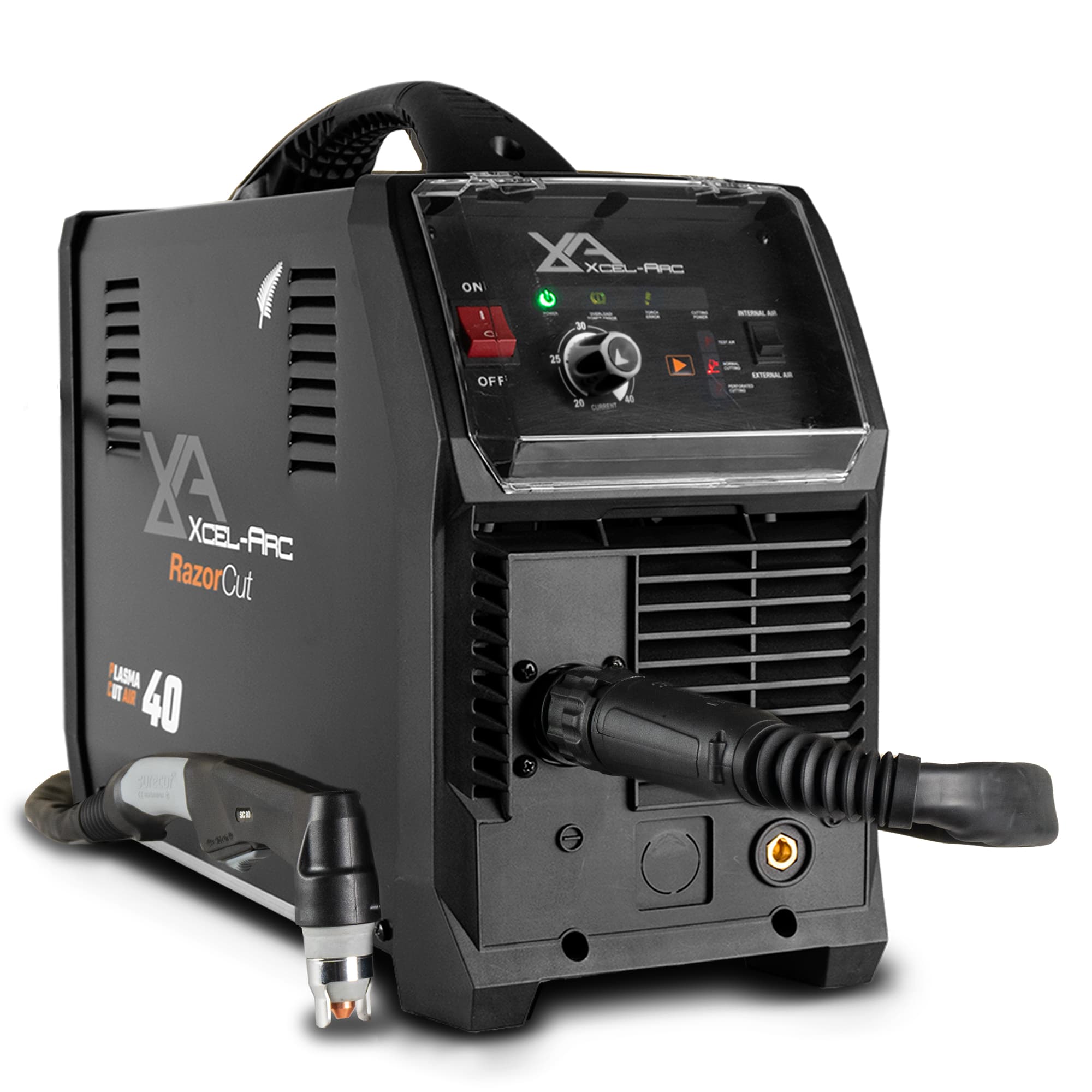

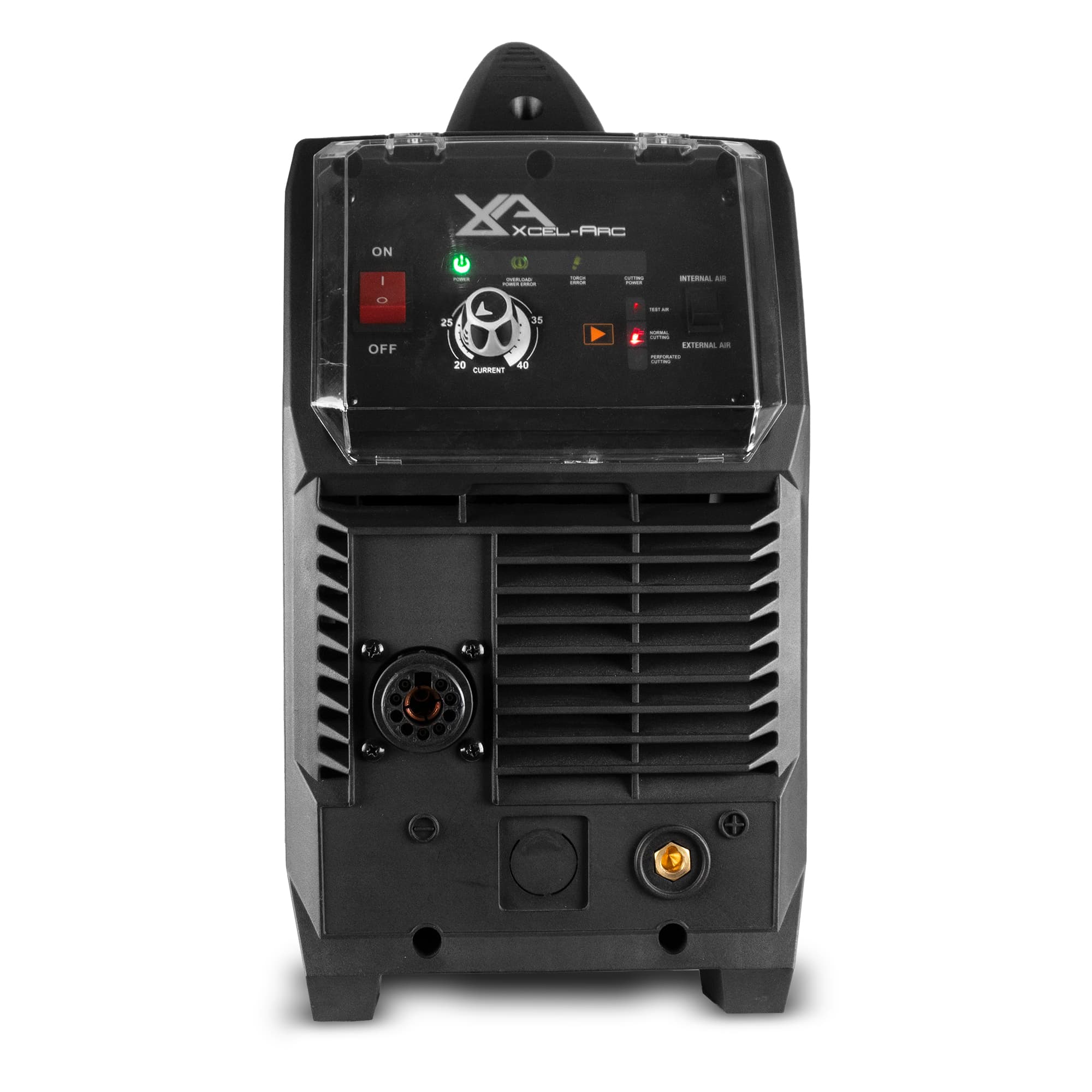

RAZOR™ CUT 40 Plasma Cutter
XA-CUT40PC-K
240V THREE-PHASE | 16 mm CLEAN CUT | 18 mm SEVERANCE – External Compressor
In stock
SINGLE PHASE
230V Power
UP TO 16MM CLEAN CUT
Steel-Inbuilt Compressor
PILOT ARC START
Start cut without direct contact
INTERNAL & EXTERNAL
Air Compressor
The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 12mm clean-cut and 14mm severance on the built-in air compressor, and 16mm clean-cut and 18mm severance on an external compressor.

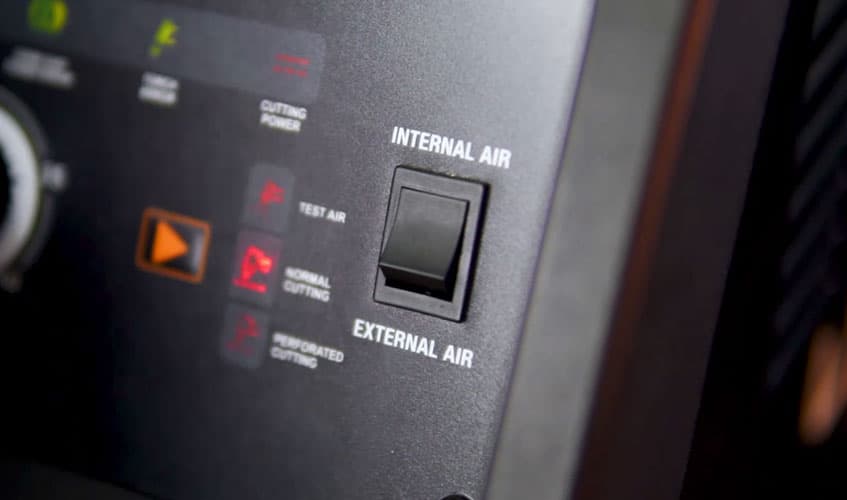

BUILT-IN AIR COMPRESSOR
The RAZOR CUT 40 AIR comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.

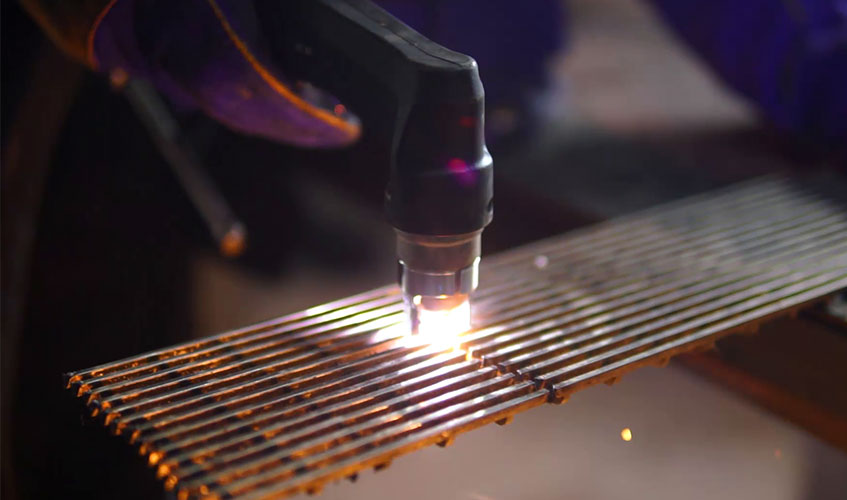

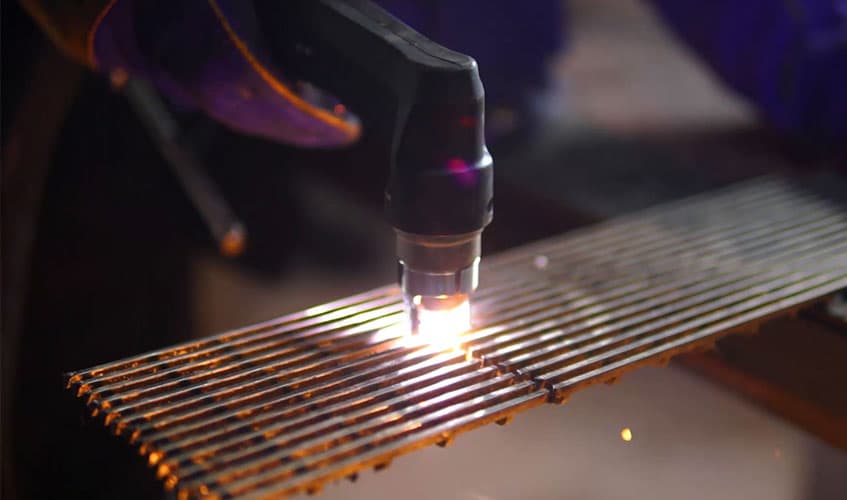

PERFORATED CUTTING MODE
Cuts both solid material and perforated materials with ease.
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
FEATURE VIDEO
Check out all of the features on the RAZOR™ CUT 40 AIR Plasma Cutter.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 20
- Rated Output
- 112
- No Load Voltage (V)
- 210
- Protection Class
- IP21
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 15 Amps
- Rated Input Power (kVA)
- 7.2
- Ieff (A)
- 15
- Rated Output
- 96V
- Insulation Class
- H
- Roller Size
- 10
- Warranty (Years)
- 3
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-40A
- Plasma Cut Duty Cycle @ 40°C
- 25% @ 40A / 60% @ 26A / 100% @ 20A
- Mild Steel Cut Thickness
- 10mm (INTERNAL) / 16mm (EXTERNAL)
- Mild Steel Severance Thickness
- 12mm (INTERNAL) / 18mm (EXTERNAL)
- Aluminium Cut Thickness
- 6mm (INTERNAL) / 8mm (EXTERNAL)
- Aluminium Severance Thickness
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- Stainless Steel Cut Thickness
- 6mm (INTERNAL) / 10mm (EXTERNAL)
- Stainless Steel Severance Thickness
- 8mm (INTERNAL) / 10mm (EXTERNAL)
- Air Flow / Draw-off (l/min)
- 120
- Air Flow Pressure (bar)
- 5.17 (75 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Dimensions
- 510x210x380mm
- Weight
- 18kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
