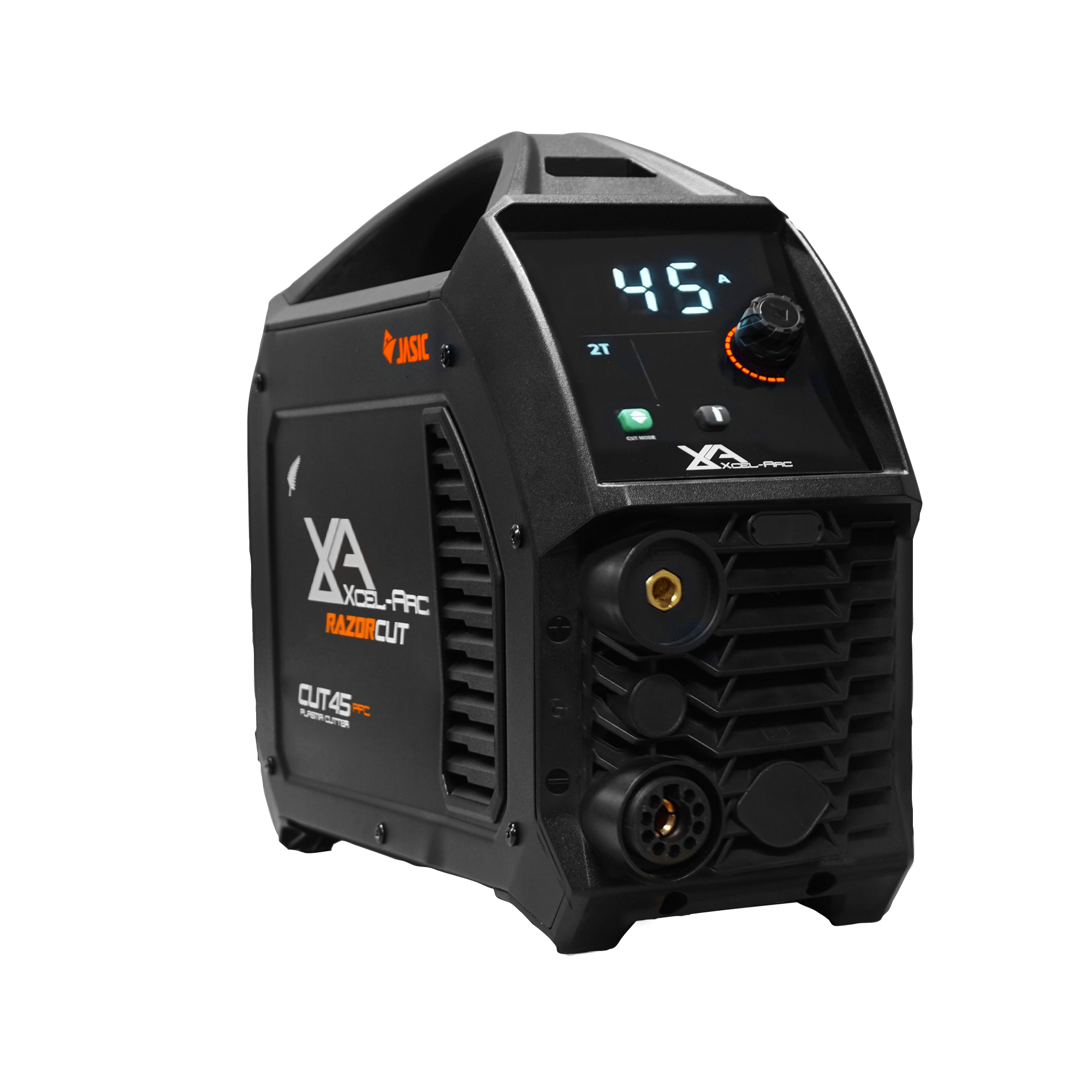

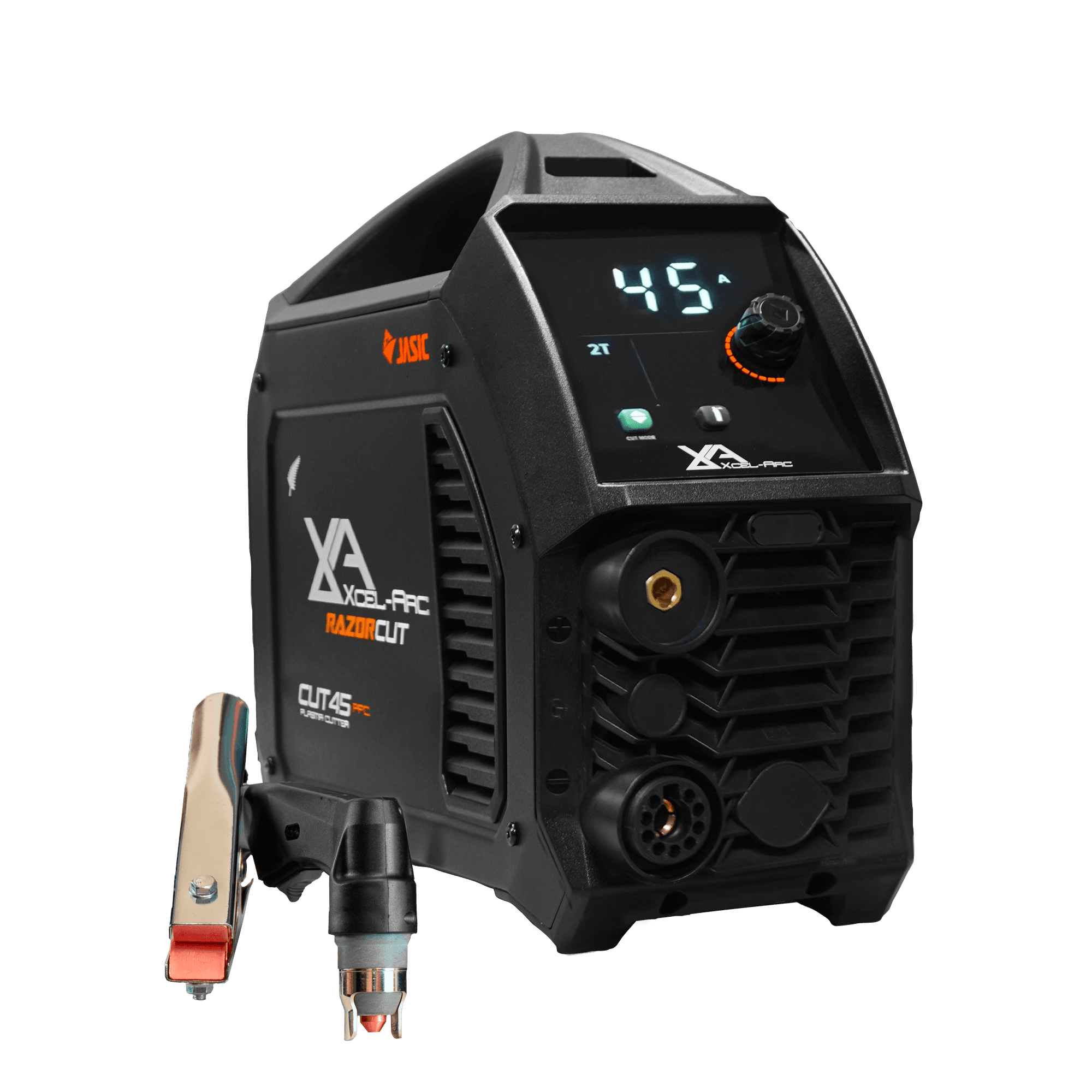

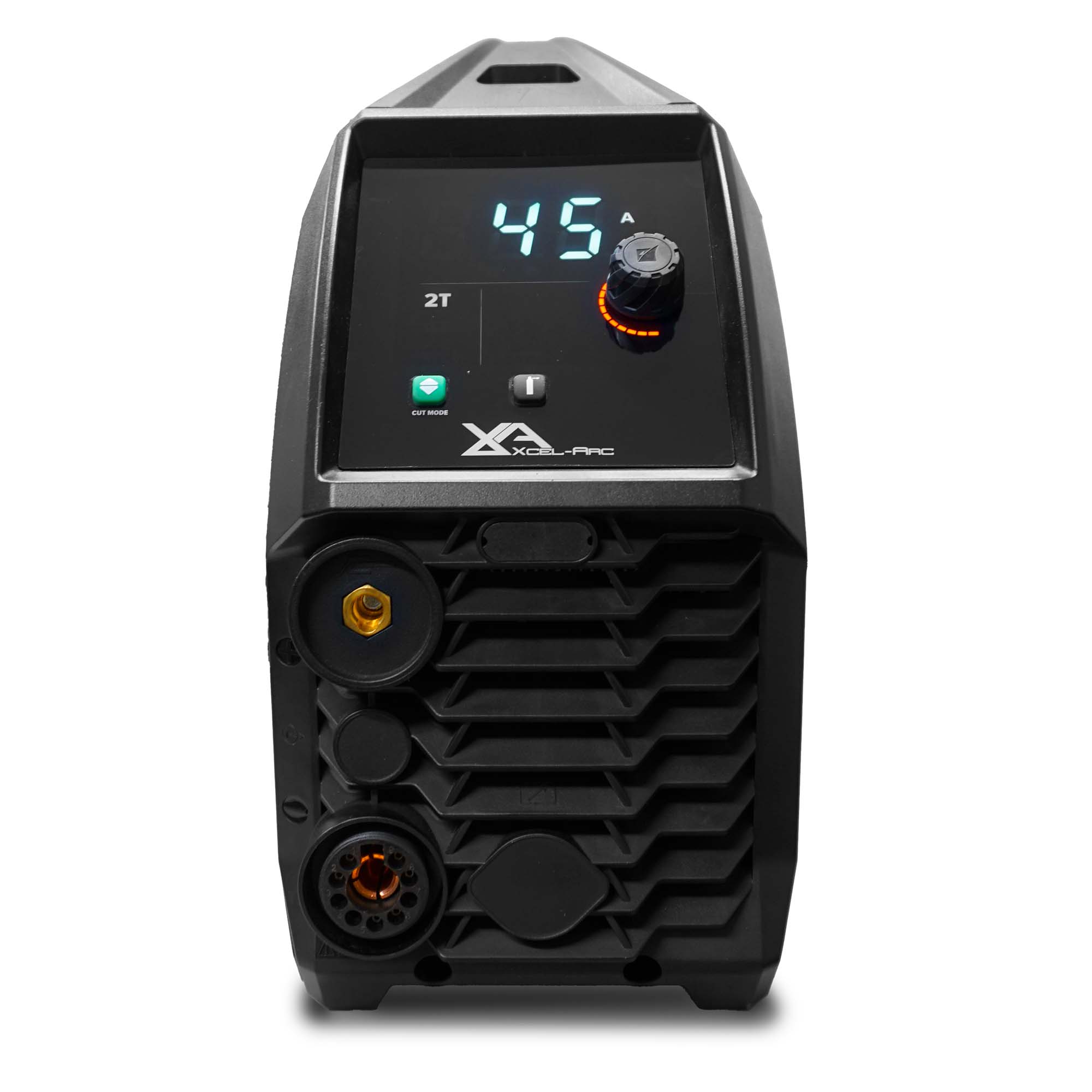

RAZOR™ CUT 45 PFC Plasma Cutter
XA-RZCUT45PFC-K
15 AMP PLUG | 16 MM CLEAN CUT | 25mm SEVERANCE
In stock
15 AMP PLUG
Connect to any 15 AMP outlet.
16mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
2T/4T TORCH CONTROLS
More comfort when cutting.
The RAZOR CUT45 PFC is a highly advanced digital inverter plasma cutter designed to deliver exceptional performance and precision. It offers adjustable cutting torch length and post-flow time, making it a versatile tool for a variety of applications. Its unique electrical structure and air duct design enhance heat dissipation, improving duty cycle and reliability. The machine offers three cutting modes, stepless adjustment of cutting current, intelligent fan temperature control, and automatic parameter saving. With a reset function the RAZOR CUT45 PFC is a reliable and efficient plasma cutting machine that is ideal for anyone looking for precision, versatility, and high-quality cutting.
PILOT ARC START
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 5.5
- Rated Output
- 98
- Protection Class
- IP23S
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Rated Input Power (kVA)
- 5.3
- Ieff (A)
- 15
- Rated Output
- 98V
- Insulation Class
- H
- Roller Size
- 6
- Warranty (Years)
- 5
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-45A
- Plasma Cut Duty Cycle @ 40°C
- 25% @ 45A
- Mild Steel Cut Thickness
- 16mm
- Mild Steel Severance Thickness
- 25mm
- Aluminium Cut Thickness
- 8mm
- Aluminium Severance Thickness
- 10mm
- Stainless Steel Cut Thickness
- 8mm
- Stainless Steel Severance Thickness
- 10mm
- Air Flow Pressure (bar)
- 5.17 (75 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Dimensions
- 546x166x341mm
- Weight
- 10kg
