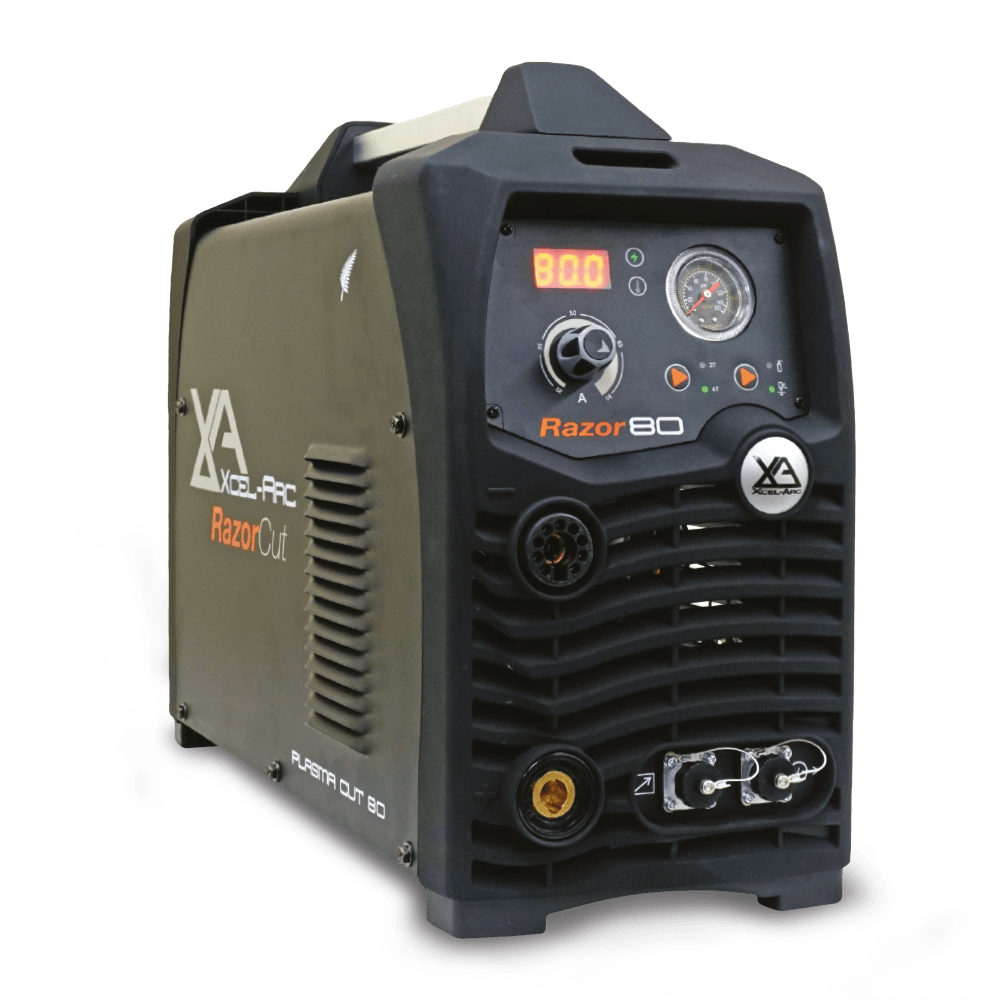

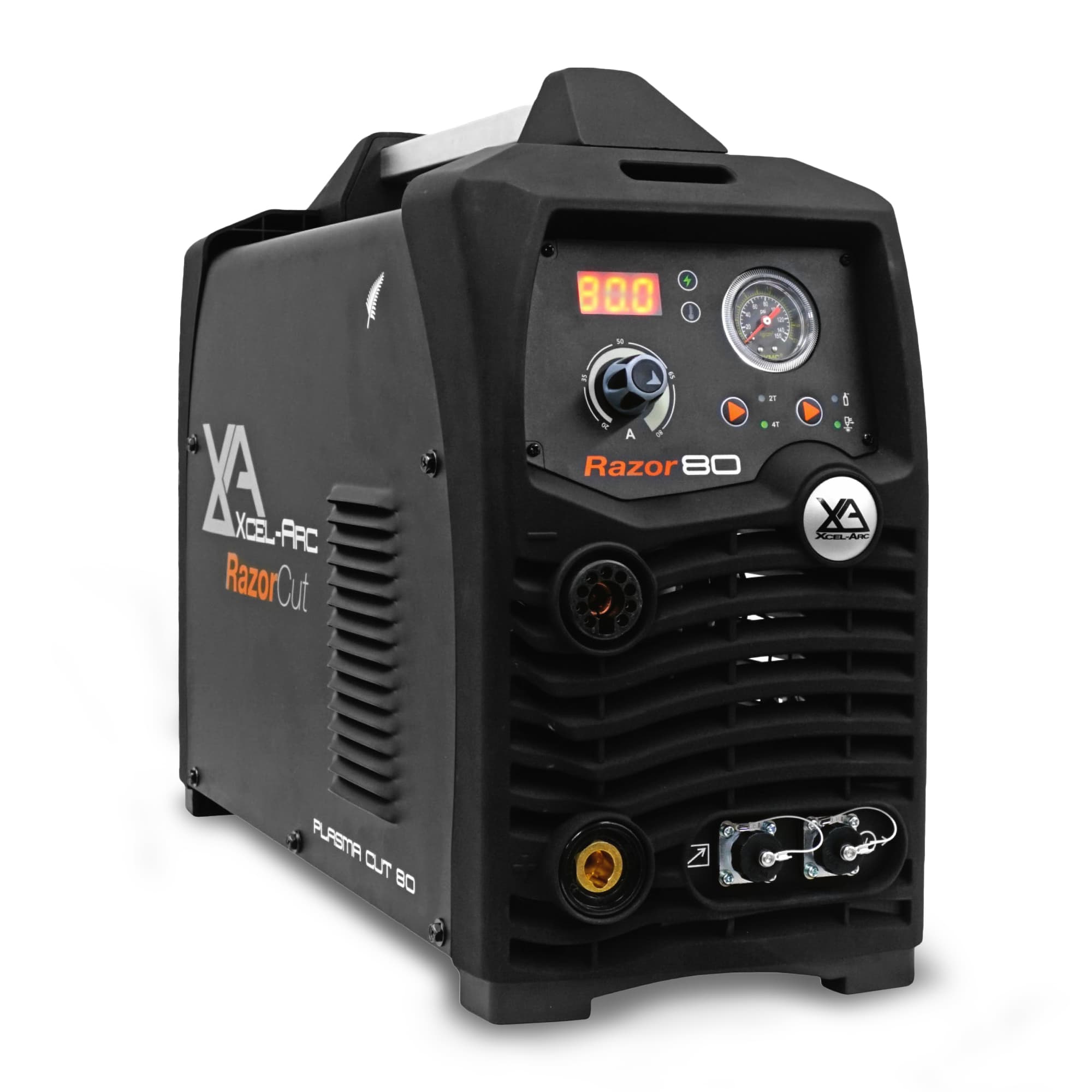

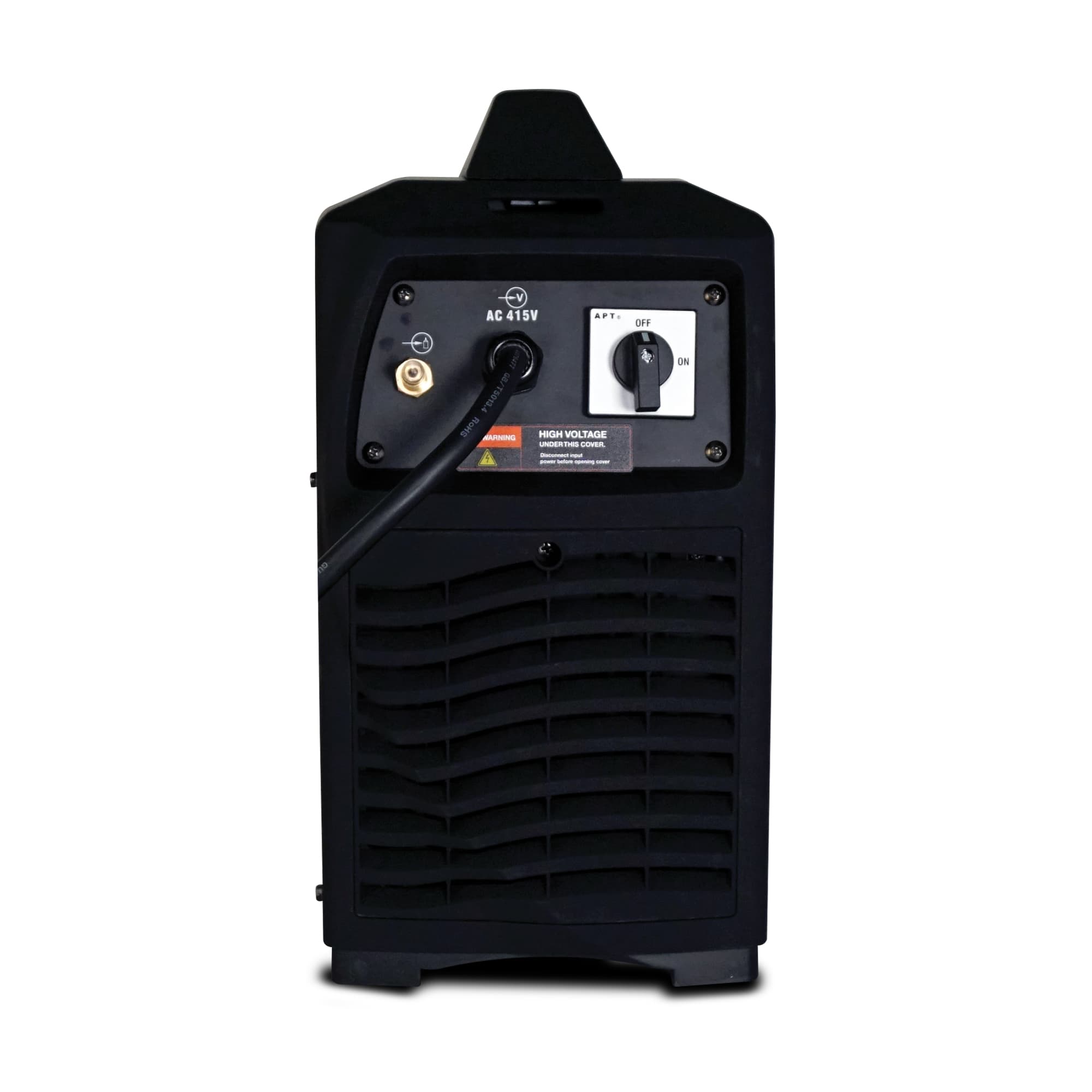

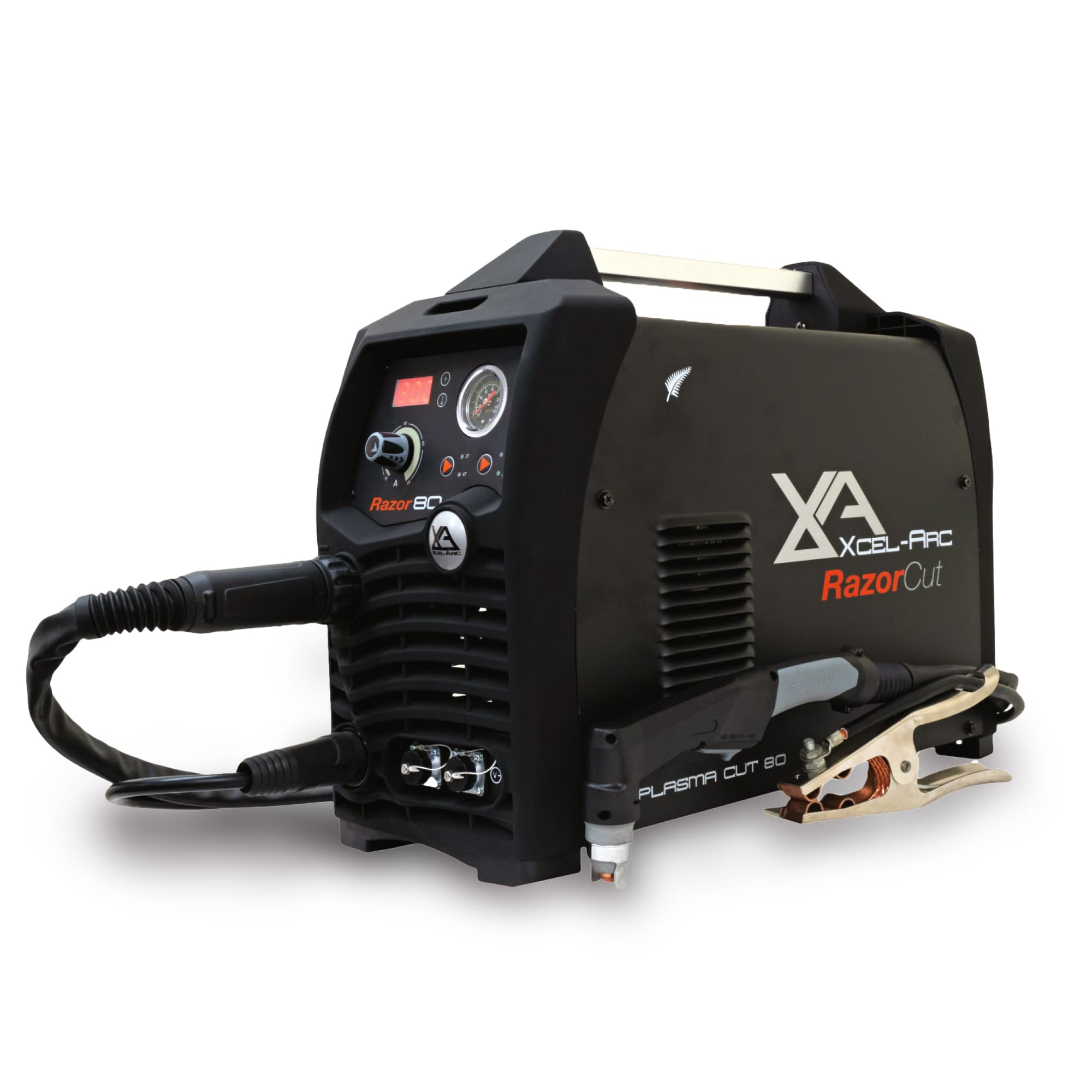

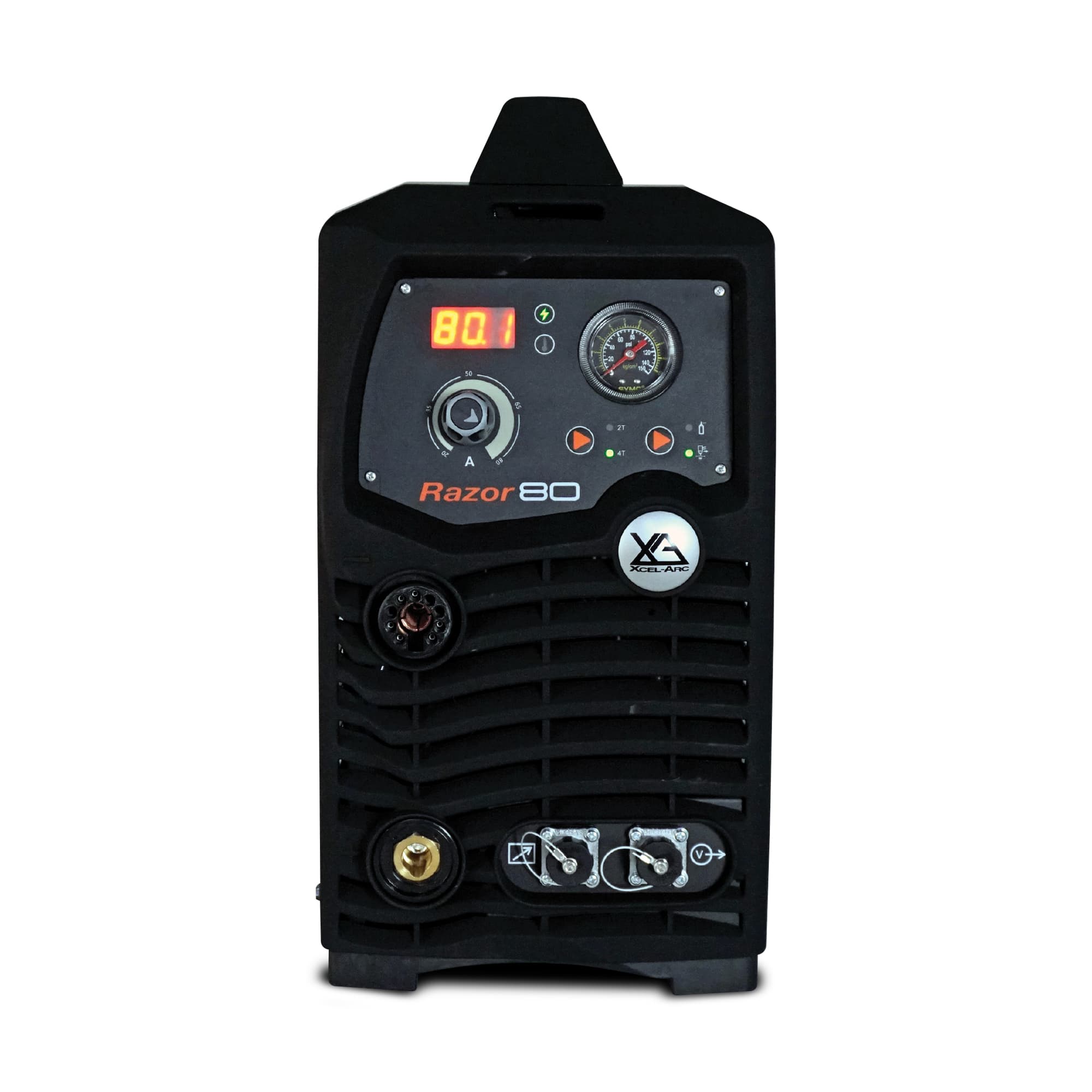

RAZOR™ CUT 80 Plasma Cutter
XA-CUT80RZ-K
415V THREE-PHASE | 30 MM CLEAN CUT | 35mm SEVERANCE
In stock
THREE PHASE
415V Power
30mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
2T/4T TORCH CONTROLS
More comfort when cutting.
The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from Xcel-Arc’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
Machine Specifications
- Primary Input Voltage
- 415V Three Phase
- Plug Type
- Three Phase (32 AMP Recommended)
- Rated Input Power Kva
- 15.0
- Ieff Amps
- 20
- Rated Output
- 112
- No Load Voltage (V)
- 310
- Protection Class
- IP21S
- Insulation Class
- F
- Dinse Connection Size
- Euro
- Welds
- AS/NZ60974-1
- Plug Type
- No plug supplied (32 AMP Recommended)
- Rated Input Power (kVA)
- 15.0
- Ieff (A)
- 12.6
- Insulation Class
- F
- Roller Size
- 15.0
- Warranty (Years)
- 3
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-80A
- Plasma Cut Duty Cycle @ 40°C
- 40% @ 80A
- Mild Steel Cut Thickness
- 30mm
- Mild Steel Severance Thickness
- 35mm
- Aluminium Cut Thickness
- 16mm
- Aluminium Severance Thickness
- 20mm
- Stainless Steel Cut Thickness
- 16mm
- Stainless Steel Severance Thickness
- 20mm
- Air Flow / Draw-off (l/min)
- 189
- Air Flow Pressure (bar)
- 5.17 (75 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Dimensions
- 560x220x415mm
- Weight
- 16kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
