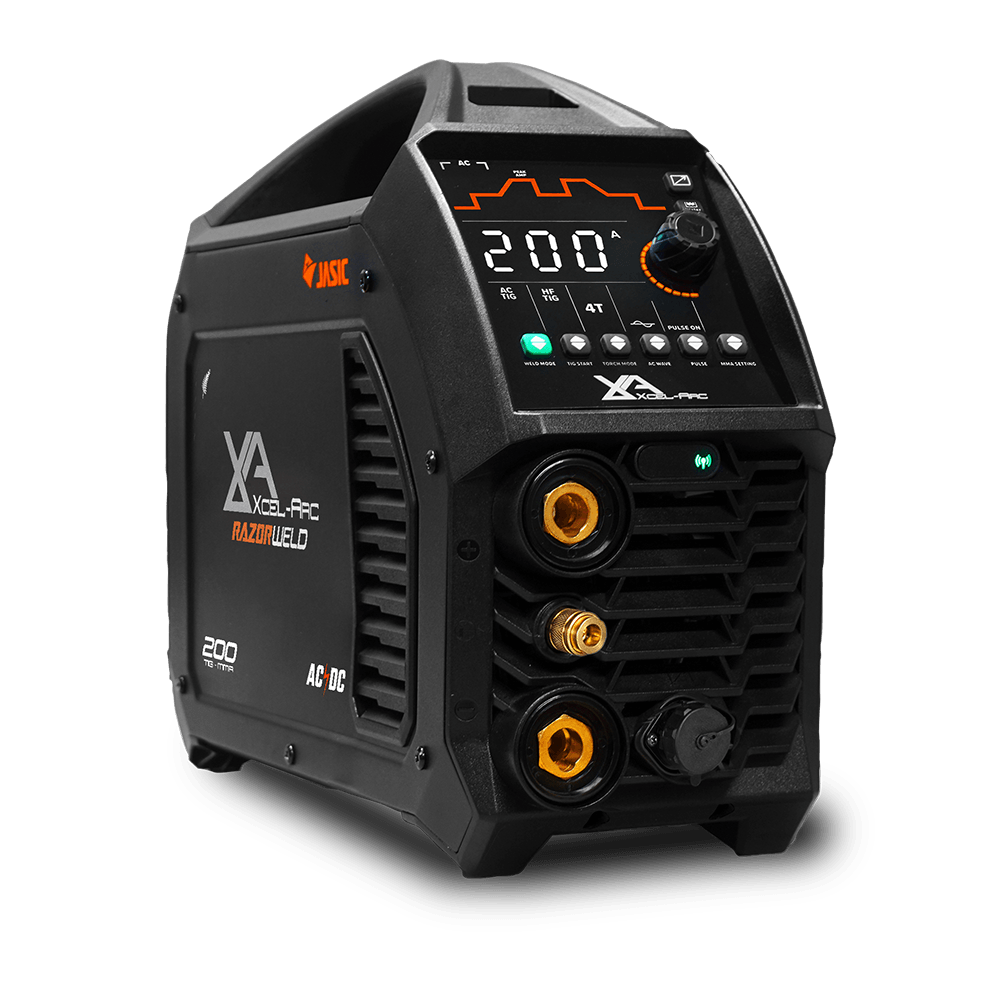

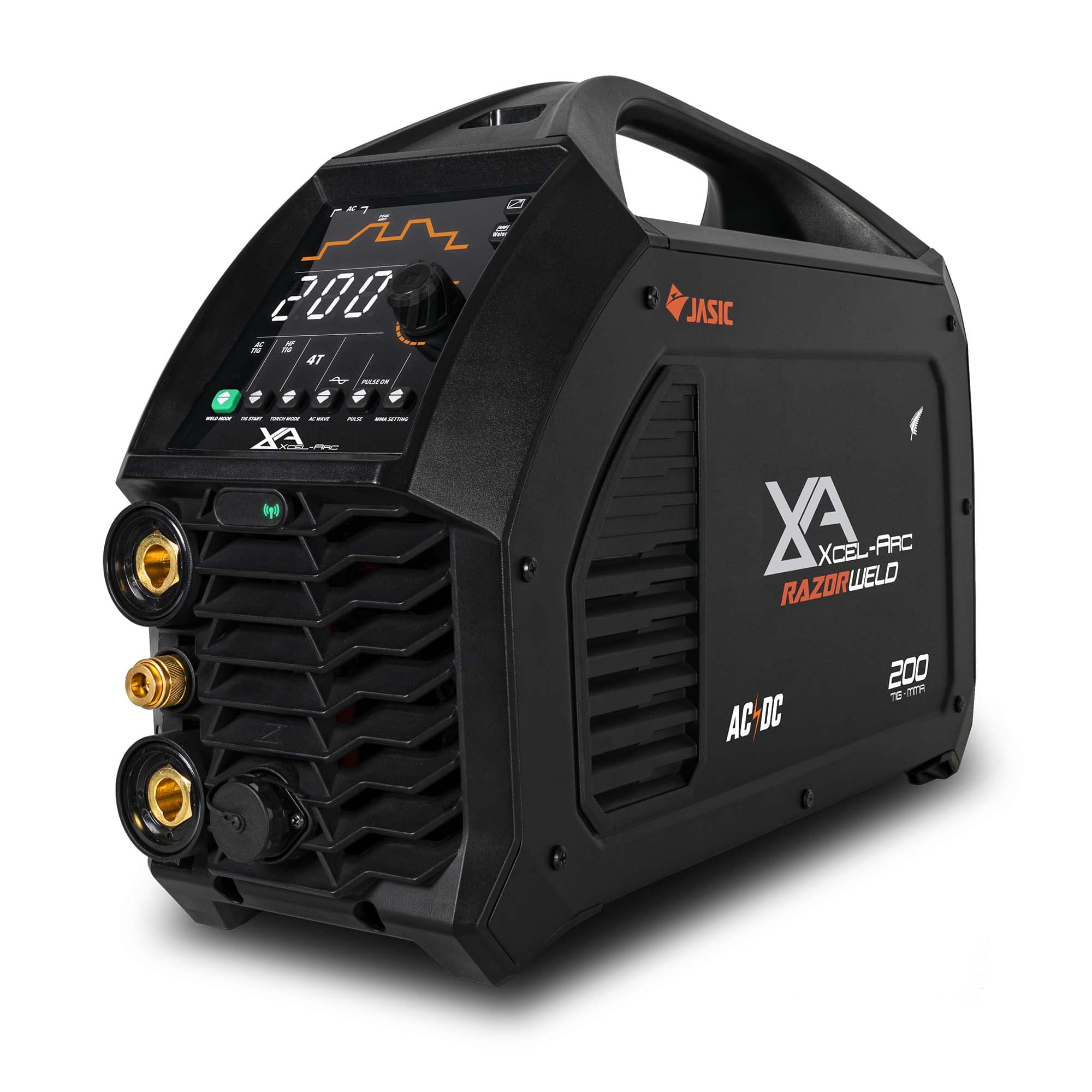

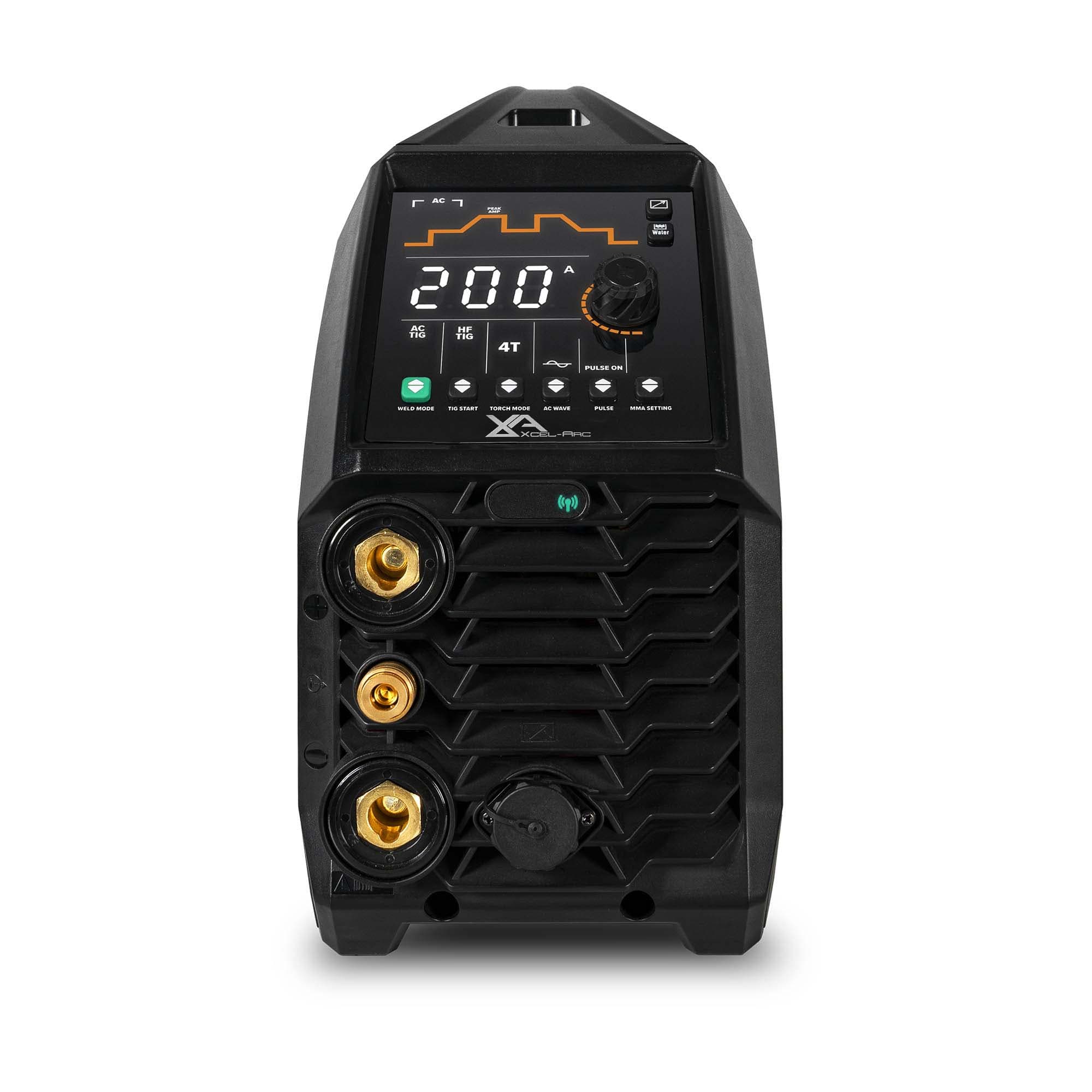

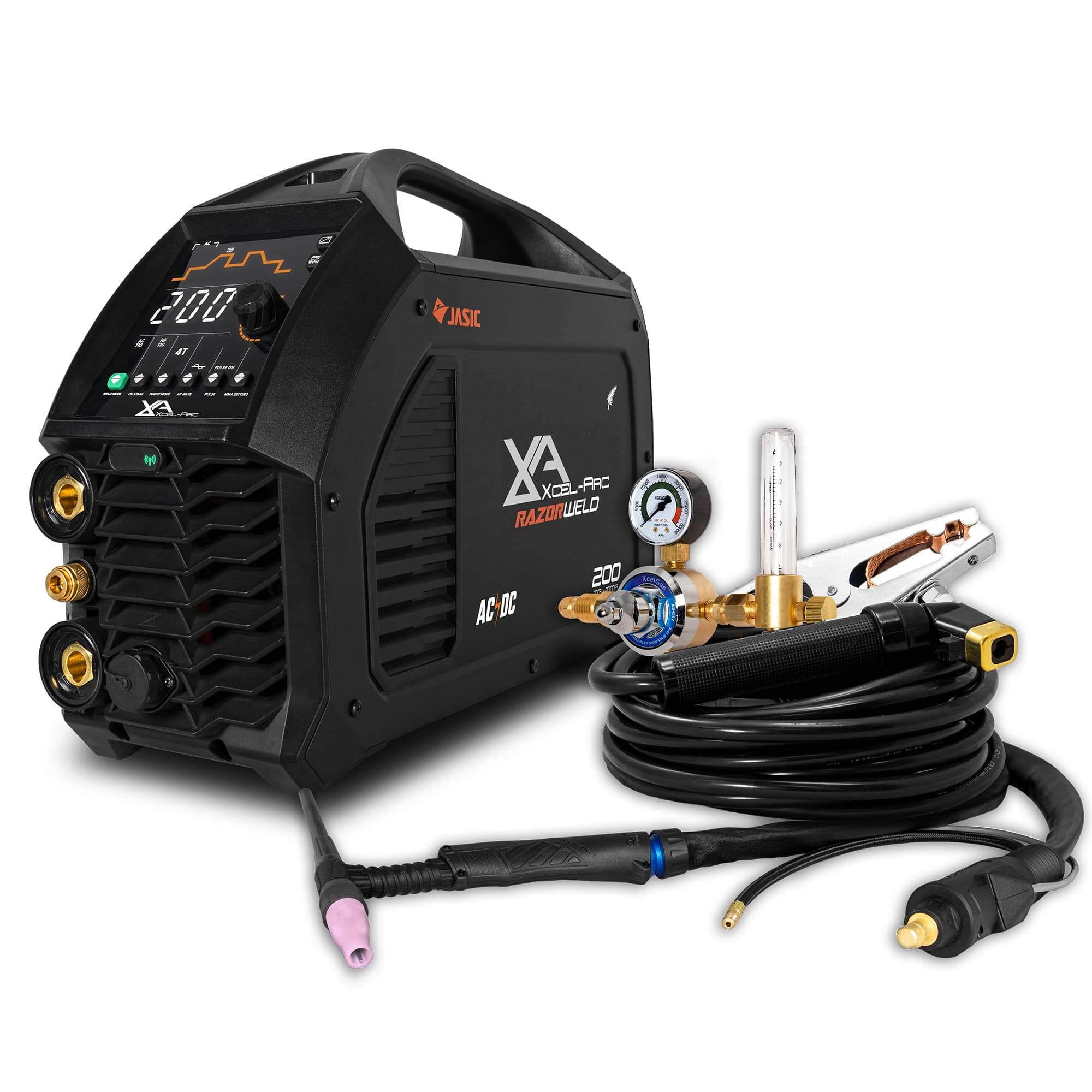

RAZORWELD™ 200 AC/DC PFC TIG Welder
XA-RZTIG200ACDCPFC-T3
10 AMP PLUG | H/F DC TIG
In stock
10 AMP PLUG
Connect to a 10 AMP outlet.
AC/DC HIGH FREQUENCY TIG
PERFECT FOR ALUMINIUM.
PULSE FUNCTION
MINIMISE DISTORTION ON THE WELDED MATERIAL.
FOOT CONTROL READY
EXTRA VERSATILITY AND CONVENIENCE.
Get incredible results from start to finish with this professional-grade TIG welder.
Effortlessly weld any metal with the high-frequency AC/DC TIG The ultimate combination of AC and DC available with Mixed Arc settings Switch your AC welds to suit your needs with the choice of three waveforms A 5-year warranty to reflect our confidence in this machine

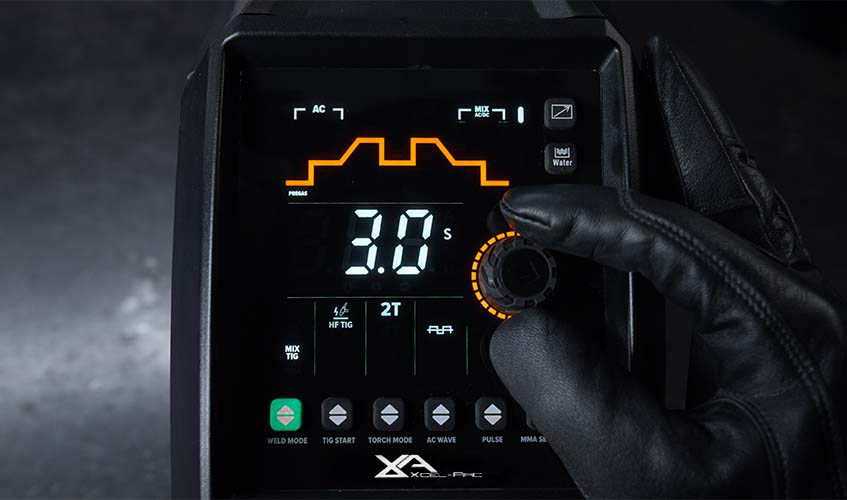

HD BACKLIT INTERFACE
This next generation interface panel is bright and easy to read in any environment.
PULSE TIG
Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.

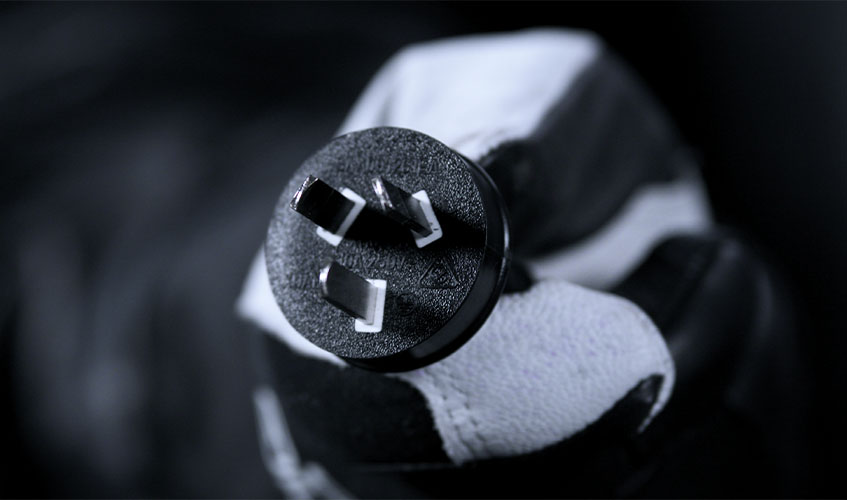

10A PLUG
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

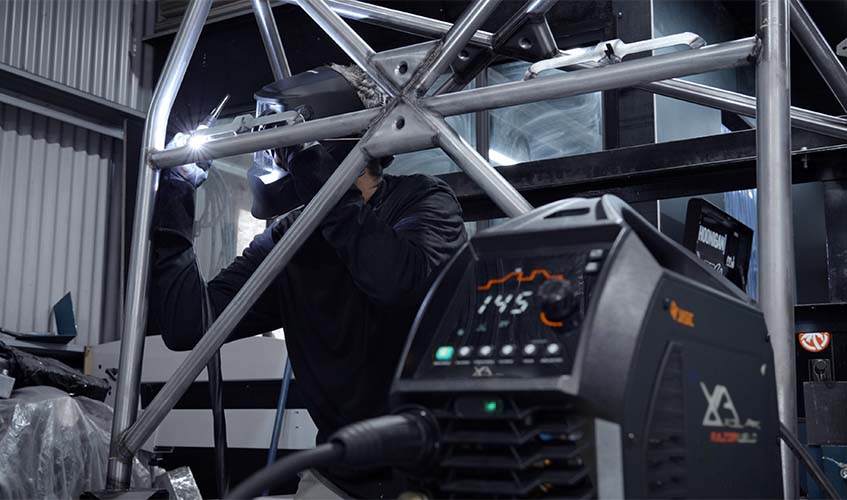

HIGH-FREQUENCY TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters
FOOT CONTROL READY
The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.

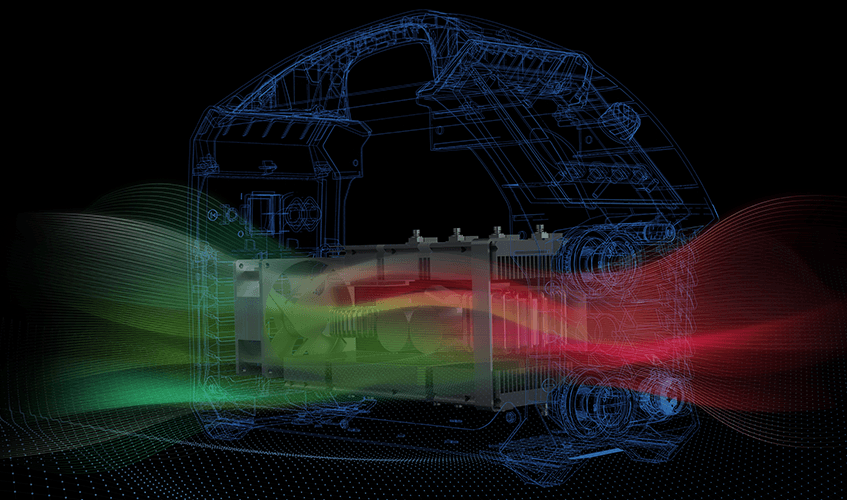

SMART FAN
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

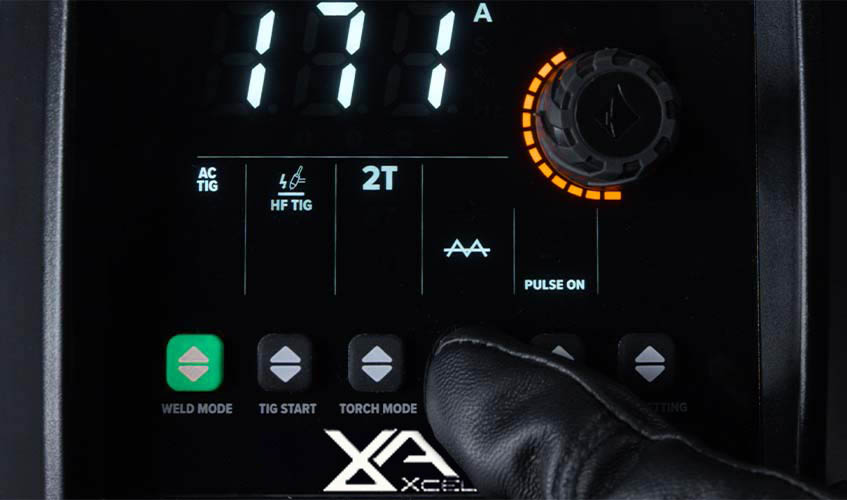

MULTIPLE AC WAVEFORMS
Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 7.0
- Ieff Amps
- 14.6
- Rated Output
- 10-200A/18.0V
- No Load Voltage (V)
- 65
- Protection Class
- IP23S
- Insulation Class
- F
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Ieff (A)
- 9.5
- Rated Output
- 5-200A
- Insulation Class
- H
- Roller Size
- 9.0
- Suitable Material
- TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years)
- 5
MMA Specifications
- Welding Current Range
- 10-180A
- MIG Duty Cycle
- 5-200A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- AC/DC HF TIG & AC/DC Pulse
- Electrode Range
- 20% @ 200A, 60% @ 115A, 100% @ 90A
- Welding Thickness Range
- 1-8mm
Stick Specifications
- Stick Welding Current Range
- 20-160A
- Stick Duty Cycle @ 40°C
- 15% @ 160A, 60% @ 80A, 100% @ 62A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-10mm
Size & Weight
- Dimensions
- 500×170×340mm
- Weight
- 11.7kg
Machine Features
- VRD
- Yes
- Foot Control Connection
- YES
- Thermal Overload Protection
- Over Temperature Warning
