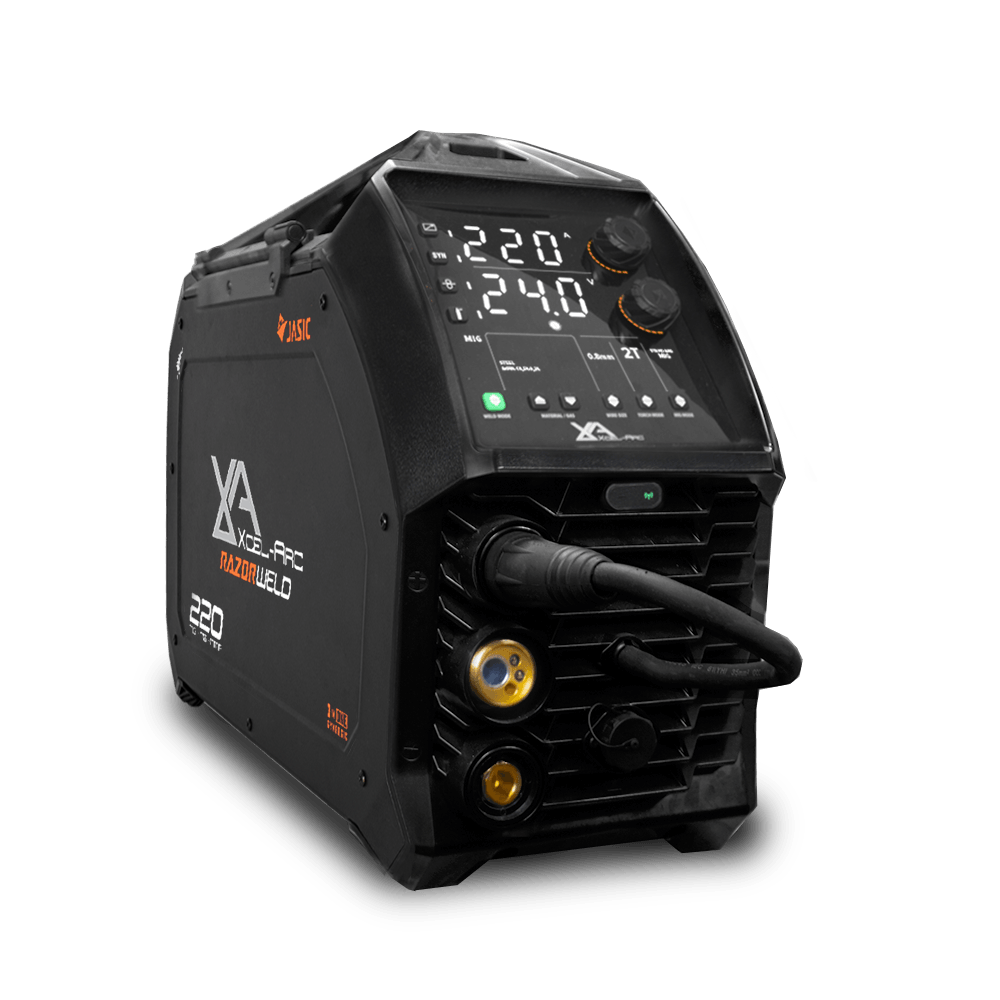

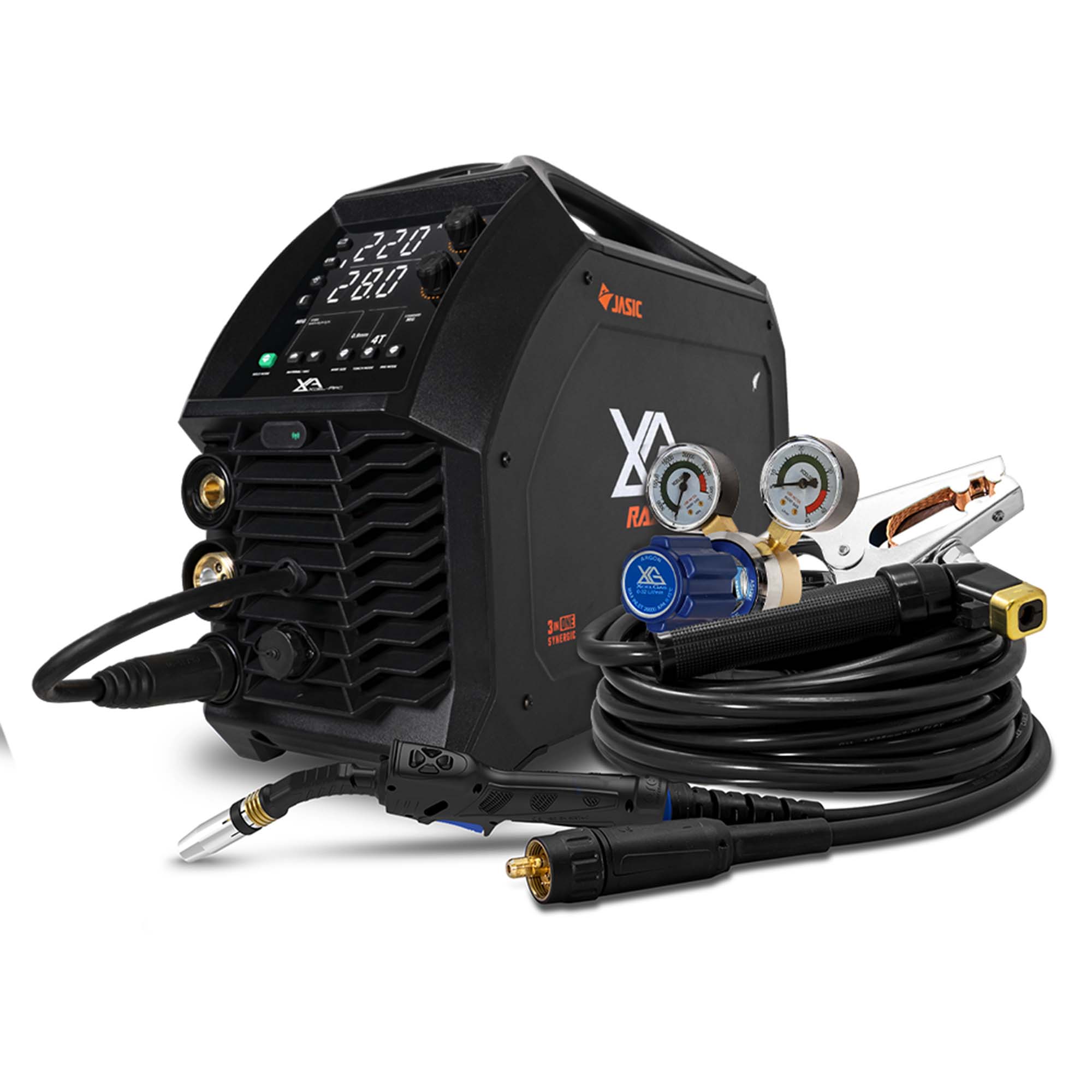

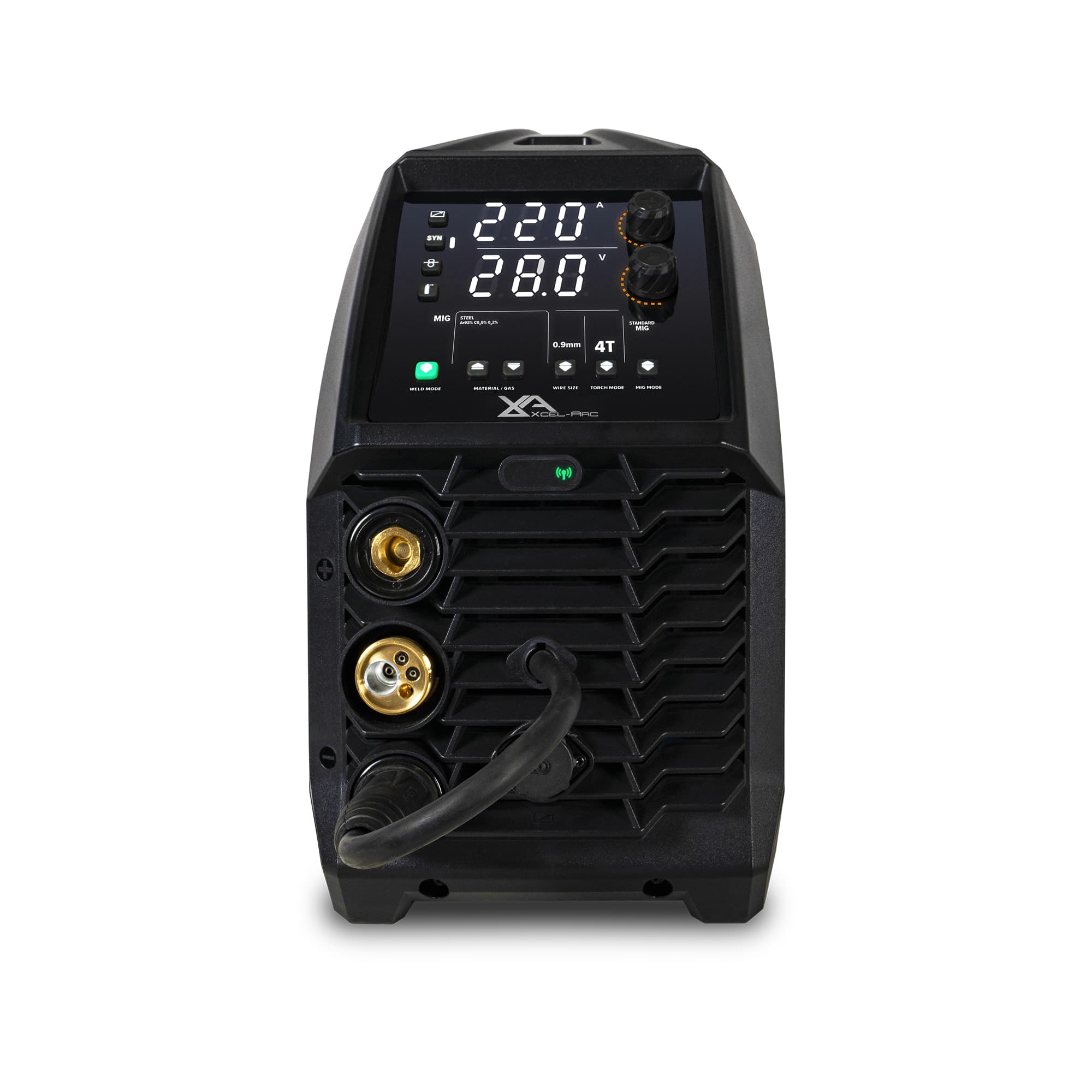

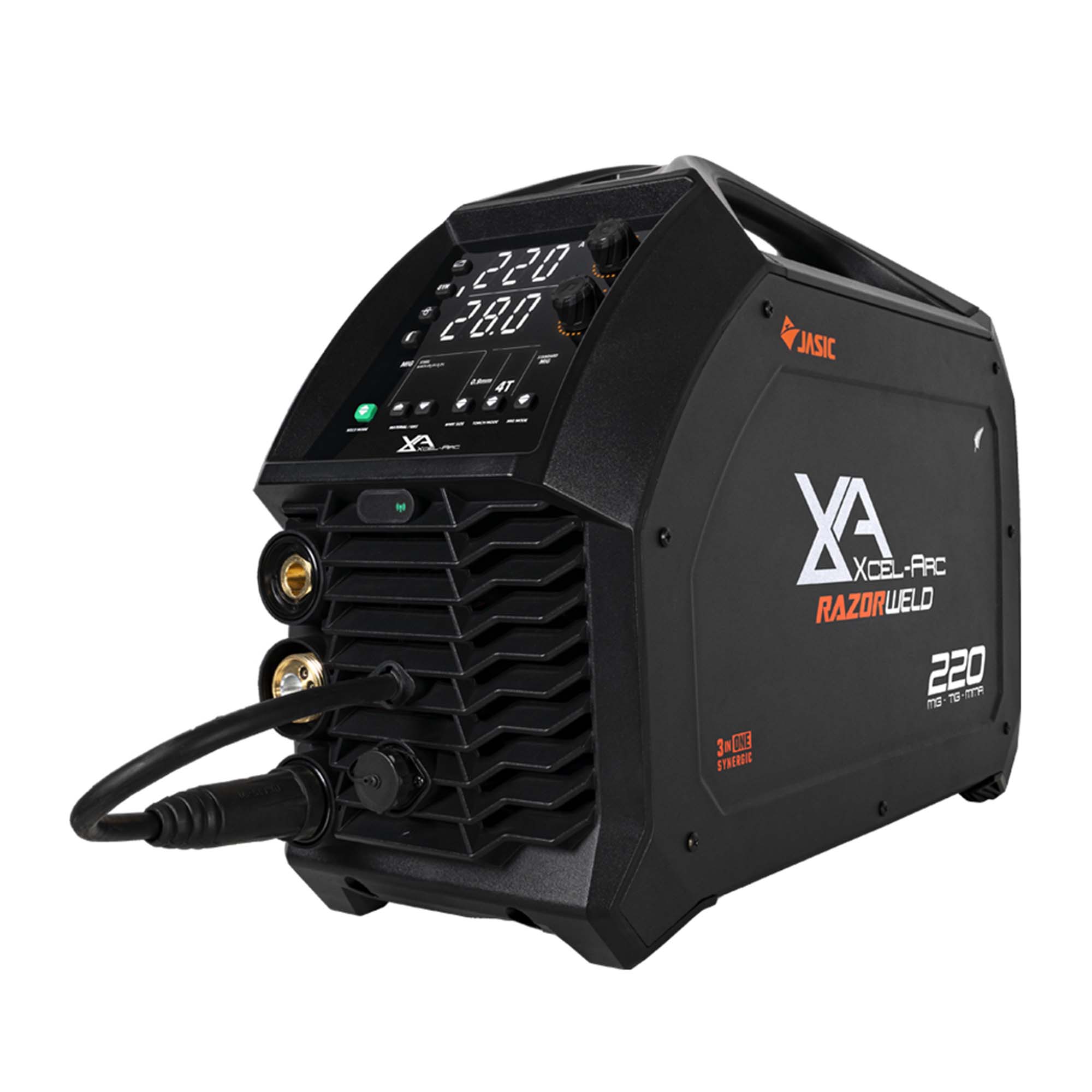

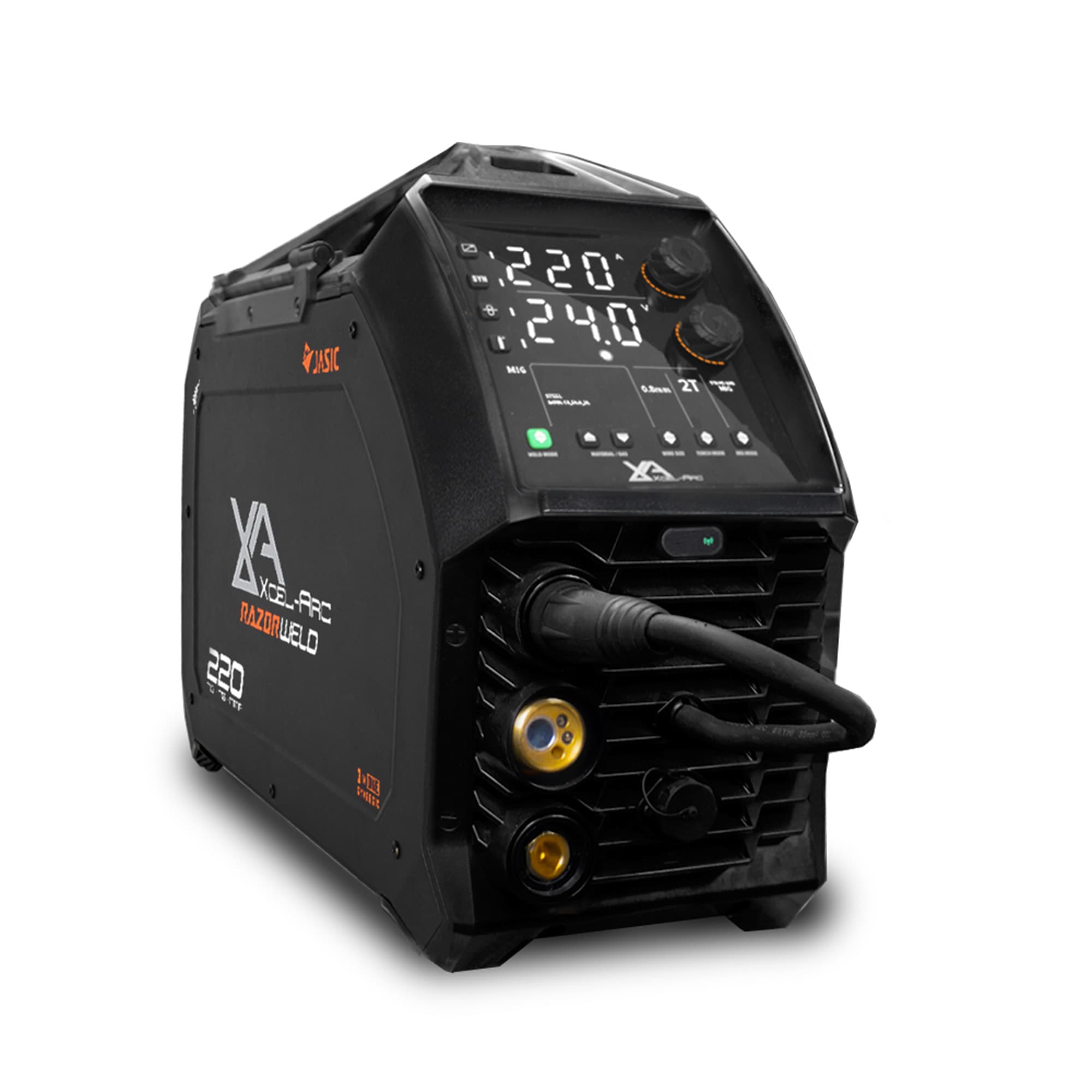

RAZORWELD™ 220 MIG/TIG/MMA Welder
XA-RZMIG220-K
15 AMP PLUG | GEARED WIRE DRIVE | SPOOL GUN READY
In stock
15 AMP PLUG
Connect to any 15 AMP outlet.
MULTIPROCESS WELDING
WELD IN MIG, TIG AND MMA.
GEARED WIRE DRIVE
For smoother wire feeding.
SPOOL GUN READY
For softer wires, such as Aluminium.
A professional machine in a portable case with all the power, the RAZORWELD MIG 220 is perfect for the worksite or the workshop.
Quick and easy setup with synergic MIG programs 3-in-1 multi-process machine so you can MIG, TIG & MMA Geared wire drive system for smooth wire feeding A 5-year warranty to reflect our confidence in this machine

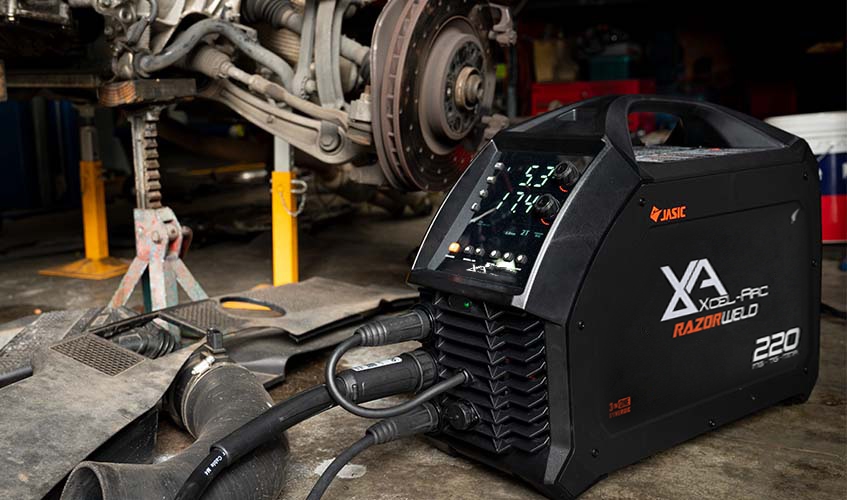

HD Backlit Interface
This next-generation interface panel is bright and easy to read in any environment.
GEARED WIRE DRIVE
This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.
GAS & GASLESS MIG
Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you’re working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.
SPOOL GUN READY
Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
Multi-Process Welding
Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA (STICK) welding all in one unit, you can save valuable time and effort without sacrificing quality.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

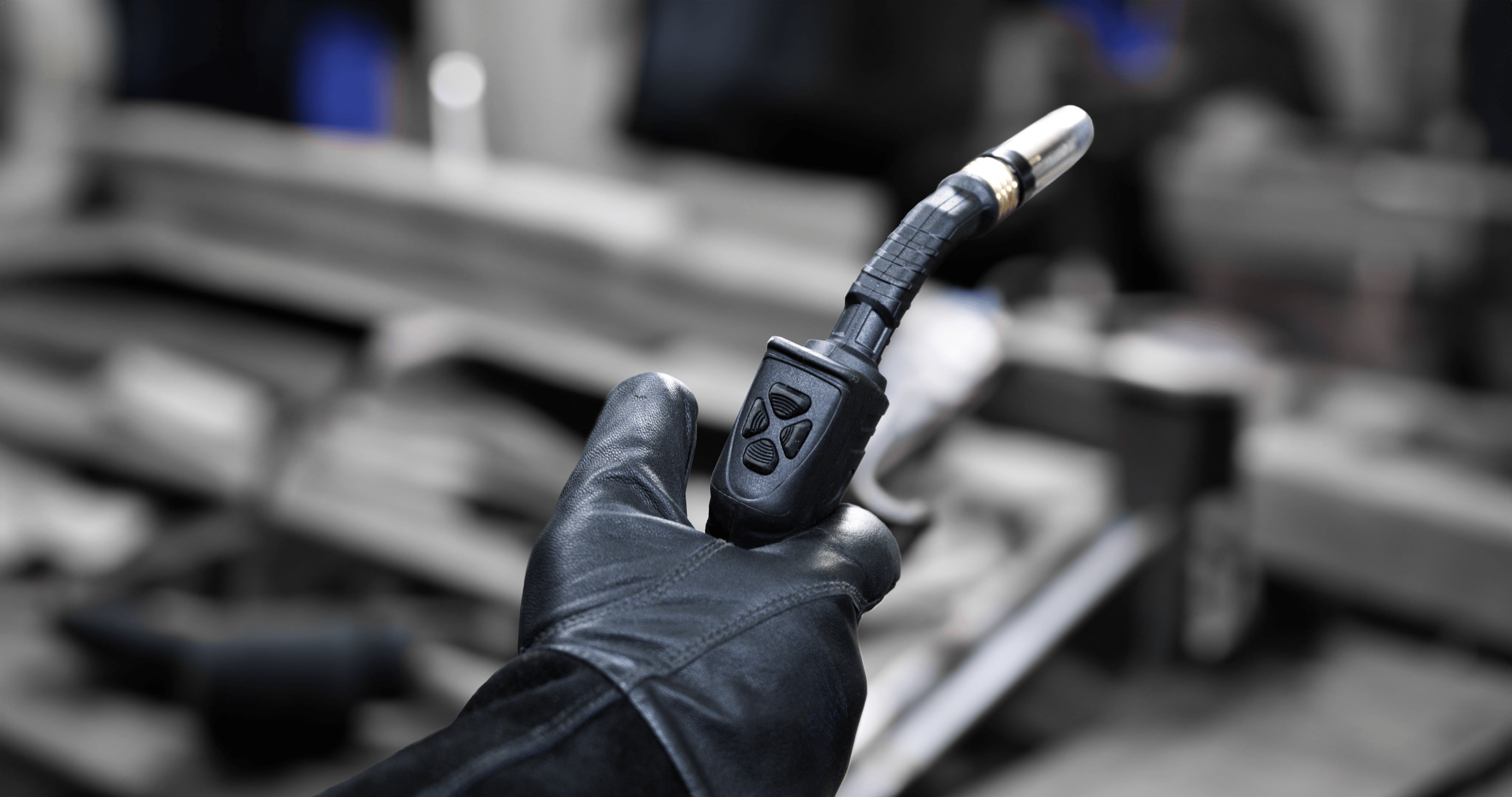

Digital Control MIG Torch
Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.
Synergic MIG Control
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.
Trigger Controlled DC Lift Arc TIG
The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Advance MMA Features
This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 9.4
- Ieff Amps
- 15.0
- Rated Output
- 30A/15.5V - 200A/24.0V
- No Load Voltage (V)
- 60
- Protection Class
- IP23S
- Insulation Class
- F
- Roller Size
- 30/22
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Ieff (A)
- 14.7
- Rated Output
- 30A/15.5V - 220A/25V
- Insulation Class
- H
- Roller Size
- 12.0
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
- Warranty (Years)
- 5
MIG Specifications
- Welding Current Range
- 30-200A
- MIG Duty Cycle
- 15% @ 220A / 60% @ 110A / 100% @ 85A
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 2mm - 10mm
- Welding Current Range
- 30-220A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 1kg / 5kg
- Mig Welding Thickness Range
- 1-10mm
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- 10-200A
- MIG Duty Cycle
- 5-220A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- Trigger Controlled DC Lift Arc
- Electrode Range
- 15% @ 220A / 60% @ 110A / 100% @ 85A
- Welding Thickness Range
- 1-8mm
Stick Specifications
- Stick Welding Current Range
- 20-180A
- Stick Duty Cycle @ 40°C
- 15% @ 180A / 60% @ 90A / 100% @ 70A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-7mm
Size & Weight
- Dimensions
- 560×220×400
- Weight
- 15.1kg
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Foot Control Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Thermal Overload Protection
- Yes
