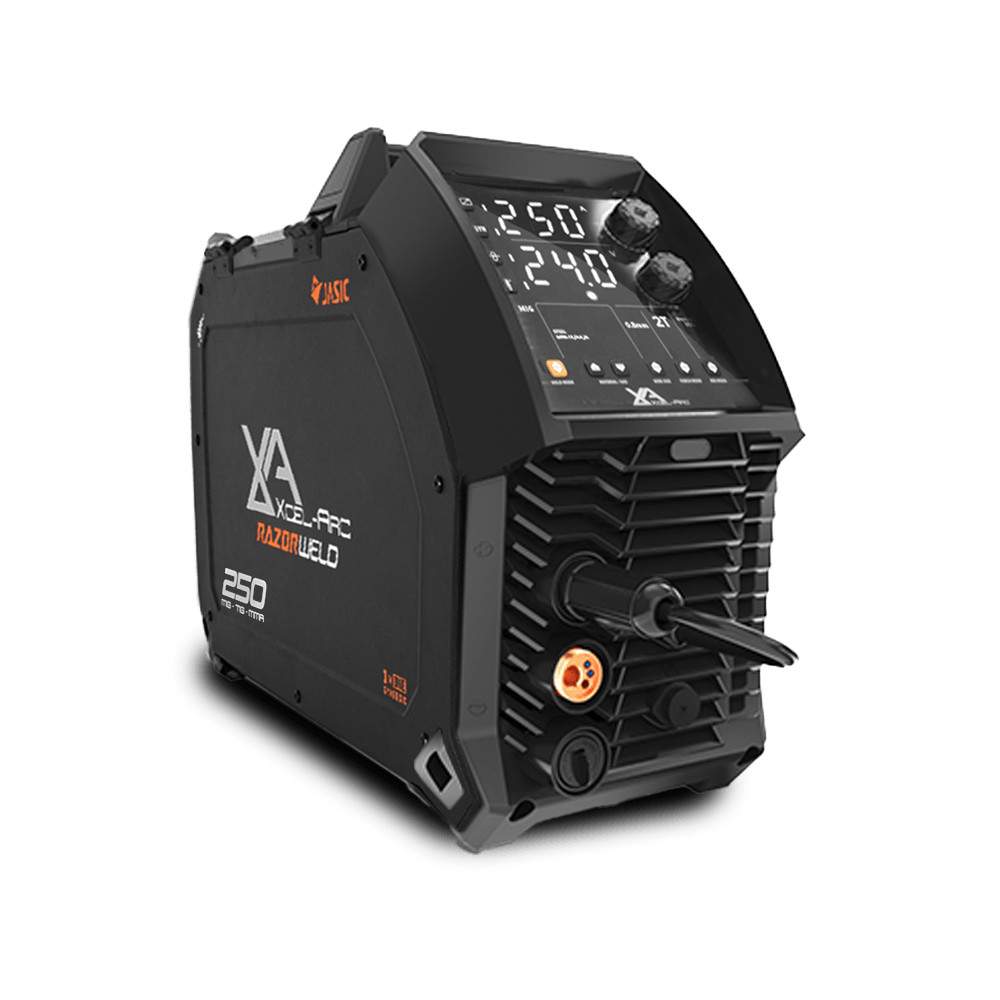

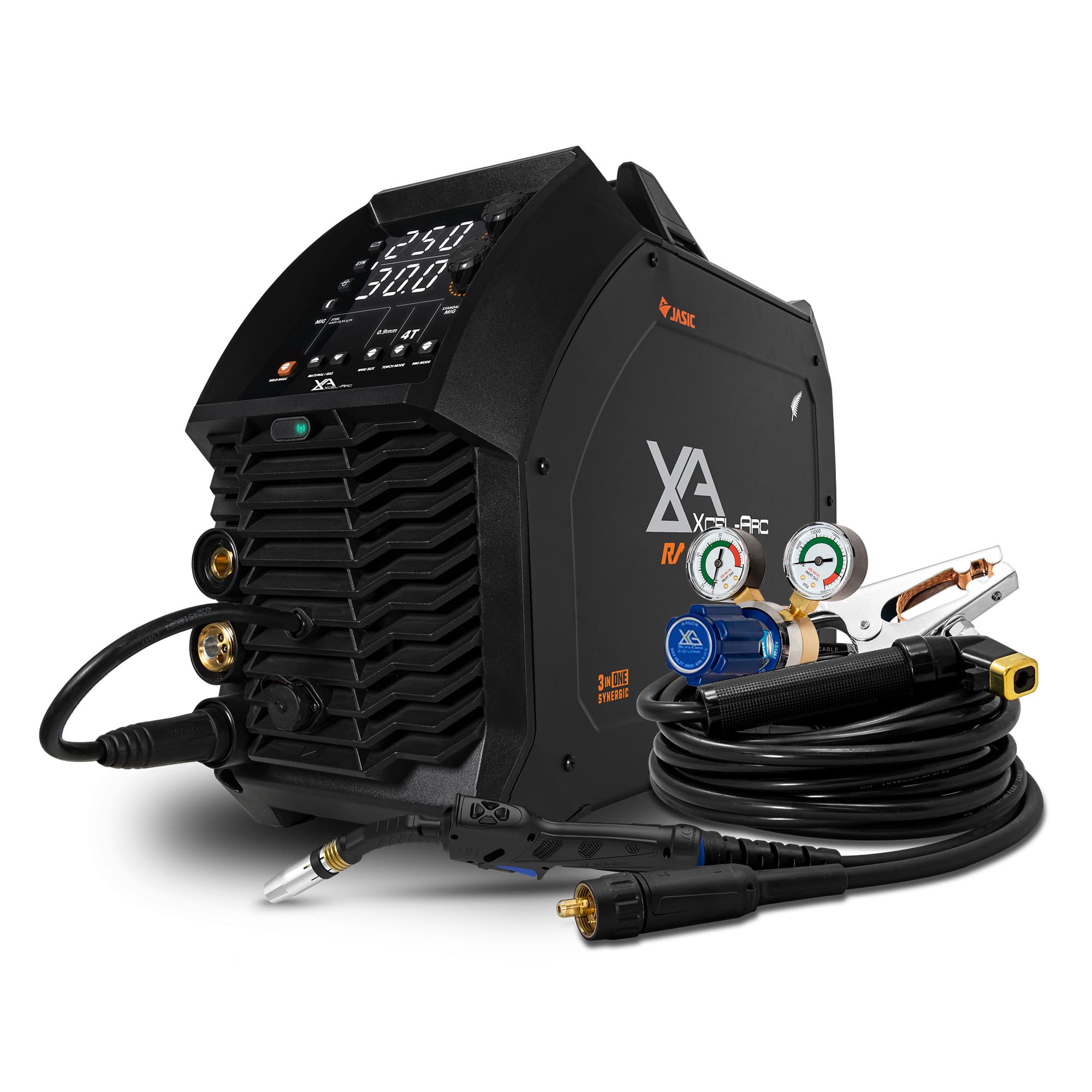

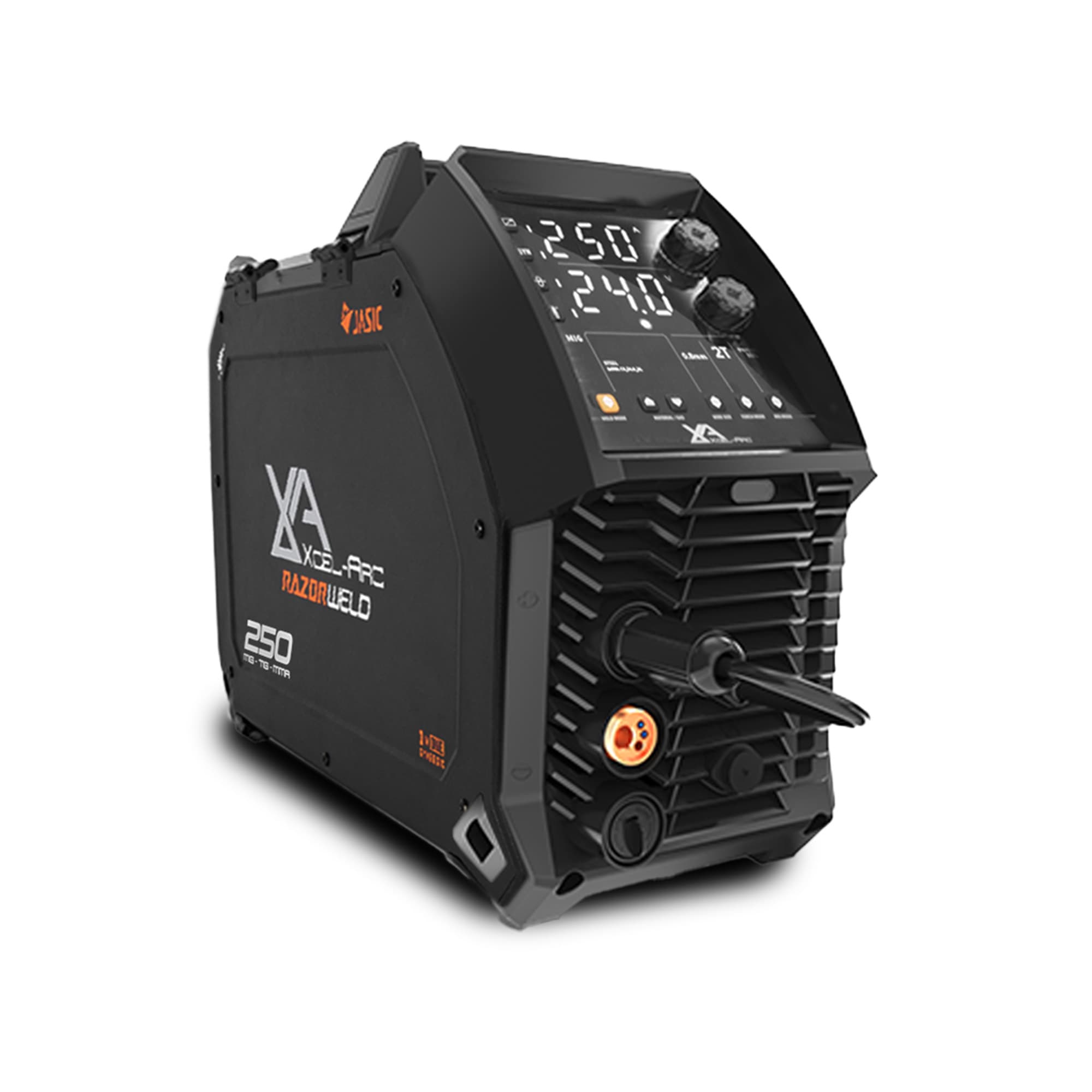

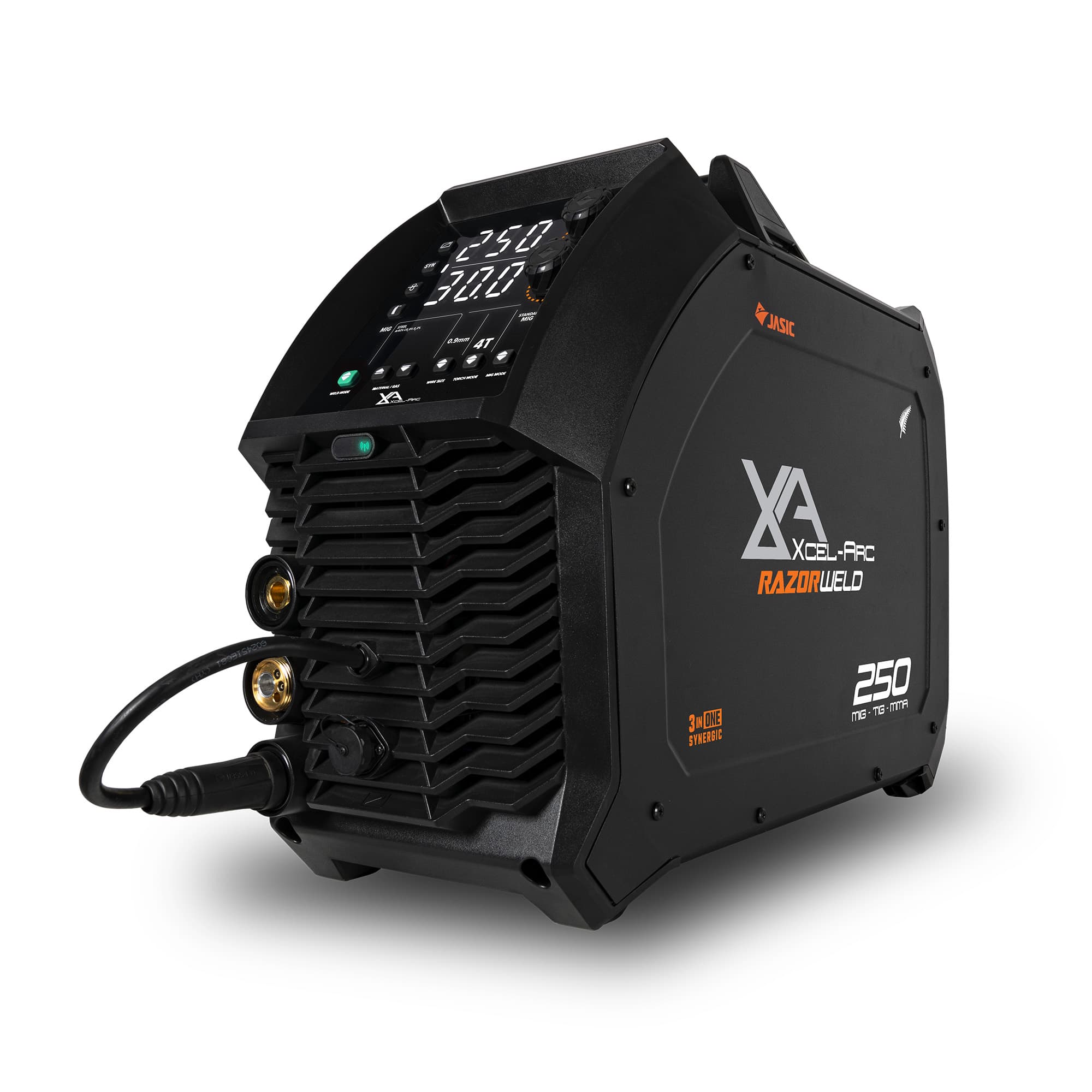

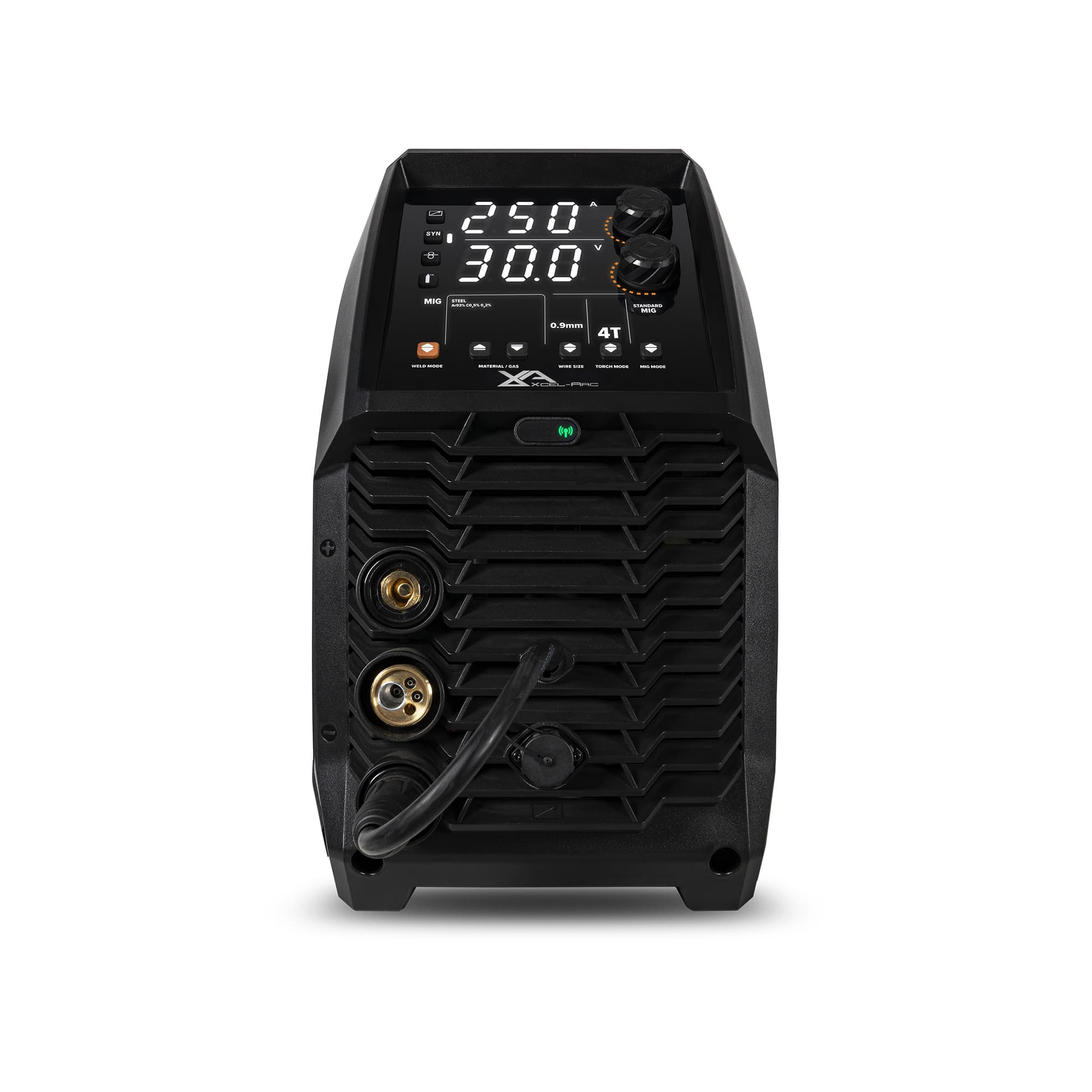

RAZORWELD™ 250 PFC MIG/TIG/STICK Welder
XA-RZMIG250PFC-K
15 AMP PLUG | GEARED WIRE DRIVE | SPOOL GUN READY
In stock
SINGLE PHASE
240V Power
SPOOL GUN READY
For softer wires, such as Aluminium.
LARGE WIRE SPOOL CAPACITY
Fits 200mm & 300mm wire spools.
4 GEARED WIRE DRIVE
For smoother wire feeding.
Get powerful MIG, TIG & STICK performance on your worksite or in your workshop with the professional machine packaged in a portable case.
Quick and easy setup with synergic MIG programs Spool gun ready for the best aluminium welds 4 geared wire drive system for the ultimate wire feeding experience A 5-year warranty to reflect our confidence in this machine
MULTI PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
4 GEARED WIRE DRIVE
This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- Single Phase (32 AMP Recommended) or 15 AMP
- Rated Input Power Kva
- 11
- Ieff Amps
- 28.0
- Rated Output
- 30A/15.5V - 250A/26.5V
- No Load Voltage (V)
- 65
- Protection Class
- IP23S
- Insulation Class
- F
- Roller Size
- 30/22
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 15 AMP
- Rated Input Power (kVA)
- 15.0
- Ieff (A)
- 15.0
- Rated Output
- 30A/15.5V - 250A/26.5V
- Insulation Class
- H
- Roller Size
- 11.0
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
- Warranty (Years)
- 5
MIG Specifications
- Welding Current Range
- 30-250A
- MIG Duty Cycle
- 20% @ 250A / 60% @ 144A / 100% @ 112A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- 30-250A
- Wire Size Range
- 0.6-1.2mm
- Welding Thickness Range
- 5kg / 15kg
- Mig Welding Thickness Range
- 1-9mm
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- 10-250A
- MIG Duty Cycle
- 5-250A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- Trigger Controlled DC Lift Arc
- Electrode Range
- 20% @ 250A / 60% @ 144A / 100% @ 112A
- Welding Thickness Range
- 1-9mm
Stick Specifications
- Stick Welding Current Range
- 20-250A
- Stick Duty Cycle @ 40°C
- 20% @ 220A / 60% @ 127A / 100% @ 98A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-12mm
Size & Weight
- Dimensions
- 700x280x551mm
- Weight
- 25.5
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Foot Control Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Thermal Overload Protection
- Yes
