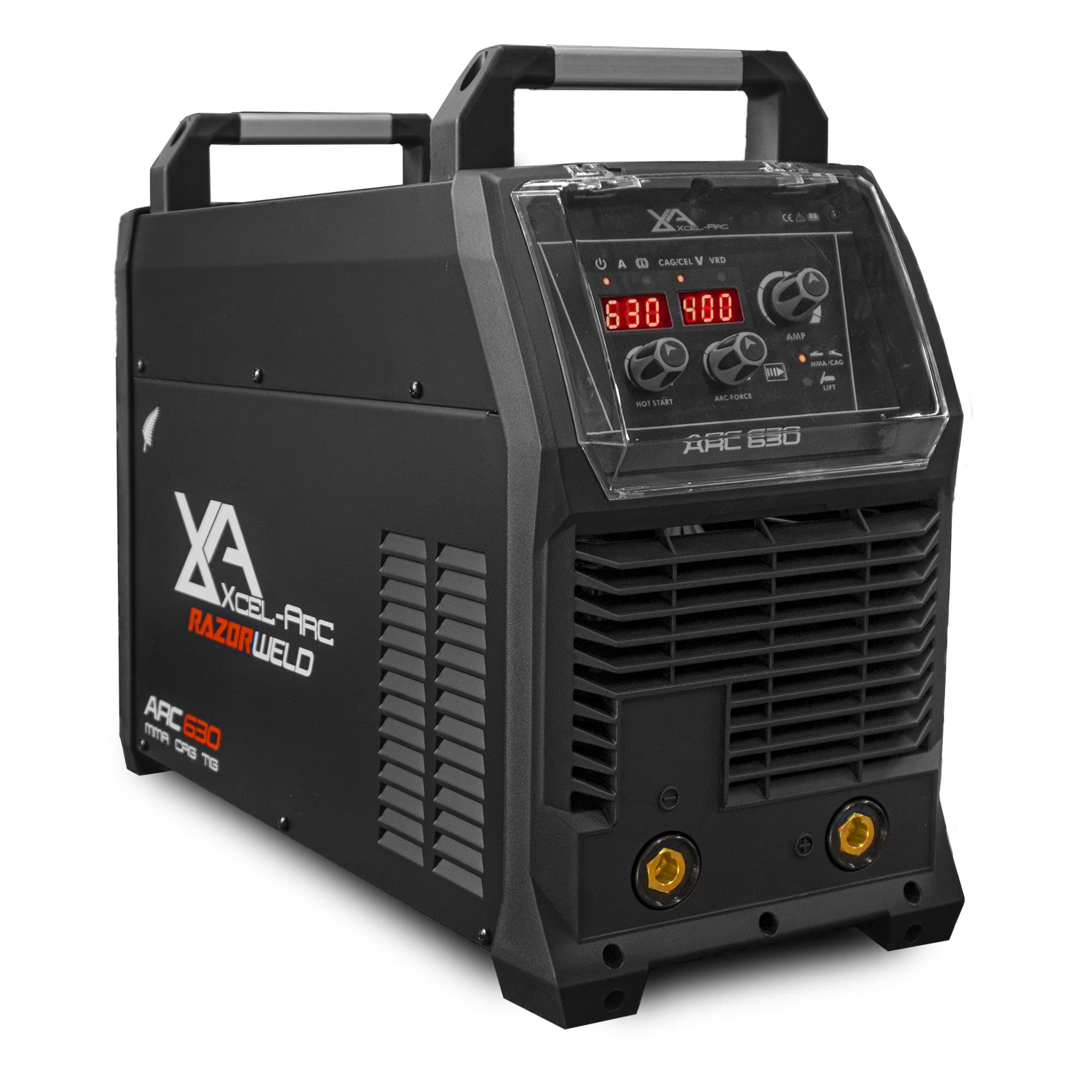

Arc630 Side L 1000x1000

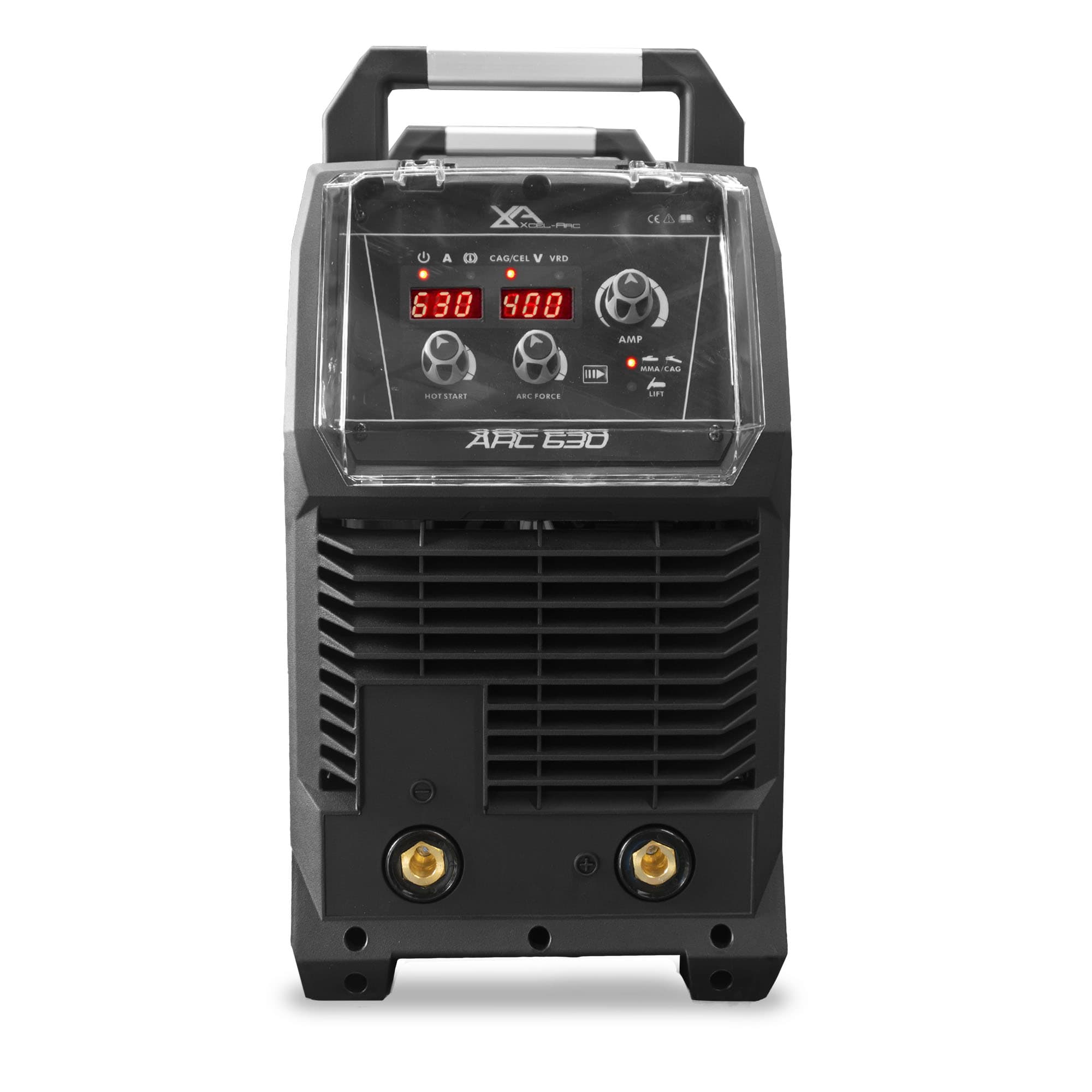

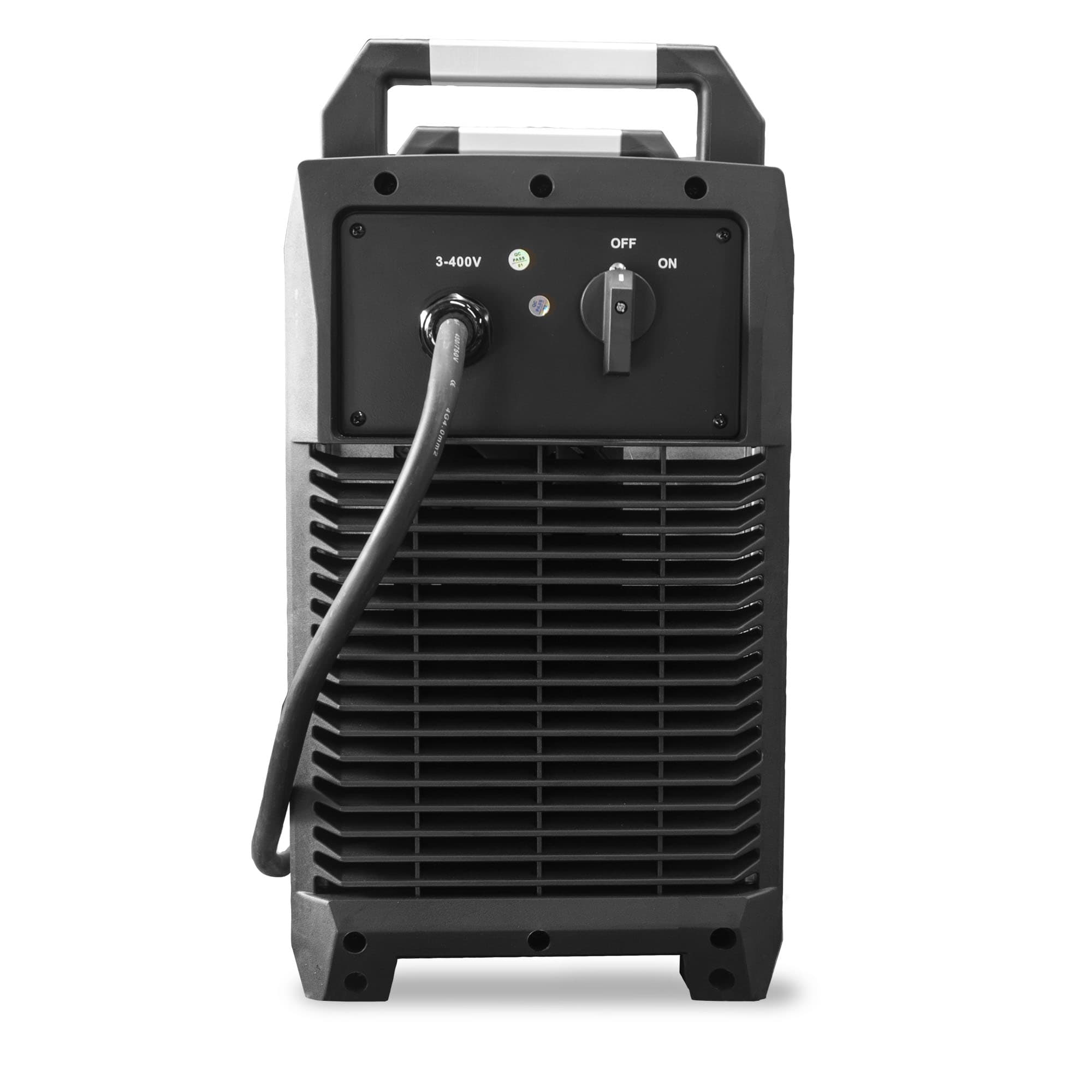

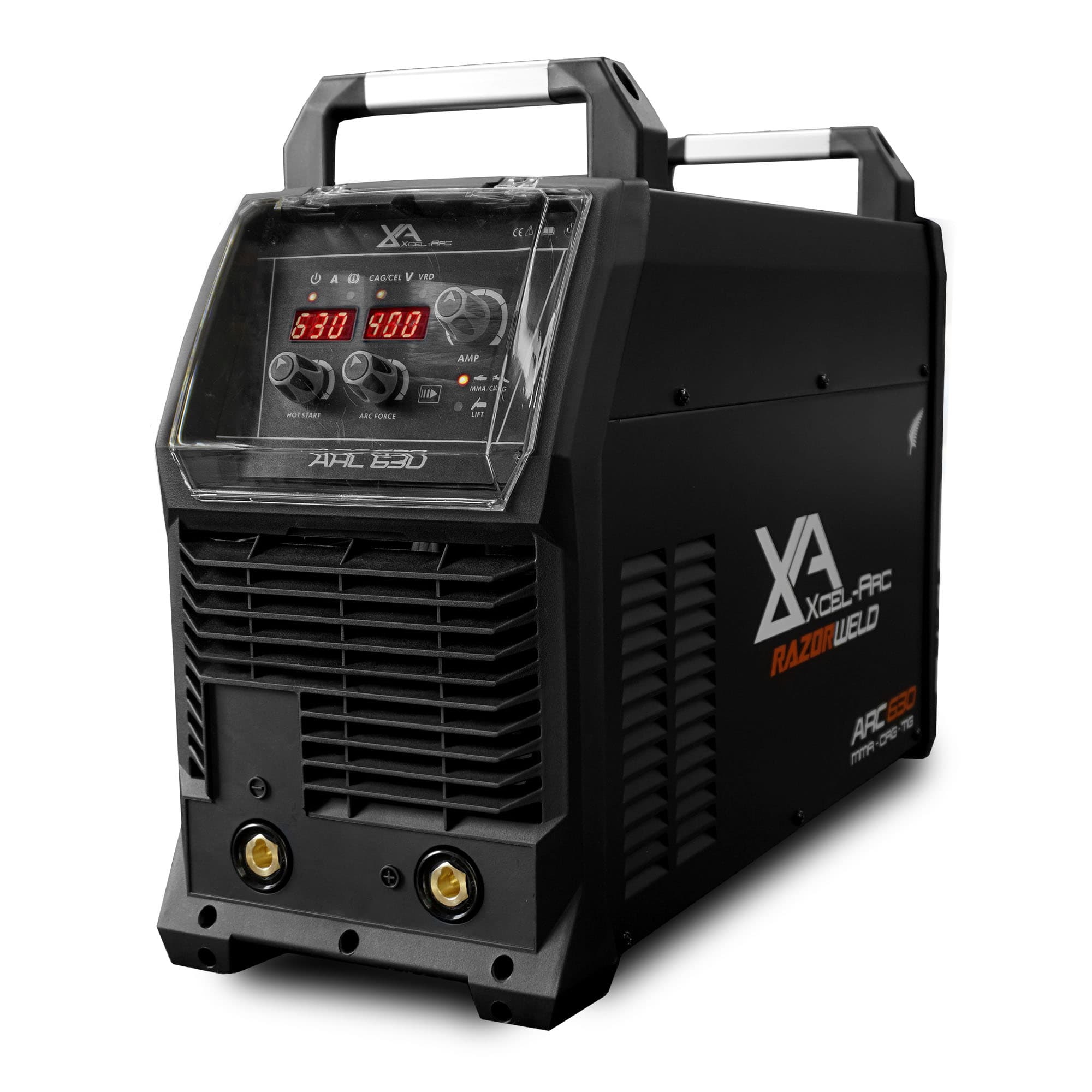

RAZORWELD™ ARC 630 MMA/CAG/TIG Welder

XA-ARC630RZ-K

SELECTABLE ON/OFF VRD | ARC AIR GOUGING MODE

In stock

Find a stockistEnquire

Selectable On/Off VRD

Voltage Reduction Device

DC LIFT ARC TIG

TIG welding functionality.

Arc Air Gouging Mode

with High OCV

THERMAL OVERLOAD PROTECTION

Prevents machine from exceeding a safe operating temperature.

Introducing the RazorWeld ARC630RZ inverter welding machine, a high-quality and reliable option for professionals and contractors alike. With its primary function of DC-MMA (Stick) welding and optional DC-TIG capabilities with Lift-Arc Ignition, this advanced welding machine utilizes the latest generation MCU control system for exceptional arc characteristics and high reliability. It is sturdy and portable, making it perfect for on-site work, and the Carbon Arc Gouging feature is a new addition, ideal for weld removal, crack removal, back gouging, and weld defect repairs for various materials.

The ARC630RZ is suitable for a wide range of applications, including medium to heavy industrial use, site welding, farming, and general repair and maintenance work, and complies with AS/NZ60974-1 manufacturing standards. Choose the RazorWeld ARC630RZ for superior performance, reliability, and portability for all your welding needs.

DC LIFT ARC TIG

Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.
DC Lift Arc TIG 1

Selectable On/Off VRD SWITCH

A Voltage Reduction Device can be turned on and off with the selectable switch to suit your application. If you’re running electrodes that are hard to start, the VRD can be turned off to help with striking an arc.
Power Factor Correction 1

Machine Specifications

Primary Input Voltage
415V - 3Phase
Plug Type
15 AMP
Rated Input Power Kva
9.0
Ieff Amps
15.0
Rated Output
200A/28V
No Load Voltage (V)
90
Protection Class
IP21S
Insulation Class
F
Minimum Generator (kVA)
0.7
Dinse Connection Size
35/50
Welds
AS/NZ60974-1
Plug Type
32 AMP
Ieff (A)
MMA-31 / TIG-31.6
Rated Output
20-630A
Insulation Class
H
Suitable Material
Mild Steel, Stainless Steel, Copper, Cast Iron
Warranty (Years)
3

MMA Specifications

Welding Current Range
10-200A
MIG Duty Cycle
20-630A
Electrode Range
2.5-4.0mm
Welding Thickness Range
2mm - 12mm
Welding Current Range
DC Lift Arc
Electrode Range
40% @ 630A
Welding Thickness Range
1-3.2mm

Stick Specifications

Stick Welding Current Range
20-630A
Stick Duty Cycle @ 40°C
25% @ 630A
Stick Electrode Range
2.5-5.0mm
Stick Welding Thickness Range
1-8mm

Size & Weight

Dimensions
550x240x445mm
Weight
33.5kg

Machine Features

VRD
Yes
Thermal Overload Protection
Over Temperature Warning
Air Arc Gouging
Yes
