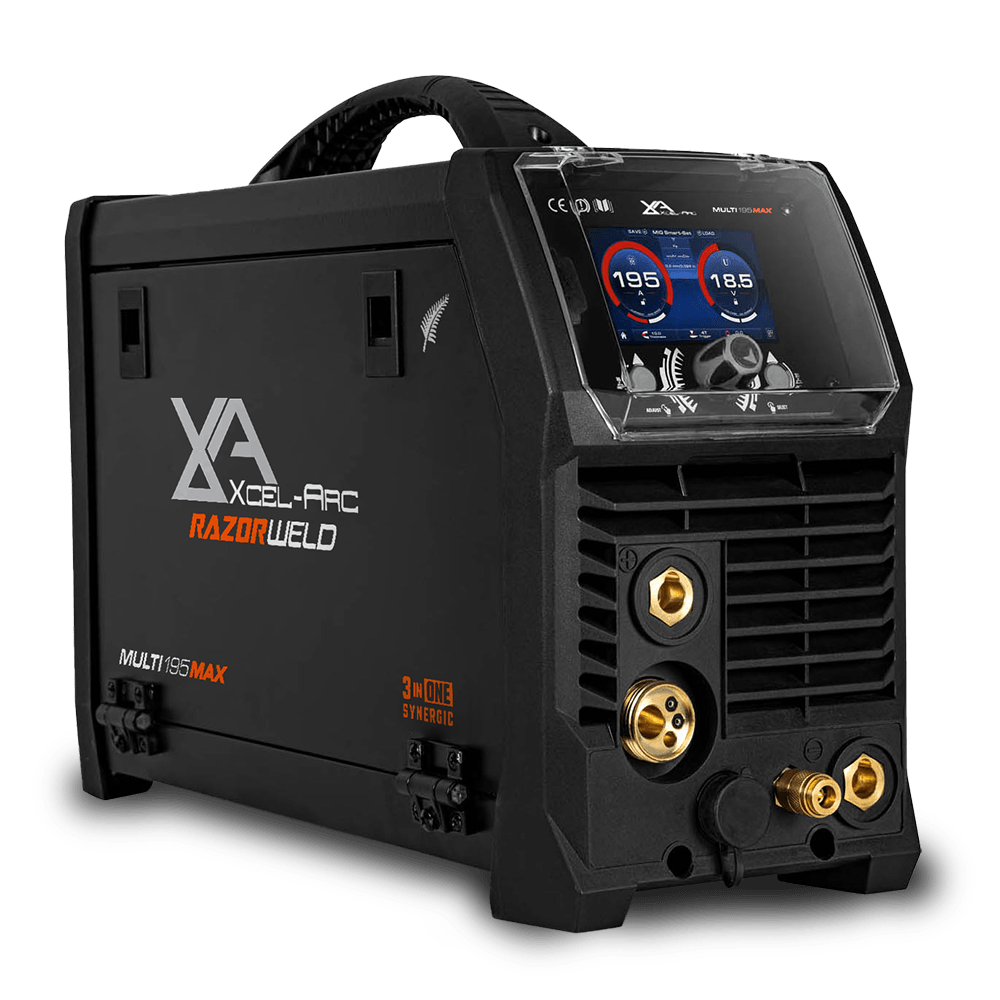

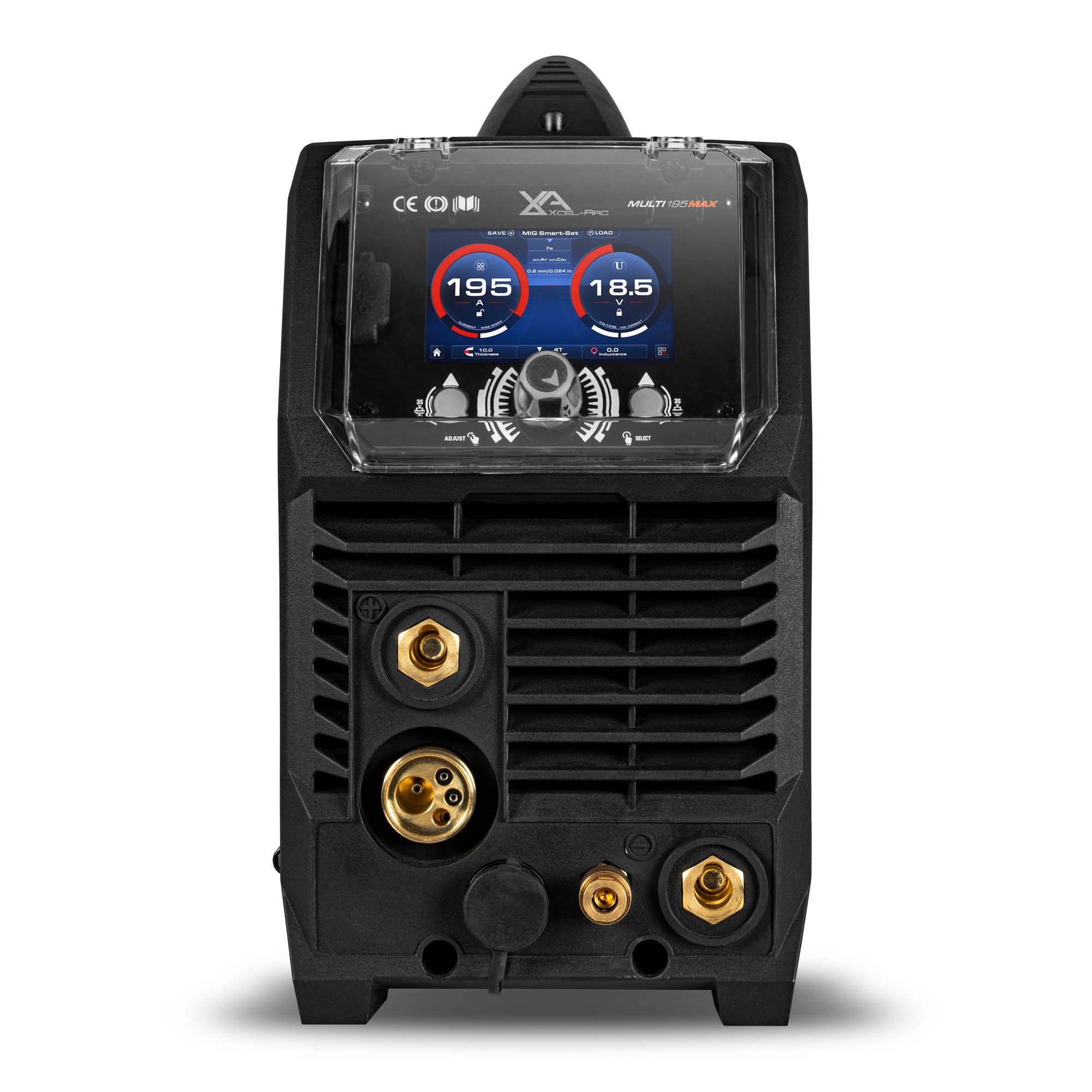

RAZORWELD™ Multi 195 MAX MIG/TIG/MMA WELDER
XA-MIG195RZMTS-K
10 AMP PLUG | DIGITAL GEARED WIRE DRIVE | 4” LCD SCREEN
In stock
10AMP PLUG
Connect to any 10 AMP outlet.
3 IN 1 MULTIPROCESS
WELD IN MIG, TIG AND STICK.
100+ SYNERGIC PROGRAMS
JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.
DIGITAL GEARED WIRE DRIVE
FOR ACCURATE WIRE FEEDING.
The RAZORWELD™ MULTI 195 MAX is now out, the latest addition to our RAZORWELD range. This 3-in-1 machine has been packed full of features so it can do just about everything, MIG, DC TIG and STICK, and all on a 10A plug. It comes loaded with complete, comprehensive synergic MIG and TIG programs, so setting up for your welds has never been quicker or easier.

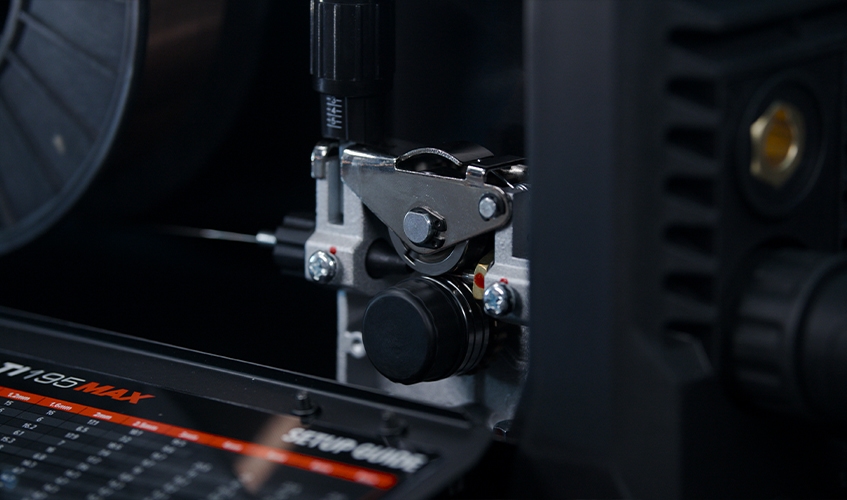

DIGITAL GEARED WIRE DRIVE
Experience unparalleled accuracy with our all-new Digital Geared Wire Drive system. Designed to sustain a consistent arc in varying conditions and with different wire types, it ensures an accurate wire feed speed. With this system, achieving precision in every welding task is effortless.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
10A Plug
Plug in and play. The 10A power plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere
DC High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.

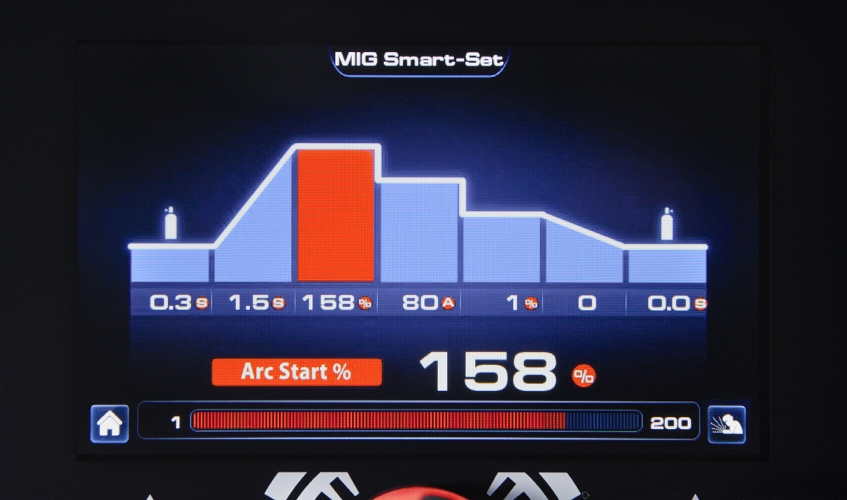

Complete MIG Weld Cycle Control
Get complete control over your MIG welds with a full set of adjustable parameters, such as pre- and post-gas flow, arc ignition speed, and burnback.

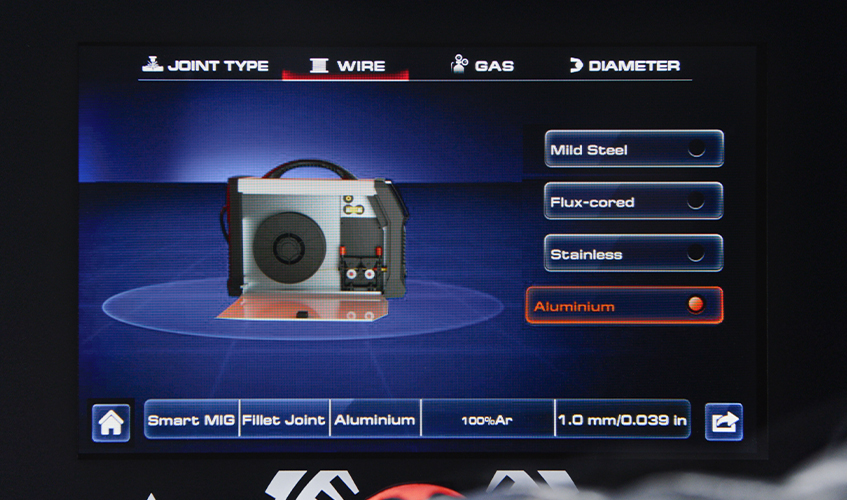

MIG Smart-Set
Setting up for a weld has never been easier, just set your joint type, filler wire, gas mixture, wire diameter, and material thickness and you’re ready to weld
TIG Smart-Set
The easiest way to set up for a TIG weld, simply set your material, joint type, tungsten diameter, plate thickness, and gas mixture and you’re good to go!
Pulse MMA
Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Rated Input Power Kva
- 9.4
- Ieff Amps
- 15.0
- Rated Output
- 30A/15.5V - 200A/24.0V
- No Load Voltage (V)
- 78
- Protection Class
- IP21
- Insulation Class
- F
- Roller Size
- 30/22
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Ieff (A)
- 8.9
- Rated Output
- 25A/15V - 195A/23.8V
- Insulation Class
- H
- Roller Size
- 8.5
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
- Warranty (Years)
- 3
MIG Specifications
- Welding Current Range
- 30-200A
- MIG Duty Cycle
- 15% @ 195A / 60% @ 98A / 100% @ 76A
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 2mm - 10mm
- Welding Current Range
- 25-195A
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 1kg / 5kg
- Mig Welding Thickness Range
- 1-6mm
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- 10-200A
- MIG Duty Cycle
- 5-195A
- Electrode Range
- 2.5-4.0mm
- Welding Thickness Range
- 2mm - 12mm
- Welding Current Range
- DC High-Frequency
- Electrode Range
- 30% @ 195A / 60% @ 138A / 100% @ 107A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 5-195A
- Stick Duty Cycle @ 40°C
- 15% @ 195A / 60% @ 98A / 100% @ 76A
- Stick Electrode Range
- 2-4mm
- Stick Welding Thickness Range
- 2-10mm
Size & Weight
- Dimensions
- 470x190x350mm
- Weight
- 11.8kg
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Foot Control Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Crater Current Control
- Yes
- Thermal Overload Protection
- Yes
