TRUE 4 IN 1 MULTI PROCESS
MIG, AC/DC TIG, MMA
100+ SYNERGIC PROGRAMS
JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO
5” LCD SCREEN
THE LARGE SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE
GEARED WIRE DRIVE
Providing consistent and smooth wire feed

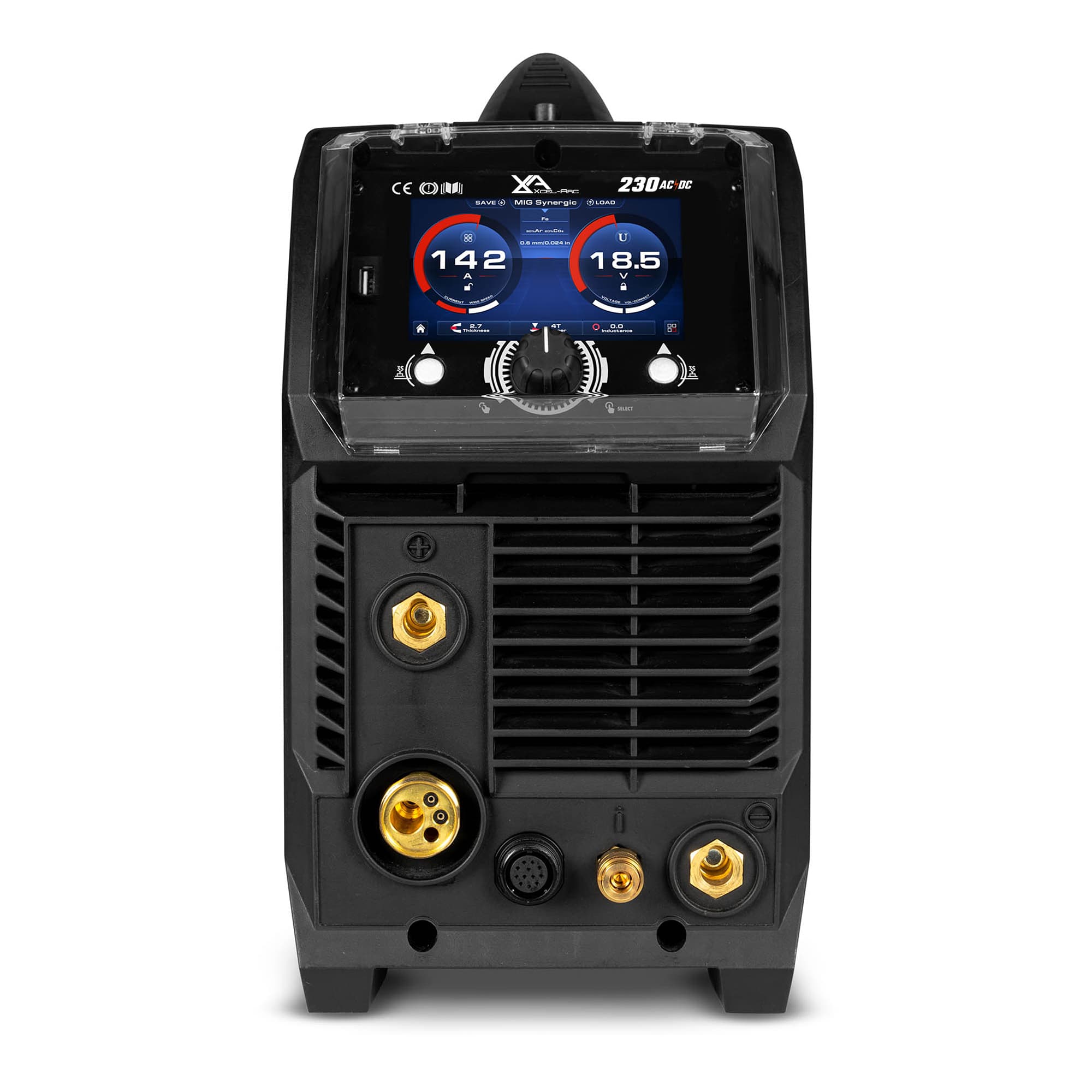

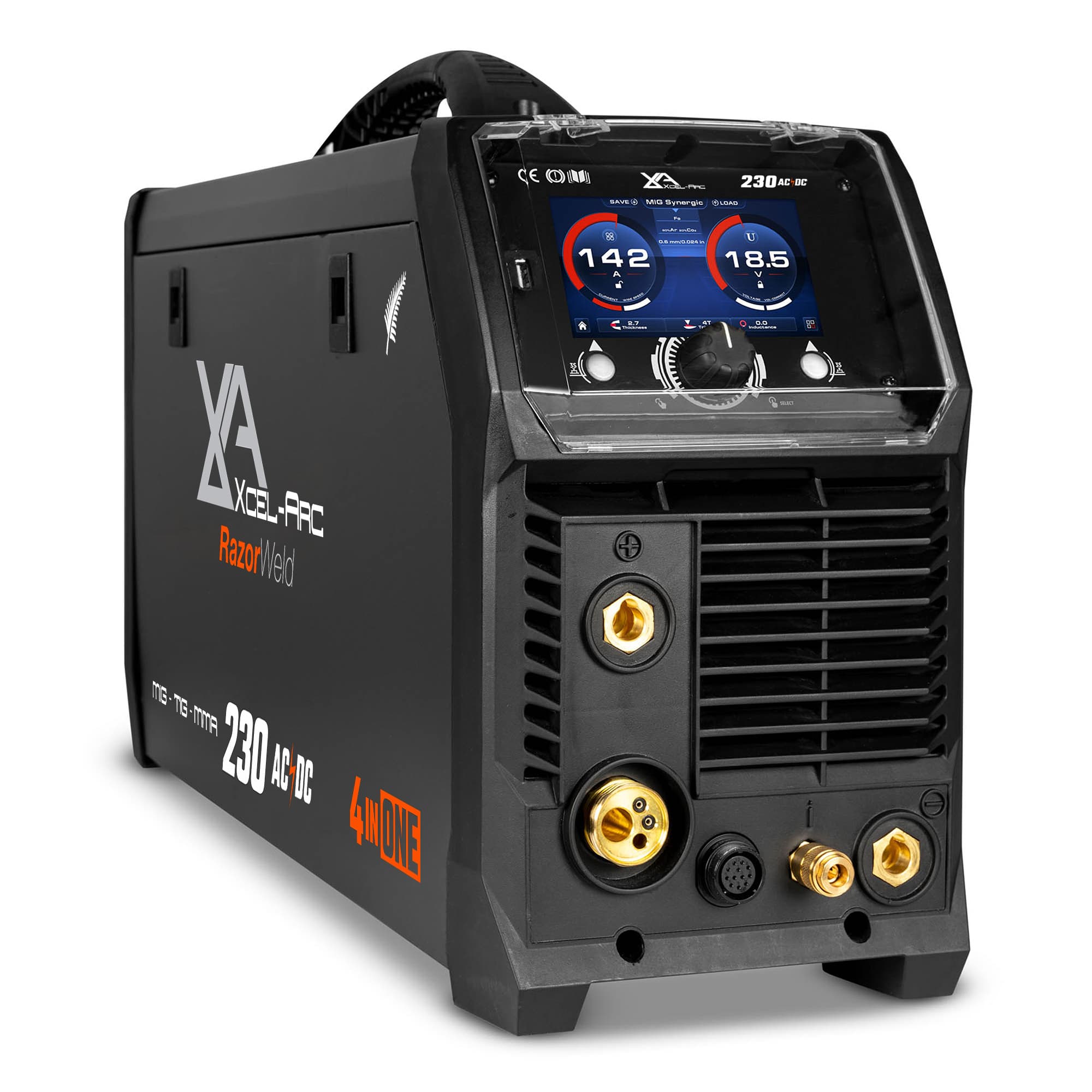

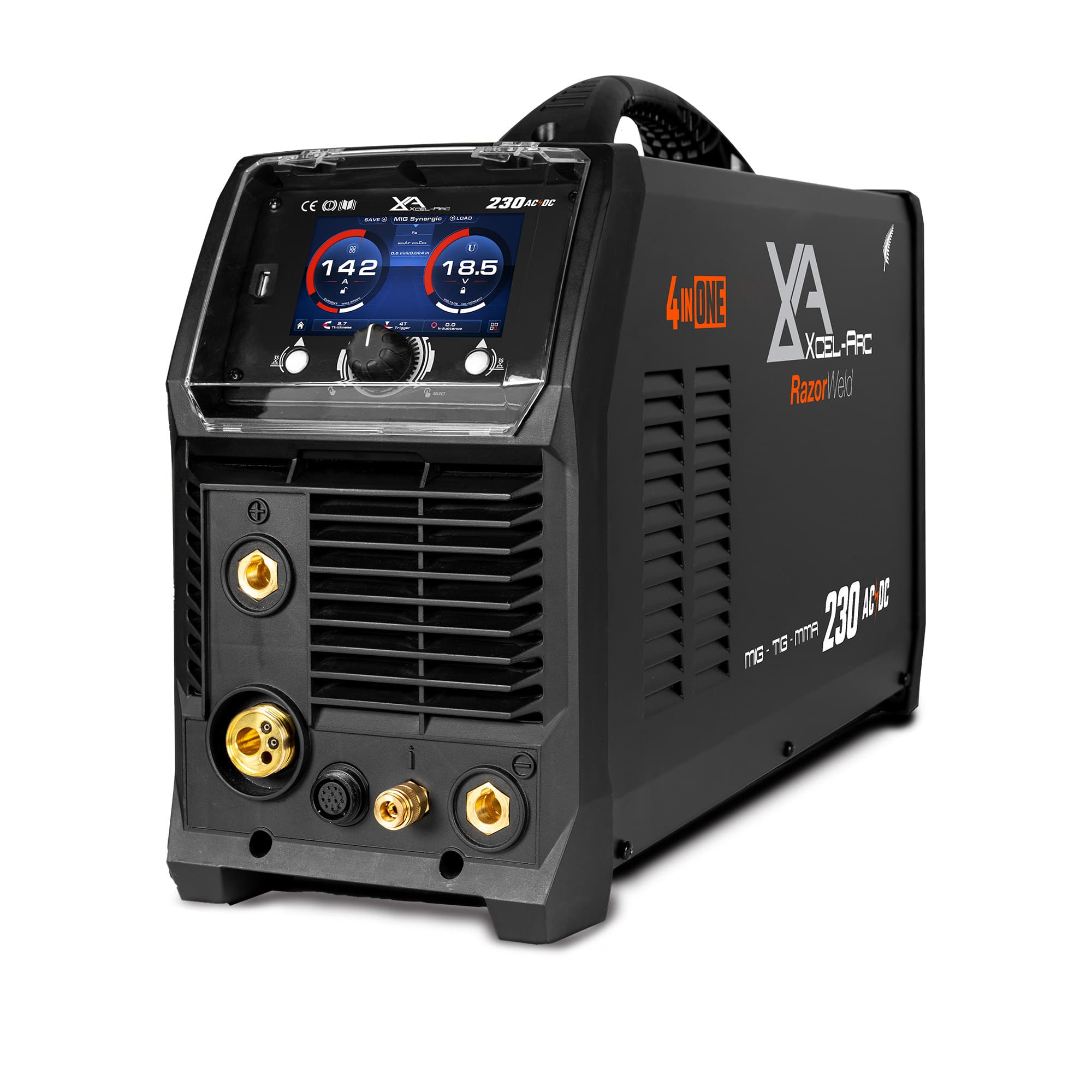

Our brand new RAZORWELD™ MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZORWELD line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.
AC/DC High Frequency TIG
TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld.
PULSE MMA (STICK)
Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.

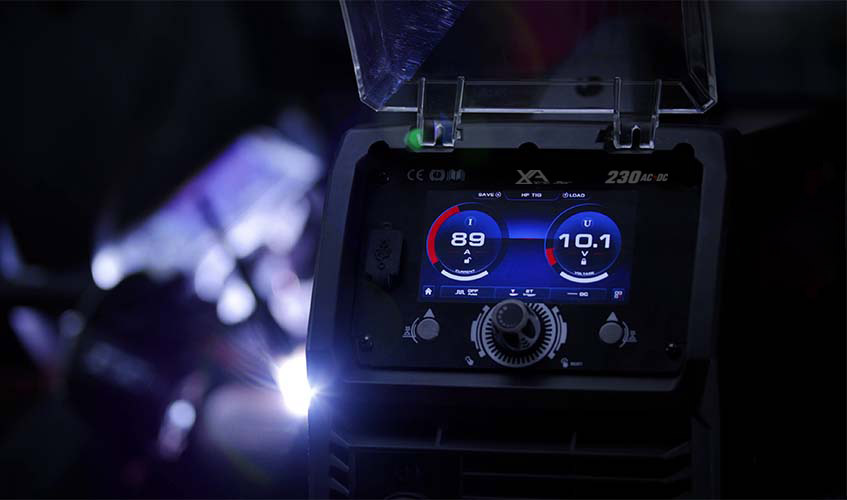

Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency and automatically compensates for any voltage fluctuation.

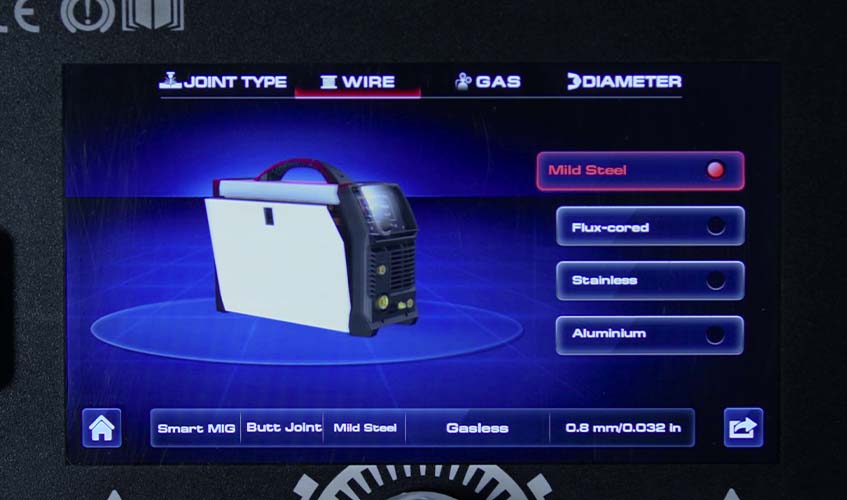

MIG Smart-Set
Setting up for a weld has never been easier, just set your wire, gas, joint type and material thickness and you’re ready to weld!

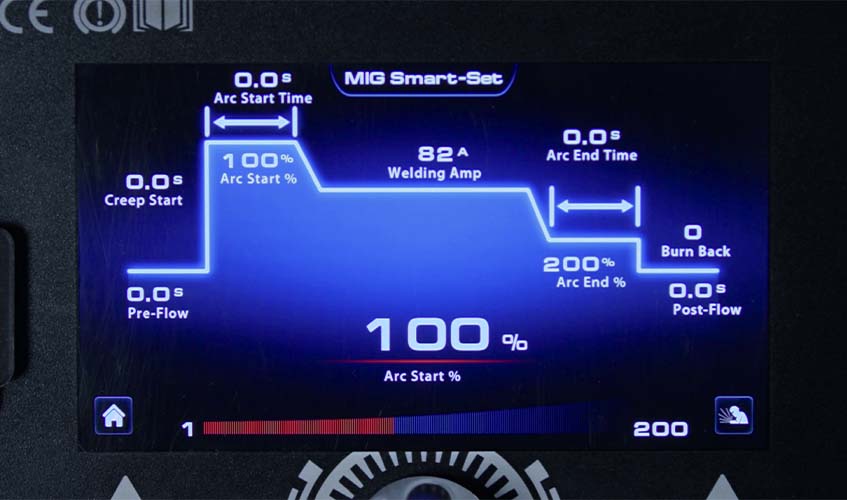

Complete MIG Weld Cycle Control
Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings such as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.

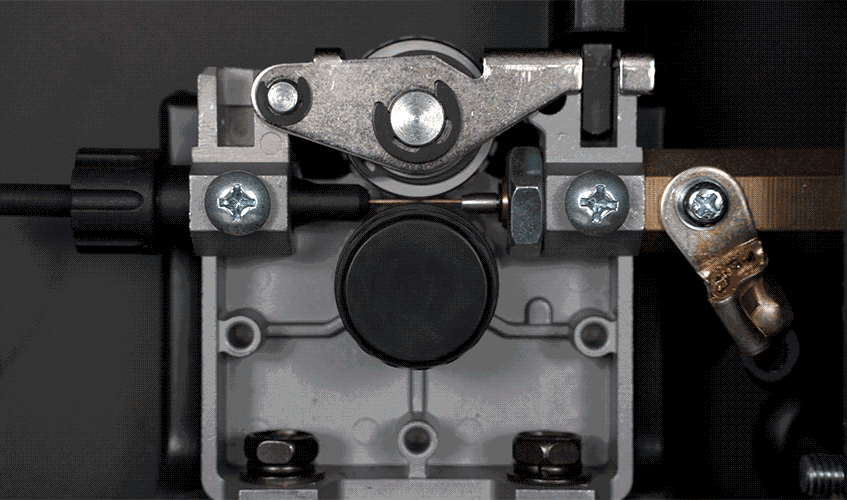

Geared Wire Drive
This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.

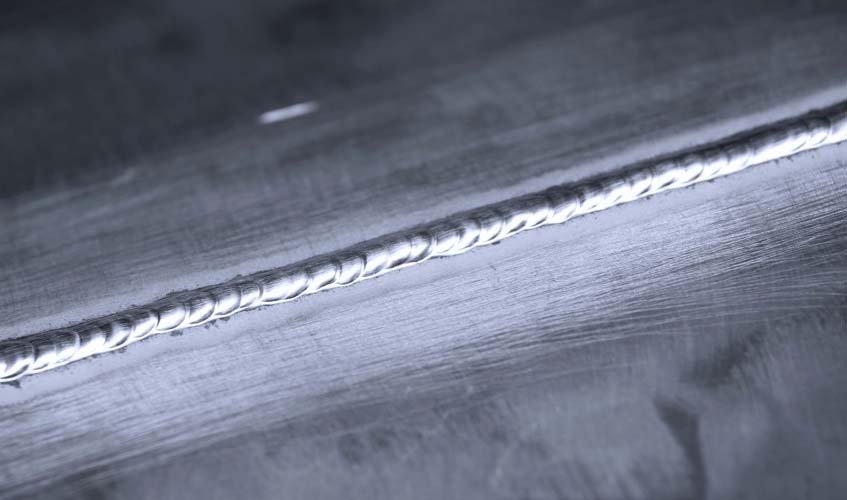

TIG Smart-Set
The easiest way to set up for a TIG weld, simply set your filler material, joint type and material thickness and you’re good to go!

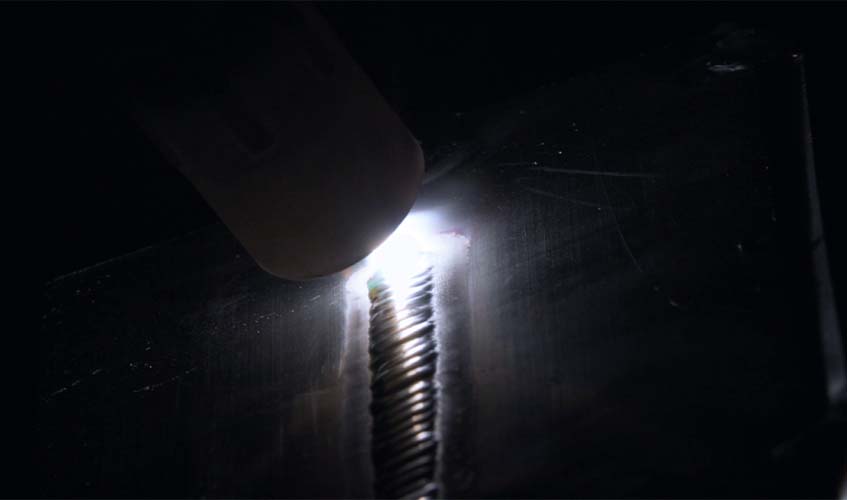

Mix AC/DC
Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 15 AMP
- Ieff (A)
- 15
- Rated Output
- 25A/15.3V-230A/25.5V (15A)
- Protection Class
- IP21
- Insulation Class
- H
- Roller Size
- 10 (15A)
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- Warranty (Years)
- 3
MIG Specifications
- Welding Current Range
- 25-230A (15A)
- MIG Duty Cycle
- 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 100mm / 200mm
- Mig Welding Thickness Range
- 1-7mm
- Drive Roller Size
- 30/22
MMA Specifications
- Welding Current Range
- AC/DC High-Frequency
- MIG Duty Cycle
- 10-230A
- Electrode Range
- 35% @ 230A, 60% @ 175A, 100% @ 136A
- Welding Thickness Range
- 1-7mm
Stick Specifications
- Stick Welding Current Range
- 10-200A
- Stick Duty Cycle @ 40°C
- 25% @ 200A, 60% @ 130A, 100% @ 100A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-10mm
- Arc Force
- 0-100%
Size & Weight
- Dimensions
- 660x210x330mm
- Weight
- 20kg
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes

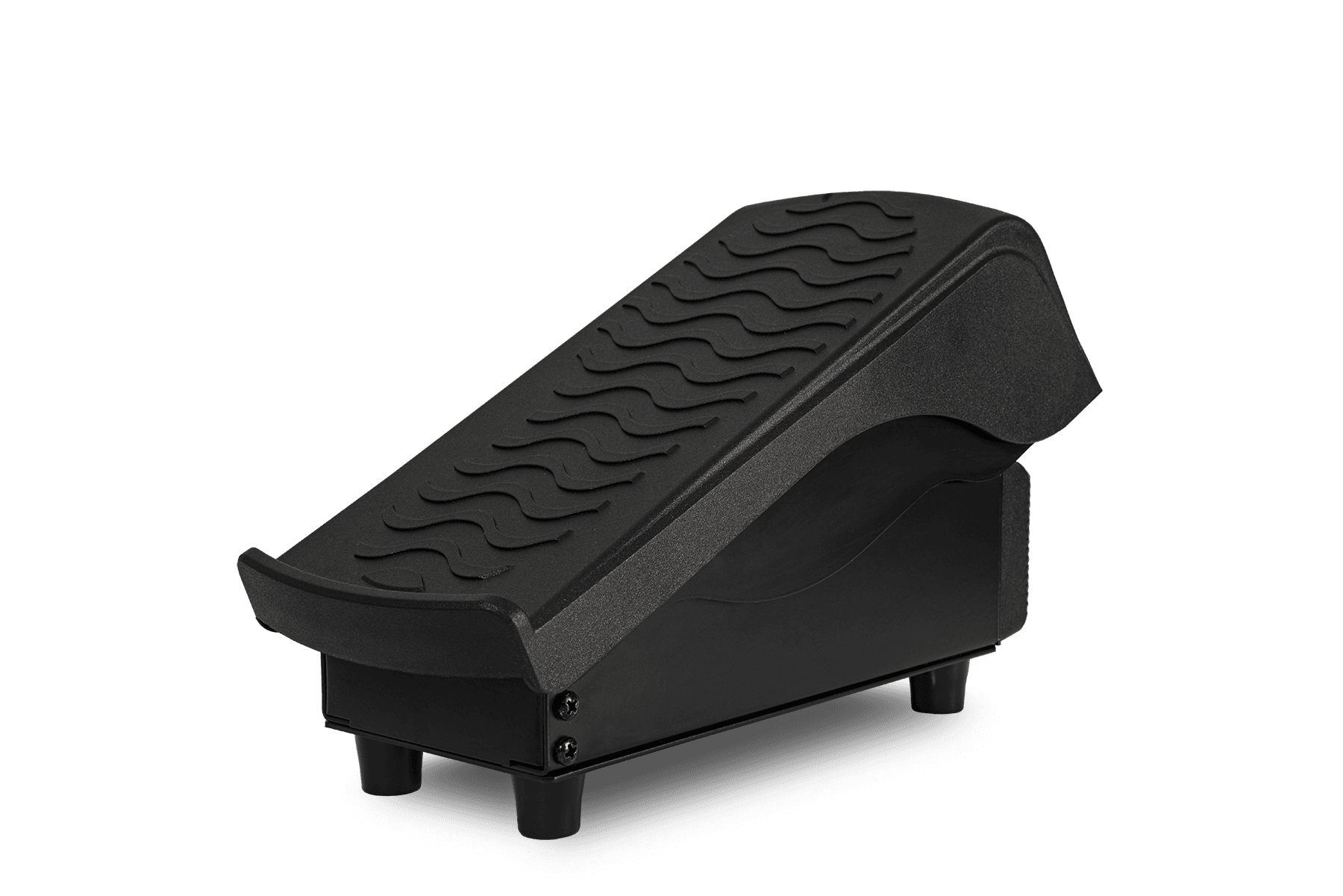

- Foot Control Connection
- Wireless
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Inductance Control
- Yes
- Crater Current Control
- Yes
- Thermal Overload Protection
- Yes
