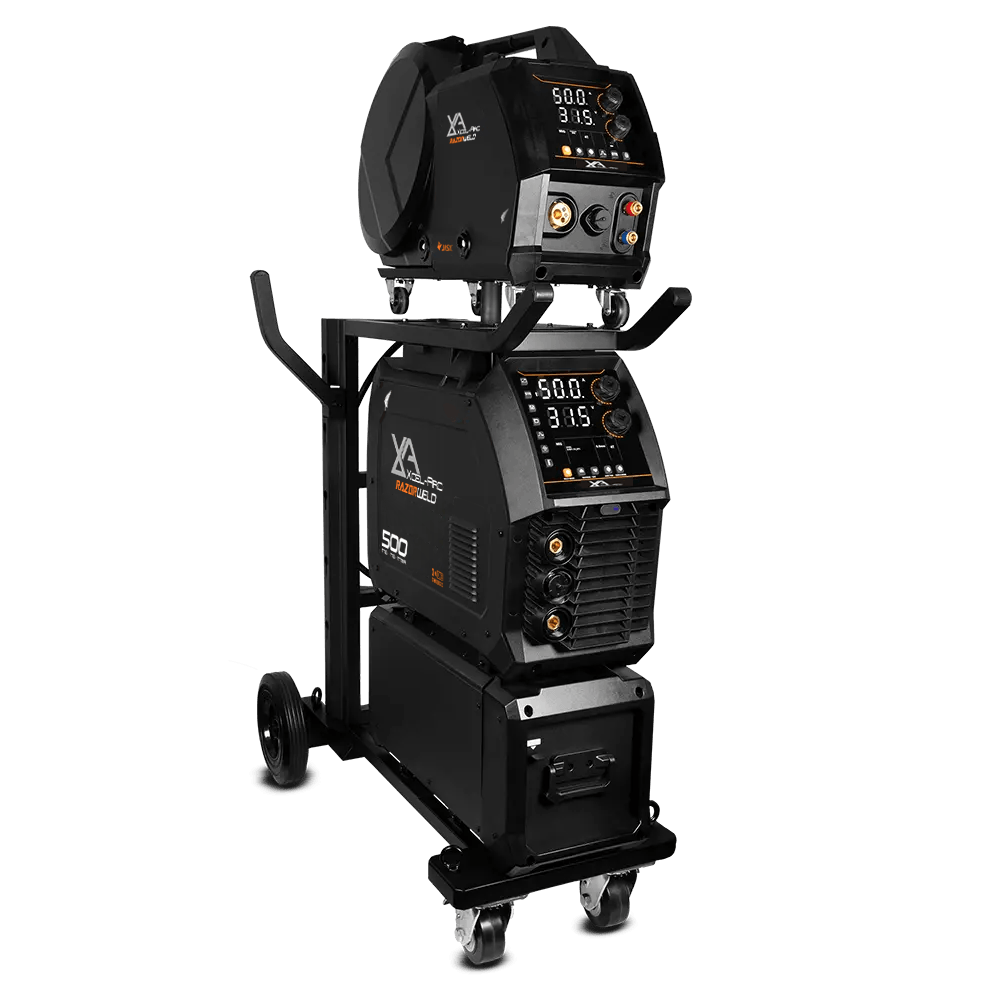

RAZORWELD™ SWF 500 MIG/TIG/STICK Welder

Name: RAZORWELD™ SWF 500 MIG/TIG/STICK Welder
Brand: Xcel-Arc
SKU: XA-RZMIG500SWF-K

XA-RZMIG500SWF-K

415V THREE-PHASE | SEPARATE WIRE FEEDER | SPOOL GUN READY

In stock

Find a stockist Enquire

THREE-PHASE

415V Power

SPOOL GUN READY

For softer wires, such as Aluminium.

SEPARATE WIRE FEEDER

Adds up to 10m of extra manoeuvrability

4 GEARED WIRE DRIVE

For smoothest wire feeding.

ARM + DSP CONTROL

EXPERIENCE CLEANER, SMARTER WELDING

CLEAR VISION TECHNOLOGY

Next-generation HD backlit <br>digital display

ADVANCED MMA FEATURES

Improve weld quality and ease of use

MULTI PROCESS WELDING

MIG, TIG and STICK <br> Saving you time and setup

This heavy-duty workshop unit guarantees premium welds and unmatched performance, even in the most challenging conditions.

A separate wire feeder gives extra manoeuvrability Push-Pull gun ready for heavy-duty welding 4 geared wire drive system for the smoothest wire feeding experience

Next-Generation Welding Performance

DSP Arc Control - High-speed digital signal processing continuously regulates voltage and current for superior arc stability. Reduced Spatter - Optimised droplet transfer minimises post-weld cleanup and consumable waste. Enhanced Short-Arc Stability - Improved control during short-circuit MIG delivers smooth arc recovery for cleaner starts and finishes. Controlled Heat Input - Maintains stable penetration across different material thicknesses and joint configurations Consistent Penetration - DSP helps maintain stable heat input across varied materials and joint conditions.

INTELLIGENT ARC CONTROL

The ARM+DSP dual microprocessor system instantly adapts to welding conditions, providing better control from start to finish. Driven by an advanced ARM + DSP dual microprocessor platform, the system intelligently adjusts the arc in real time - ensuring smoother control, consistent performance, and confidence from start to finish. • ARM - Advanced ARM microprocessor provides rapid data processing and intelligent voltage and current regulation for superior arc stability. • DSP - Advanced DSP (Digital Signal Processing) Arc Control actively manages the welding arc in real-time for a smoother, more responsive weld.

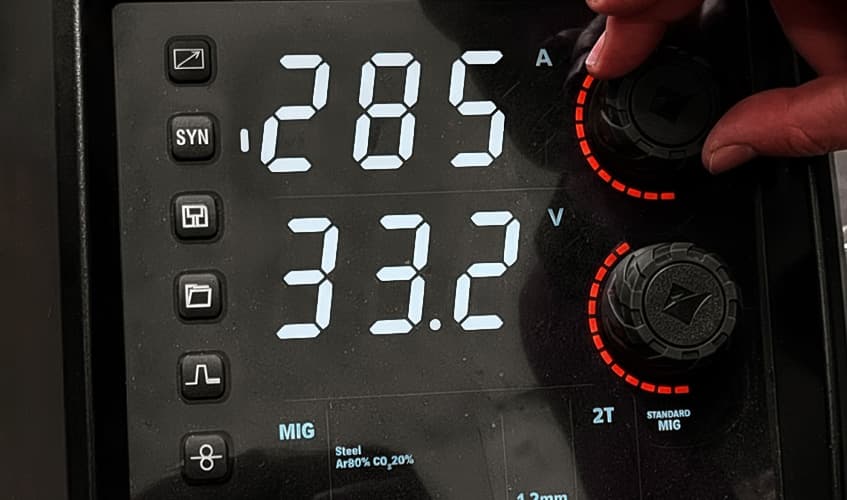

SMART-SET MIG

Faster weld setup with intelligent, synergistic preset parameters. Simply select your wire type, size, gas, and material thickness - the machine automatically sets the optimal parameters.

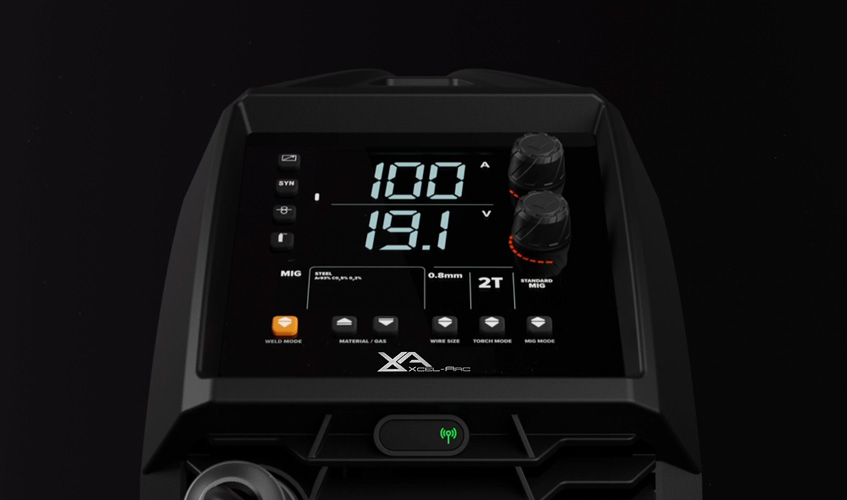

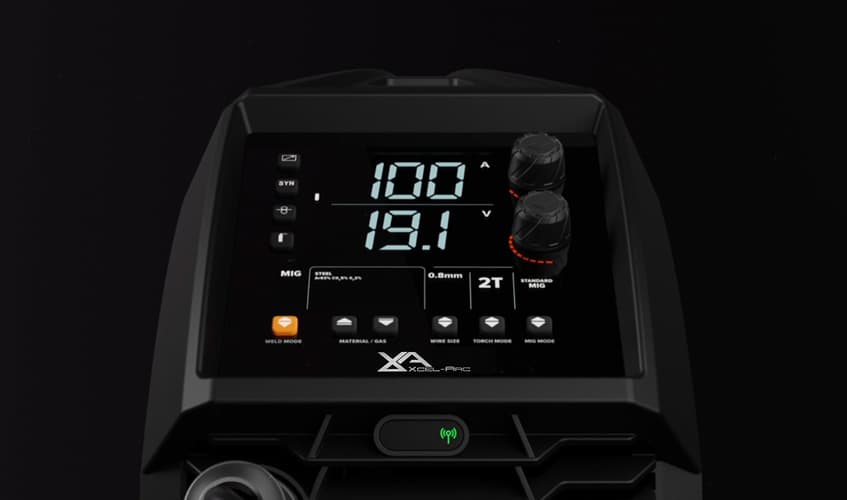

HD BACKLIT CONTROL PANEL

The high definition backlit screen presents your welding parameters in a clean, easy to follow layout. Clear numbers, simple icons and a structured interface make adjusting your settings fast, intuitive and effortless.

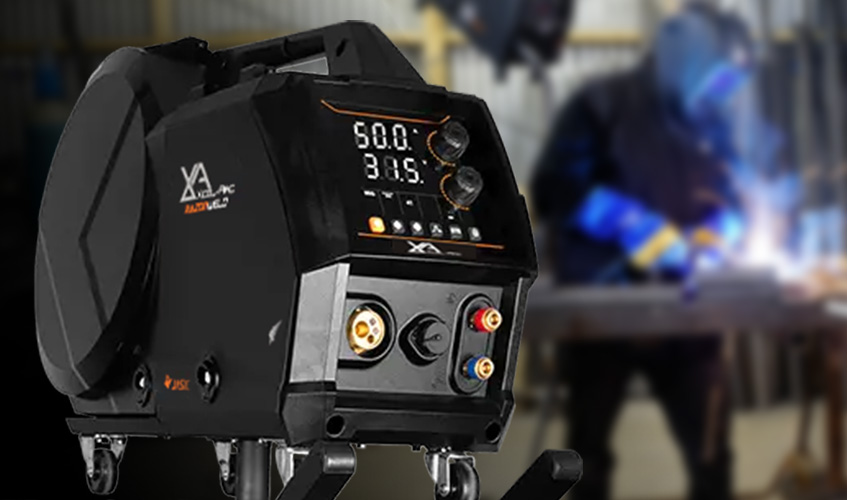

SEPARATE WIRE FEEDER

This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.

MULTI PROCESS WELDING

This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

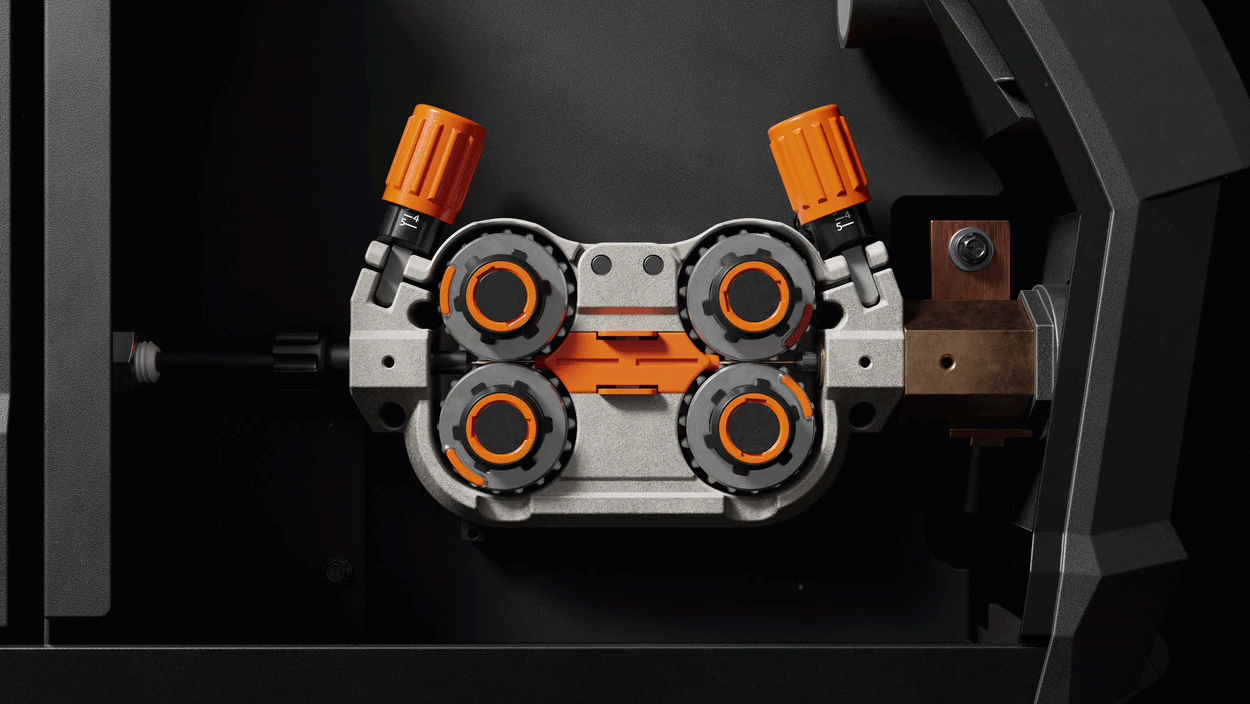

4 GEARED WIRE FEED SYSTEM

Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.

SPOOL GUN READY

This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.

PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.

ADVANCED MMA FEATURES

Advanced MMA features are designed for improving weld quality and ease of use.

Machine Specifications

Primary Input Voltage: 415V Three Phase
Plug Type: Three Phase (32 AMP Recommended)
Rated Input Power Kva: 12.8
Ieff Amps: 26.0
Rated Output: 50A/16.5V - 350A/31.5V
No Load Voltage (V): 82
Protection Class: IP23S
Insulation Class: F
Roller Size: 30/22 (x2)
Dinse Connection Size: 35/50
Welds: AS/NZ60974-1
Plug Type: 32 AMP
Ieff (A): 22.0
Rated Output: 20-500A
Insulation Class: H
Roller Size: 40.0
Suitable Material: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Warranty (Years): 5
Imax (A): 42.8

MIG Specifications

Welding Current Range: 50-350A
MIG Duty Cycle: 40% @ 500A | 60% @ 408A | 100% @ 316A
Wire Size Range: 0.6-1.6mm
Welding Thickness Range: 2mm - 30mm
Welding Current Range: 30-500A
Wire Size Range: 0.8-1.6mm
Welding Thickness Range: 5kg / 15kg
Mig Welding Thickness Range: 1-30mm
Drive Roller Size: 37/24

MMA Specifications

Welding Current Range: 20-350A
MIG Duty Cycle: 20-500A
Electrode Range: 2.5-4.0mm
Welding Thickness Range: 2mm - 20mm
Welding Current Range: DC Lift Arc
Electrode Range: 40% @ 500A | 60% @ 408A | 100% @ 316A
Welding Thickness Range: 1-10mm

Stick Specifications

Stick Welding Current Range: 10-500A
Stick Duty Cycle @ 40°C: 40% @ 500A | 60% @ 408A | 100% @ 316A
Stick Electrode Range: 2.5-6.0mm
Stick Welding Thickness Range: 2-20mm

Size & Weight

Dimensions: 1520 x 520 x 980mm
Weight: 43.4
SWF Weight (kg): 17.8
Swf Interlocking Cable Length M: 10m

Machine Features

Wire Drive: Seperate 4 Geared
Spool Gun Connection: Yes
Push Pull Gun Connection: Yes
Burnback Adjustment: Automatic
Wire Inch: Yes
Inductance Control: Yes
Thermal Overload Protection: Over Temperature Warning
