VIPER™ 135 SYNERGIC MIG/TIG/MMA Welder Bundle KIT

XA-MIG135V-BK

10 AMP PLUG | GAS & GASLESS | MIG/TIG/MMA

In stock

Find a stockistEnquire

10 AMP PLUG

Connect to any standard outlet.

GAS & GASLESS MIG

Mild Steel.

SYNERGIC MIG CONTROLS

Take the guesswork out of setup

THERMAL OVERLOAD PROTECTION

Prevents machine from exceeding a safe operating temperature.

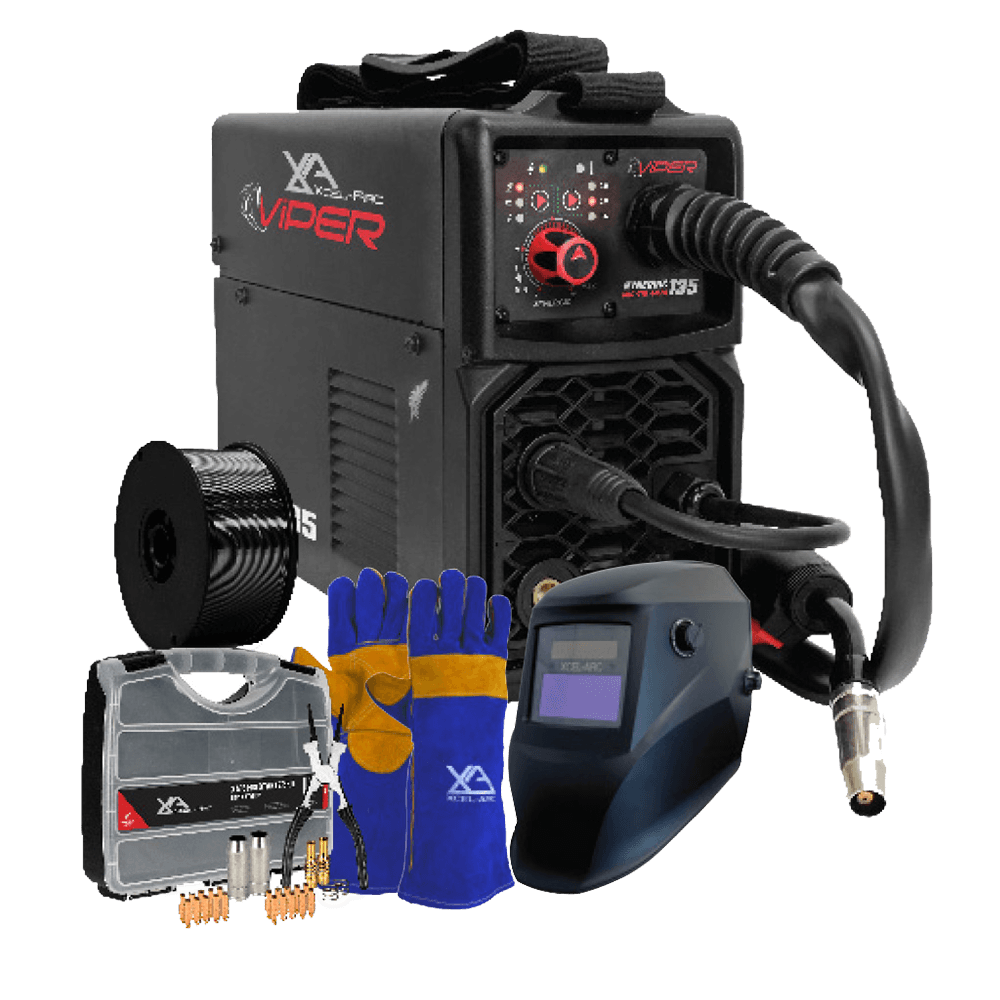

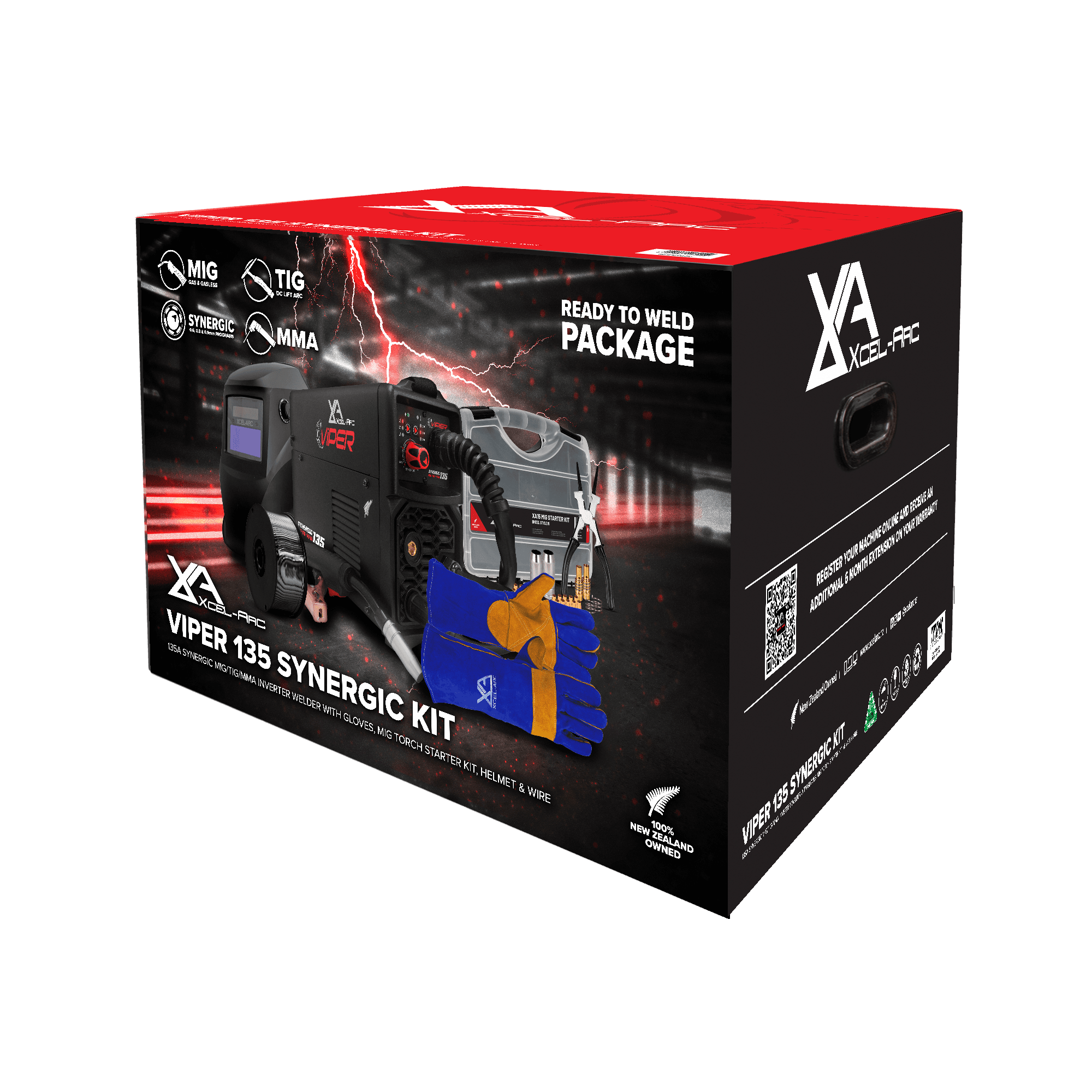

VIPER™ 135 Bundle KIT

• VIPER 135 SYNERGIC MIG/TIG/MMA Welder

• 2m Direct Connect MIG Torch

• Automatic Welding Helmet

• TRADESMAN Heavy Duty Welding Gloves

• BINZEL 15 Style MIG Torch Starter Kit

• 2m Earth Clamp & Lead

• 2m Gas Hose

• 1kg Gasless Flux Core Wire

• Operating Manual

Welding has never been easier with the VIPER™ 135 SYNERGIC. Simply set your wire size, adjust the Synergic power knob and the VIPER™ does the rest! Running off a 10 AMP plug, this machine is perfect for small repairs and DIY welding projects.

The VIPER™ 135 SYNERGIC features MIG programs for 0.6mm, 0.8mm and 0.9mm wire. It can take Flux-Cored, Mild Steel and Stainless Steel MIG wires.

The built-in 10 AMP Plug makes this the perfect welder for your home workshop or out on the field. MIG, TIG or MMA (STICK), the VIPER™ 135 SYNERGIC does it all and you’ll be able to take it anywhere you need. Weighing just 5.2kg.

SYNERGIC MIG CONTROLS

The clever Synergic MIG controls take the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with both 0.6, 0.8 and 0.9mm mild steel & flux-cored wires.
120 SYNERGIC CONTROLS 1

10 AMP PLUG

Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
10 AMP Plug

GAS & GASLESS MIG

This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel &  flux-cored MIG wire.
120 GAS GASLESS MIG 1

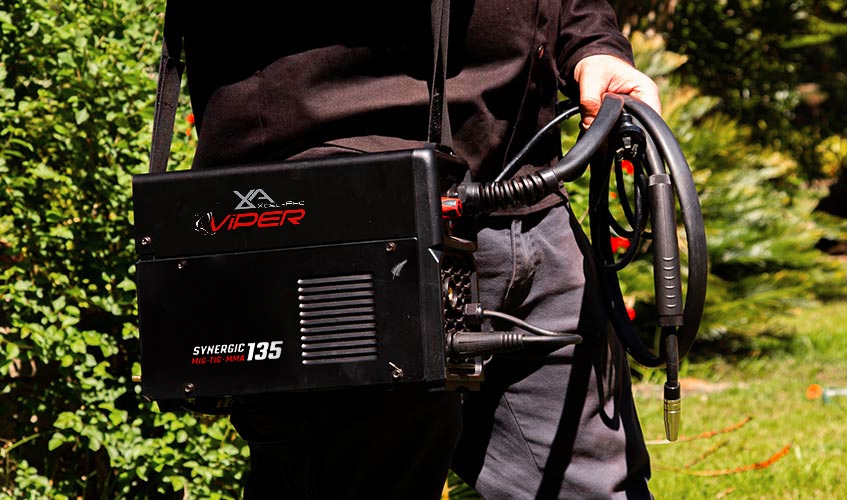

LIGHTWEIGHT & PORTABLE

Weighing just over 5kg, the VIPER™ 135 SYNERGIC is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability.
120 Lightweight and Portable mig135

Machine Specifications

Primary Input Voltage
230V Single Phase
Plug Type
test
Rated Output
123
No Load Voltage (V)
68
Protection Class
IP21S
Minimum Generator (kVA)
0.68
Dinse Connection Size
10/25
Welds
AS/NZ60974-1
Suitable Material
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
Warranty (Years)
1
Plug Type
10 AMP
Ieff (A)
8.4
Insulation Class
H
Roller Size
8.0
Rated Output
40/16V-135A/21V

MIG Specifications

MIG Duty Cycle
15% @ 135A
Mig Welding Thickness Range
1-5mm
Welding Current Range
40-135A
Wire Size Range
0.6-0.9mm
Welding Thickness Range
1kg

MMA Specifications

MIG Duty Cycle
20-120A
Welding Current Range
DC Lift Arc
Electrode Range
15% @ 120A
Welding Thickness Range
1-4mm

Stick Specifications

Stick Welding Current Range
20-120A
Stick Duty Cycle @ 40°C
15% @ 120A
Stick Electrode Range
2.0-3.2mm
Stick Welding Thickness Range
2-4mm

Size & Weight

Dimensions
353x132x250mm
Weight
5.2kg

Machine Features

Wire Drive
Standard
Thermal Overload Protection
Over Temperature Warning
