VIPER™ 165 MIG/TIG/STICK Welder
XA-MIG165V-K
10 AMP PLUG | SYNERGIC PROGRAMS
In stock
10 AMP PLUG
Connect to any standard outlet.
SYNERGIC PROGRAMS
TAKE THE GUESSWORK OUT OF SETUP
LIGHTWEIGHT & PORTABLE
Weighing just 9.8kg
GAS & GASLESS MIG
Easily run mild steel & flux-cored MIG wire.
Get greater control over your welds with the VIPER™ 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

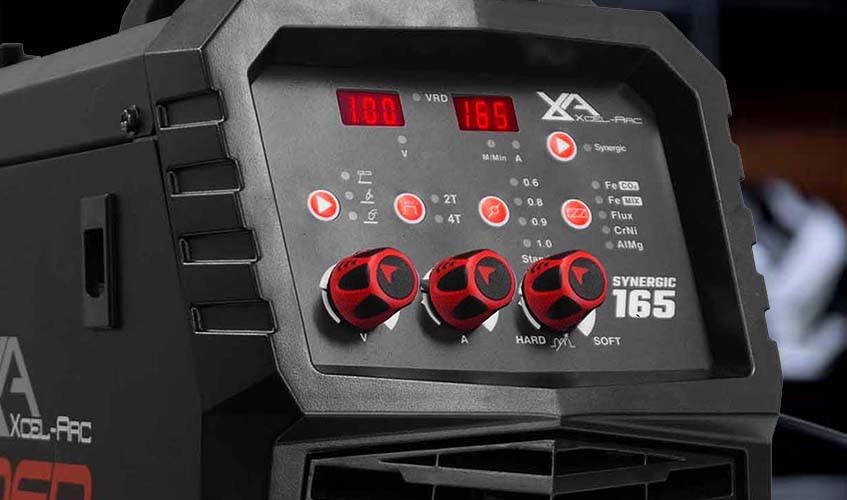

SYNERGIC MIG CONTROL
The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and type,
and adjust your amperage to suit your workpiece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
MULTI-PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

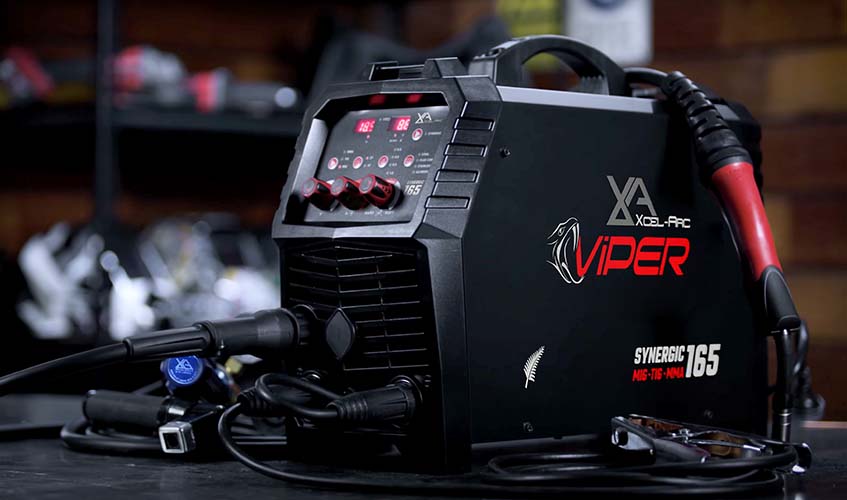

LIGHTWEIGHT & PORTABLE
Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 123
- Rated Input Power Kva
- 123
- Rated Output
- 30-180
- Protection Class
- IP21S
- Minimum Generator (kVA)
- 0.72
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
- Warranty (Years)
- 2
- Plug Type
- 10 AMP
- Rated Input Power (kVA)
- 5.9
- Ieff (A)
- 9.8
- Insulation Class
- H
MIG Specifications
- MIG Duty Cycle
- 10% @ 165A
- Mig Welding Thickness Range
- 1-6mm
- Drive Roller Size
- 30/10
- Welding Current Range
- 30-165A
- Wire Size Range
- 0.6-0.9mm
- Welding Thickness Range
- 5kg
MMA Specifications
- MIG Duty Cycle
- 20-160A
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 10% @ 160A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 20-140A
- Stick Duty Cycle @ 40°C
- 10% @ 140A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-8mm
Size & Weight
- Dimensions
- 500x210x385mm
- Weight
- 10kg
Machine Features
- Wire Drive
- Standard
