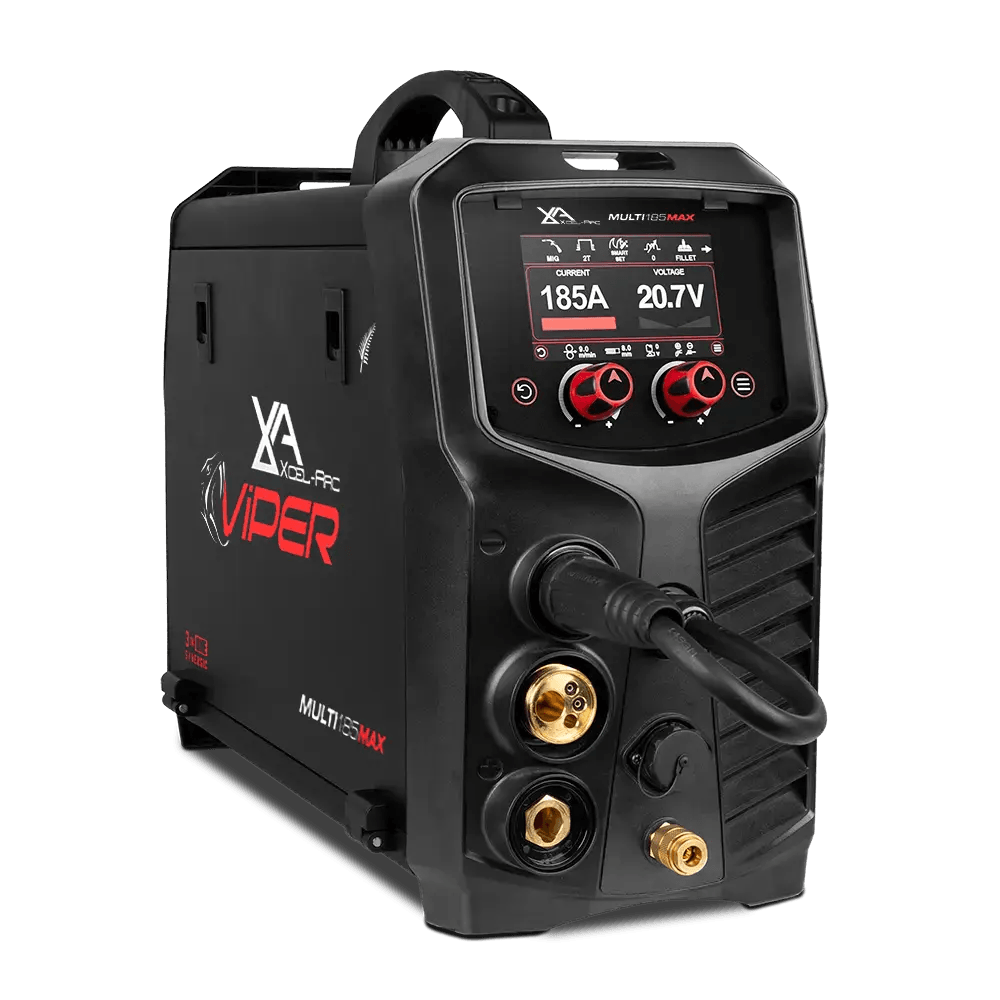

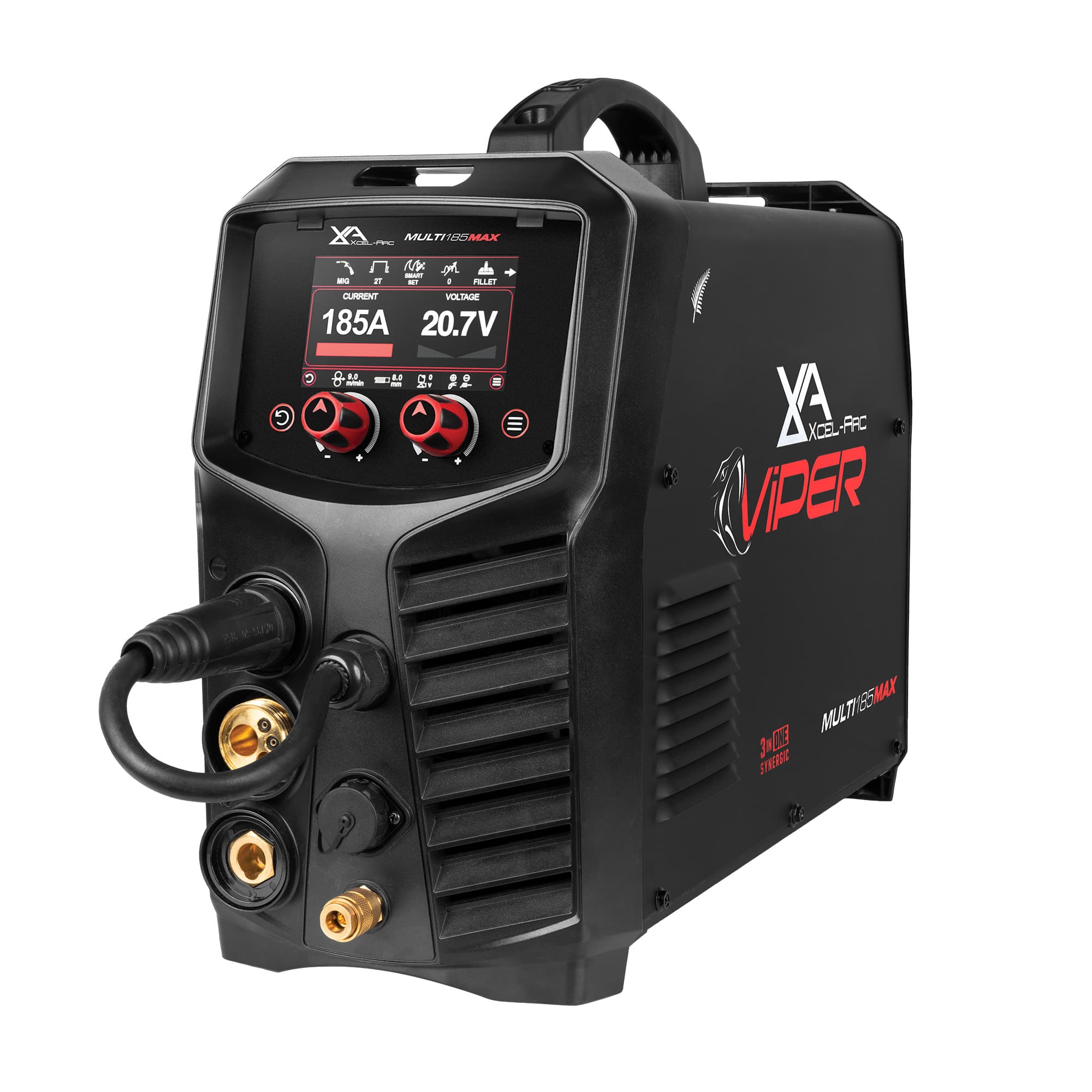

VIPER™ 185 Max Pulse MIG/TIG/STICK Welder
XA-MIG185VMAX-K
10 AMP PLUG | SPOOL GUN READY | SINGLE PULSE MIG
In stock
10 AMP PLUG
Connect to any standard outlet
Single pulse MIG
Tighter heat control and a steadier arc, easier to lay down clean, consistent welds
MIG Smart-Set
Ready to weld with the press of a few buttons
Digital Geared Wire Feed
For a consistent and smooth wire-feeding experience
Now with single pulse MIG, the VIPER MULTI 185MAX is the perfect multi-process machine for all those home repairs and hobby projects you've got planned.
Single pulse MIG programs & high-frequency DC TIG MIG Smart-Set weld modes for complete synergic setups 10 amp plug, so you can use it with any domestic outlet

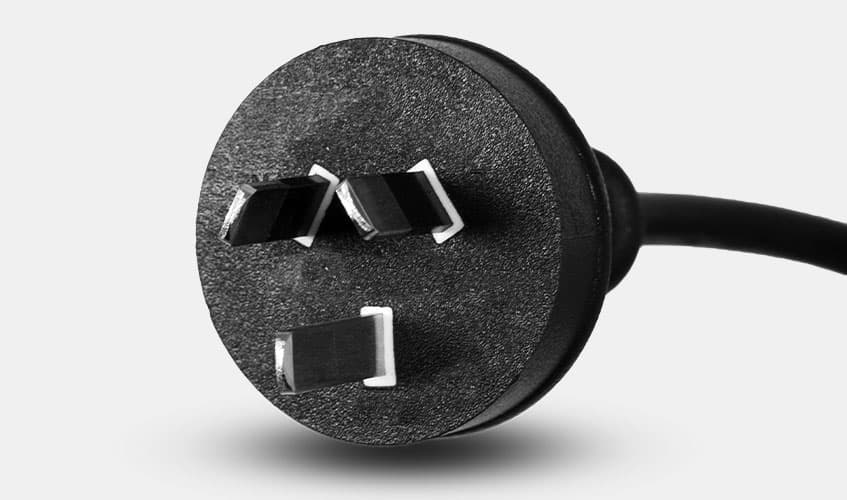

10 AMP PLUG
Ready to run on any domestic outlet. Simple to power, easy to move and built for anyone who needs a portable welding setup.
MULTI-PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
Digital Geared Wire Feed System
For a consistent and smooth wire-feeding experience. The geared wire drive unit delivers more power to the wire, improving wire feeding, especially with longer torches.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 123
- Rated Input Power Kva
- 123
- Rated Output
- 30-180
- No Load Voltage (V)
- 67.0
- Protection Class
- IP21S
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Suitable Material
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- Warranty (Years)
- 3
- Plug Type
- 10 AMP
- Ieff (A)
- 10.0
- Insulation Class
- H
- Roller Size
- 10.0
- Imax (A)
- 31.0
MIG Specifications
- MIG Duty Cycle
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- Mig Welding Thickness Range
- 1-10mm
- Drive Roller Size
- 30/22
- Welding Current Range
- 30-185A
- Wire Size Range
- 0.6-1.0mm
- Welding Thickness Range
- 1kg / 5kg
MMA Specifications
- MIG Duty Cycle
- 20-185A
- Welding Current Range
- DC High-Frequency TIG, DC Lift Arc
- Electrode Range
- 10% @ 185A | 60% @ 77A | 100% @ 60A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 20-180A
- Stick Duty Cycle @ 40°C
- 10% @ 185A | 60% @ 75A | 100% @ 60A
- Stick Electrode Range
- 2.5-4.0mm
- Stick Welding Thickness Range
- 2-10mm
Size & Weight
- Dimensions
- 553x214x388mm
- Weight
- 13.5kg
Machine Features
- Wire Drive
- Digital Geared
- VRD
- Yes

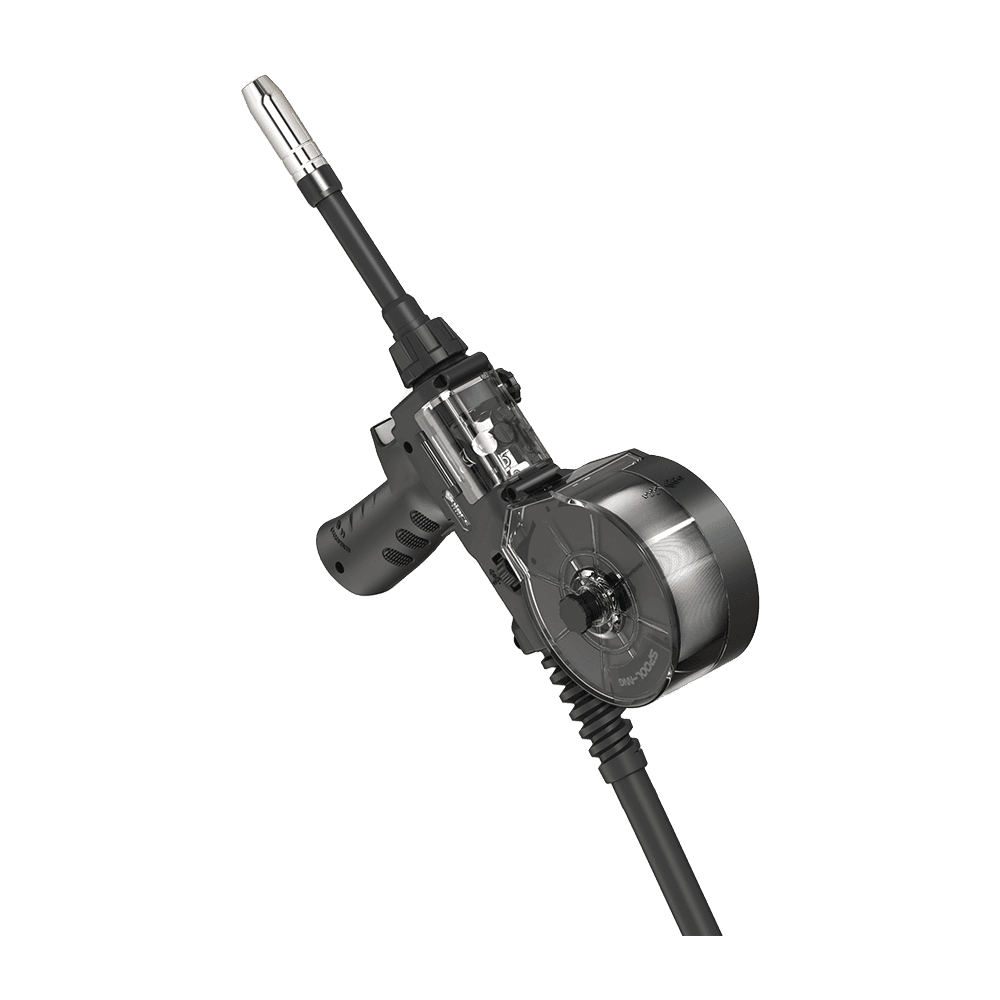

- Spool Gun Connection
- Yes
- Foot Control Connection
- Yes
- Burnback Adjustment
- Yes
- Inductance Control
- Yes
