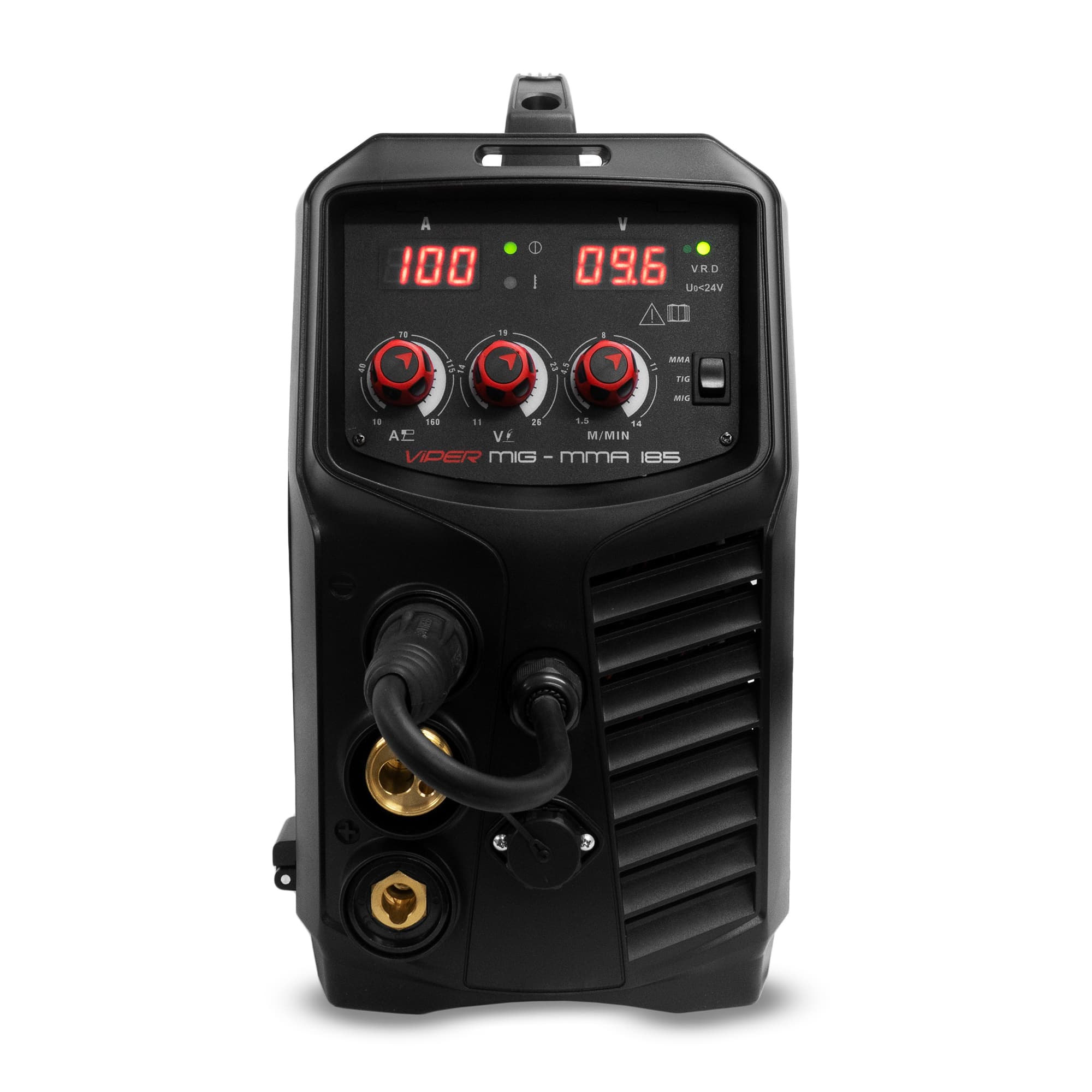

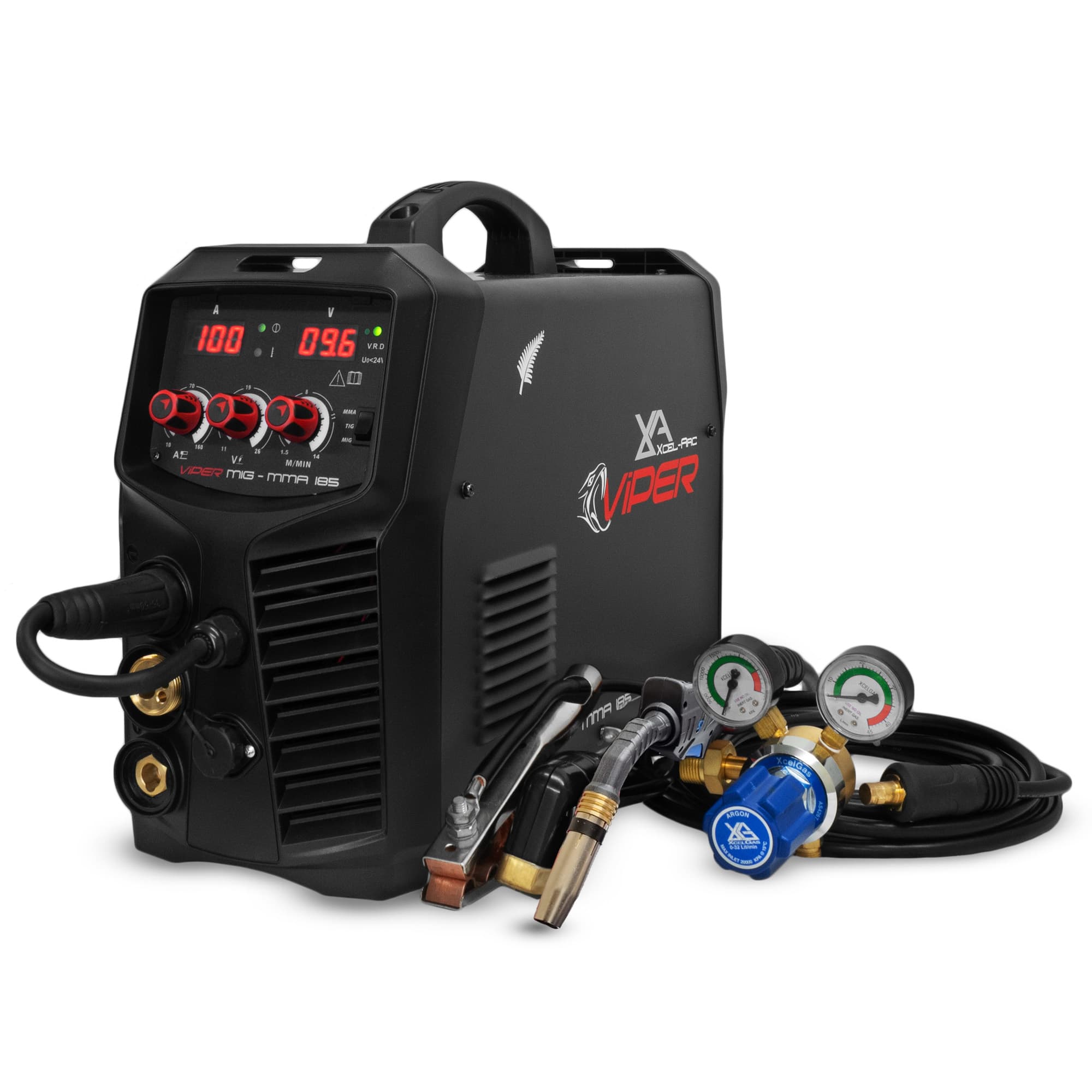

VIPER™ 185 MIG/TIG/STICK Welder
XA-MIG185V-K
10 AMP PLUG | SPOOL GUN READY | GEARED WIRE DRIVE
In stock
10 AMP PLUG
Connect to any standard outlet.
SPOOL GUN READY
For softer wires, such as Aluminium.
VOLTAGE REDUCTION DEVICE
Prevents Voltage overloading, protecting yourself and the machine.
GEARED WIRE DRIVE
For smoother wire feeding.
The VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it's ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.
The VIPER™ 185 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
SPOOL GUN READY
This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.
MULTI-PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

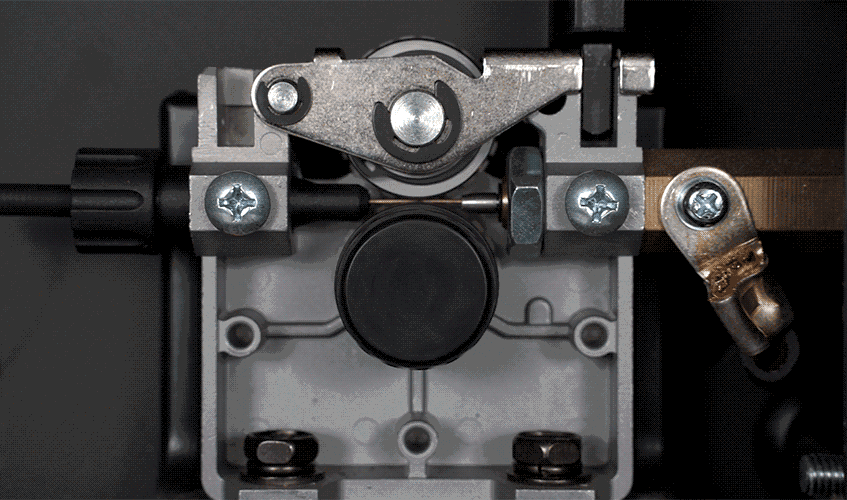

GEARED WIRE DRIVE
This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.
FEATURE VIDEO
Check out all of the features on the VIPER™ 185
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 123
- Rated Input Power Kva
- 123
- Rated Output
- 30-180
- No Load Voltage (V)
- 62
- Protection Class
- IP21S
- Minimum Generator (kVA)
- 0.7
- Dinse Connection Size
- 35/50
- Welds
- AS/NZ60974-1
- Suitable Material
- Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
- Warranty (Years)
- 2
- Plug Type
- 10 AMP
- Rated Input Power (kVA)
- 7.1
- Ieff (A)
- 9.8
- Insulation Class
- F
- Roller Size
- 10.0
- Rated Output
- 30A/15.5V - 180A/23.0V
MIG Specifications
- MIG Duty Cycle
- 10% @ 180A
- Mig Welding Thickness Range
- 1-6mm
- Drive Roller Size
- 30/22
- Welding Current Range
- 30-180A
- Wire Size Range
- 0.6-0.9mm
- Welding Thickness Range
- 1kg / 5kg
MMA Specifications
- MIG Duty Cycle
- 10-160A
- Welding Current Range
- DC Lift Arc
- Electrode Range
- 10% @ 160A
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 10-160A
- Stick Duty Cycle @ 40°C
- 10% @ 160A
- Stick Electrode Range
- 2.5-3.2mm
- Stick Welding Thickness Range
- 2-7mm
Size & Weight
- Dimensions
- 553x214x388mm
- Weight
- 12.0kg
Machine Features
- Wire Drive
- Geared
- VRD
- Yes
- Spool Gun Connection
- Yes
- Burnback Adjustment
- Yes
- Wire Inch
- Yes
- Thermal Overload Protection
- Yes
