Xcel-Arc
XA TIG200VP K

VIPER™ 200P DC TIG Welder

XA-TIG200VP-K

15 AMP PLUG | H/F DC TIG

In stock

Find a stockistEnquire

15 AMP PLUG

Connect to a 15 AMP outlet.

DC HIGH FREQUENCY TIG

Contactless Arc Starting

PULSE FUNCTION

Minimise distortion on the welded material.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

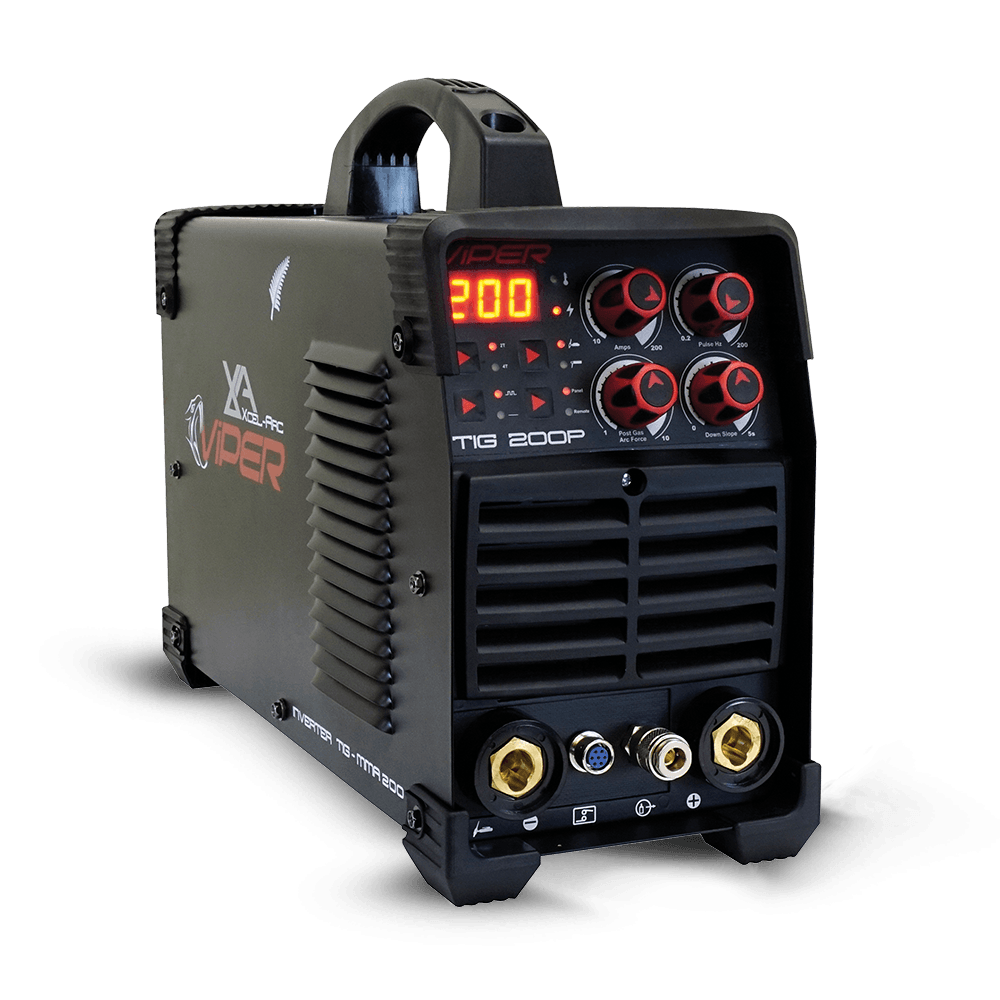

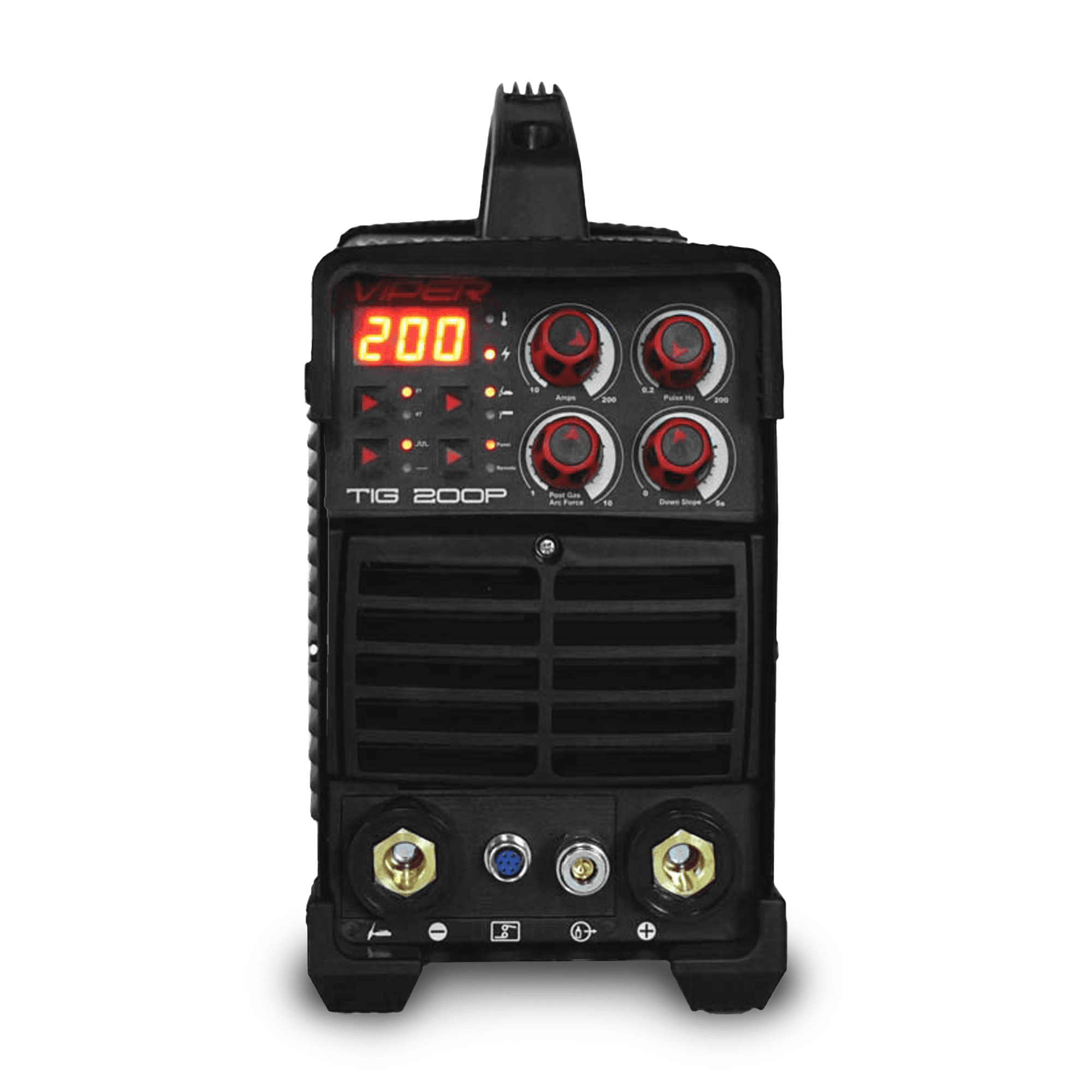

The VIPER™ TIG200P is an inverter-based DC-TIG welding machine with HF Arc Ignition and Pulse capability. Produced using the latest in IGBT technology, this low cost and portable machine is reliable, robust and stacked with functions you’d find in a professional DC TIG welder.

The HF Arc Ignition provides Pre-Gas and instant arc ignition with the press of the torch switch leaving no tungsten inclusion and no contamination of the tungsten electrode. The Down Slope & Post-Gas functions combined with the 2/4T trigger function allow you to control the start and finish of the weld process at a professional level.

HIGH-FREQUENCY TIG

High Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the work piece reducing the risk of contaminating the tungsten or the weld.
High Frequency TIG 1

PULSE FUNCTION

Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.
Pulse TIG

Machine Specifications

Primary Input Voltage
240V Single Phase
Plug Type
15 AMP
Rated Input Power Kva
7.0
Ieff Amps
14.6
Rated Output
10-200A/18.0V
No Load Voltage (V)
75
Protection Class
IP21S
Insulation Class
F
Minimum Generator (kVA)
0.7
Dinse Connection Size
35/50
Welds
AS/NZ60974-1
Plug Type
15 AMP
Rated Input Power (kVA)
8.0
Ieff (A)
15
Rated Output
5-200A
Insulation Class
F
Roller Size
10.0
Suitable Material
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
Warranty (Years)
1

MMA Specifications

Welding Current Range
10-180A
MIG Duty Cycle
10-200A
Electrode Range
2.5-4.0mm
Welding Thickness Range
2mm - 12mm
Welding Current Range
DC HF TIG / DC Pulse
Electrode Range
30% @ 200A
Welding Thickness Range
1-8mm

Stick Specifications

Stick Welding Current Range
10-160A
Stick Duty Cycle @ 40°C
20% @ 160A
Stick Electrode Range
2.5-4.0mm
Stick Welding Thickness Range
2-12mm
Arc Force
0-180

Size & Weight

Dimensions
420x116x330mm
Weight
7.5kg

Machine Features

VRD
Yes
Thermal Overload Protection
Over Temperature Warning
