10 AMP PLUG
Connect to any standard outlet.
DC SCRATCH START TIG
Basic TIG functionality.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.

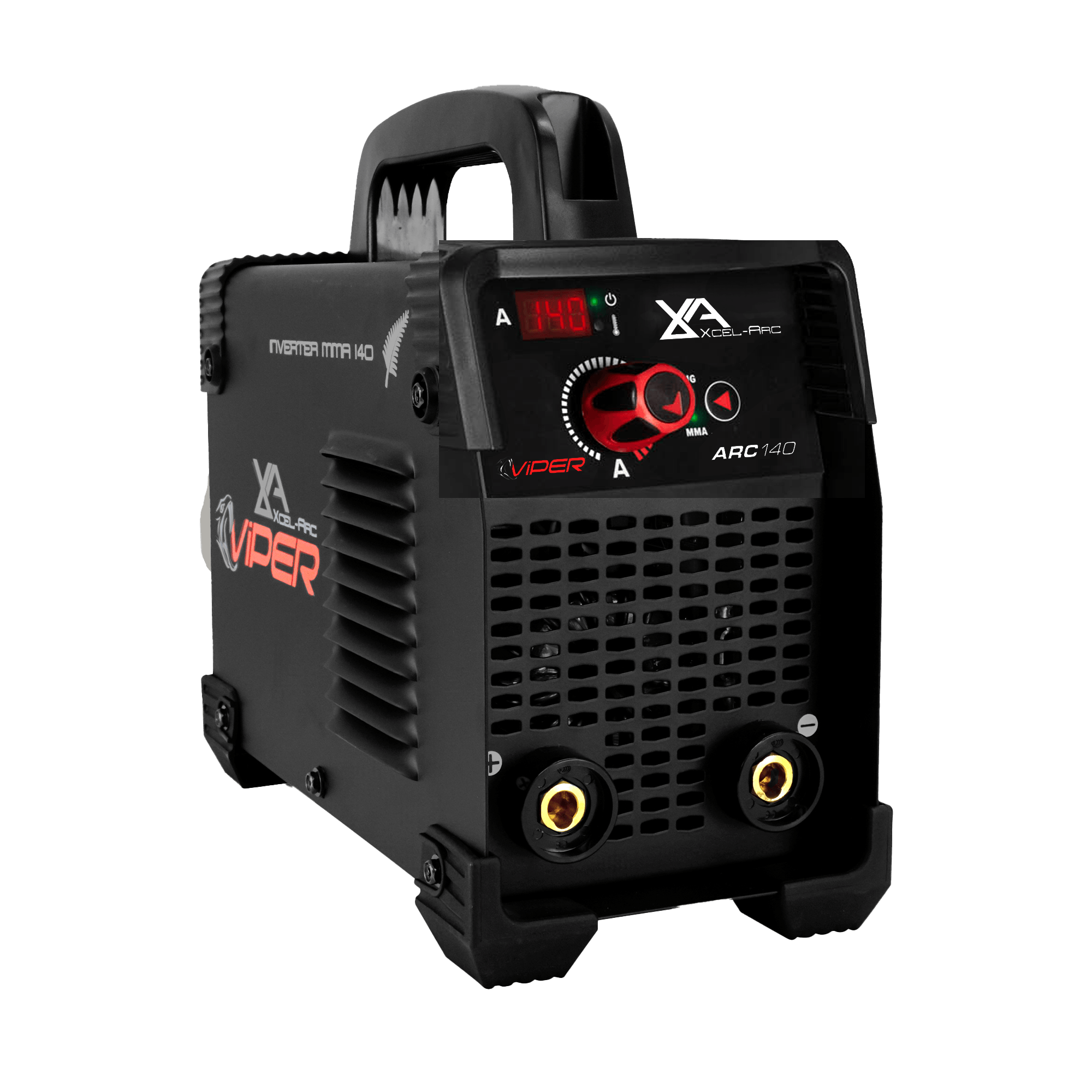

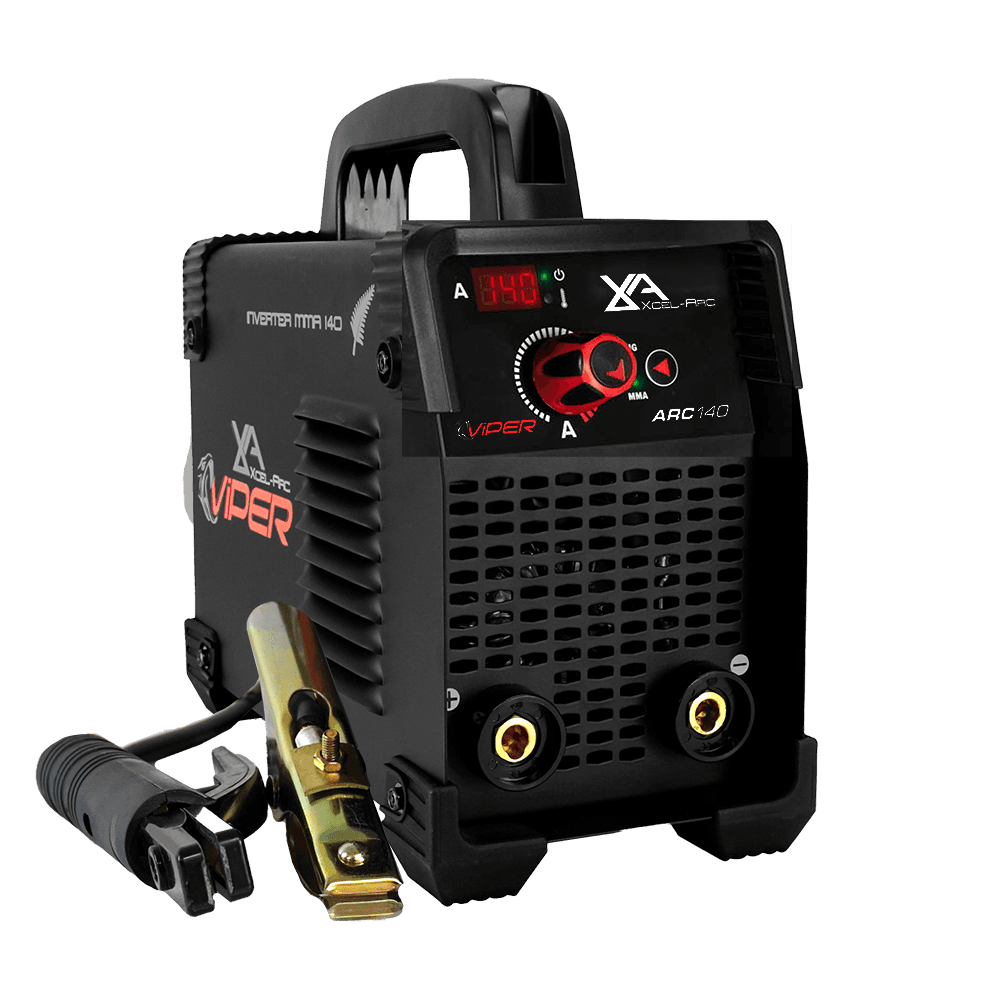

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality Xcel-Arc is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG in case you needed another excuse to purchase.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 10 AMP
- Rated Input Power Kva
- 6.5
- Ieff Amps
- 10.0
- Rated Output
- 140A/25.6V
- No Load Voltage (V)
- 62.9
- Protection Class
- IP21S
- Insulation Class
- F
- Minimum Generator (kVA)
- 0.65
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Rated Input Power (kVA)
- 6.5
- Ieff (A)
- 10.0
- Rated Output
- 10-140A
- Insulation Class
- F
- Roller Size
- 6.5
- Suitable Material
- Mild Steel, Stainless Steel, Copper, Cast Iron
- Warranty (Years)
- 1
MMA Specifications
- Welding Current Range
- 20-140A
- Electrode Range
- 2.5-3.2mm
- Welding Thickness Range
- 2mm - 10mm
- Welding Current Range
- DC Scratch Start
- Welding Thickness Range
- 1-6mm
Stick Specifications
- Stick Welding Current Range
- 20-140A
- Stick Duty Cycle @ 40°C
- 15% @ 140A
- Stick Electrode Range
- 2.5-3.2mm
- Stick Welding Thickness Range
- 2-7mm
Size & Weight
- Dimensions
- 295x135x270mm
- Weight
- 3.8kg
