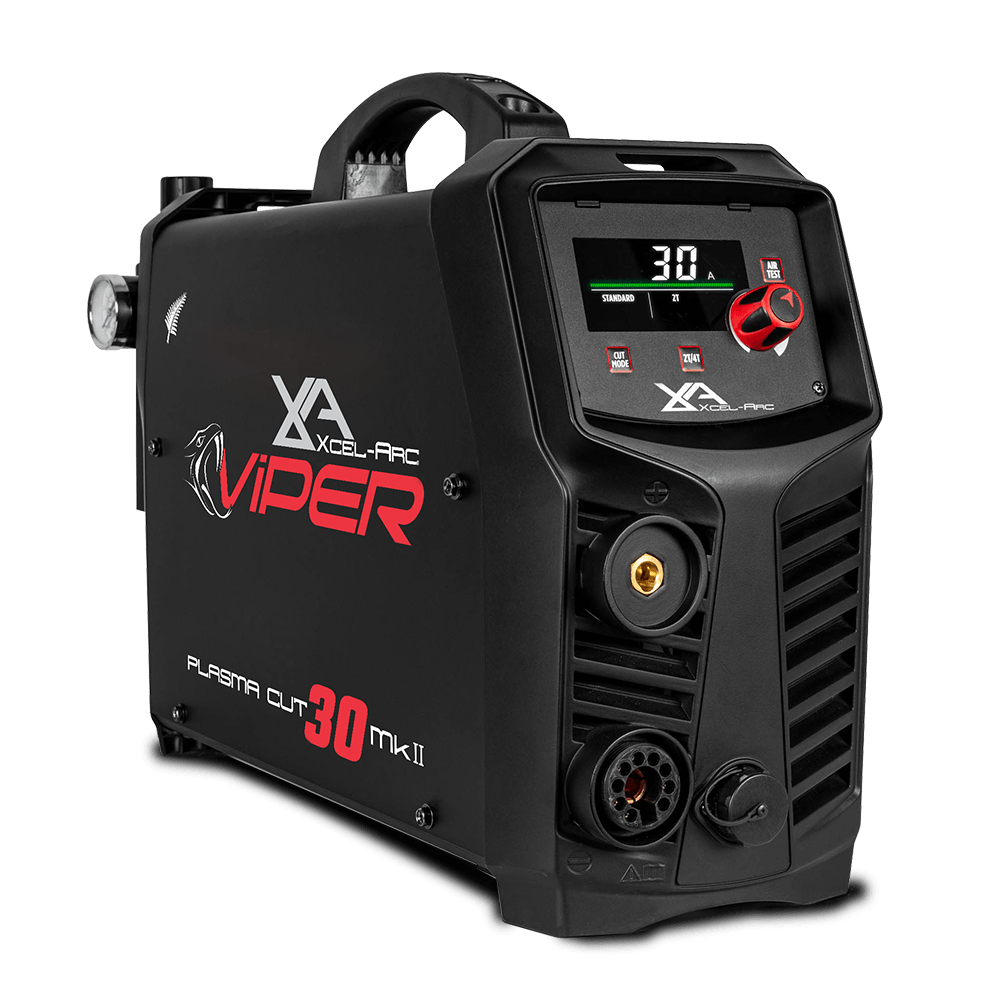

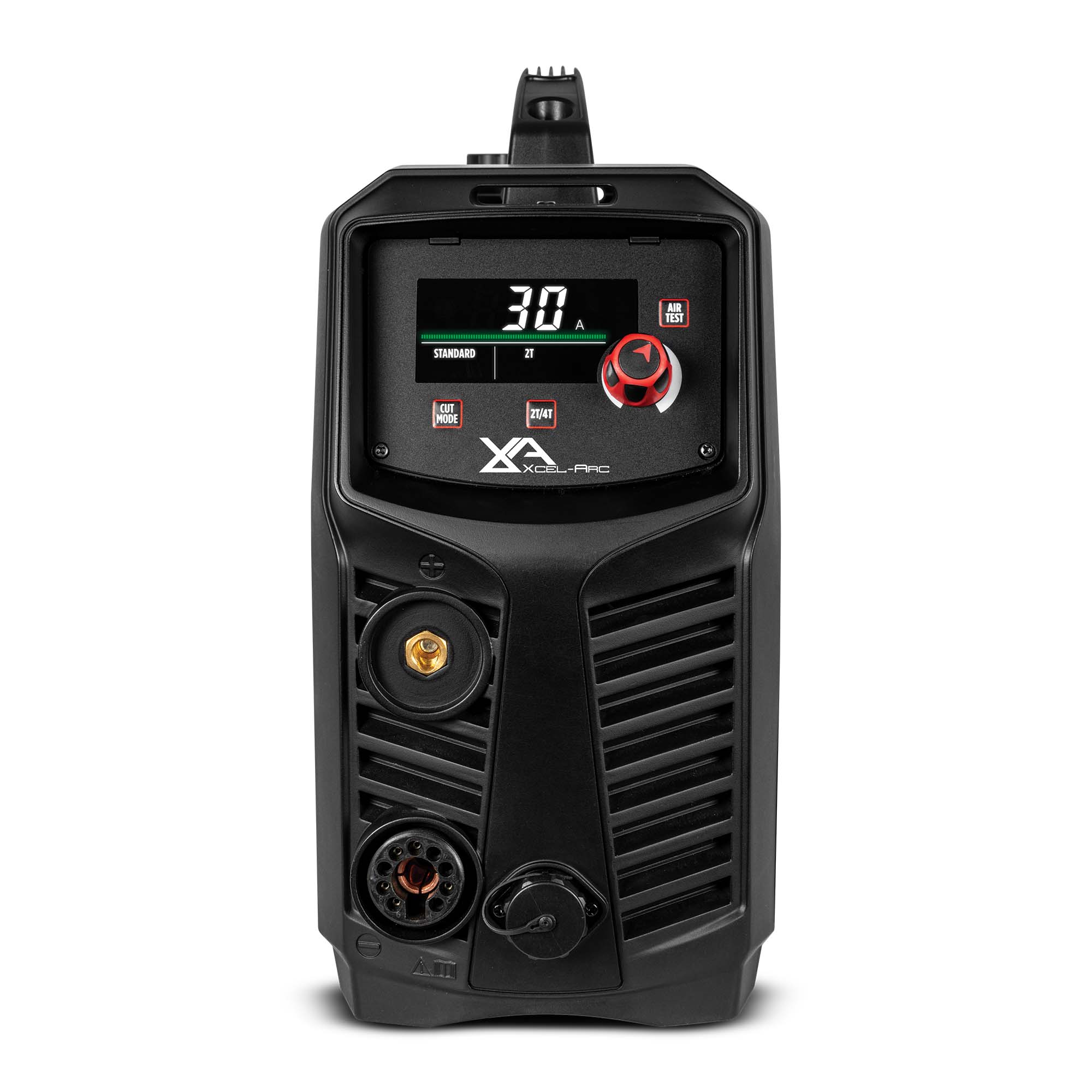

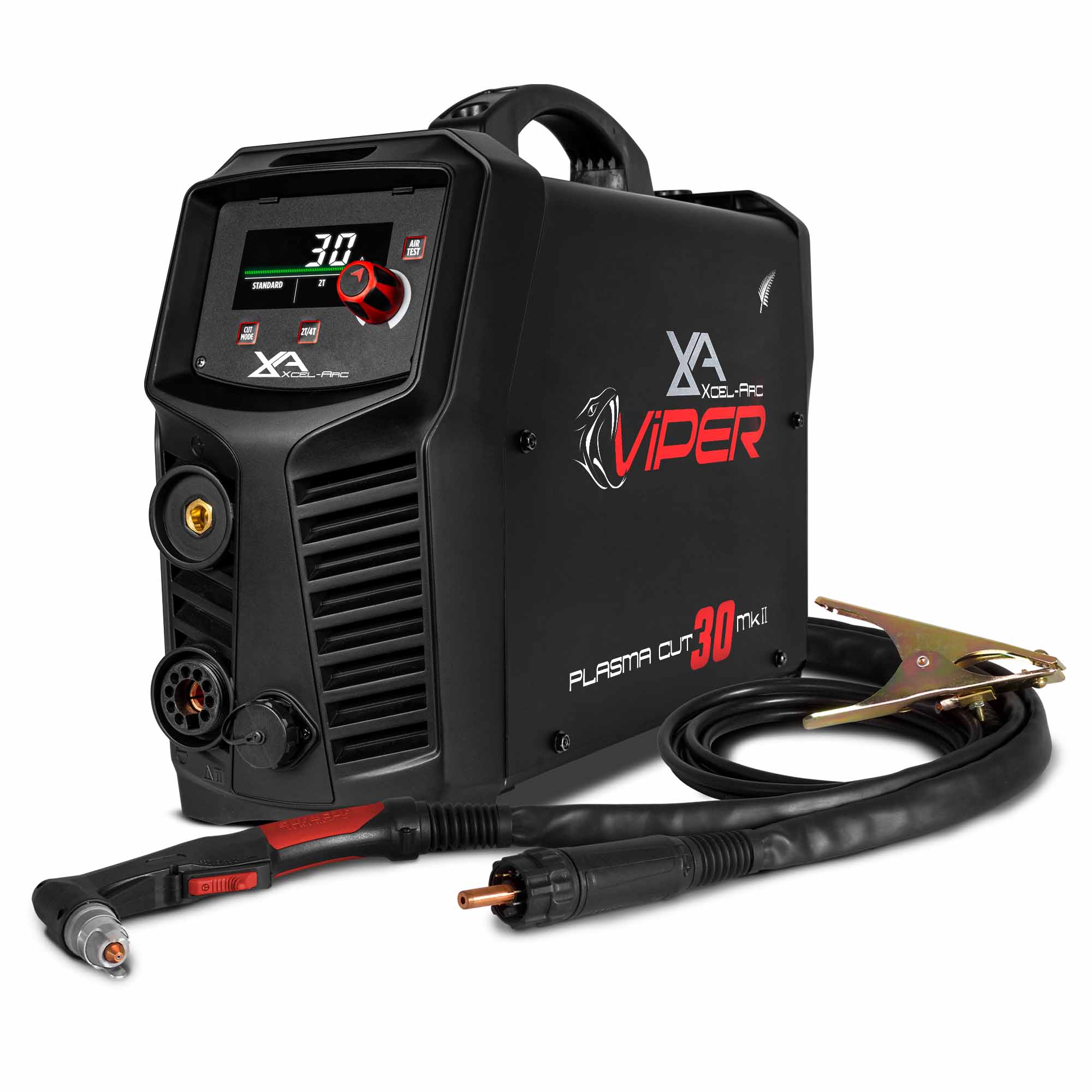

VIPER™ CUT 30MkII Plasma Cutter
XA-CUT30VMK2
10 AMP PLUG | 10 MM CLEAN CUT | 12mm SEVERANCE
In stock
10 AMP PLUG
Connect to any standard outlet.
10mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.
The all-new VIPER™ CUT 30MkII Plasma Cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.
A more effective output has allowed the VIPER™ CUT 30MkII to clean cut up to 10mm Mild Steel.
CUT ANYTHING
Get unrivalled performance across every kind of metal. Whether you’re working on solid mild steel or trying out the new perforated cutting mode on materials like mesh and grating, the VIPER CUT 30 Mk II can do it all.
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
MAXIMUM POWER
The VIPER CUT 30 Mk II is one of the most powerful cutters for its size. Running at just 30A, this machine still has the capability to produce a 10mm clean cut and a 12mm severance.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 10 AMP
- Rated Input Power Kva
- 7.5
- Rated Output
- 310V
- Protection Class
- IP21S
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Rated Input Power (kVA)
- 7.5
- Ieff (A)
- 10
- Rated Output
- 92V
- Insulation Class
- F
- Roller Size
- 8.0
- Warranty (Years)
- 1
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-30A
- Plasma Cut Duty Cycle @ 40°C
- 15% @ 30A
- Mild Steel Cut Thickness
- 10mm
- Mild Steel Severance Thickness
- 12mm
- Aluminium Cut Thickness
- 6mm
- Aluminium Severance Thickness
- 8mm
- Stainless Steel Cut Thickness
- 6mm
- Stainless Steel Severance Thickness
- 8mm
- Air Flow / Draw-off (l/min)
- 170
- Air Flow Pressure (bar)
- 5-6 (70-87 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Dimensions
- 534x166x343mm
- Weight
- 8.5kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
