10 AMP PLUG
Connect to any standard outlet.
10mm CLEAN CUT
Mild Steel.
PILOT ARC START
Start cut without direct contact.
THERMAL OVERLOAD PROTECTION
Prevents machine from exceeding a safe operating temperature.

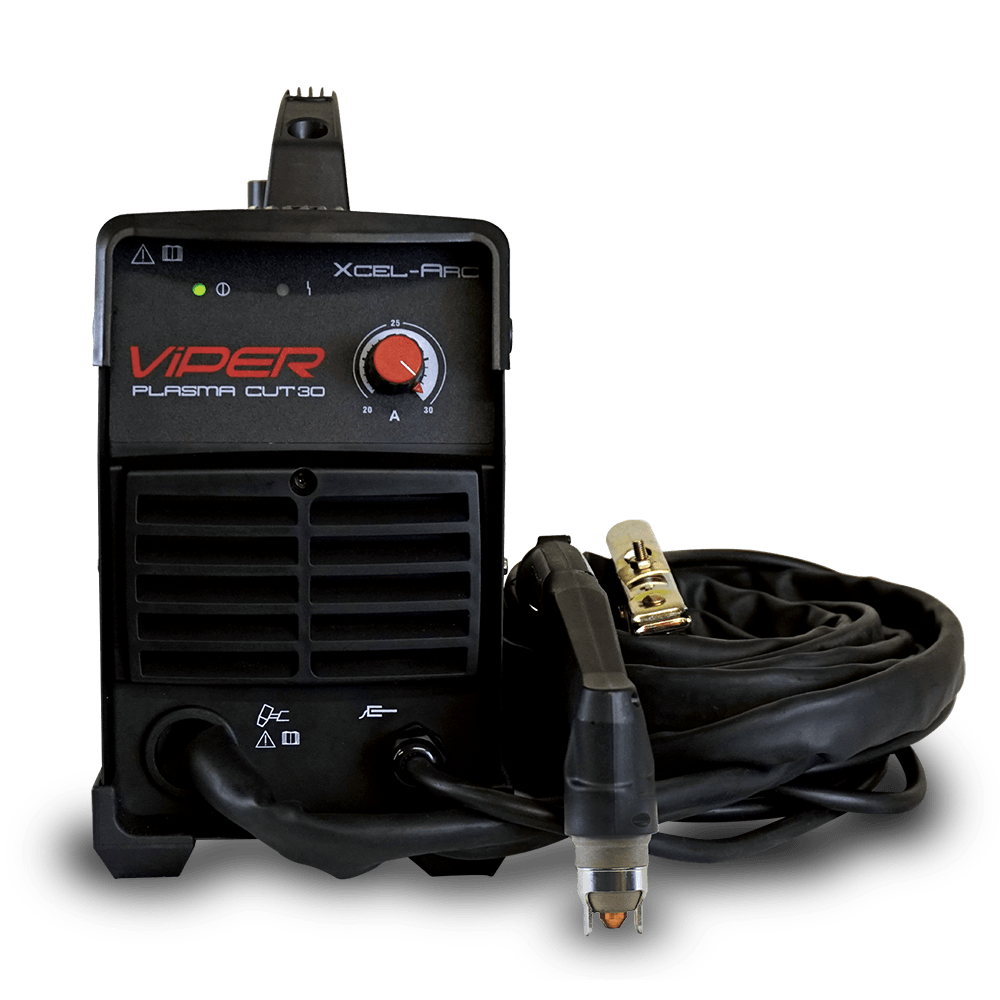

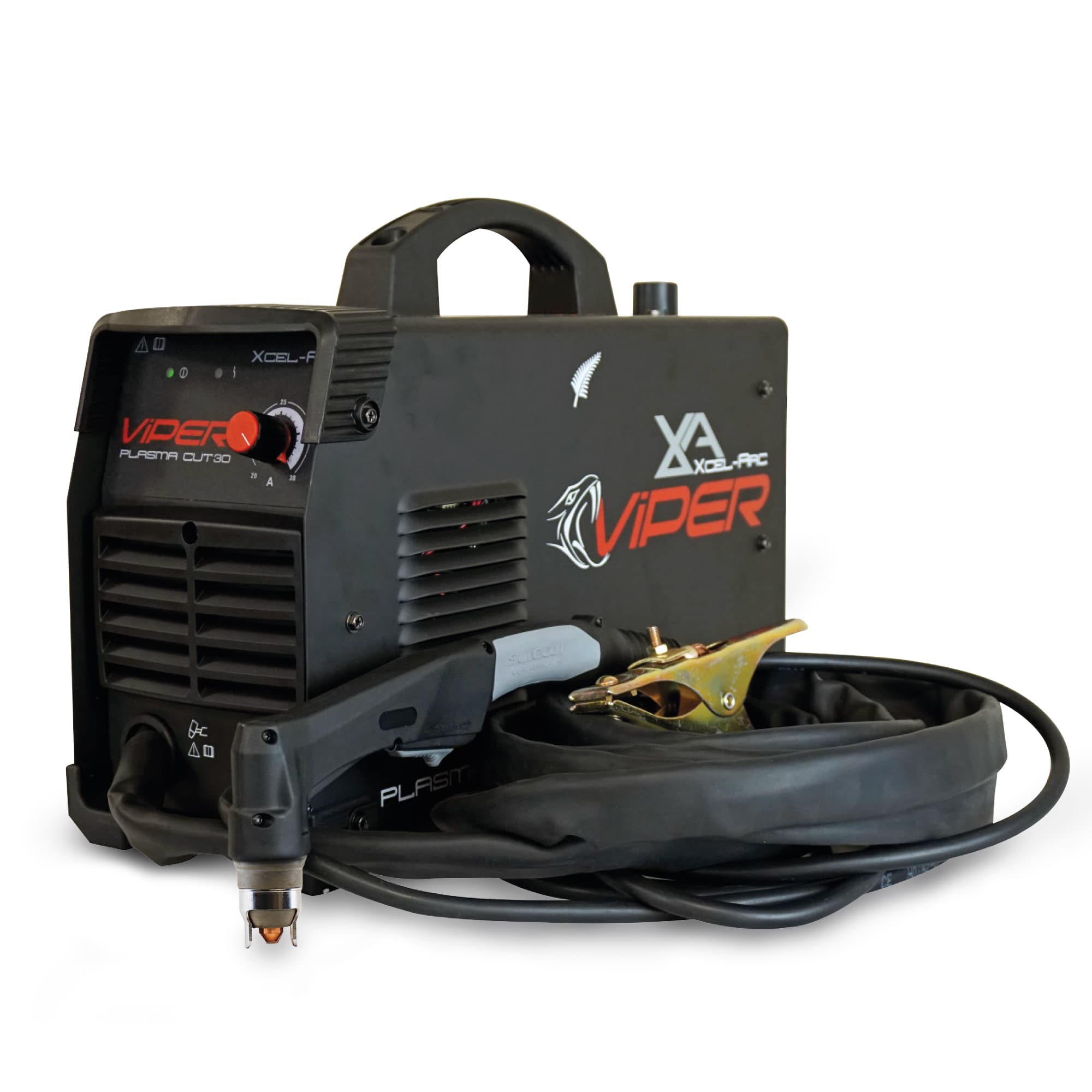

XA VIPER™ CUT 30 Plasma Cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
Machine Specifications
- Primary Input Voltage
- 240V Single Phase
- Plug Type
- 10 AMP
- Rated Input Power Kva
- 7.5
- Rated Output
- 310V
- Protection Class
- IP21S
- Insulation Class
- F
- Dinse Connection Size
- 10/25
- Welds
- AS/NZ60974-1
- Plug Type
- 10 AMP
- Rated Input Power (kVA)
- 7.5
- Ieff (A)
- 10
- Rated Output
- 92V
- Insulation Class
- F
- Roller Size
- 8.0
- Warranty (Years)
- 1
Plasma Cut Specifications
- Plasma Cut Current Range
- 20-30A
- Plasma Cut Duty Cycle @ 40°C
- 15% @ 30A
- Mild Steel Cut Thickness
- 10mm
- Mild Steel Severance Thickness
- 12mm
- Aluminium Cut Thickness
- 6mm
- Aluminium Severance Thickness
- 8mm
- Stainless Steel Cut Thickness
- 6mm
- Stainless Steel Severance Thickness
- 8mm
- Air Flow / Draw-off (l/min)
- 170
- Air Flow Pressure (bar)
- 5-6 (70-87 psi)
- Plasma Arc Start
- Pilot Arc
Size & Weight
- Dimensions
- 534x166x343mm
- Weight
- 8.5kg
Machine Features
- Thermal Overload Protection
- Over Temperature Warning
