Xcel-Arc
XA TIG180VACDCMK2 T2

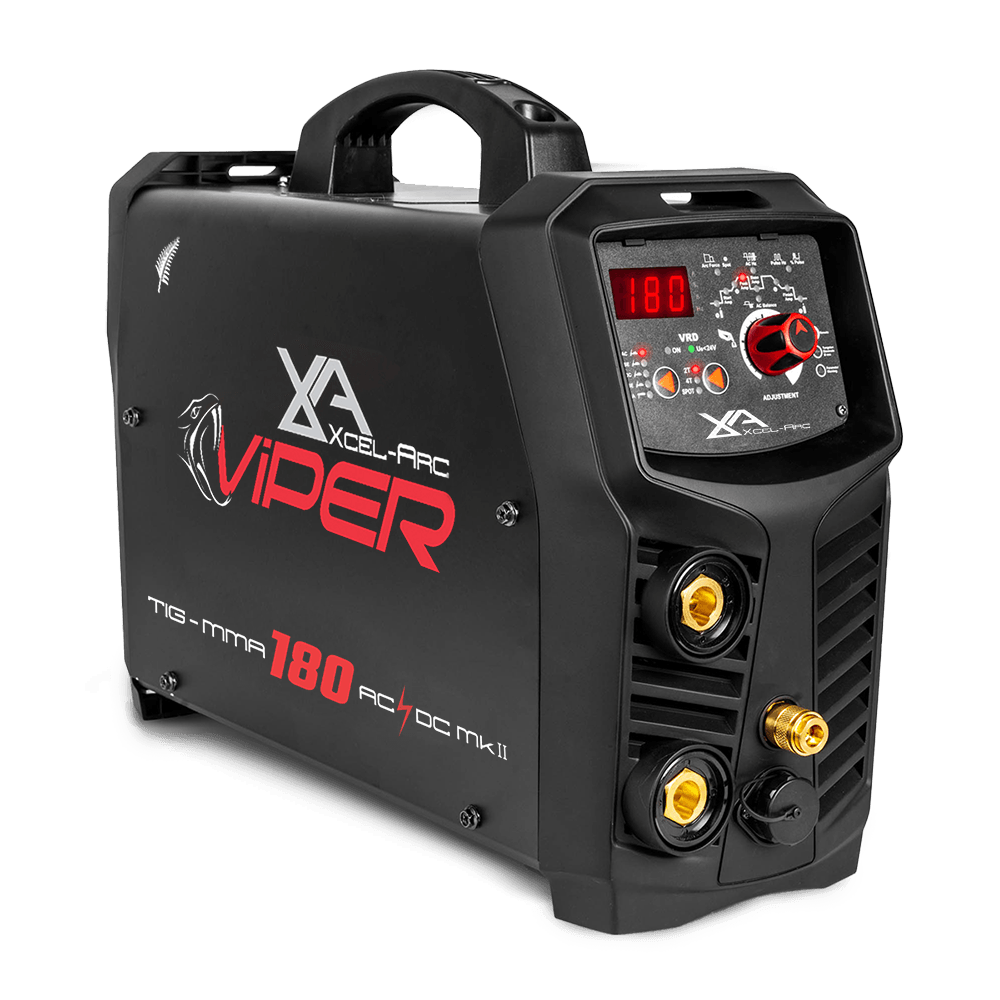

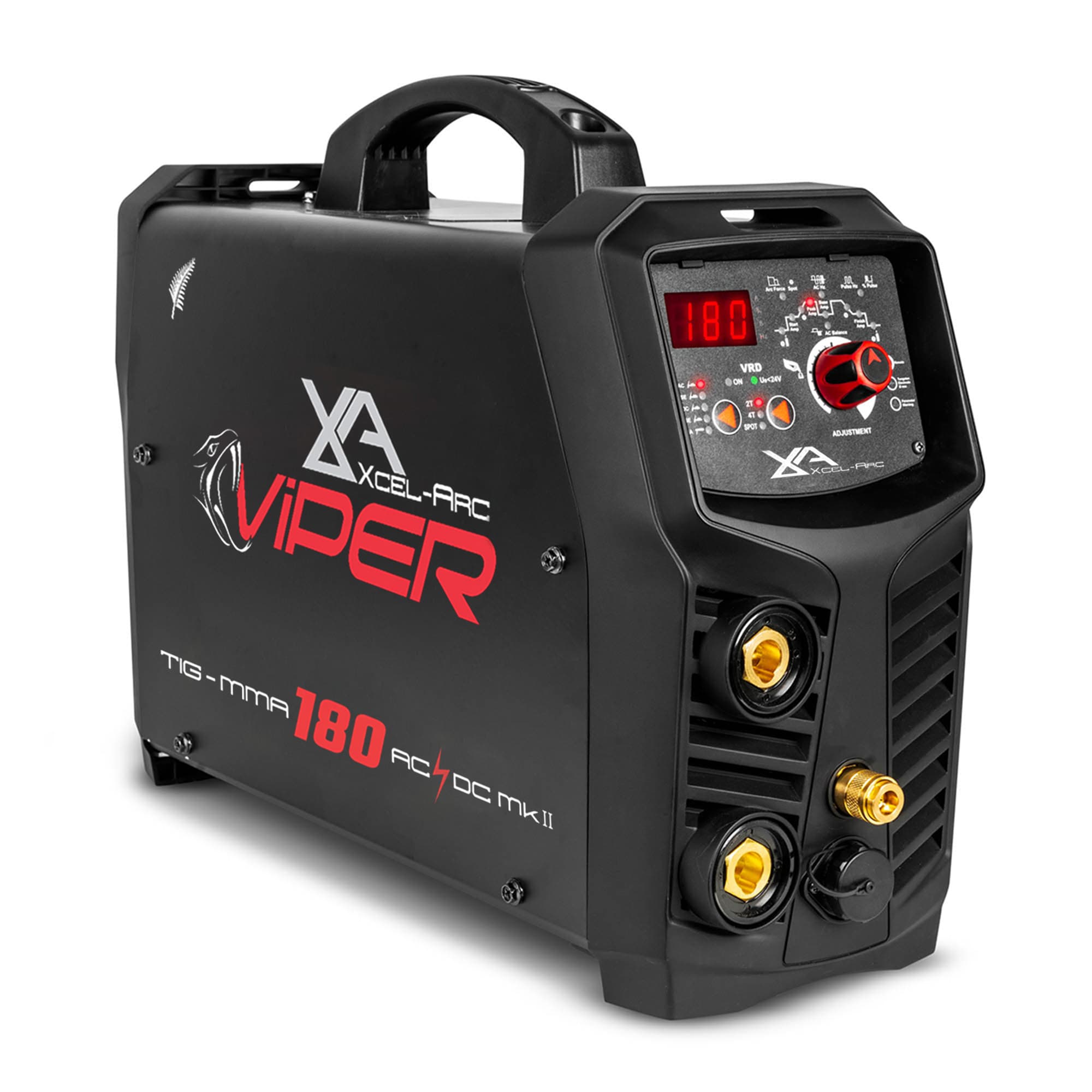

VIPER™ TIG180 AC/DC MKII TIG Welder

XA-TIG180VACDCMK2-T2

10 AMP PLUG | H/F AC/DC TIG | REMOTE AMPERAGE CAPABLE

In stock

Find a stockistEnquire

10 AMP PLUG

Connect to any standard outlet.

AC/DC HIGH FREQUENCY TIG

Perfect for Aluminium.

PULSE FUNCTION

Minimise distortion on the welded material.

FOOT CONTROL READY

Extra versatility and convenience.

The VIPER™ 180 AC/DC MK II TIG & STICK Welder was made for the handyman who wants both AC and DC TIG welding at a good price. Fitted with your standard 10 AMP plug, it makes itself at home in any workshop. This updated MK II Version is both smaller and lighter over its predecessor.

The VIPER™ 180 AC/DC allows for full control over the High-Frequency TIG welding process to ensure you can maximise your results from start to finish. Controllable parameters include Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time, among many others.

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the VIPER™ 180 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

With all of these features packed into an affordable package, the VIPER™ 180 AC/DC is a must-have for any DIY TIG enthusiast.

AC/DC HIGH-FREQUENCY TIG

No need to arc up. High-Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the workpiece reducing the risk of contaminating the tungsten or the weld.
High Frequency TIG 1

PULSE TIG FUNCTION

Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.
Pulse TIG

10 AMP PLUG

Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
10 AMP Plug

FOOT CONTROL READY

This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.
320 ACDC Remote Control

Machine Specifications

Primary Input Voltage
240V Single Phase
Plug Type
10 AMP
Rated Input Power Kva
5.2
Ieff Amps
8.9
Rated Output
10-180A / 17.2V
No Load Voltage (V)
7-55
Protection Class
IP21S
Insulation Class
B
Minimum Generator (kVA)
0.7
Dinse Connection Size
35/50
Welds
AS/NZ60974-1
Plug Type
10 AMP
Rated Input Power (kVA)
5.20
Ieff (A)
8.9
Rated Output
5-180A
Insulation Class
F
Roller Size
9.0
Suitable Material
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
Warranty (Years)
2

MMA Specifications

Welding Current Range
10-130A
MIG Duty Cycle
5-180A
Electrode Range
2.5-3.2mm
Welding Thickness Range
2mm - 10mm
Welding Current Range
AC/DC HF TIG / AC/DC Pulse
Electrode Range
15% @ 180A
Welding Thickness Range
1-8mm

Stick Specifications

Stick Welding Current Range
10-130A
Stick Duty Cycle @ 40°C
15% @ 130A
Stick Electrode Range
2.5-3.2mm
Stick Welding Thickness Range
2-8mm
Arc Force
0-40

Size & Weight

Dimensions
480*166*344mm
Weight
11kg

Machine Features

VRD
Yes
Foot Control Connection
Yes
Thermal Overload Protection
Over Temperature Warning
